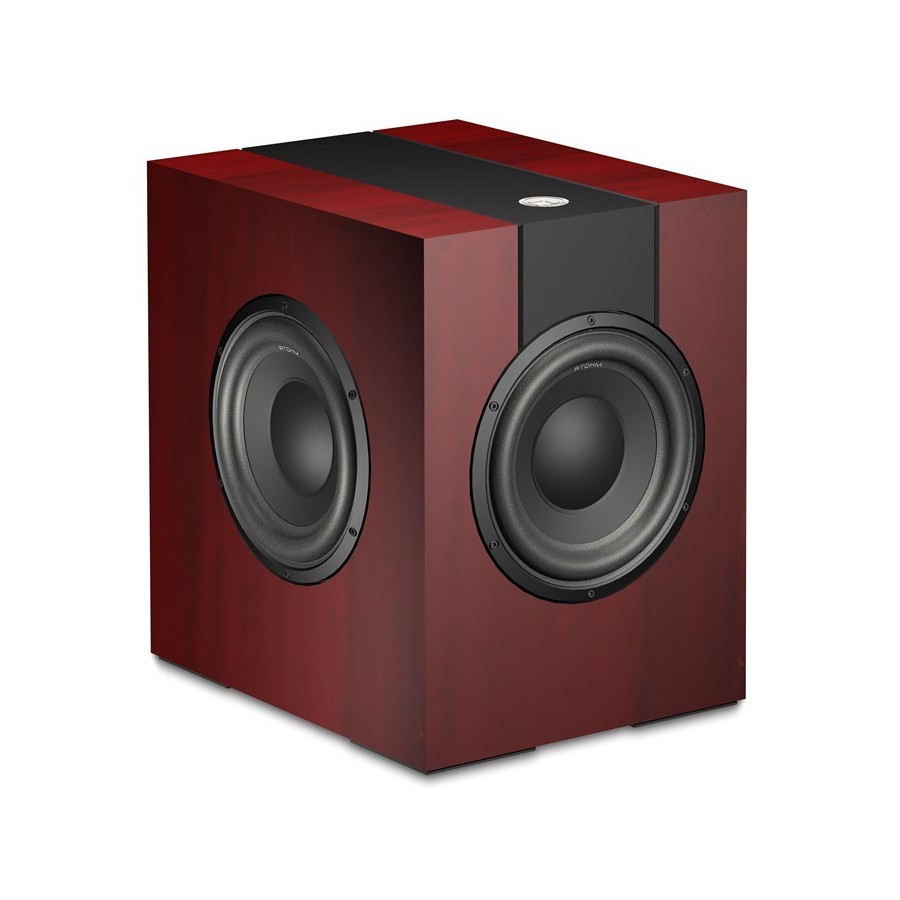

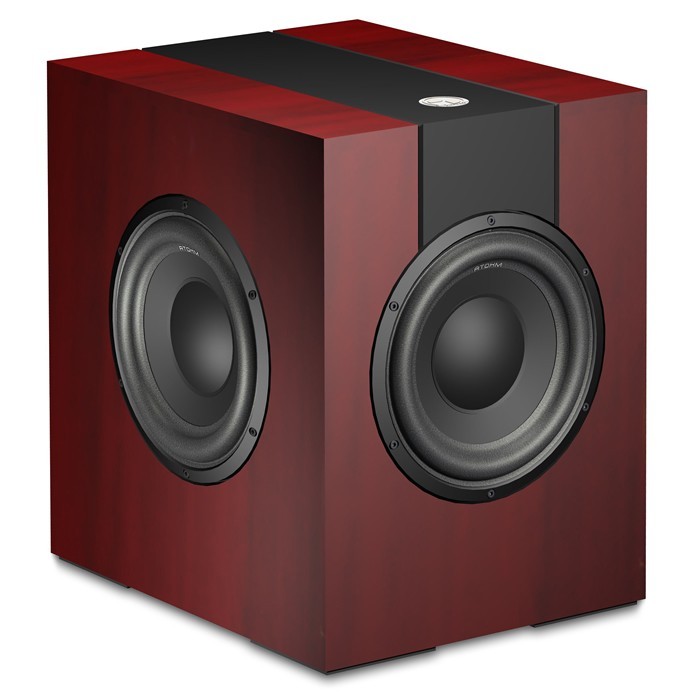

ATOHM Kit RAFALE SL3M-25 Subwoofer (Unit)

The Rafale SL3M-25 kit is compact considering its capabilities. It integrates seamlessly with the brand's speakers to provide you with a system that delivers exceptional sound quality.

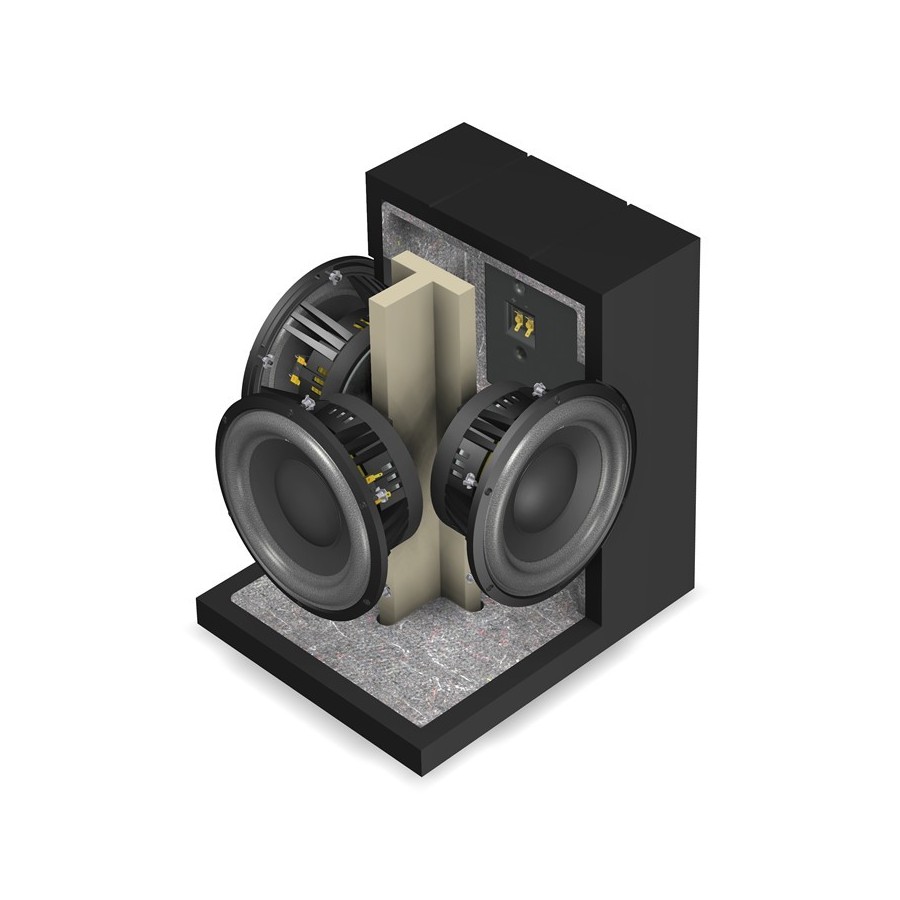

The 35-liter enclosure features a dedicated 500W amplifier via an S500 MK2-X module with an SL3M board, paired with three new, custom 23-cm drivers (LD230TDR08M).

The trio (of speakers) has a total radiating area equivalent to that of a 38-cm speaker, and when necessary, the associated electronics drive them to an excursion of up to ±15 mm!
The speakers’ powerful drivers, the “ideal” load coupling parameters (QT ≈ 0.7), and the unconditional control of the input signal (500 W Class D power amplifier / X-Guard technology) enable the reproduction of the deepest bass (23 Hz @ -3 dB) with unprecedented volume and speed.

The Rafale SL3M kit includes an S500 module with an SL3M board, three LD230TDR08M speakers, the necessary hardware, and a technical data sheet with detailed assembly diagrams.

Specifications:

• Active subwoofer: Active subwoofer channel for Rafale SL3M (not included) / 35L sealed enclosure
• Amplifier power: 500 Weff (S500 MK2-X with SL3M board)
• Frequency response: 23Hz to 150Hz
• Filter slope: adjustable 12dB–24 dB–LFE
• Cutoff frequency: adjustable from 38 to 150Hz
• Phase control: 0–180°
• High-level input: 2x RCA + 1 XLR
• Dimensions: 320 × 420 × 400mm
• Weight: 38kg
• Power supply voltage: 115 / 230V
• Power consumption: 700W max

• 3x HP LD230CR08M
• 1x S500 amplifier module
• Screws
• Badge
• Layout and wiring diagram
