Aune SC1 OCXO Clock Black

AUNE SC1 Clock 10MHz OCXO Sine Signal / Square Signal Black
The Aune SC1 is a high performance external clock embedding an optimized audio architecture, including the use of an OCXO oscillator and an FS-1 frequency synthesizer designed by Titans Audio Lab, with efficient power supply and signal isolation. It provides two 10M sine wave outputs and two 10M square wave outputs with a phase synchronization of less than 0.00001°.

Average votes for this product
5.0 / 5

By buying this product you get 69 loyalty points


Reference : 17430
New product

699,00 €tax incl.

582,50 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 23-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Aune SC1

Clock 10MHz OCXO Sine Signal / Square Signal Black

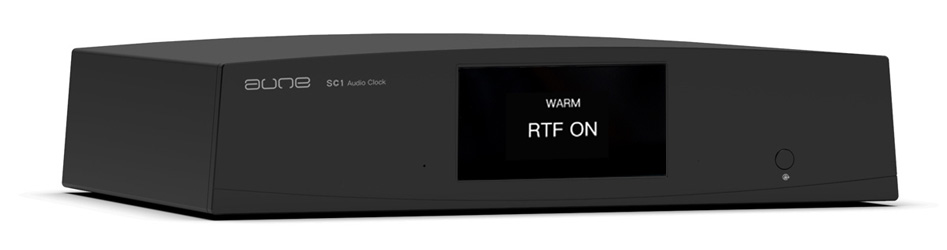

Aune SC1 Horloge 10MHz OCXO Noir

The Aune SC1 is a high performance external clock embedding an optimized audio architecture, including the use of an OCXO oscillator and an FS-1 frequency synthesizer designed by Titans Audio Lab, with efficient power supply and signal isolation. It provides two 10M sine wave outputs and two 10M square wave outputs with a phase synchronization of less than 0.00001°. It can also be powered in DC or AC. Its power supply stage incorporates a high-current, low-noise LDO to provide a clean and stable electrical signal to the OCXO clock.

Aune SC1 Horloge 10MHz OCXO Noir
1Screen
2ON/OFF outputs button
310MHz sine signal outputs
410MHz square signal outputs
512VDC power supply input
6Power button
7100-240VAC power input
8WCK outputs

Technical characteristics

Specifications
Product typeClock
Outputs4* 10MHz outputs on BNC connectors
Output power> 7dBm (50Ω)
Output waveform2* square signal
2* sine signal
Frequency accuracy< ±0.02ppm
Jitter< 200Fs BW 1Hz-1MHz
Phase noise (10MHz)< -100dBc @ Offset 1Hz
< -125dBc @ Offset 10Hz
< -145dBc @ Offset 100Hz
< -155dBc @ Offset 1kHz
< -160dBc @ Offset > 10kHz
Warm-up timeBasic: 5min
General
Supply voltage100-240VAC
12VDC 2A
Operating temperatureNormal operating: 0°C-50°C
Optimum operating: 15°C-35°C
Dimensions288*211*63mm
ColorBlack
Package1* Aune SC1 Black
1* Power cable
