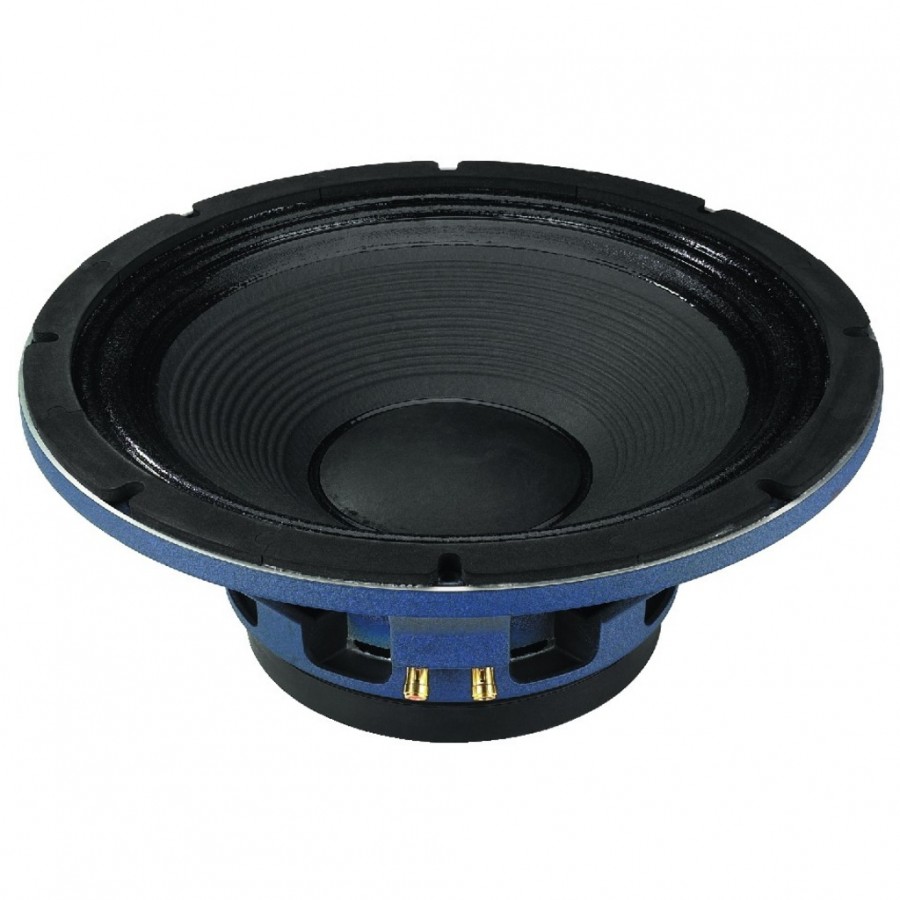

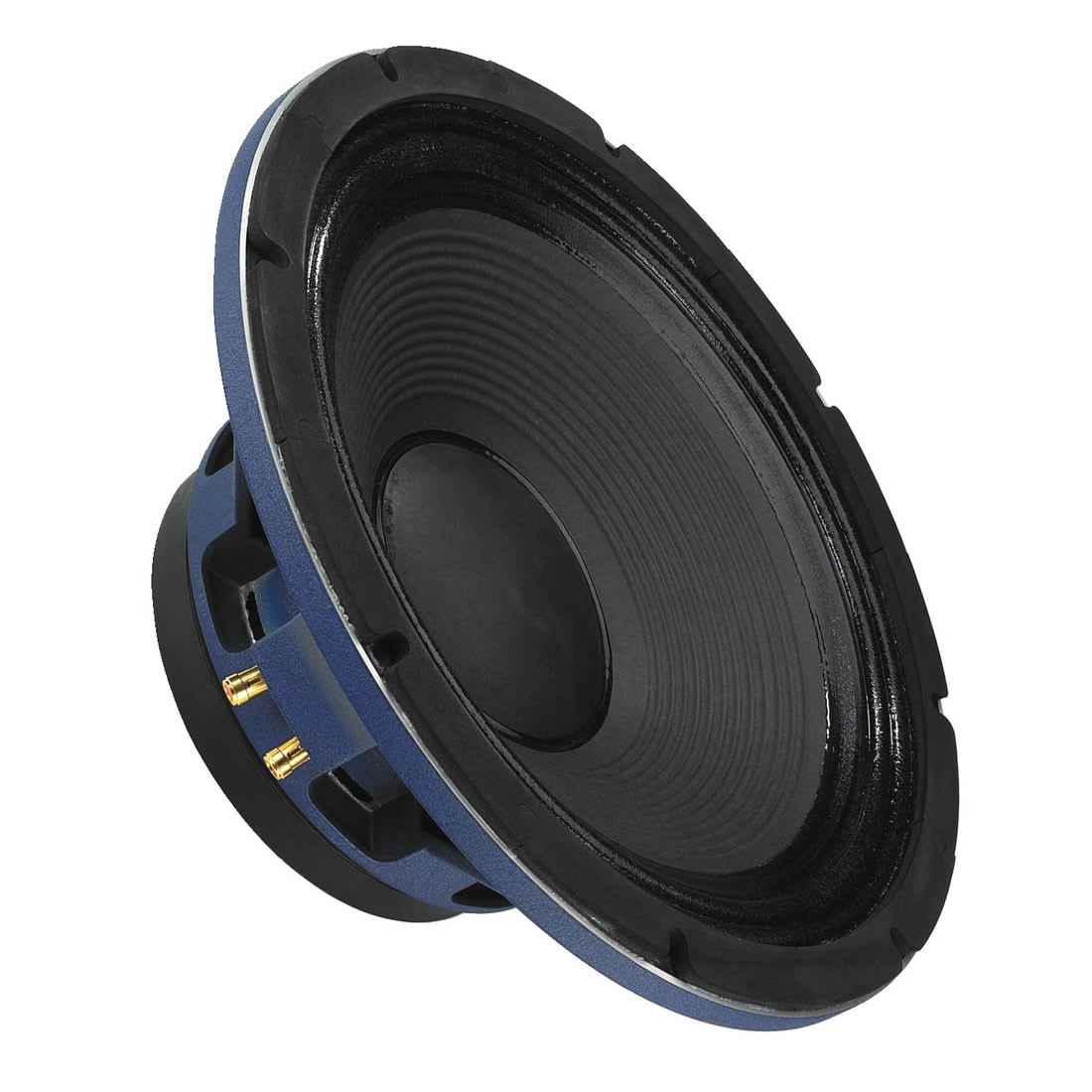

MONACOR SP-46A / 500BS Professional Speaker Driver Subwoofer 500W 8 Ohm 97dB Ø46cm
![[GRADE B] AUDIOPHONICS LPA-M750ET Power Amplifier Mono Class D Purifi 1ET9040BA 1x750W 4 Ohm](https://www.audiophonics.fr/69998-thumb_default/audiophonics-lpa-m750et-1et9040ba.jpg)
![[GRADE A] IEAST AUDIOCAST PRO M20 Streamer WiFi AirPlay DLNA Bluetooth 5.0 24bit 192kHz](https://www.audiophonics.fr/70008-thumb_default/ieast-audiocast-pro-m20.jpg)
![[GRADE A] DAYTON AUDIO HTA20 Hybrid Tube Class AB Amplifier Bluetooth 2x15W 4 Ohm](https://www.audiophonics.fr/70004-thumb_default/dayton-audio-hta20-hybrid-tube-class-ab-amplifier-bluetooth-2x15w-4-ohm.jpg)
![[GRADE S] EVERSOLO DMP-A8 Streamer AK4191EQ AK4499EX XMOS XU316 WiFi DLNA AirPlay Bluetooth aptX HD LDAC](https://www.audiophonics.fr/69953-thumb_default/eversolo-dmp-a8.jpg)
![[GRADE A] MINIDSP FLEX EIGHT Digital Audio Processor DSP 2x8 Channels SHARC ADSP21489 XMOS Bluetooth 5.0 aptX HD LDAC](https://www.audiophonics.fr/69968-thumb_default/minidsp-flex-eight-digital-audio-processor-dsp-2x8-channels-sharc-adsp21489-xmos-bluetooth-50-aptx-hd-ldac.jpg)
![[GRADE A] ASCILAB F6BS Bookshelf Speakers 125W 4 Ohm 83dB White (Pair)](https://www.audiophonics.fr/69996-thumb_default/ascilab-f6bs-white.jpg)
| The new Blue Components from IMG Stage Line: subwoofers with a particularly low low frequency for high efficiency, double spider mechanically very stable: professional bass for extreme low pressure Professional Subwoofer, 2000 WMAX, 8 Ω With double centering and settings for powerful bass even in medium cabinetry. Yield above average. The long stroke construction allows a mechanical transposition of extreme power, a subwoofer for truly deep sounds. Suitable for use in professional installations, in disco and on stage. |
 | Specifications Speakers | ||
 | | ||
| | ||
| Impedance (Z) | | 8 Ω |
| | ||
| Resonance frequency (fs) | | 36 Hz |
| | ||
| Maximum bandwidth | | f3-1800 Hz |
| | ||
| Freq. cut. (Fmax). | | 750 Hz |
| | ||
| Maximum power | | 2000 WMAX |
| | ||
| Nominal power (P) | | 500 WRMS |
| | ||
| Pressure sound. (1W / 1m) | | 98 dB |
| | ||
| Compliance susp. (Cms) | | 0.13 mm / N |
| | ||
| Movable mass (Mms) | | 141 g |
| | ||
| Mechanical resistance (Rms) | | 6.9 kg / s |
| | ||
| Mechanical overvoltage. (Qms) | | 4.75 |
| | ||
| Electrical overvoltage (Qes) | | 0.54 |
| | ||
| Fact. total overvoltage (Qts) | | 0.48 |
| | ||
| Volume equ. (VAS) | | 250 l |
| | ||
| DC resistance. (Re) | | 6 Ω |
| | ||
| Inductance coil. (The) | | 1.65 mH |
| | ||
| Coil diameter | | 100 mm |
| | ||
| Coil support | | Kapton |
| | ||
| Height of winding | | 20 mm |
| | ||
| Height gap | | 8 mm |
| | ||
| Linear Excursion (X MAX) | | ± 6 mm |
| | ||
| Transmitting surface (Sd) | | 1163 cm2 |
| | ||
| Flight. air displaced (Vd) | | 698 cm3 |
| | ||
| Force factor (BxL) | | 17.49 Tm |
| | ||
| Ref. (No) | | 2.25% |
| | ||
| Magnet diameter | | 238 mm |
| | ||
| Magnet weight | | 93.4 oz. |
| | ||
| cutting | | Ø 420 mm |
| | ||
| Mounting depth | | 205 mm |
| | ||
| dimensions | | Ø 470mm |
| | ||
| Weight | | 11.1kg |
| | ||
| Recommended Min Volume | | |
| | ||
| closed | | 120 l |
| | |||
| bass reflex | | > 150 l |
| | ||
| | ||
|
| Speaker Power (W RMS) | 500.0 |
| Speaker Type | Subwoofer |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 460.0 |
| Diaphragm type | Paper |
| Efficiency / Sensitivity (dB) | 97.0 |
| Max Linear Excursion (Xmax) (mm) | 6.0 |
| Lowest frequency (Hz) | N/A |
| Highest frequency (Hz) | 3500 |
