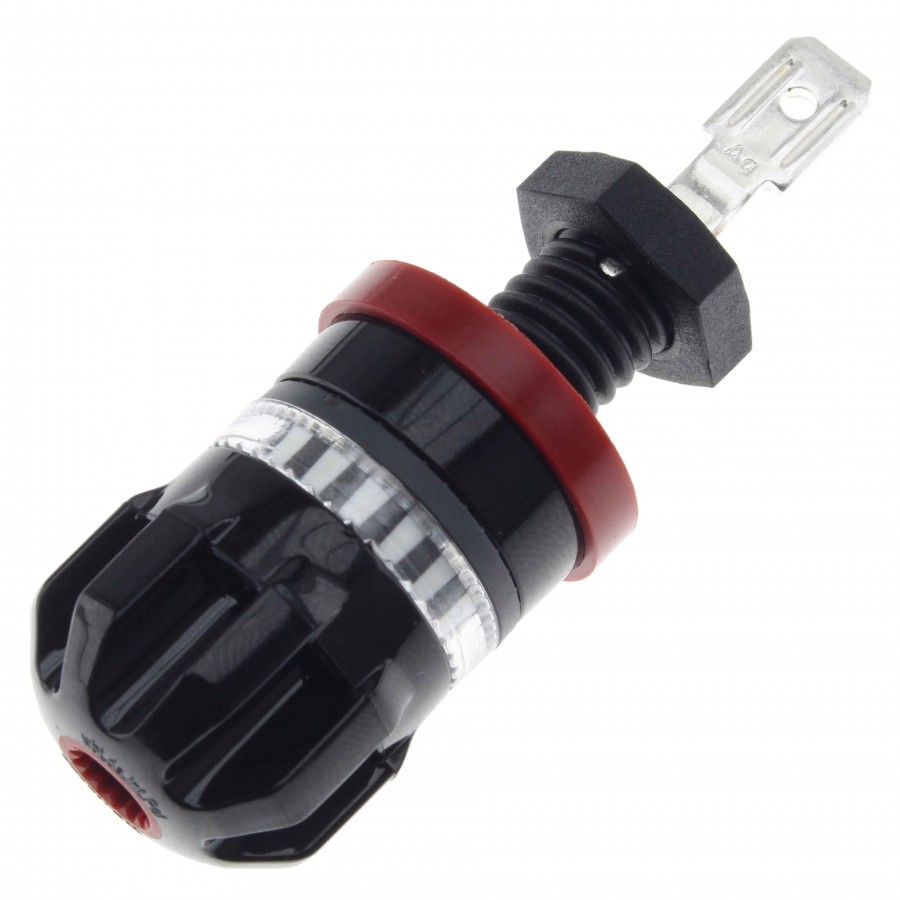

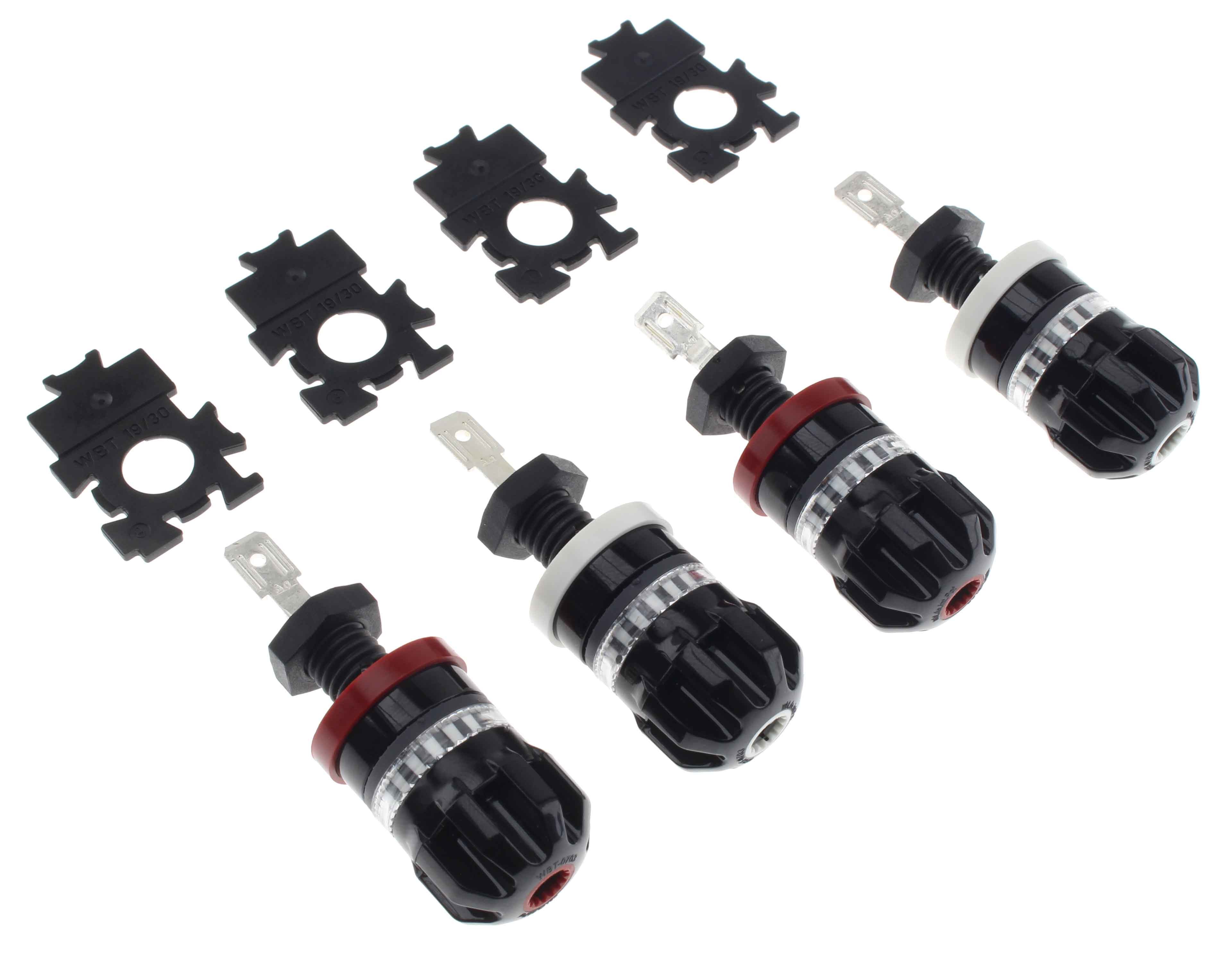

WBT-0703ag Terminal blocks for silver speaker (x4)
Coming from the latest generation of development by WBT, the Nextgen 0703 ag is fitted with silver conductors.
Thanks to the separation of the transmission line and the mechanical chassis, it is now possible to use superior quality materials for each of the elements of this terminal block. Although it is a better electrical conductor, copper or silver have some mechanical limitations which we have overcome by using high performance plastics.
In addition, the soul of this new terminal block consists of a single piece, thus avoiding any unnecessary resistance. The signal conductor is protected by a glass fiber matrix reinforced with mineral plastic and covered by a non-magnetic steel body. An additional elastomer damping system drastically limits the vibrations transmitted to the driver. The microphone effect is thus greatly reduced in favor of the precision of the transmitted sound signal.
The design of this product makes every effort to ensure the best electrical isolation.
SPECIFICATIONS :
Max cross section conductor : Internal & external 4mm² (11 AWG)
External Connection : banana plug 4mm, spades 6 ou 8mm, crimped bare wire.
Connexion interne : Weldou or 6.3mm flat connector.
Panel mount max thickness : from 0.9 to 10mm
Identification : 2 red, 2 white
Silver conductors
