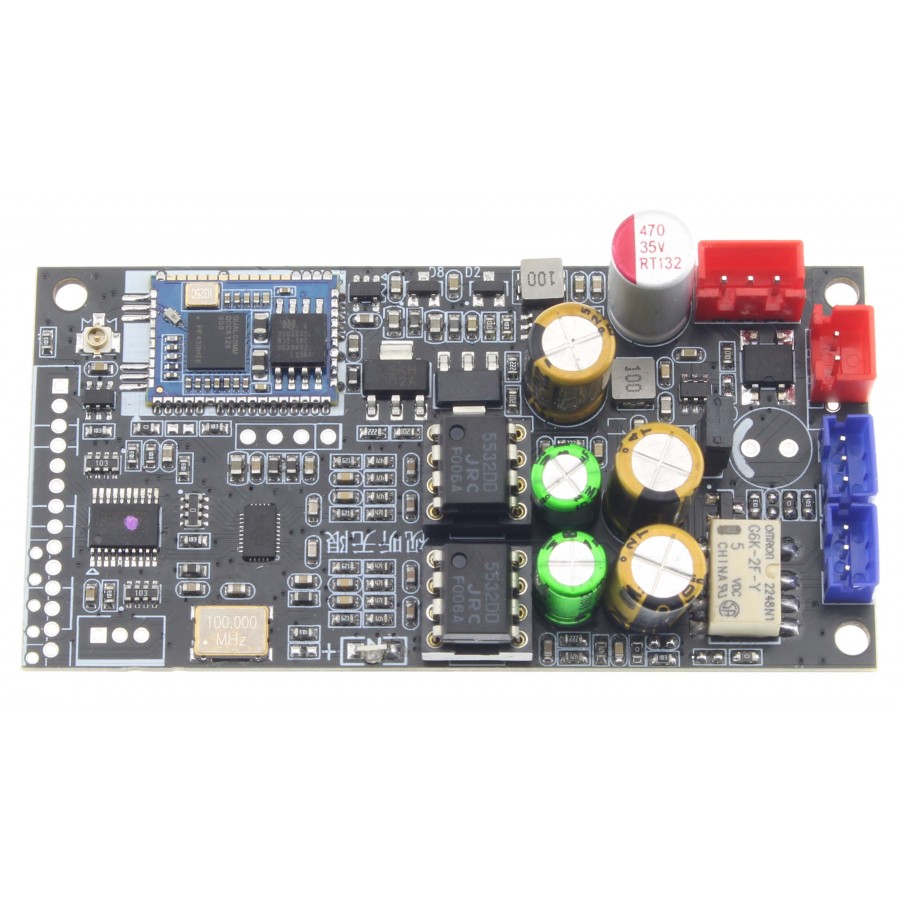

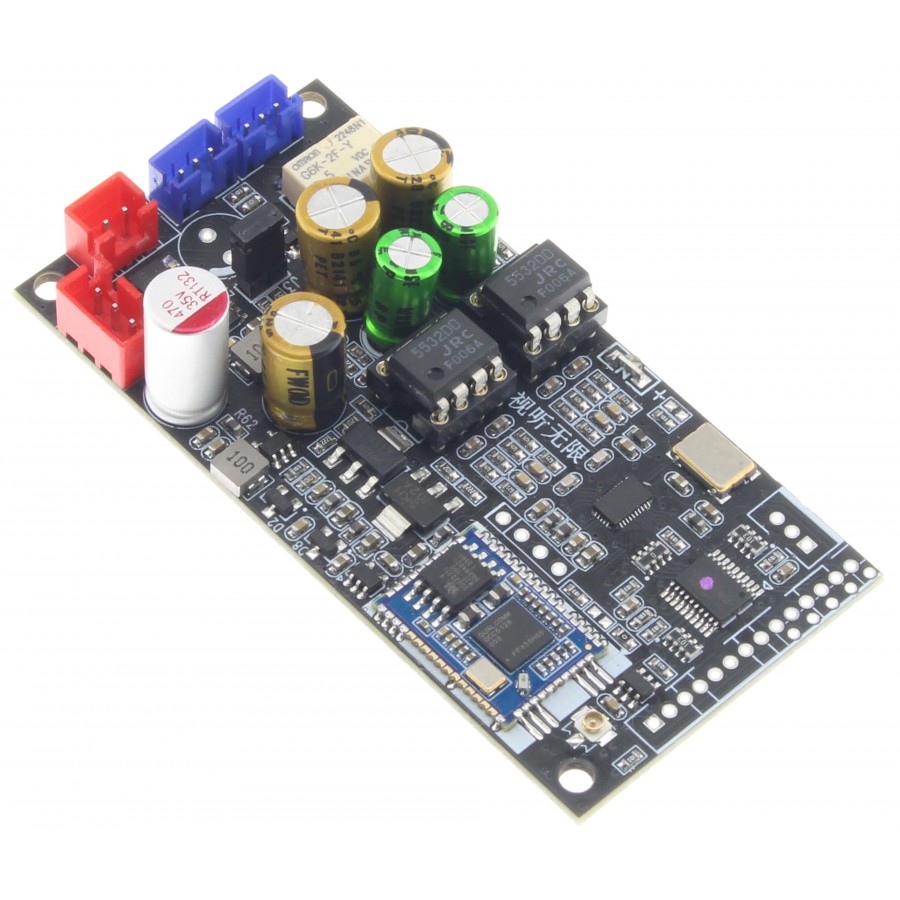

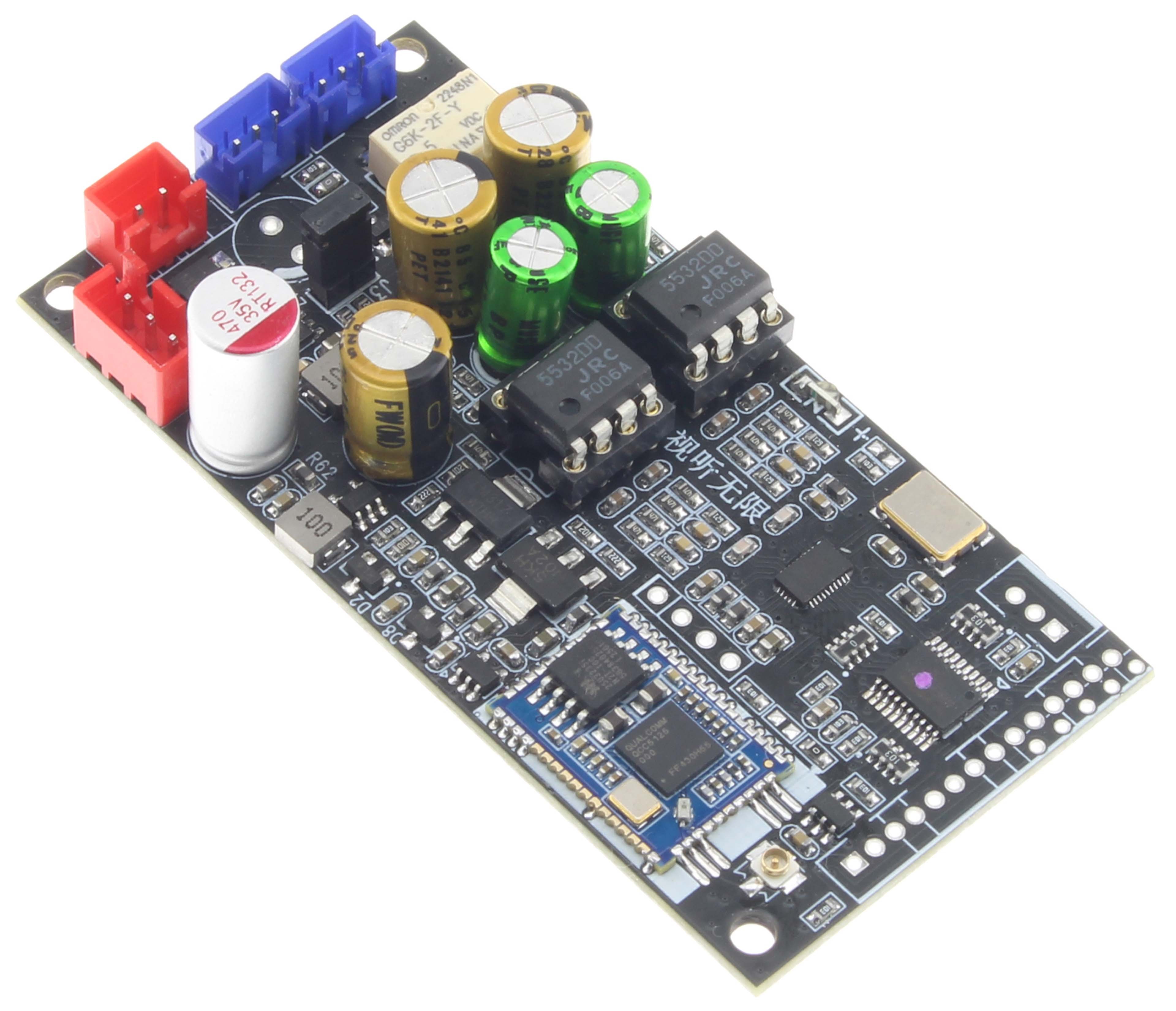

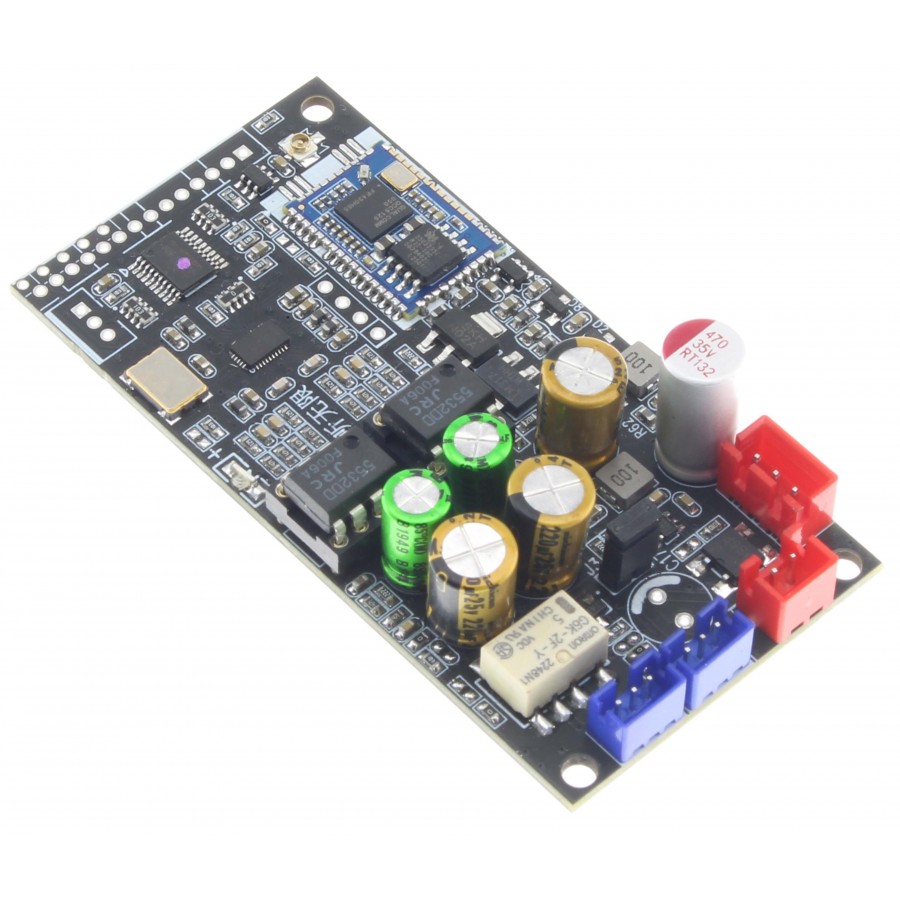

Bluetooth 5.1 Receiver Module QCC5125 aptX HD LDAC DAC ES9038Q2M
By buying this product you get 5 loyalty points
BLUETOOTH 5.1 RECEIVER MODULE
QCC5125 aptX HD LDAC DAC ES9038Q2M
This small and handy Bluetooth 5.1 receiver module will allow you to integrate a wireless reception capability in your DIY audio projects. It will thus be possible to broadcast your music remotely directly from a smartphone or a tablet.
The Bluetooth reception of this module is ensured by a Qualcomm QCC5125 chip, which offers support for high-resolution transmission codecs with aptX and aptX HD, allowing you to enjoy superior sound quality.

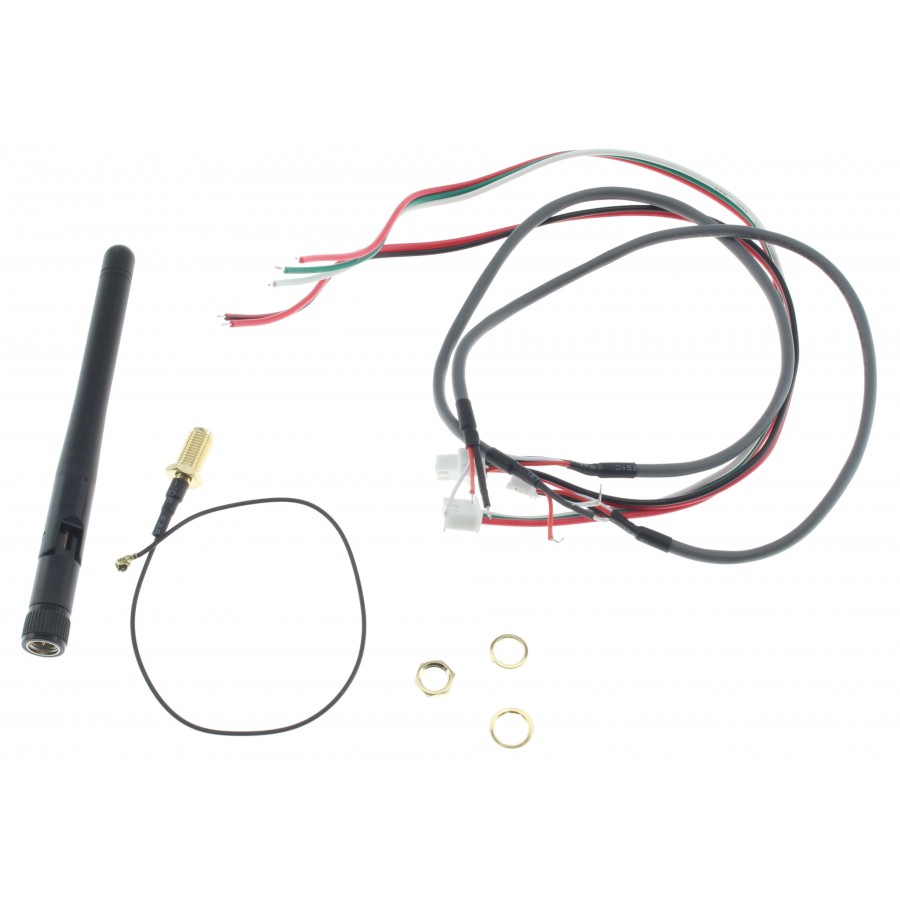

In addition, the module comes with an antenna to improve the quality and distance of reception. It also has an additional analog input on XH2.54mm connector.

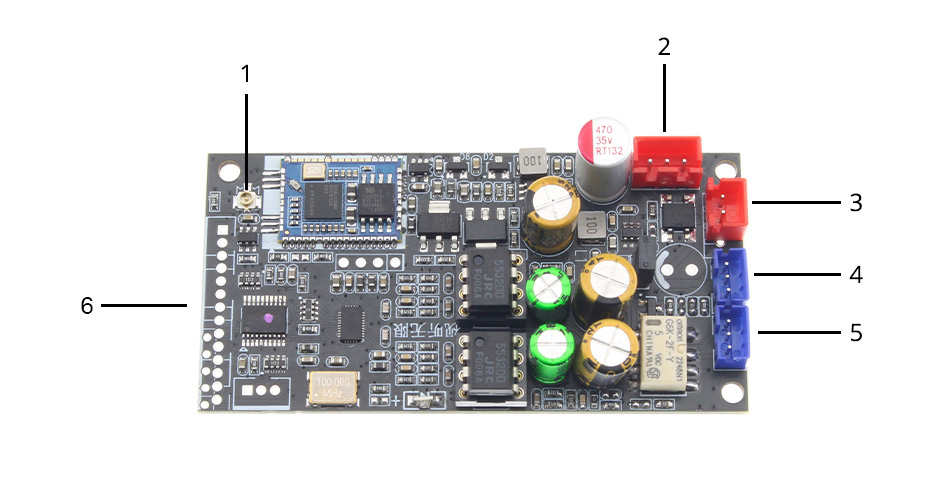

Bluetooth Receiver Module Overview
| 1 | Bluetooth antenna connector |
| 2 | 5-15V AC/DC power supply |
| 3 | 7-20V DC power supply |
| 4 | Audio output |
| 5 | Audio input |
| 6 | IR solder pads |
| 7 | I2S input |
The analog audio input works by default when connected, but automatically switches to wireless mode when Bluetooth is connected.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Bluetooth receiver module |
| Inputs | Bluetooth 5.1 1*Analog input on XH2.54mm |
| Outputs | 1* Analog output on XH2.54mm |
| Bluetooth chip | Qualcomm QCC5125 |
| DAC chip | ESS ES9038Q2M |
| Supported transmission codecs | SBC, AAC, aptX, aptX LL, aptX HD |
| General | |
|---|---|
| Power supply voltage | 5-15V AC/DC or 7-20VDC (1A max.) |
| Dimensions | 40*80*12mm |
