Pack TINYSINE Bluetooth Programmer CSR USB-SPI + Connection Cable TC2050-IDC-NL

Pack TINYSINE Bluetooth Programmer CSR USB-SPI + Connection Cable TC2050-IDC-NL
If you have purchased a Bluetooth CSR chip and want to program it to suit your needs, then this package is for you. It contains a small USB-CPI CSR programmer module and a TC2050-IDC-NL cable to connect the programmer to the module on which the CSR chip is located.

No customer reviews yet, login to write a review.

By buying this product you get 9 loyalty points


Reference : 12916
New product

99,00 €tax incl.

82,50 € tax excl.
Instead of 106,90 €
Including 0,01 € for green tax

- +

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Pack content


More info

Pack TinySine CSR USB-SPI + TC2050-IDC-NL

Bluetooth CSR Programmer and Connection Cable

If you have purchased a Bluetooth CSR chip and want to program it to suit your needs, then this package is for you. It contains a small USB-CPI CSR programmer module and a TC2050-IDC-NL cable to connect the programmer to the module on which the CSR chip is located.

TinySine CSR USB-SPI


This USB-SPI CSR card will allow you to program your CSR Bluetooth chips. This module has a much better download speed than a parallel port programmer. This programmer supports all CSR debug tools (BlueFlash, PSTOOL, BlueTest3, BlueLab). You will also be able to change the Bluetooth name of your Bluetooth receivers or amplifiers.

Supported CSR chip :

  • BC2 Series (example : BC215159A, etc.)
  • BC3 Series (example : BC31A223, bC358239A, etc.)
  • BC4 Series (example : BC413159A06, BC417143B, BC419143A, etc.)
  • BC5 Series (example : BC57F687, BC57E687, BC57H687C, etc.)
  • BC6 Series (example : BC6110, BC6130, CSR6030, BC6888, etc.)
  • BC7 Series (example : BC7820, BC7830, etc.)
  • BC8 Series (example : CSR8610, CSR8620, CSR8645, CSR8670, etc.)
  • BLE Series (example : CSR1000, CSR1001, etc.)

CSR USB-SPI Technical characteristics

Specifications
Double output voltage3.3V
1.8V
SPI logical stagePossibility of choosing between 1.8V or 3.3V (for 3.3V connect the pin 3.3V to the pin GND)
ProtectionShort-circuit

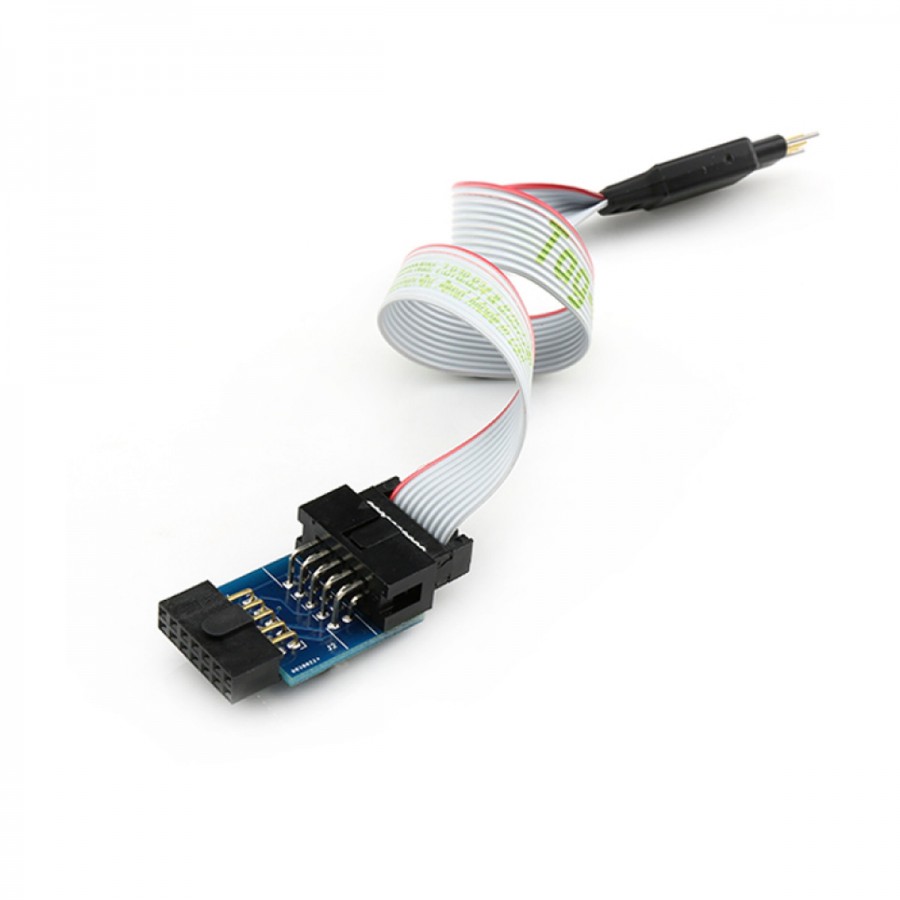

TinySine TC2050-IDC-NL


This TC2050-IDC-NL cable will allow you to quickly and easily connect a debugger, programmer or other test equipment to your PCB.

The cable uses a special design (patent pending) for its connector allowing to do without a programming header or other adapter on each PCB. Instead, the cable offers a connector with spring-loaded pins to fit the different connectors on your PCBs.

To summarize, the cable has a TC2050-NL 10-pin connector on the one hand and a standard 0.1" grounding connector on the other. It will therefore be usable with most MCU, FPGA and JTAG.


Data sheet
InputPCB Connector
OutputPCB Connector
