TINYSINE AUDIO-B I2S-SMA Bluetooth 4.2 Receiver Module I2S aptX SMA

TINYSINE AUDIO-B I2S Bluetooth 4.2 Receiver Module I2S aptX SMA
If you want to build a Bluetooth amplifier with I2S output simply and stream your music from your smartphone, then the TinySine Bluetooth AudioB I2S SMA receiver module is an excellent choice.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 12938
New product

12,42 €tax excl.

Including 0,01 € for green tax
Available

- +

Shipping date: 19-11-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product


More info

TinySine Audio-B I2S SMA

Bluetooth 4.2 Receiver Module I2S aptX SMA

TinySine AudioB I2S Module Récepteur Bluetooth aptX SMA

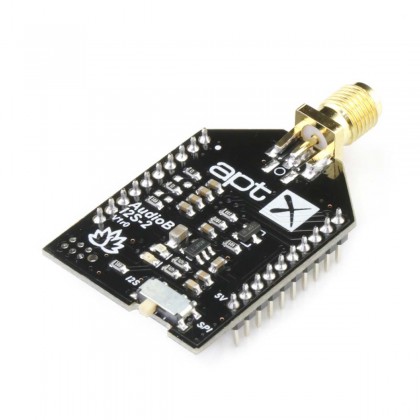

If you want to build a Bluetooth amplifier with I2S output simply and stream your music from your smartphone, then the TinySine Bluetooth AudioB I2S receiver module is an excellent choice. It is indeed a Bluetooth 4.2 stereo receiver based on a CSRA64215 chip with an I2S output for a quality audio transmission, allowing to support sampling rates up to 16bit 48kHz. The module has two sets of 10 pins, each pin spaced 2mm from the others for easy integration into your project. In addition, an SMA port will allow you to connect a 2.4G antenna for longer operating distance.

In addition, Bluetooth version 4.2 will allow you to achieve very good data transfer rates and the aptX protocol supported by the chip ensures both better signal stability and better synchronization. All this contributes to a much better sound reproduction.

Correspondence table of the module pins


Mounting schema


Technical characteristics

Specifications
Bluetooth version4.2
Supported protocolsaptX
OutputI2S (Left justified, 1bit delay)
Sampling rateUp to 16bit 48kHz
Antenna connectorSMA
Consumption5mA @ 5V
Supported Bluetooth profilesHFP V1.6
HSP V1.2
A2DP V1.2
AVRCP V1.4
Supports smartphone applications-
