TINYSINE PCB-I2S PCB for Audio-B Bluetooth I2S Receiver

PCB-TINYSINE-I2S PCB for Bluetooth I2S Receiver
This PCB allows easier mounting of Bluetooth modules to I2S TinySine Audio-B I2S and Audio-B I2S SMA. Once assembled, the Audio-B module and this PCB-I2S will provide you with an easy-to-wire I2S output and an analog and bluetooth input.

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 13326
New product

1,58 €tax excl.

Available

- +

Shipping date: 02-03-2020.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

TinySine PCB-I2S

PCB for Audio-B Bluetooth I2S Receiver

TINYSINE PCB-I2S PCB pour Récepteur Bluetooth I2S

This PCB allows easier mounting of Bluetooth modules to I2S TinySine Audio-B I2S and Audio-B I2S SMA. Once assembled, the Audio-B module and this PCB-I2S will provide you with an easy to wire I2S output (GND, BCK, LRCK, DATA), contacts for 5V power supply, to add an analog input and finally to add an input selector (select Bluetooth or analog input).

Note: The PCB-I2S is sold alone. The Audio-B I2S and Audio-B I2S SMA modules are sold separately.

Note 2 : We strongly recommend that you add Strip Connectors between the PCB-I2S and your Audio-B module for a cleaner mounting.

Diagram

TinySine PCB-I2S PCB pour récepteur bluetooth i2s

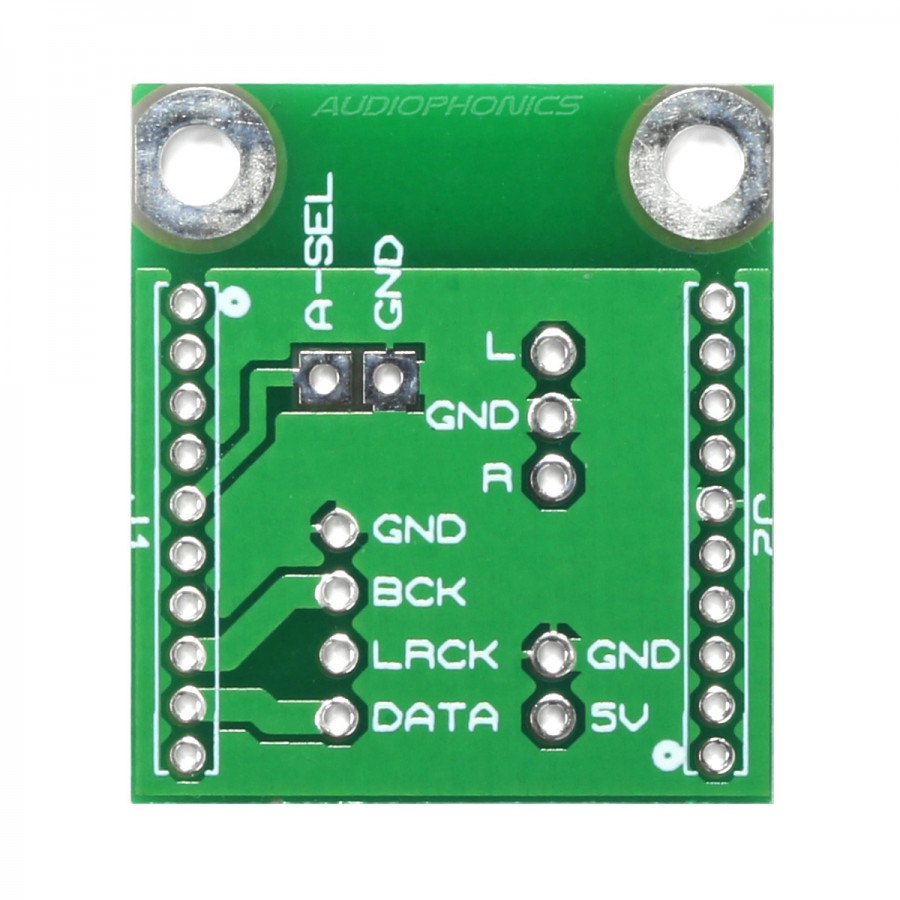

1Analog input
2Sélecteur de source
3Alimentation
4Sortie I2S
5Connecteur module Bluetooth

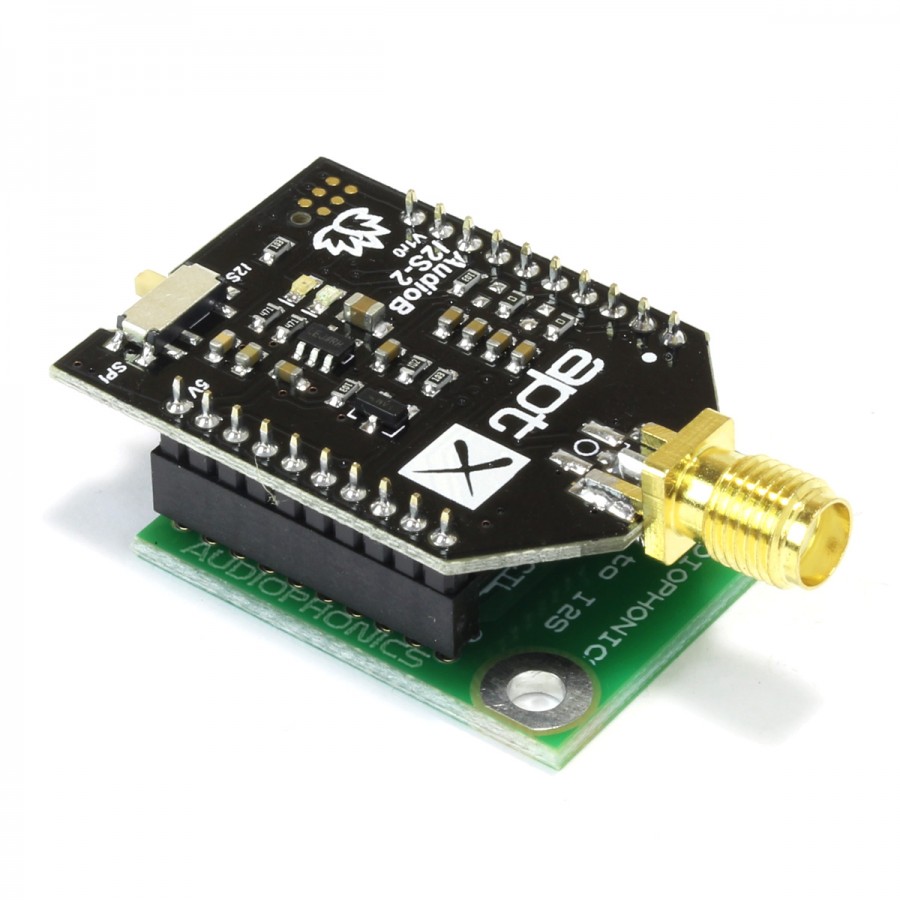

Mounting direction PCB + Audio-B

TinySine PCB pour Audio-B

Technical characteristics

Specifications
Product typePCB for Audio-B Bluetooth I2S Receiver
InputsBluetooth
Analog
OutputI2S (GND, BKC, LRCK, DATA)
Power supply5V
Dimensions29.2 x 26.5mm
Fixation holes spacing20mm

Data sheet
InputBluetooth
OutputI2S
