UP2STREAM WA31 Receiver Module DLNA AirPlay Wifi Multiroom Analog and I2S

UP2STREAM WiFi Receiver IEEE b/g/n 150Mbps DLNA AirPlay 24bit 192kHz
The Up2Stream is a WiFi module dedicated to audio use that allows you to bring WiFi connectivity to a device that previously lacked this connectivity, such as speakers or an amplifier.

Average votes for this product
5.0 / 5

By buying this product you get 2 loyalty points


Reference : 12999
New product

29,08 €tax excl.

Including 0,01 € for green tax

- +

Last items in stock !

Shipping date: 09-07-2020.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Ce modèle est remplacé par le Arylic Up2Stream Mini V3.

Up2Stream

WiFi Receiver IEEE b/g/n 150Mbps DLNA Airplay 24bit 192kHz

Up2Stream Récepteur WiFi IEEE b/g/n 150Mbps DLNA Airplay 24bit 192kHz

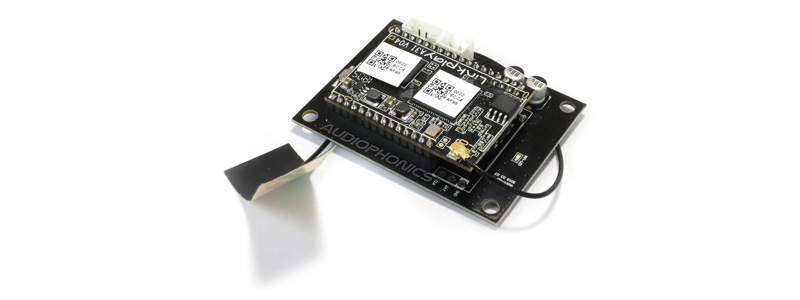

The Up2Stream is a WiFi module dedicated to audio use that allows you to bring WiFi connectivity to a device that previously lacked this connectivity, such as speakers or an amplifier. You can also drive a DAC throught the I2S fixed output.

Up2Stream Wifi Airplay DLNA

An efficient WiFi transmission

This module benefits from the IEEE 802.11 b/g/n WiFi standard allowing it to achieve excellent transmission speeds up to 300Mbps (150Mbps per channel). Thus, once set up, the module will be able to ensure a stable reception of the audio signal for a clean restitution.

The module works as an access point but does not stop there since it is also compatible with AirPlay and DLNA standards but also Spotify Connect or Qplay. It is thus possible to stream your music very simply from your smartphone or your computer. The module is also compatible with the Qobuz high definition music streaming service.

In addition, the module incorporates an adhesive WiFi antenna to increase the signal's range.

A module designed for audio

With this module, wireless transmission goes hand in hand with quality audio playback. Indeed, the module supports high sampling rates, up to 24bit 192kHz. As a result, you can enjoy all your high quality files, while enjoying the convenience of wireless transmission.

Of course, the Up2Stream supports all popular audio formats such as FLAC, AAC+, ALAC, MP3, APE or WAV. It also offers multi-channel and multiroom playback for those who want to enjoy their music in different rooms.

Up2Stream Wifi pour audio

Müzo, an effective player with many possibilities

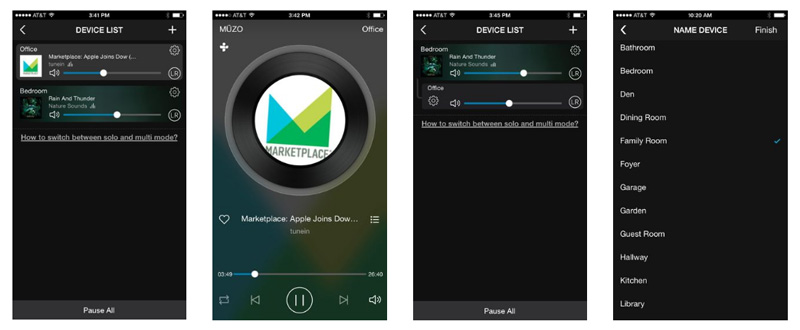

Up2Stream Muzo Application

The Up2Stream proposes to use (although it is not an obligation) the Müzo mobile application. It is a powerful player with an intuitive interface. It integrates Multiroom and multi-channel support so you can listen to the same or different music in your different rooms, or to enjoy the radio in one room and listen to your own files from another.
This application also offer possibility to separate Left and Right channel of an audio stream, for example to use 2 modules in 2 separated speakers.

Müzo is also multi-source since the application works on smartphone, tablet, but also in DLNA, AirPlay and Qplay. Finally, you can also add to all this the possibility to create playlists. In addition, Müzo also supports several streaming services such as Spotify, Tidal, Napster or iHeartRadio radio.

logo-playstore.jpg logo-appstore.jpg

iEast Play, an alternative with official Qobuz support!

Up2Stream application iEast Play

It is also possible to use the iEast Play application as an alternative to Müzo. If most of the functionalities are found in each of the applications, one will note however a different interface and a different design but especially the official support of the application of High-Fidelity Streaming, Qobuz. A point which will not fail to seduce audiophiles, in search of quality files. Of course, the application also supports streaming applications such as Spotify, Tidal, Napster, QQMusic, iHeartRadio, Pandora and web radios.

For the rest, we will find all the features of Müzo, namely remote playback control, high resolution file support, multiroom and support for DLNA, Airplay, Qplay protocols.

logo-playstore.jpg logo-appstore.jpg

How to install and configure the Up2Stream?

Before the Up2Stream can be used it requires a short configuration. Note that it will be mandatory to go through the Müzo application for the first configuration. You will find in the "Download" section of this page the user manual allowing you to carry out this commissioning.

Analog out : OUT R / GND / OUT L / WPS
I2S fixed out : I2S DIN / BCK / LRCK

Technical characteristics

Specifications
THD0.009%
SNR89dB
Frequency response20Hz - 20kHz
Sampling rate24bit 192kHz
WiFiIEEE 802.11 b/g/n 2.4Ghz
Tranmission distance (max)150m
Supported streaming protocolsDLNA, Airplay, Spotify Connect, QPlay, Qobuz
Supported file formatsFLAC, WAV, AAC+, MP3, ALAC, APE
Audio outputAnalog, 4 pins (PH 2.0)
I2S Fixed volume on solder pads
WiFi AntennaYes
General
Power supplyVia 2 pins connector (pins spacing 2.54mm)
DC 5V 1A
Dimensions du PCB54x42mm
Package1x Module Up2Stream
1x 2 pins cable
1x 4 pins cable
1x adhesive antenna
