WONDOM BRB6P Bluetooth Receiver 4.0 aptX CSR8645 with Control Panel

WONDOM BRB6P Bluetooth Receiver 4.0 aptX CSR8645 with Control Panel
With the BRB6P, Wondom offers a Bluetooth receiver module that is easy to install, powerful and delivered with a control panel (front panel) to act directly on the playback of your files.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 13255
New product

24,92 €tax excl.

Including 0,04 € for green tax

- +

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

WONDOM BRB6P

Bluetooth Receiver 4.0 aptX CSR8645 with Control Panel

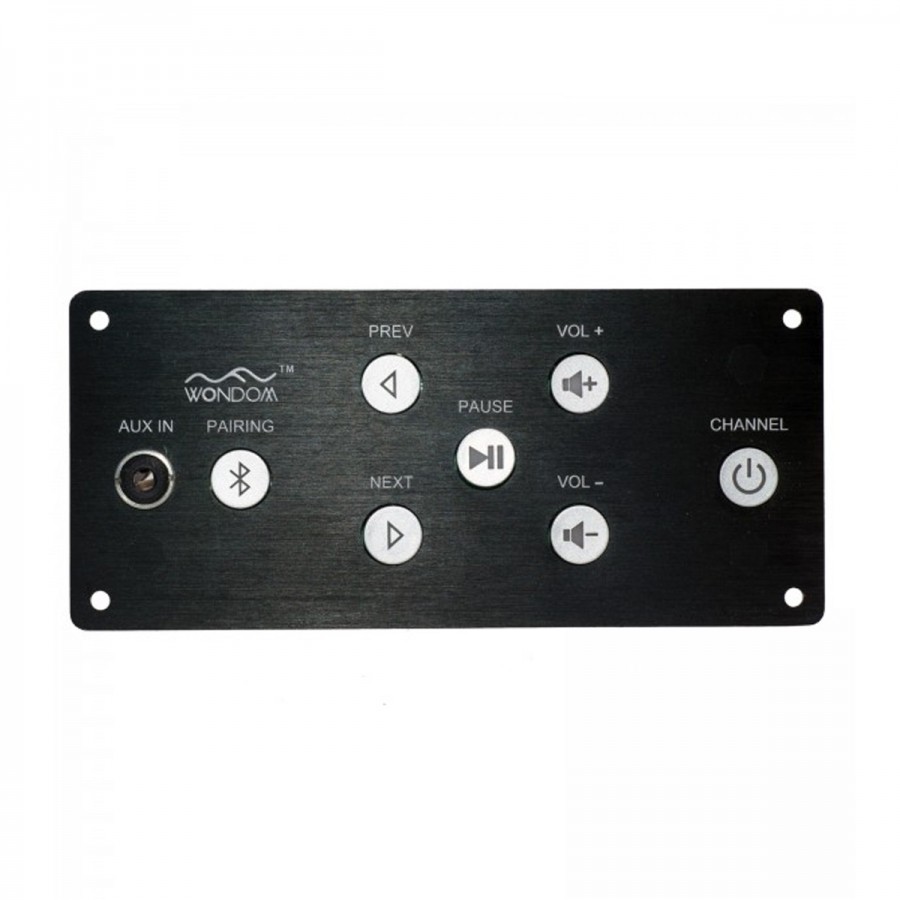

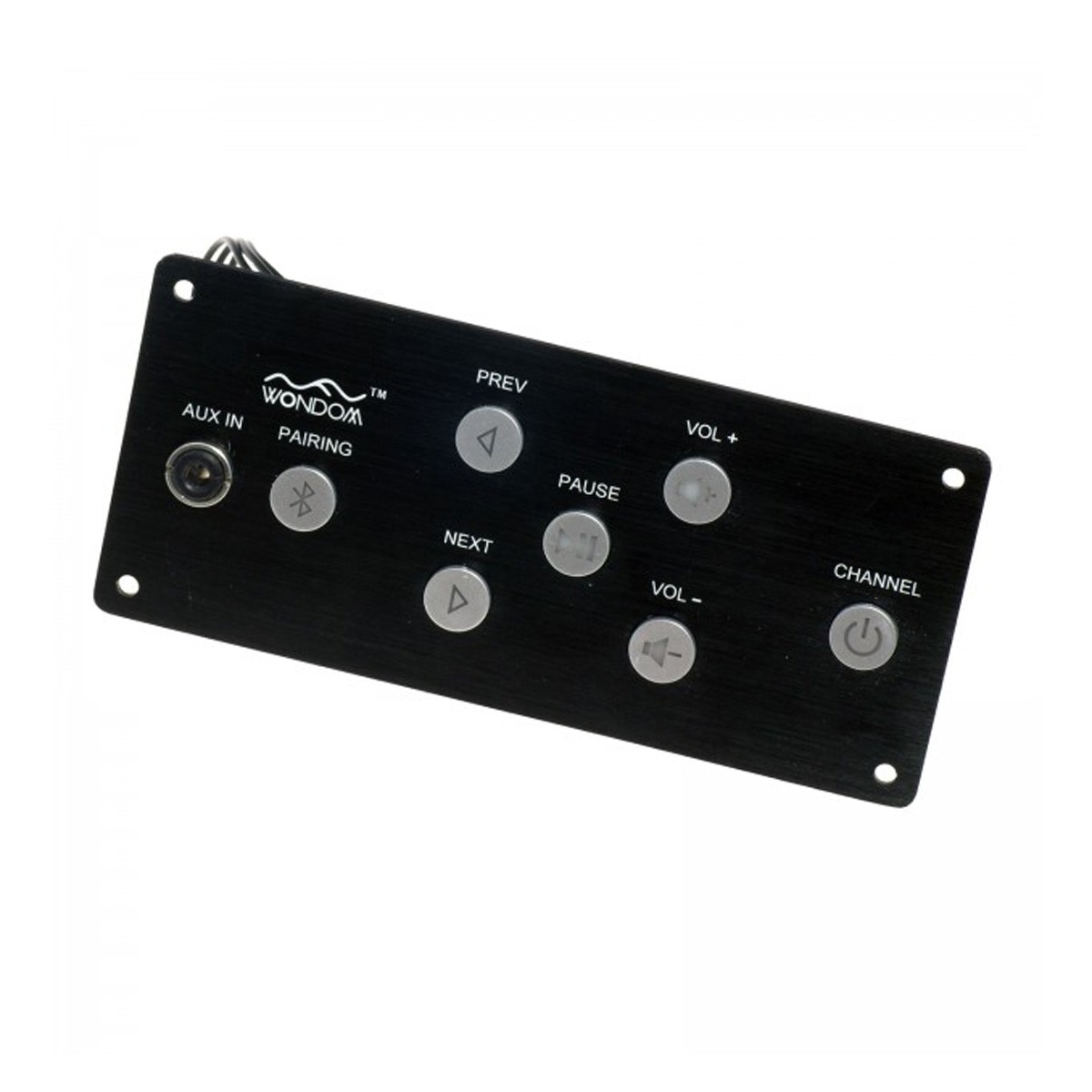

With the BRB6P, Wondom offers a Bluetooth receiver module that is easy to install and comes with a control panel (front panel) to act directly on the playback of your files. The latter has essential functions such as source selection (Bluetooth or line), switching to the next or previous track, volume up/down, a button to pause playback, as well as a button to pair your device to the receiver.

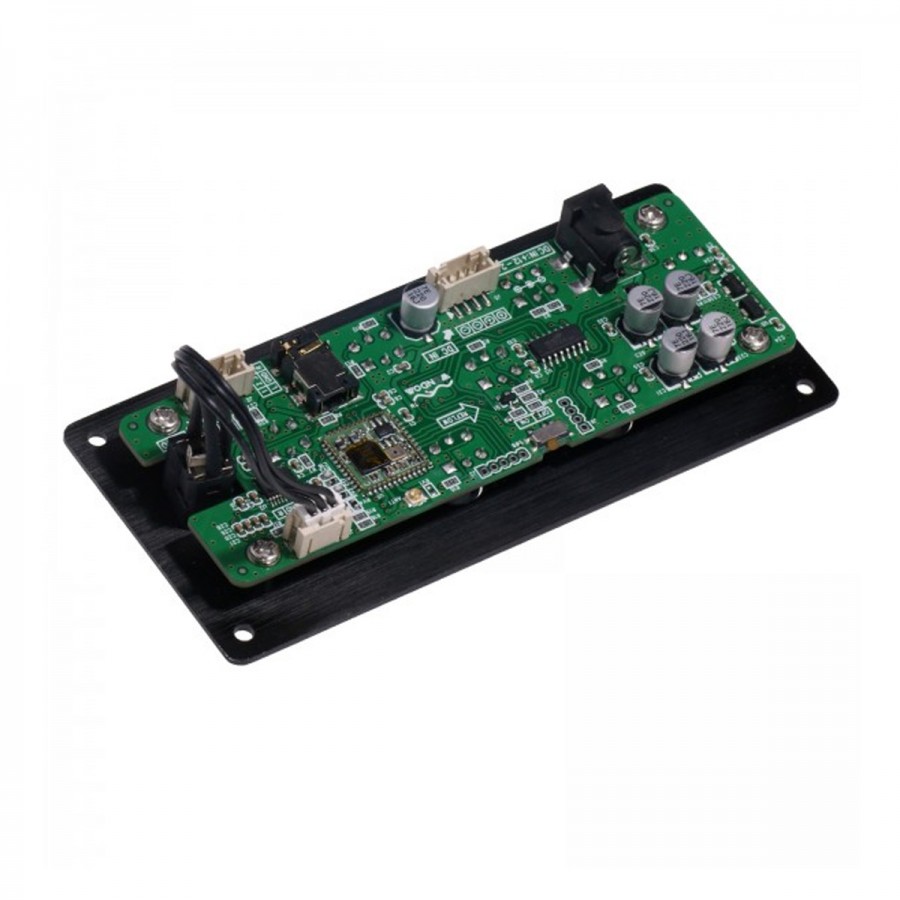

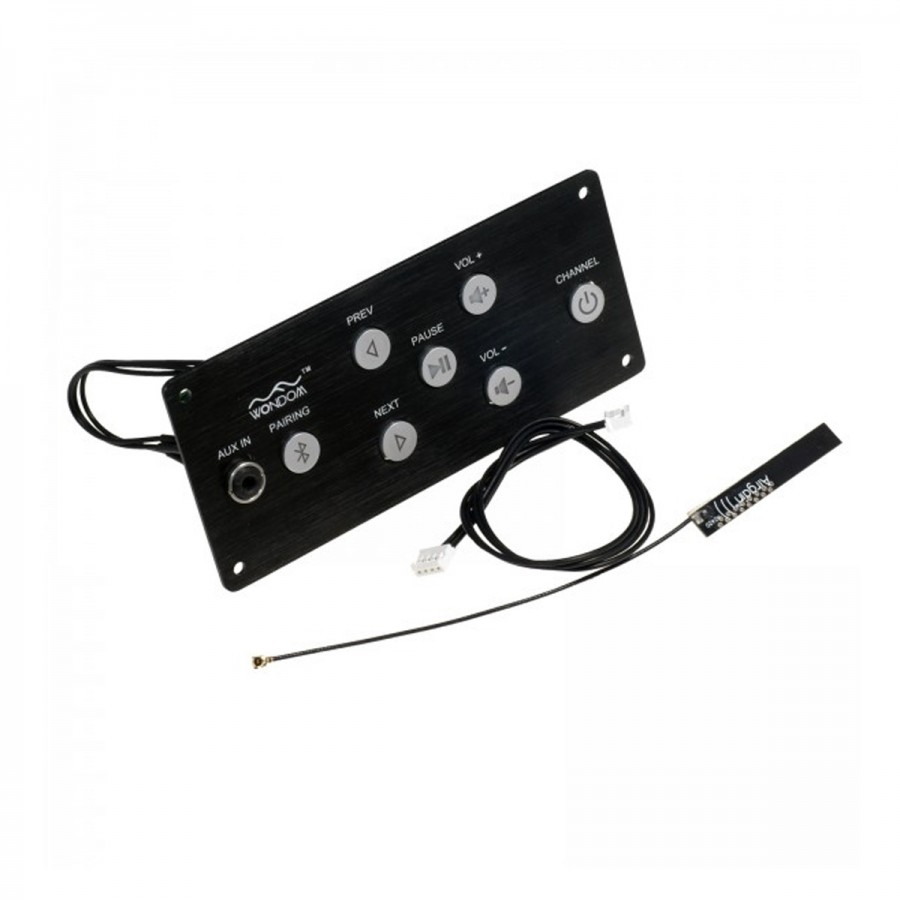

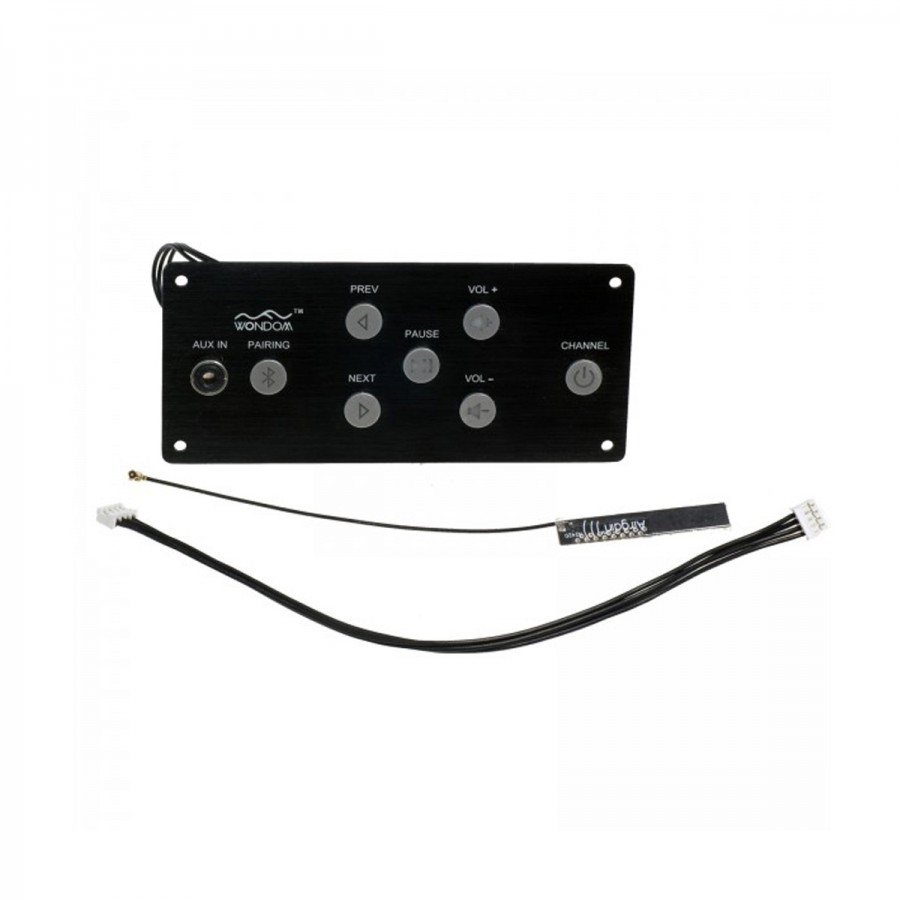

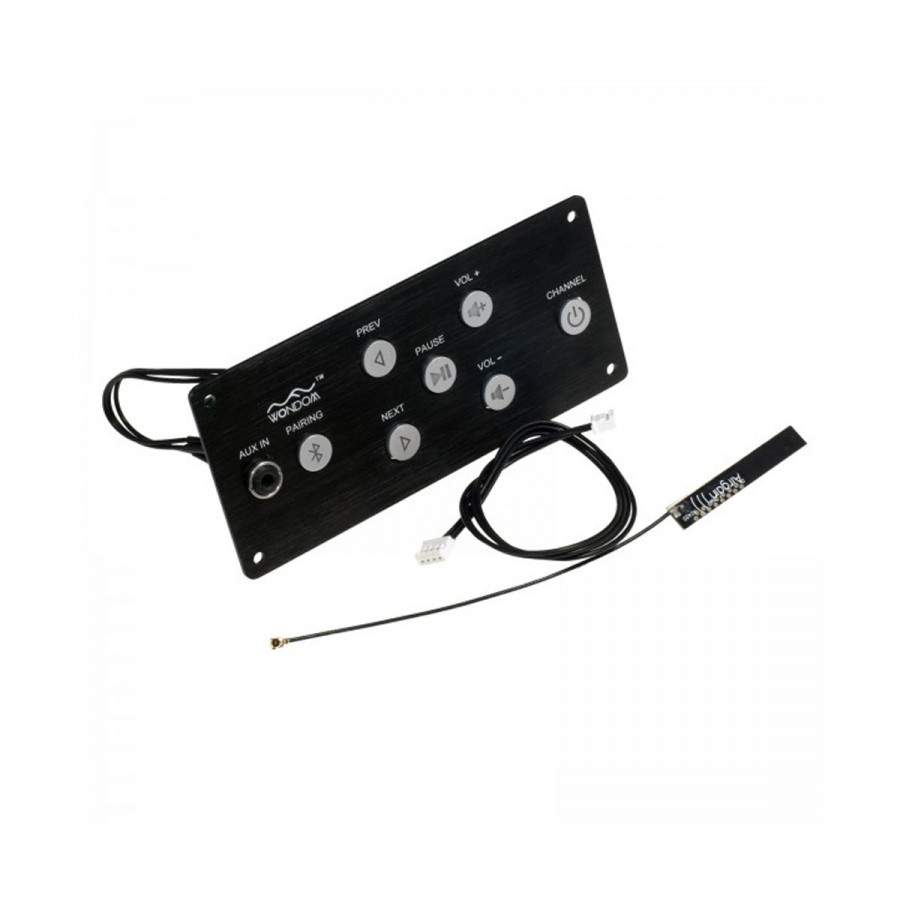

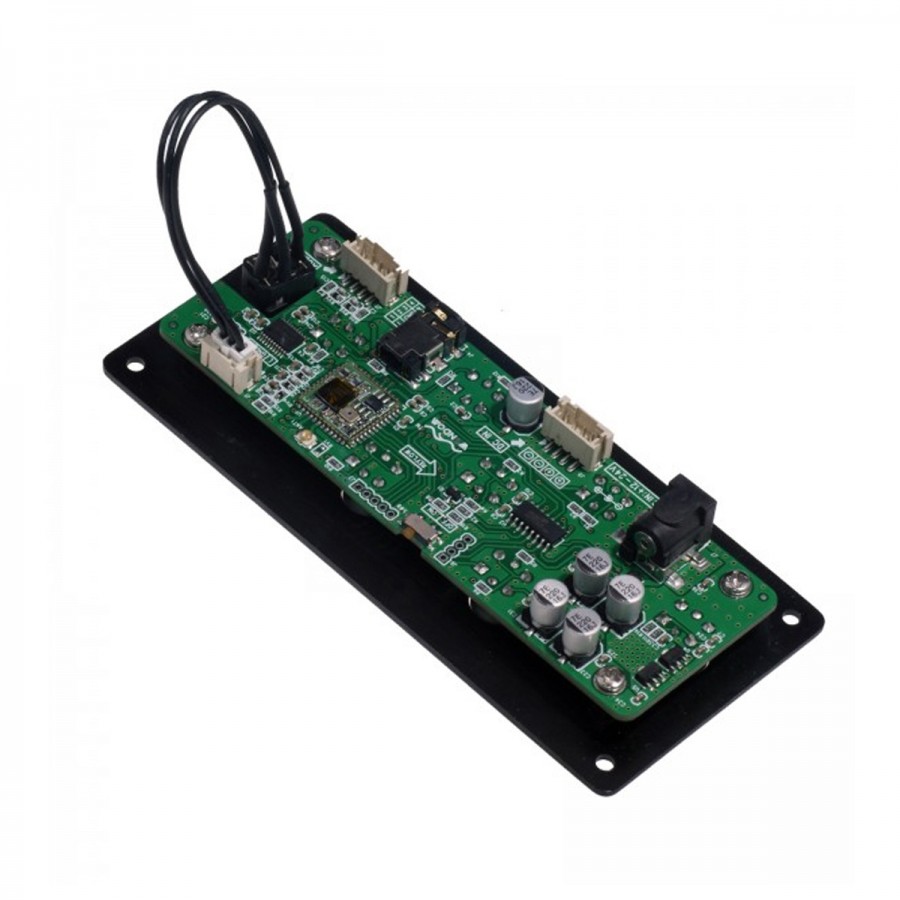

The BRB6P is based on a CSR8645 Bluetooth receiver chip. This offers excellent transmission performance with a Bluetooth 4.0 aptX version and support for EDR, A2DP and AAC protocols. Bluetooth version 4.0 and aptX technology provide higher signal transmission rate and above all greater stability for superior audio quality. In addition, the module also comes with a Bluetooth antenna to increase transmission distance.

On the power side, if the module can be powered directly via its 5.5/2.1mm DC jack connector, the module can also become totally mobile by adding a PCBB2 battery module (sold separately).

Diagram

Schéma Wondom BRB6P
1Backlight switch
2Bluetooth antenna
3AUX input
4Power supply input : Jack DC 5.5/2.1mm
54 Pins PH connector for PCBB2 battery board
6Line output (Can be connected to a Sure AMP2 board)
7Line output on PH connector

Technical characteristics

General specifications
Product typeBluetooth receiver
Bluetooth version4.0 aptX
Bluetooth protocolsEDR, A2DP, AAC
Bluetooth version4.0
InputsBluetooth
AUX input
OutputsJack 3.5mm
PH
PCB Dimensions116.84 x 40.13mm
PCB Fixing holes spacing101.6 x 31.75
Control panel dimensions127 x 57.15mm
Control panel fixing holes spacing116.84 x 46.99mm
Electrical performances
ParametersConditionsMin.Typ.MaxUnit
Power supply-10.51224VDC
DistortionVo=700mVrms, f=1kHz0.120.120.12%
Quiescent currentVin=12V-2030mA
Max current--3540mA
Bluetooth range (with antenna)-10--m
Operating temperature--402055°C
Audio performances
ParametersConditionsMin.Typ.MaxUnit
THDVin=775mVrms, f=1kHz-0.002-%
Output noise levelVin=12V-5.1-µV
SNRVin=775mVrms, f=1kHz-94-dB

Data sheet
InputBluetooth
InputJack 3.5mm
OutputJack 3.5mm
Components / ChipCSR8645
