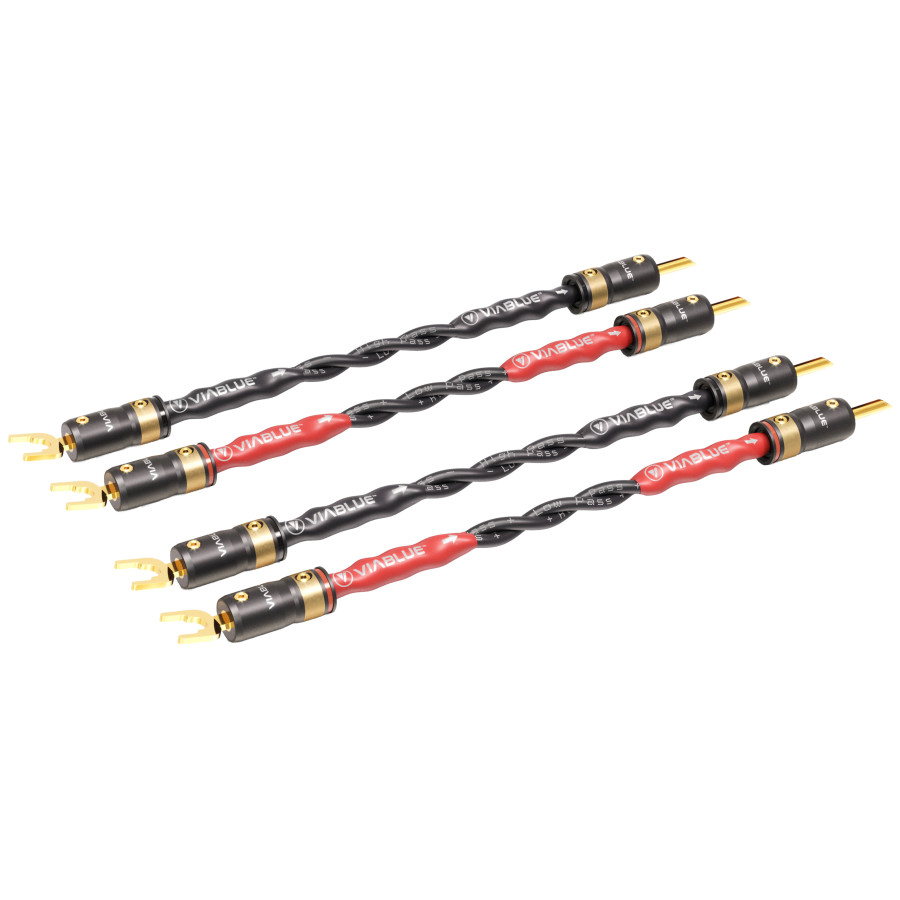

VIABLUE SC-4 Spade / Banana Jumpers 15cm (Set x4)

New
The Viablue SC-4 are 15 cm jumpers designed to replace the factory metal bridges found on the bi-wire terminals of speakers. Each bridge combines two 4 mm² conductors, respectively intended for the treble and bass sections, in order to provide a lossless connection between the high-pass and low-pass terminals.
No customer reviews yet, login to write a review.

By buying this product you get 16 loyalty points


Yes, notify me when available !
Reference : 22327
New product

164,90 €tax incl.

137,42 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

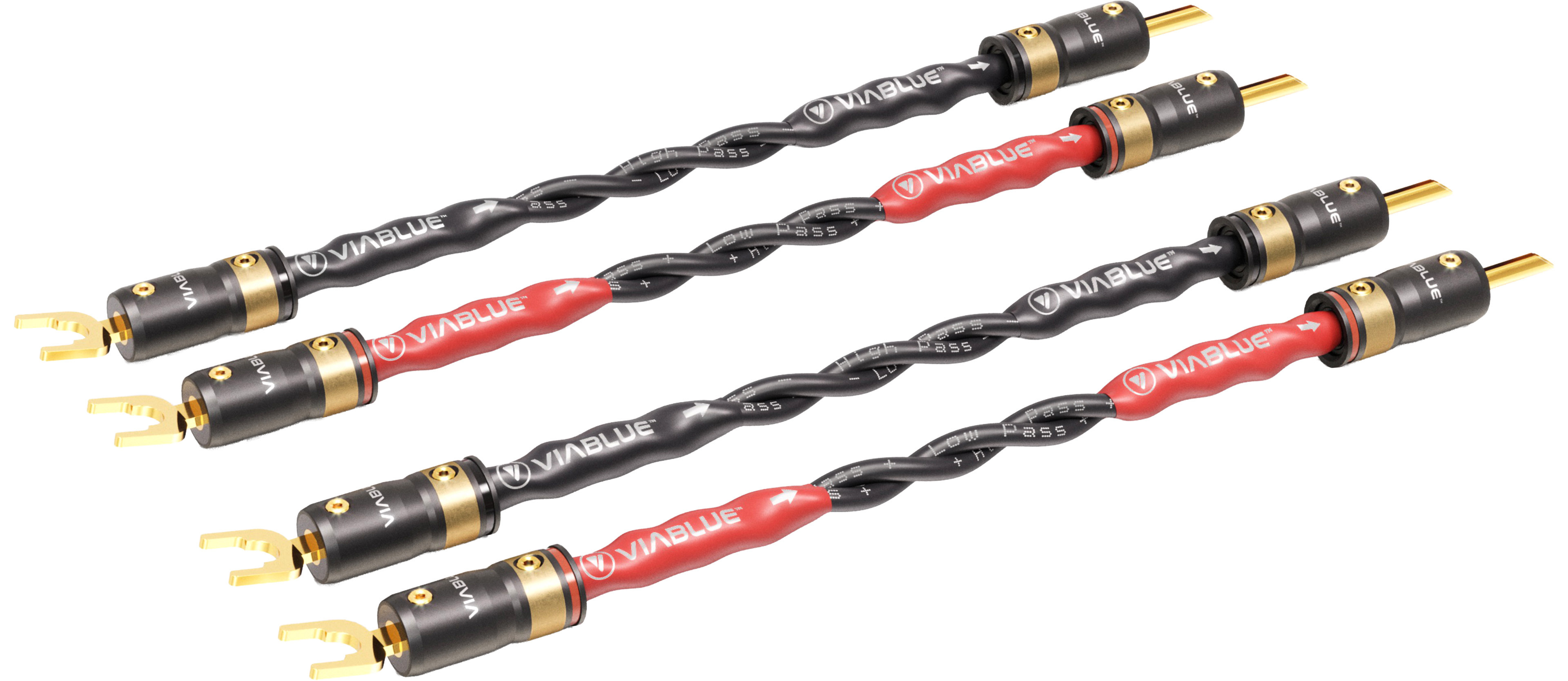

VIABLUE SC-4 Spade / Banana Jumpers 15cm (Set x4)

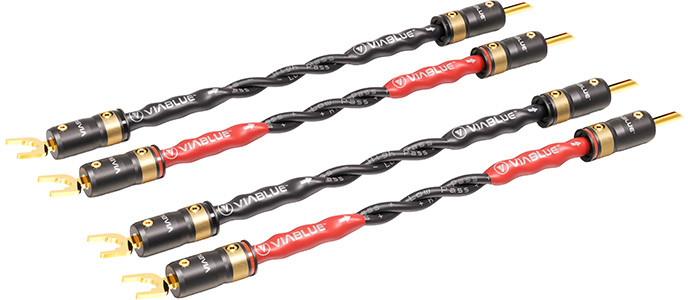

Photo du VIABLUE SC-4 Spade / Banana Jumpers 15cm (Pair)

The Viablue SC-4 are 15 cm jumpers designed to replace the factory metal bridges found on the bi-wire terminals of speakers. Each bridge combines two 4 mm² conductors, respectively intended for the treble and bass sections, in order to provide a lossless connection between the high-pass and low-pass terminals.

Photo du VIABLUE SC-4 Spade / Banana Jumpers 15cm (Pair)

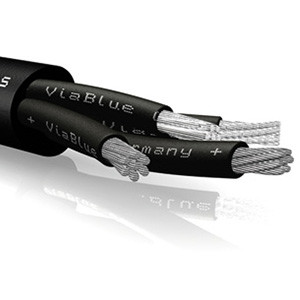

Viablue SC-4: A multi-strand construction with complementary conductors

Each SC-4 cable is based on 448 fine strands assembled into 2 × 7 twisted bundles, then combined into two independent 4 mm² conductors. The conductor dedicated to high frequencies uses silver-plated OFC copper strands, promoting a precise treble reproduction and a better perception of acoustic depth, while the second, made of tinned OFC copper, preserves the energy and dynamics of the bass. During the manufacturing of the jumpers, the outer jacket is removed in order to split the four conductors into two bridges, each retaining two separate strands for the high-pass and low-pass connections.

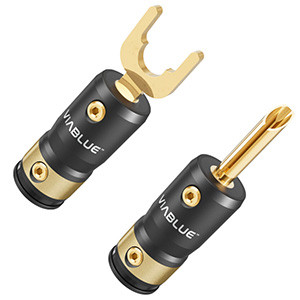

Viablue SC-4: Viablue T8 connectors

The SC-4 are equipped with Viablue T8 connectors combining banana plugs and spades, with a full metal body in satin black aluminum. Their genuine 24-carat gold plating improves resistance to oxidation, while the design of the contacts provides a connection pressure suited to speaker terminals.

Photo du VIABLUE SC-4 Spade / Banana Jumpers 15cm (Pair)

Technical characteristics

Specifications
Product typeJumper
Length15cm
ConnectorsT8 spades
T8 banana plugs
Section2x4mm²
Conductor materialSilver-plated OFC copper
Tinned OFC copper
Connectors plating24k gold
Outer diameterØ8mm
General
ColorBlack
Red
PackageSold in packs of 4

Data sheet
Length (m)0.15
ShieldingNo
Section (mm²)4.00
ConnectorBanana / Spade
Conductors material (Cable)Copper
Conductors Plating (Cable)Silver
Conductors Plating (Cable)Tin
