AUDIOPHONICS 5 Pin DIN to Stereo RCA Cable with Ground Wire OFC Copper Gold Plated 1.5m

AUDIOPHONICS MA5 8088 5 Pin DIN to Stereo RCA Cable with Ground Wire for Bang & Olufsen OFC Copper Gold Plated 1m

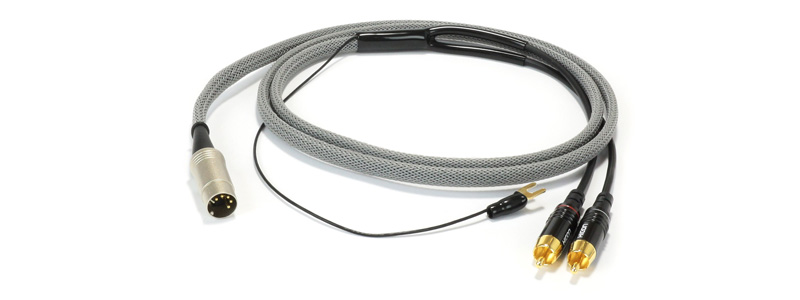

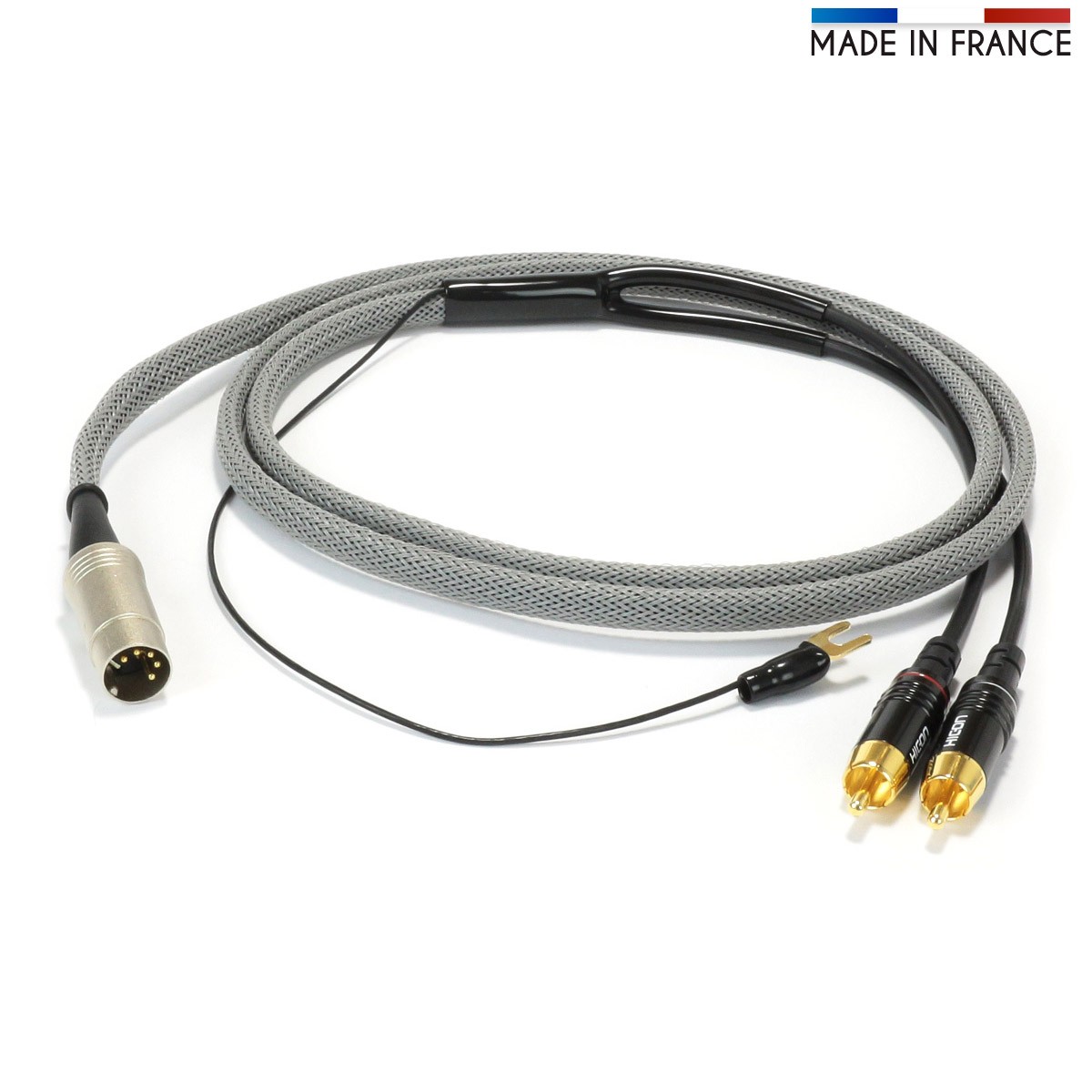

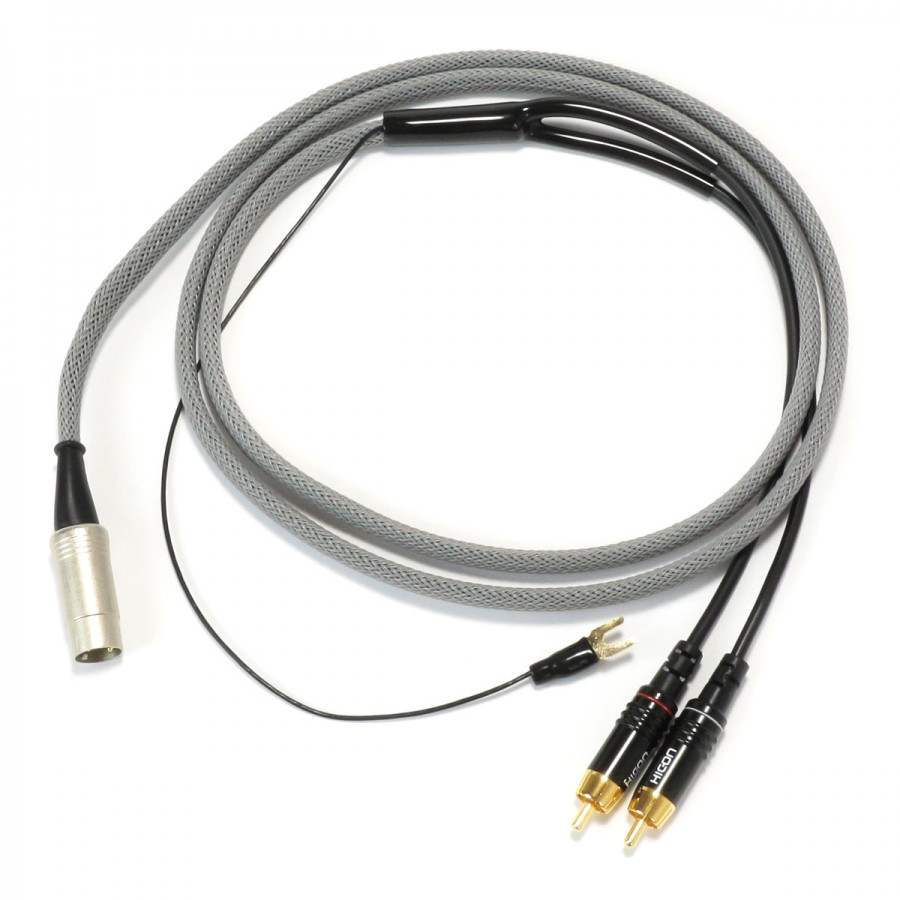

This cable assembled in France by Audiophonics integrates on the one hand a 5 pin DIN connector and others by two RCA connectors. A special cable that will allow you to connect some devices requiring this type of cable, but also some vintage devices.

No customer reviews yet, login to write a review.

By buying this product you get 3 loyalty points


Yes, notify me when available !
Reference : 13084
New product

33,25 €tax excl.

Including 0,04 € for green tax
Available on order

- +

Produit garantie 2 ans

More info

Audiophonics

5 pins DIN to Stereo RCA with ground wire for Gold plated OFC Copper 1.5m

Audiophonics MA5 8088 Câble DIN 5 Broches vers RCA Stéréo avec Fil de Masse pour Bang & Olufsen Cuivre OFC Plaqué Or 1.5m

This cable assembled in France by Audiophonics integrates on the one hand a 5 pin DIN connector and others by two RCA connectors. A special cable that will allow you to connect some devices requiring this type of cable, but also some vintage devices.

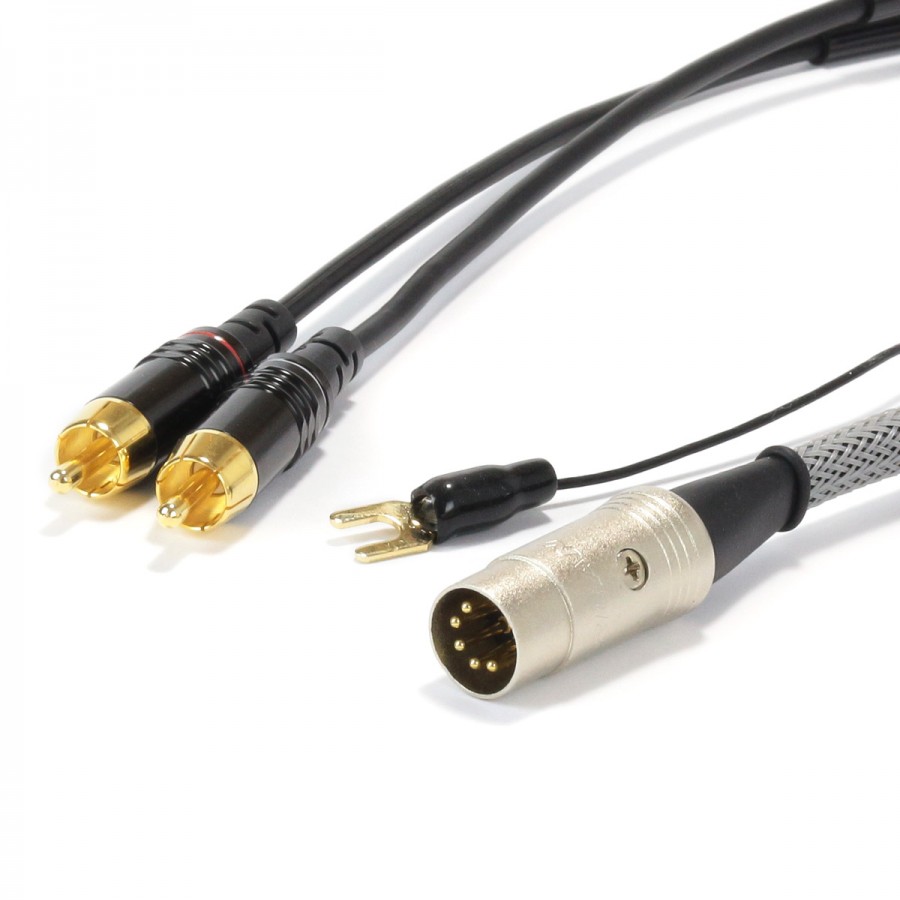

The complete cable consists of a cable Sommercable Onyx 2025MKII 24AWG shield with OFC copper conductors, DIN connector 5 pin Rean NYS322G with gold plated contacts and finally two RCA connectors Hicon CM06-RED / CM06-NTL Also Gold Plated. This design provides the cable with very good signal conductivity and durability.

Audiophonics MA5 8088 Câble DIN RCA Fil de masse

Ground wire version

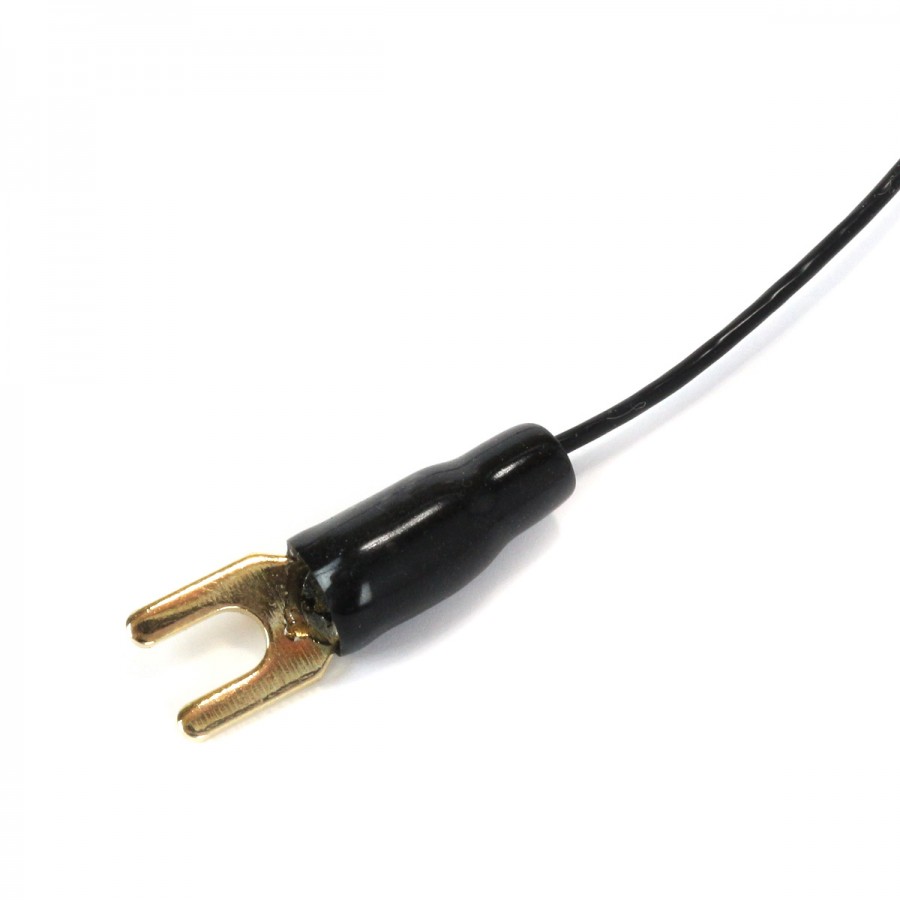

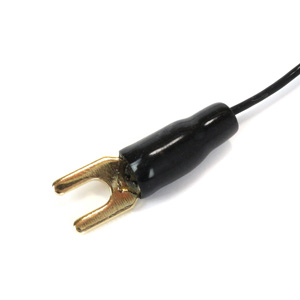

In this version, the cable also incorporates a ground wire with copper conductor and gold-plated fork connector. This cable is therefore ideal associated with a vinyl turntable, in order to reduce the earth loop as much as possible and reduce parasitic currents. The cable wire used is the model Elecaudio FC105T, OFC Copper with 0.5mm² section; and FEP insulating sheath.

Wiring diagram

audiophonics-ma5-8088-din-rca-inpage12.j

Technical characteristics

General
Cable type5 pins DIN to stereo RCA with ground wire
Connectors1x male 5 pins DIN
2x male RCA (white/red)
1x spade connector for ground wire
Length1.5m

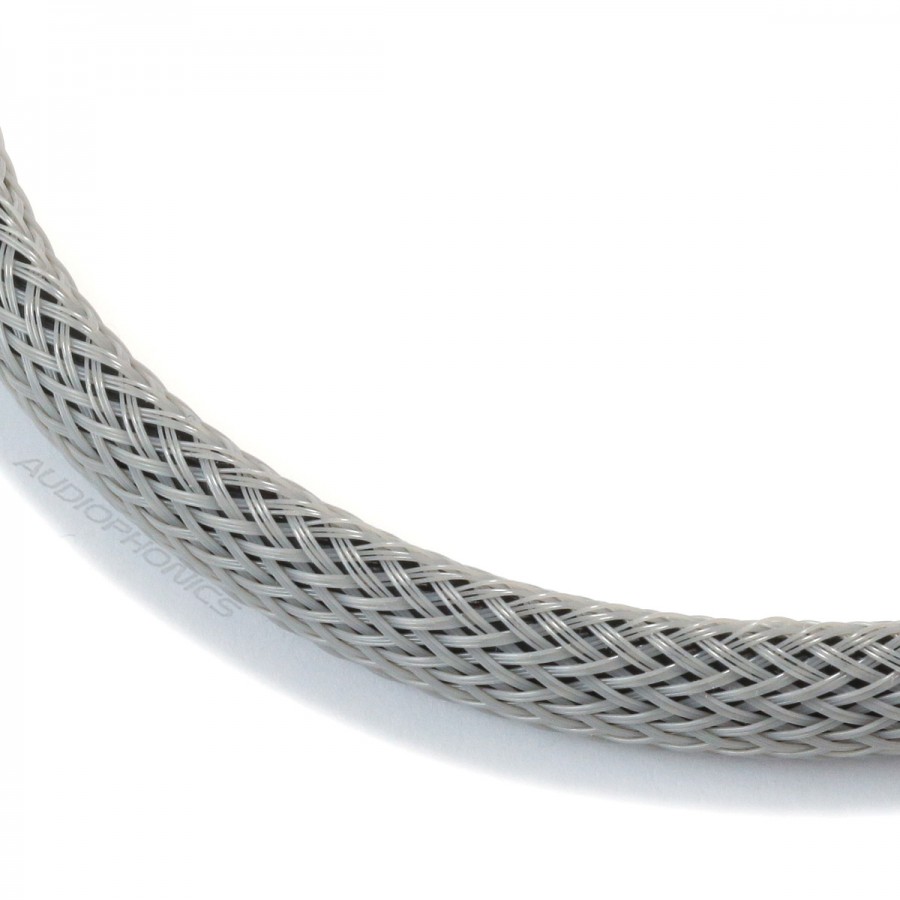

Sommercable Onyx 2025 MKII Cable
Section24 AWG (0.205mm²)
ConductorsOFC copper
Internal conductors2 x 1 x 0.25mm²
Sheath material / external diameterPVC / 3.8 x 8.5mm
Copper strands per core32 x 0.10mm
Conductor insulationPE
ShieldingBraided copper
Optical overlay90%
Operating temperature-25°C - +70°C
ColorBlack
REAN NYS322G Connector
Connector typeMale 5 pins DIN
Contacts platingGold
HousingNickel
ColorSilver
Hicon CM06-RED / CM06-NTL Connectors
Connectors typeRCA
Contacts platingGold
ColorSilver
Ground wire
Cable modelElecaudio FC105T
MaterialOFC Copper
InsulationFEP
Conductor section0.5mm²
Cable design45 brins de 0.12mm
External cable diameter1.5mm
Connector typeGold plated spade

Data sheet
ColorGray
MaterialCopper
Max length1.5m
PlatingGold
Separated conductorsYes
ShieldingYes
ConnecticMale
ConnectorDIN 5 Pins
ConnectorRCA
