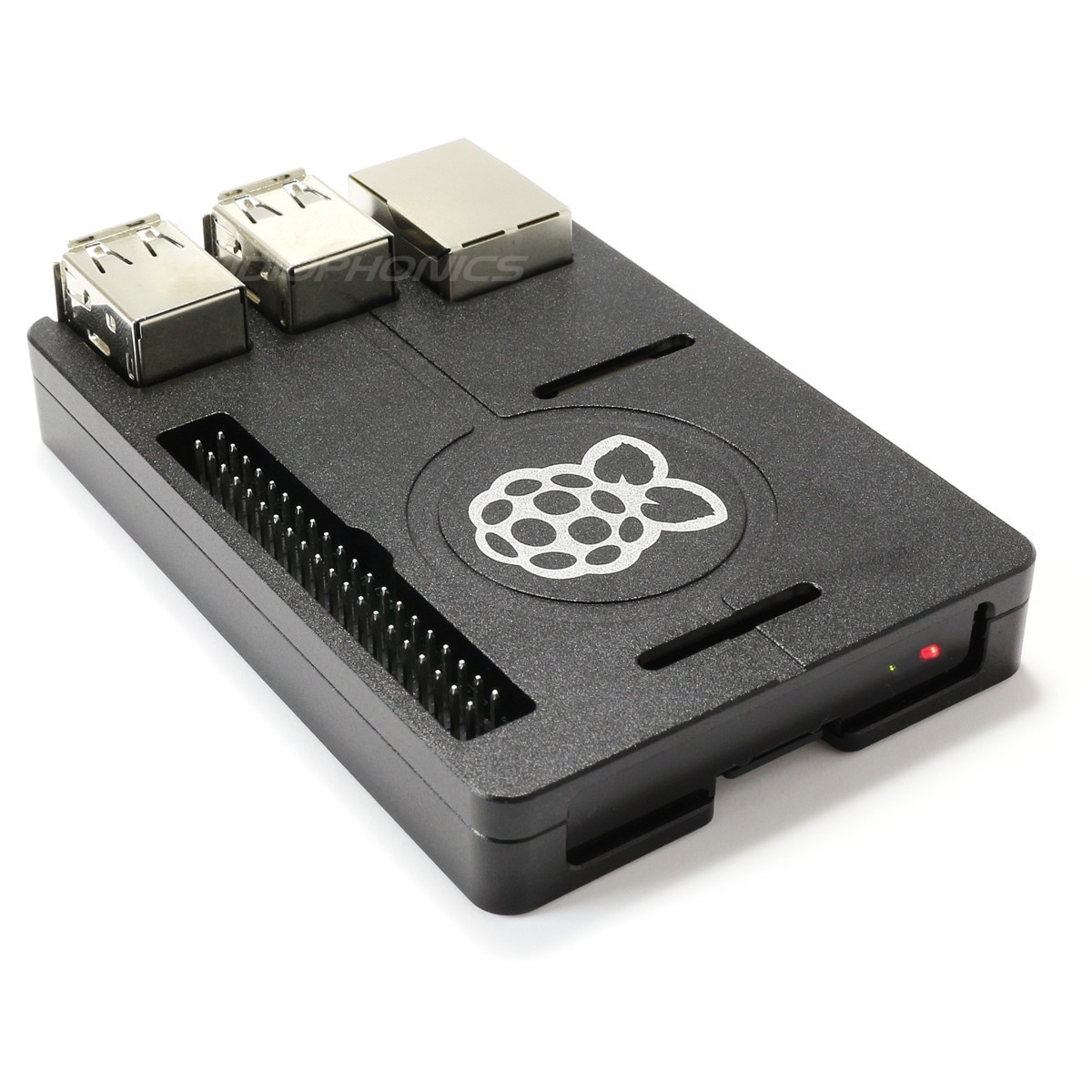

Aluminium Ultra Thin Case KIT for Raspberry Pi 3 / Pi 2

This CNC machined aluminum case in KIT with an exemplary finish is the ideal transport tool for SBC Rapsberry Pi 2 and Pi 3. It can be integrated into a number of possibilities that simultaneously provide physical protection, heat sink, barrier against EMI waves in particular.

A modular design for the connections:

Its semi-perforated design allows the connection of all SBC Raspberry Pi connectors while protecting critical parts (chips, components). Thus the GPIO, the location for the camera connector and Micro SD CARD, the screen connector is fully accessible. The same is true for HDMI output, stereo out jack, 5V Micro USB connector, USB ports, RJ45 connector.

The accessible GPIO connector allows you to connect a DAC (Isabre V3, Allo Piano), digital audio output (DIGIPI +) or any Compliant HAT card.

A Pi 3 compatible case WIFI and Bluetooth:

The smoked acrylic plate on the front allows the transmission of WIFI and Bluetooth waves and the reading of the two control LEDs.

Supplied with a hexagon wrench, it allows a wide range of applications for a Raspberry PI: internal shielding, transport, Hifi-DIY, installation in a server, integration CAR audio and multiroom home automation.

A housing for the thermal dissipation of PI 2 and PI 3

Two squares of pasta thermsupplied on the Broadcom SOC of the Pi 2 or Pi 3 as well as on the Elipda chips (below the PCB). Thus,strong>this housing also serves as a heat sink.

Raspberry Pi 3 and accessories DAC ALLO Piano, KAli, I-SABRE V3, 40-pin tablecloths sold separately.br>

The KIT contains:

• Two HAT Alpine Plastics Raspberry Pi 2 and Pi 3
• An acrylic smoke plate for LED protection and allowing WiFi transmission
• Two squares of thermal pasta
• 4 black screws
• 1 key six pan
• 4 non-slip stickers

Dimensions and weight:

• Dimensions: 62.5x 92.5x14mm
• Weight: 96g

Compatible with DACs and digital audio interfaces:
