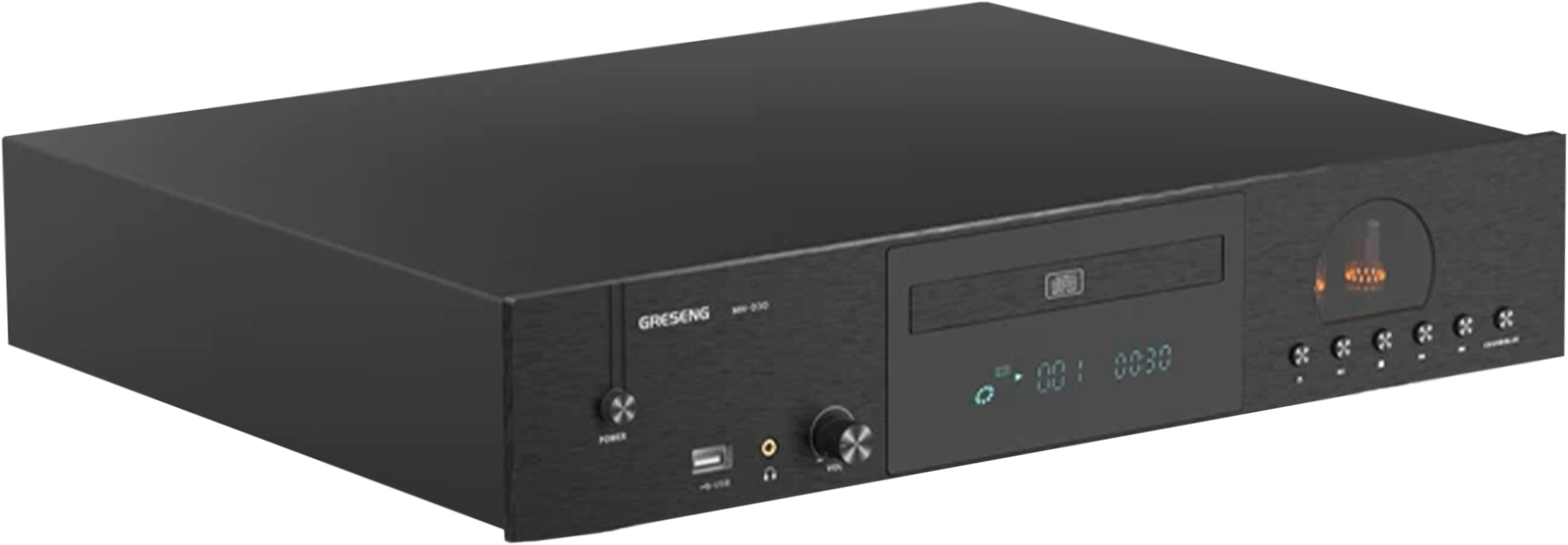

GRESENG MH-D30 Tubes CD Player
By buying this product you get 49 loyalty points
Viewed products
Greseng MH-D30 Tubes CD player DTS HD Bluetooth 5.2
The Greseng MH-D30 is a tube CD player designed to handle the playback and conversion of digital sources within a hi-fi system. It is based on a hybrid architecture combining an SPHE8104 DAC with a Beijing 6S6 tube output stage, in order to influence the final sound reproduction without altering the signal structure, resulting in a more nuanced sound whilst maintaining a low level of distortion.
Designed for versatile integration into home audio systems, it combines balanced and unbalanced analogue outputs with digital outputs, allowing the audio signal to be routed to an amplifier, an external DAC or headphones. This approach is further enhanced by the addition of USB and Bluetooth 5.2 inputs, enabling the playback of digital files and wireless streaming, whilst its aluminium chassis stabilises the playback mechanism and ensures consistent performance across a variety of Hi-Fi setups.
Greseng MH-D30: Connectivity and audio output
The Greseng MH-D30 offers a very wide range of connection options. It features XLR and RCA outputs for analogue connections, as well as Toslink optical and coaxial outputs for digital connections. But that’s not all, this CD player also features a 3.5mm headphone jack on the front panel.
In terms of inputs, the player combines its CD mechanism with a USB-A port capable of playing audio files from a USB stick with a capacity of up to 128GB. Finally, the MH-D30 is also equipped with Bluetooth 5.2 connectivity for wireless use with a smartphone.
Greseng MH-D30: Conversion architecture and analogue stage

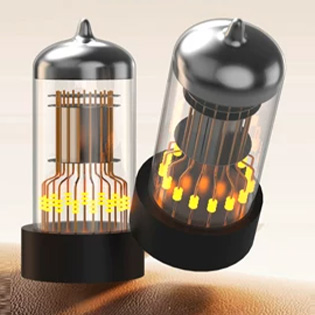

The conversion section utilises an SPHE8104 DAC chip to convert the digital signal to analogue, whilst four Texas Instruments 5532 operational amplifiers handle signal conditioning and ensure output stability. This architecture is complemented by a Beijing 6S6 tube stage positioned at the output, which influences the sound signature without altering the frequency response or introducing measurable distortion, but delivers a richer and more delicate sound. The system guarantees a dynamic range of 108dB and a signal-to-noise ratio of 105dB, ensuring stable reproduction in a variety of Hi-Fi setups.
Greseng MH-D30: Mechanical design and application

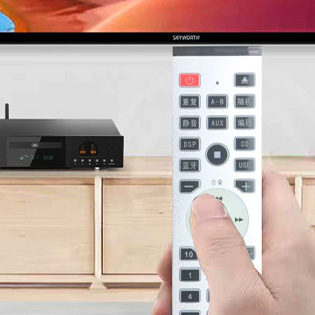

The aluminium chassis provides structural rigidity, minimising vibrations that could affect the playback mechanism. An infrared remote control is supplied with the unit, allowing for remote operation, whilst the Samsung VFD display ensures clear readability of playback information. In addition, it features a memory function so you can resume playback from where you left off in the event of an interruption. Finally, a small window allows you to see the tubes in operation.

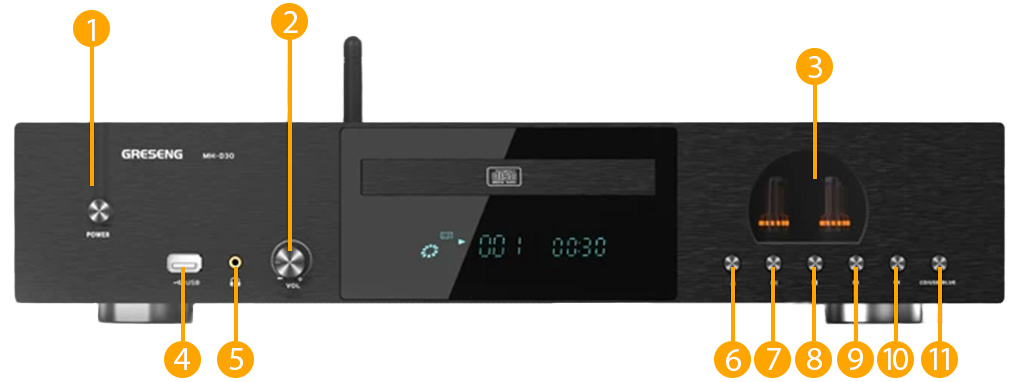

Front view of the Greseng MH-D30
| 1 | Power switch |
| 2 | Headphone output volume |
| 3 | Window tubes |
| 4 | USB-A Port |
| 5 | Headphone jack 3.5mm output |
| 6 | Open / Close CD player |
| 7 | Play / Pause |
| 8 | Stop |
| 9 | Previous Track |
| 10 | Next Track |
| 11 | Switch Mode |

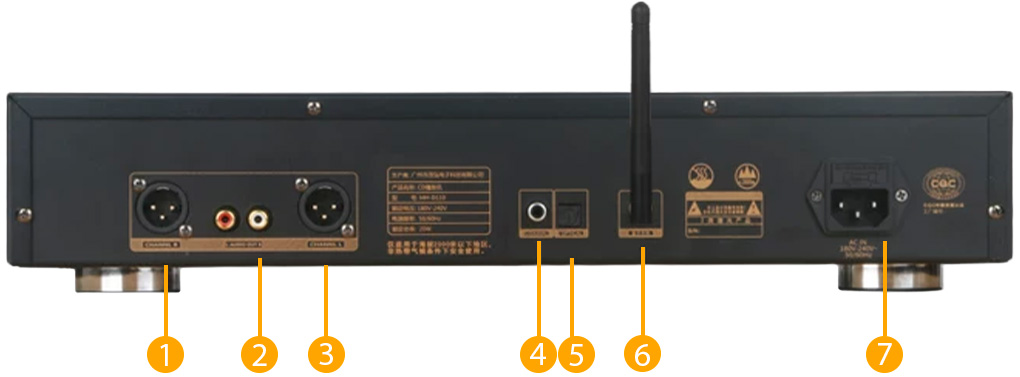

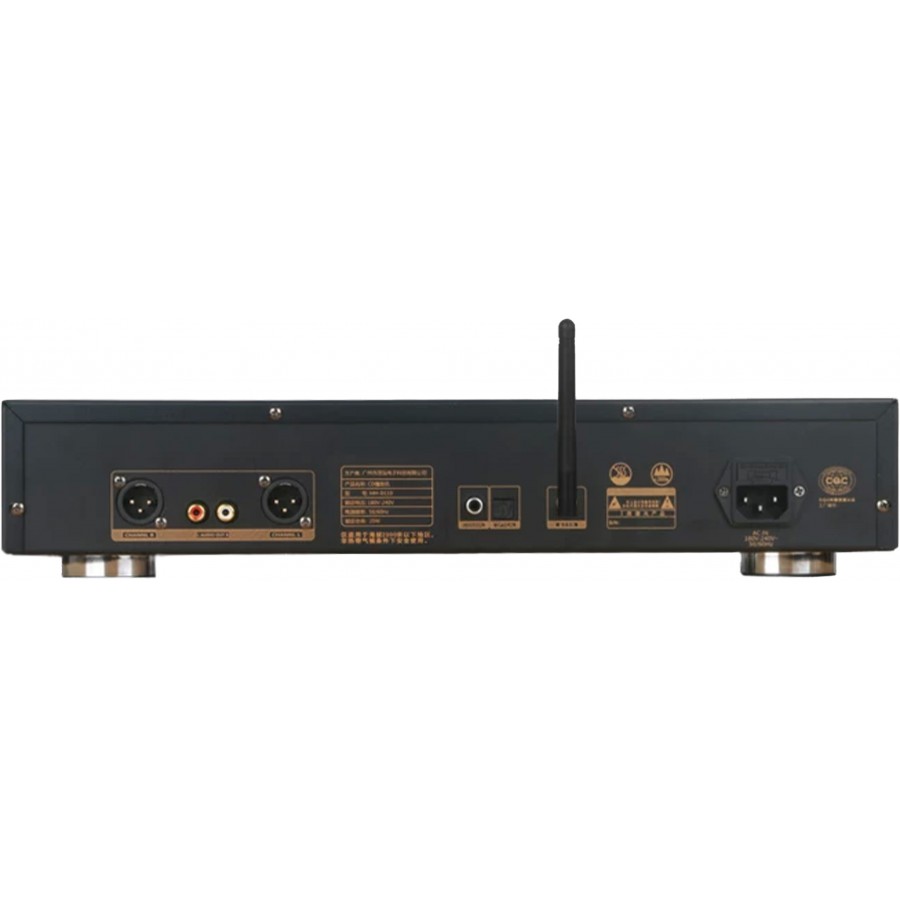

Back view of the Greseng MH-D30
| 1 | Balanced XLR output |
| 2 | Single-ended RCA output |
| 3 | Balanced XLR output |
| 4 | Coaxial output |
| 5 | Optical output |
| 6 | Bluetooth antenna |
| 7 | Power supply interface |
Technical characteristics
| Specifications | |
|---|---|
| Product type | CD Player |
| Inputs | CD player 1x USB-A (flash drive up to 128GB) Bluetooth 5.2 |
| Outputs | 1x Single-ended stereo RCA 2x Balanced stereo XLR 1x Coaxial 1x Toslink optical 1x 3.5mm Jack headphone output |
| Processor / DAC | SPHE8104 |
| Tubes | 2x Beijing 6S6 |
| Operational Amplifier Chip | 4x Texas Instrument 5532 |
| Screen | VFD |
| Formats supported via USB | APE / FLAC / WAV / MP3 / WMA |
| Supported Bluetooth codecs | aptX HD / aptX / AAC / SBC |
| Supported CD formats | AACDTS / CD / MP3 / CD-R / RW / WMA / MP3 / AAC |
| Output level | 2.0V |
| Frequency response | 20Hz-20kHz |
| Total harmonic distortion plus noise (THD+N) | 0.0020% (24bits) 0.0025% (16bits) |
| Dynamic range | 108dB (16-24bits) |
| Signal-to-noise ratio (SNR) | 105dB |
| General | |
|---|---|
| Supply voltage | 110-220V AC, Max 25W |
| Dimensions | 430x330x80mm |
| Frame material | Aluminium |
| Weight | 6.8kg |
| Color | Black |
| Package | 1x Greseng MH-D30 1x Power cable 1x Bluetooth Antenna 1x Remote control |
| Input | USB |
| Input | CD |
| Input | Bluetooth |
| Output | Optical Toslink |
| Output | Jack 3.5mm |
| Output | Coaxial SPDIF |
| Output | RCA |
| Output | XLR |
| DAC / ADC Chip | SPHE8104 |
| Max sampling rate | NC |
| Color | Black |
| Networking | No |
| Remote Control | Yes |
