Accusilicon precision crystal oscillator clock

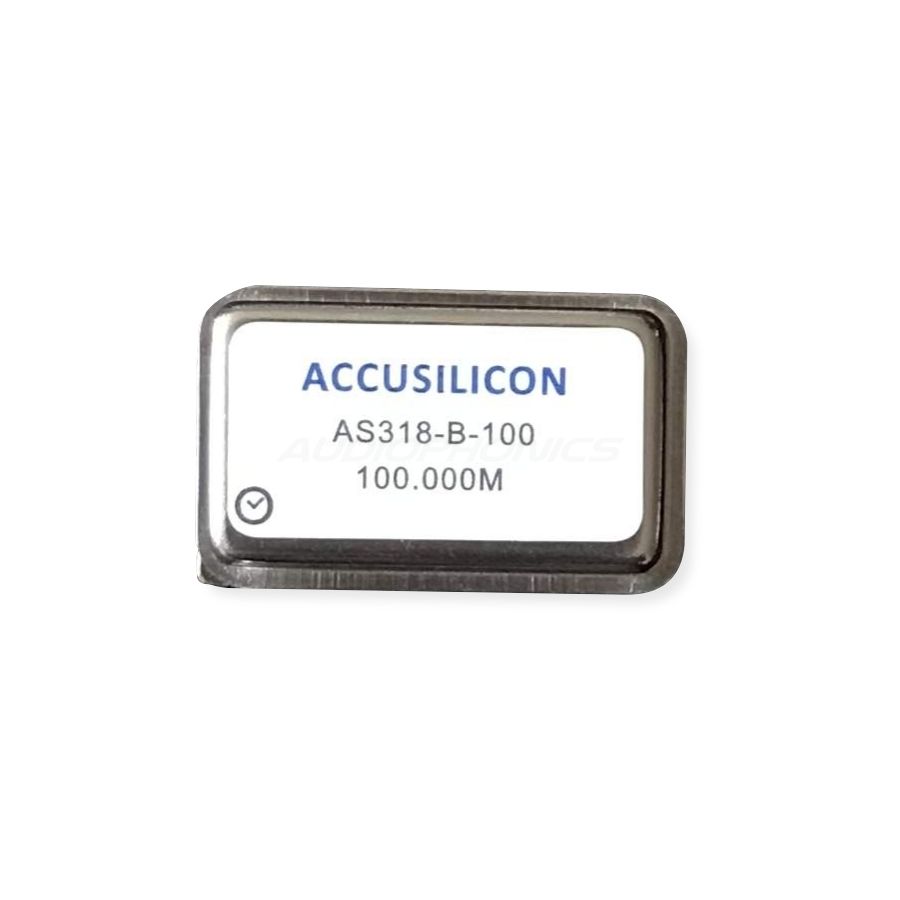

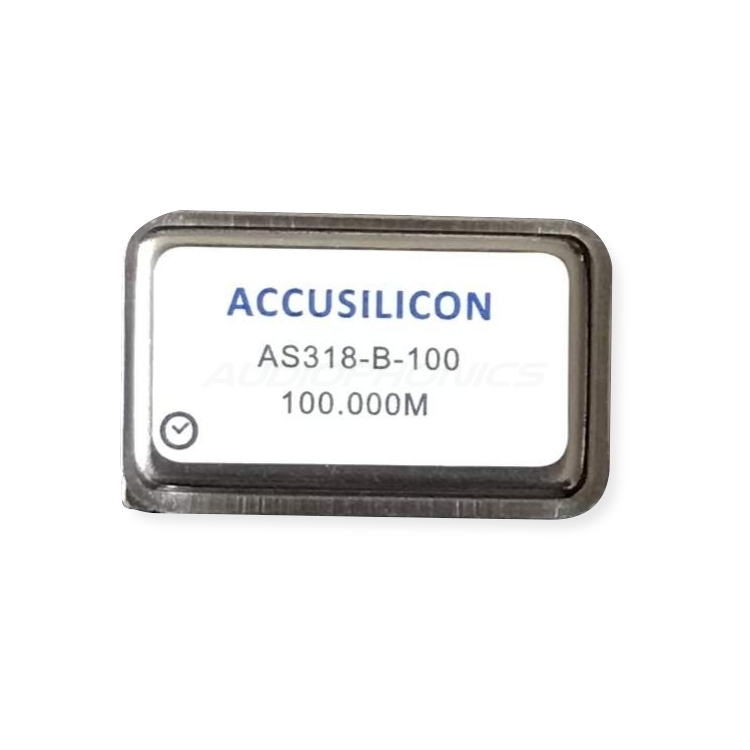

Accusilicon Crystal Oscillator AS318-B-100

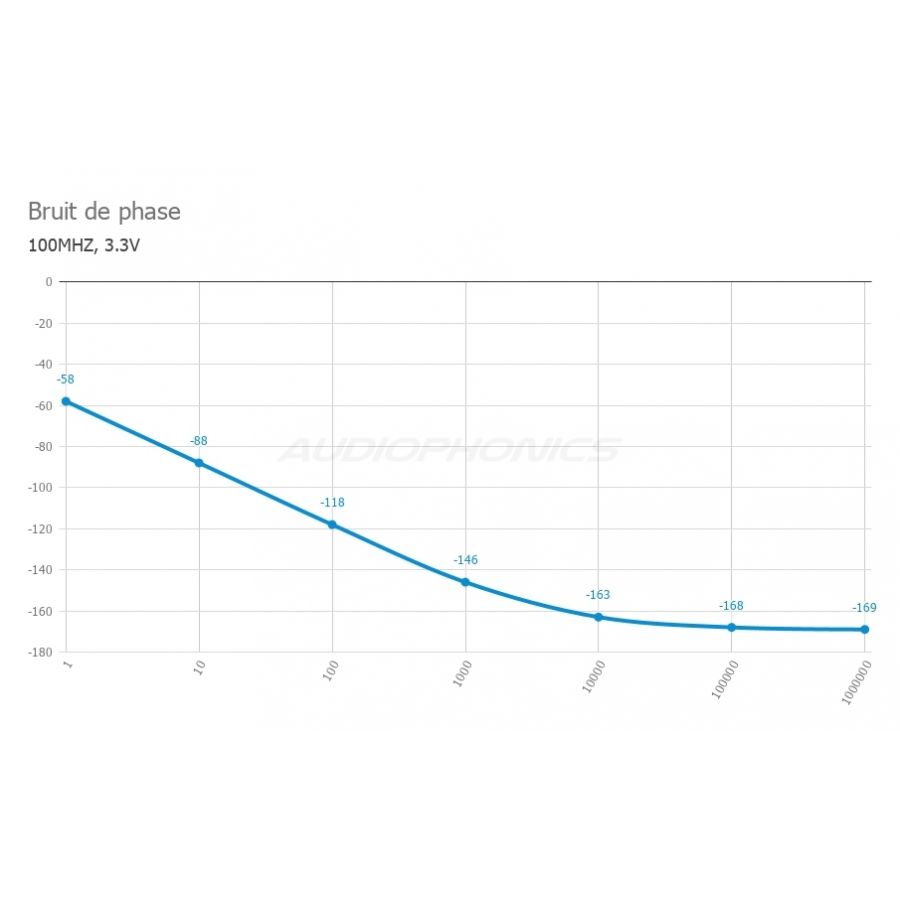

This extremely low phase noise crystal oscillator (< 90dBc @ 10Hz) is intended for professional recording equipment as well as audiophile electronics precision devices.

 The AS318-B-100 provides a very low jitter - measured 0.2ps on the 10Hz-1MHz band and 0.071ps on the 12-80MHz band.

Valued for their low power consumption ( 20mA @ 15pF) the Accusilicon clocks also have a high resistance to thermal stresses (operational from -20 to 85 ° C).

This component integration is nice and easy. It is powered by 3.3V (within +/- 0.3V) and give excellent results with a 0.1uF capacitor filtered power supply.

These electronic clocks now equip the Audio-GD devices and provide additional accuracy over TCXO clocks. This reference is compatible with NFB serie (does not work with NFB11).

DIP-crystal clock 14 accusilicon
Specifications
TypeCrystal Oscillator
Frequency100MHz
WaveformCMOS
Output LevelState "0": 10% Vdd
State "1": 90% Vdd
Rise / Fall4ns @ 20-80% Vdd
Jitter200FS (0.2pS) @ 10Hz - 1MHz
71fS (0.071pS) @ 12kHz - 80MHz
Frequency tolerance-20 / 20 ppm
Max Load15pF
Duty Cycle45-55%
Supply (VDD)3.3V (+/- 0.3V)
DimensionsWidth: 20.83mm
Length: 13.21mm
Height: 5.08mm + 6.35mm (legs)
pinout
PIN 1OE
PIN 7GND
PIN 8OUT
PIN 14Vcc
