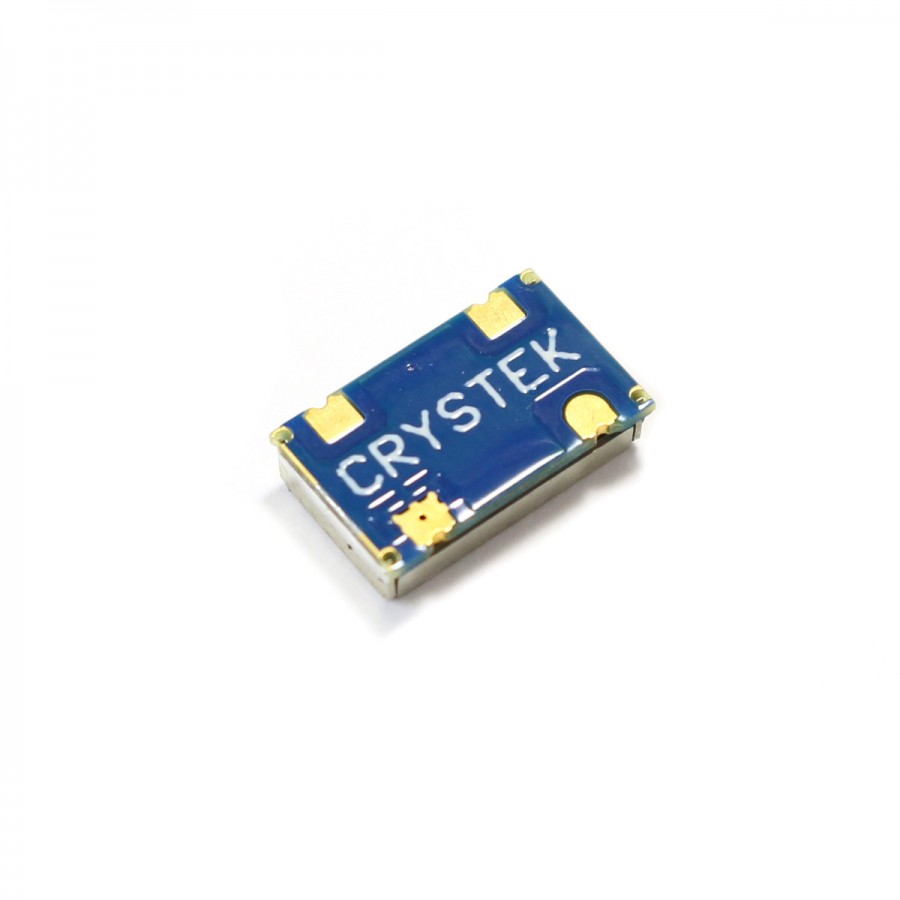

CRYSTEK Ultra-Low Phase Noise Clock 22.5792MHz 3.3V 25ppm HCMOS

CRYSTEK Ultra-Low Phase Noise Clock Oscillator 22.5792MHz 3.3V 25ppm
These clock oscillators, which can be used in particular for mounting DAC, ADC or a signal source, ensure very low phase noise.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 12445
New product

19,90 €tax incl.

16,58 € tax excl.
Including 0,01 € for green tax
Available

- +

Shipping date: 11-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

CRYSTEK CLOCK

22.5792MHz 3.3V 25ppm 5x7.5mm HCMOS

Crystek oscillateur horloge

This series of Crystek clocks offers the lowest jitter oscillators for a 5x7.5mm format. These clocks provide a phase jitter of 82fSec RMS at 100MHz. Their phase noise is -90dBc/Hz @ 10Hz for a minimum of -168 dBc/Hz. Its output driver is capable of driving ±24mA. This translates to a rise/fall time of approximately 600ps at 100 MHz with a load of 15pF.

These clock oscillators can be used to mount DACs or ADCs, low phase signal sources or for tests and measurements.
This 22.5792mhz version is designed for multiple frequencies of 44.1kHz.

Crystek Clock Oscillator Datasheet

Technical characteristics

Specifications
Frequency22.5792MHz
Frequency stability25ppm
Load Capacity15pF
Operating supply voltage3.3V
Output formatHCMOS
Connection typeSMD/SMT
Dimensions7.5mm x 5.08 x 2.5mm
Minimum Operating Temperature-20°C
Maximum operating temperature+70°C
Rating current25mA
