AUDIOPHONICS I-Sabre LTE DAC ES9023 Raspberry Pi A+ B+ 2.0 /3.0 I2S

AUDIOPHONICS I-Sabre DAC ES9023 Raspberry Pi A+ B+ 2.0 / I2S

Average votes for this product
5.0 / 5

By buying this product you get 2 loyalty points


Reference : 11215
New product

20,75 €tax excl.

- +

Shipping date: 21-09-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Equipped with the now famous ESS SABRE ES9023 24bit 192khz (equipping ourthe "U-SABRE USB DAC" href = "https://www.audiophonics.fr/en/dac-sans-volume/audiophonics-u-sabre-usb-dac-24bit96khz-sa9023es9023-v22c-p-11055. html "target =" _ blank ">DAC USB U-SABRE), Ultra low noise regulator and "Low ESR" filter capacitors, this DAC with an unbeatable price-quality ratio, will offer you a musical sound and rich in micro details.

This LTE version features cinch RCAs of classic quality for an even more competitive price. An audiophile version with RCA and TCXO of high quality exists - Sheet 10296 .

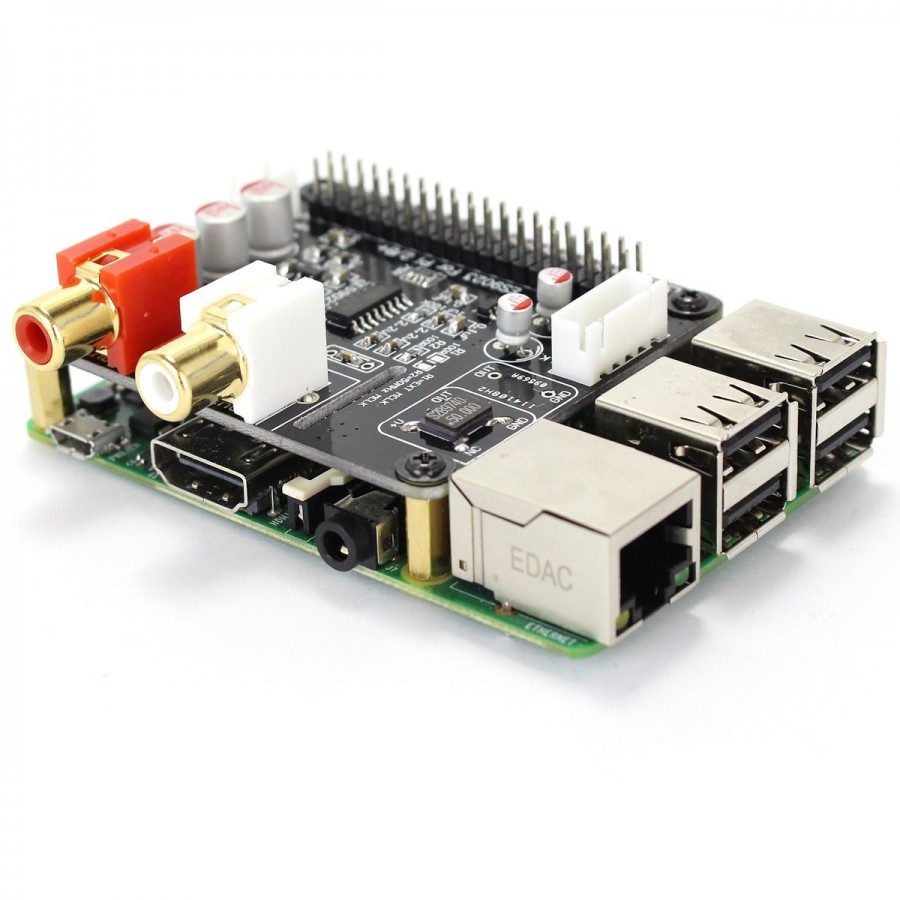

The built-in GPIO connector combining the I2S digital input and the 5V voltage input allows plug-and-play use simply plugged into a Raspberry Pi A +, B +, 2.0 3.0 and the trick is played. This CAD does not require any skills in electronics or soldering iron to operate.

ThisDAC 24bit is also suitable for a 100% design without Raspberry Pi thanks to its 4 pin I2S input connector and its 5V DC input on 2pin XHP connector.

PFor experienced DIY users, there is also the possibility to attack this DAC by an external MCLK clock (masterclock) or to choose the word-clock left justified or the traditional I2S protocol.

here is ahigh-fidelity high-fidelity solution with unmatched price-performance ratio, offering a wide range ofTCXO 50mhz "href =" http://www.audiophonics.com/en/components-electronics-clock-scaudio-clock-tcxo-50mhz-05ppm-compatible-i-sabre-p-9615.html "target =" _ blank ">clock TCXO(data sheet 9615) as an option.

For use in Bit Perfect mode, it is necessary to remain in maximum volume or fixed according to the distribution audio Linux used. The driver position "I2S HifiBerry" should be chosen to work on Rune Audio, Volumio or Pi-core and all Linux Audio distributions in general.

Main Features :

  • Location to weld a TCXO clock full size 50Mhz.
  • I2S input on Raspberry GPIO connector Pi.
  • Input 5V DC on GPIO connector for Raspberry Pi.
  • Input 5 V DC on 2-pin XHP connector (for stand-alone use other than Raspberry Pi).
  • Input: Raspberry PI B + A + 2.0 / 3.0 GPIO and I2S.
  • GPIO report (you can stack other modules).
  • Output: RCA Plated Gold.
  • Supported sampling rates: 24bit 192 kHz.
  • This converter has its own clock. It is possible to inject an external clock by connecting bridge R1.
  • No solder required for a utilityon Raspberry Pi.
  • Works with the I2S driver "HIFIBERRY DAC".

Dimensions and weight:

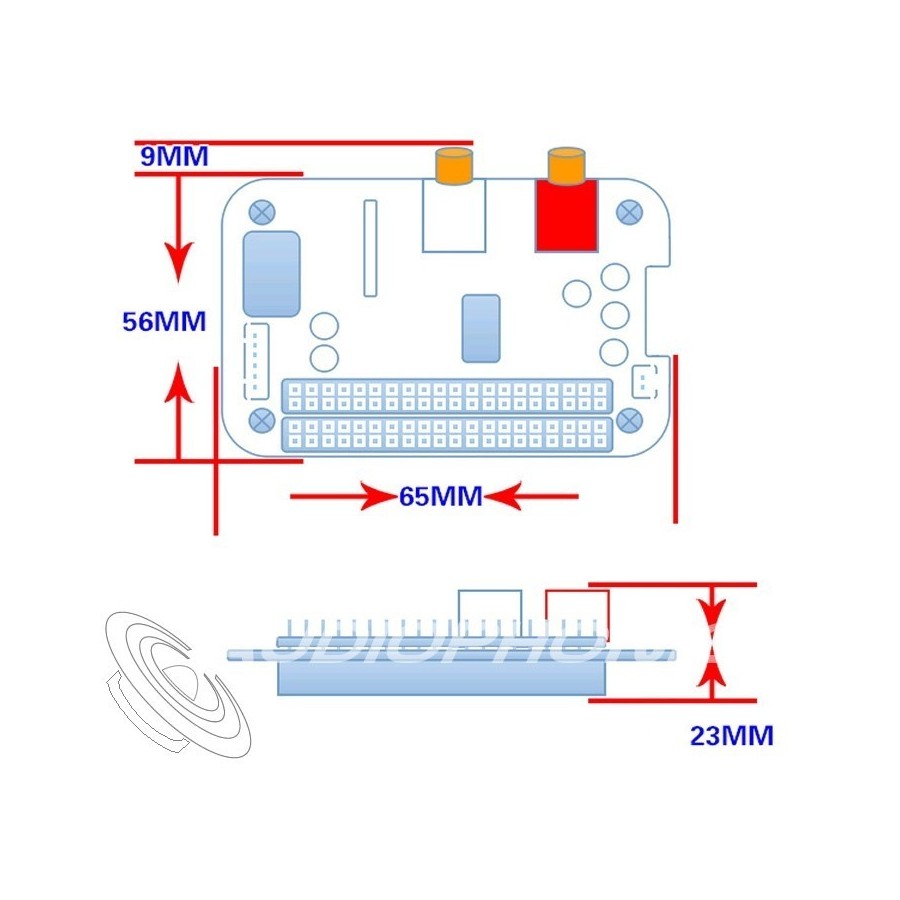

  • PCB dimensions: 65x56x30mm.
  • Spacing: 50 x 50 mm.
  • Weight: 35gr.

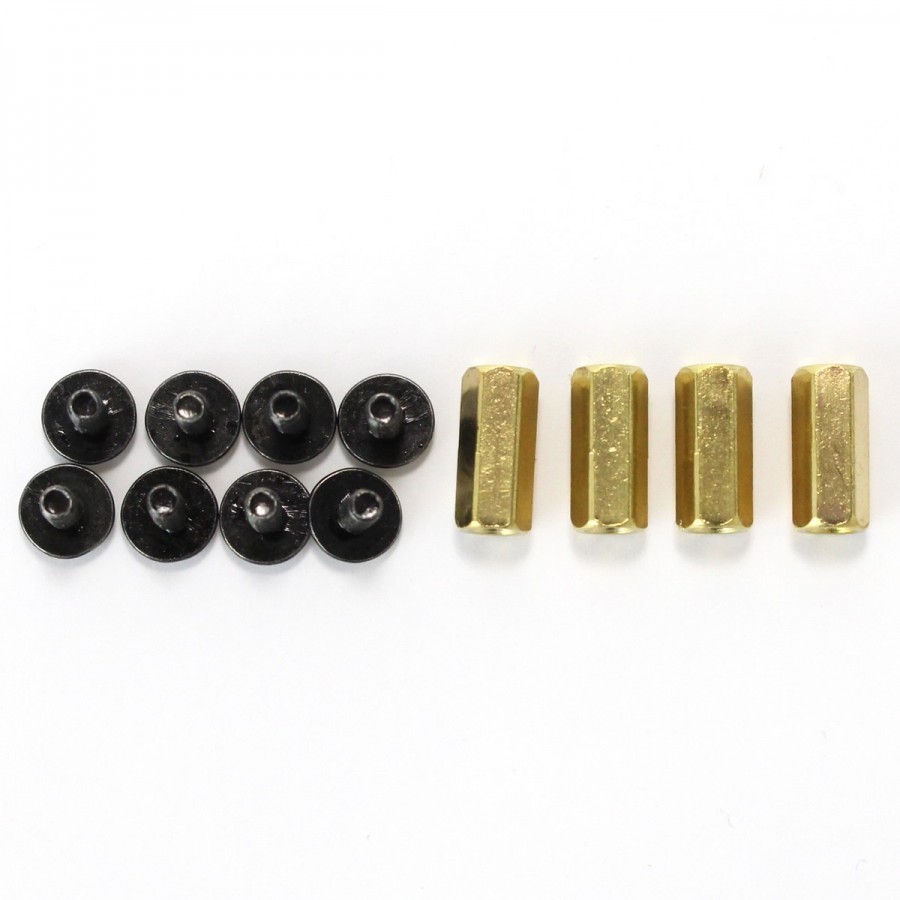

  • Supplied with 4 nuts, 4 screws and 4 spacers to fix it to the PI B +, A + or 2.0 (HAT format)


We recommend the following USB I2S accessories and interfaces

https://www.audiophonics.fr/images2/picoreplayer.jpg

PDF manufacturer


Data sheet
InputI2S
Components / ChipES9023
ConnectionTo connect
Channel2 channels (Stereo)

Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
3 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Good cheap dac hat for raspberry pi 3b
Quick delivery to UK. Easy to install, comes with spacers, screws. Straight onto io pins. For volumio use hifiberry Dac driver option as in description . Easy as that. Very pleased with sound quality of flac and wav files through my hifi
 (0)
 (0)
This review has been posted for AUDIOPHONICS I-Sabre LTE DAC ES9023 Raspberry Pi A+ B+ 2.0 /3.0 I2S
Note :
 5/5
Date :
Parfait !
Avec Volumio j'ai utilisé le pilote ES9026. Cependant le réglage de volume ne fonctionne pas, un problème de driver et de description du circuit Sabre qui ne peut pas gérer le volume semble-t-il.
Le pilote Volumio Sabre ES9026 pour Spotify connect ne fonctionne pas bien.
Il faut utiliser le pilote DAC standard. Mais je trouve que la qualité sonore n'est pas indentique. Une idée je ne sais pas.
Cette carte mérite un vrai pilote Volumio ;-)
 (0)
 (0)
This review has been posted for AUDIOPHONICS I-Sabre LTE DAC ES9023 Raspberry Pi A+ B+ 2.0 /3.0 I2S
Note :
 5/5
Date :
super rapport qualité prix
J'avais besoin d'un juke box contenant toute ma musique dans ma maison de campagne qui n'a aucun accès réseau mobile et internet (le bonheur !). La solution ? Un petit raspberry PI 3, ce DAC complètement plug and play installé en 3minutes, une solution volumio qui crée également un AP wifi sur votre PI ... avec un vieux DD qui contient toute la musique et le tour est joué ! Une solution parfaitement autonome toute à fait qualitative au niveau du son . Merci Audiophonics ... super sympa par ailleurs.
 (0)
 (0)
This review has been posted for AUDIOPHONICS I-Sabre LTE DAC ES9023 Raspberry Pi A+ B+ 2.0 /3.0 I2S
