Digital Interface SPDIF I2S HDMI LVDS Raspberry Pi 3 / 4

WM8804 Digital Interface SPDIF I2S HDMI LVDS Raspberry Pi 3 / 4 New

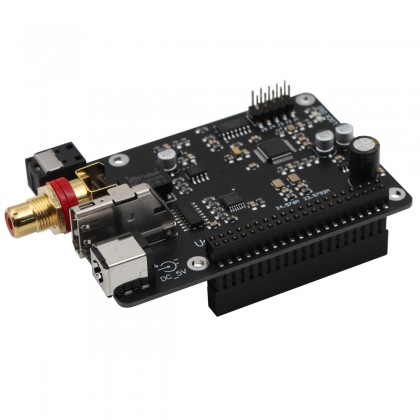

This digital interface is designed to fit over a Raspberry Pi type 4 / 3B+. It connects directly to the GPIO port and makes good use of the HiFiberry DAC driver. It is natively capable of operating both on Volumio or on Moode OS where it will be immediately recognized with HifiBerry driver.

No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points


Reference : 15773
New product

54,08 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 01-12-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

digital interface for Raspberry Pi

PCM 384kHz DSD128 / I2S / Coax / Optical



Interface numérique WM8804 SPDID I2S HDMI LVDS Raspberry Pi 3/4

This digital interface is designed to fit over a Raspberry Pi type 4 / 3B+. It connects directly to the GPIO port and makes good use of the HiFiberry DAC driver. It is natively capable of operating both on Volumio or on Moode OS where it will be immediately recognized with HifiBerry driver.

I2S output

The module has an I2S output on an HDMI LVDS connector. This I2S output can be configured as native DSD to drive a DAC with native DSD support (such as an AKM DAC type AK4493). It can also be configured to broadcast the DSD frame via PCM (DoP) for use with ESS technologies (ES9038Q2M & ES9038Pro).

Switching from one mode to the other (DSD Native / DoP) is done simply by means of a jumper. When the jumper is in place, the system enters DoP mode. The IIS output can reach a sampling rate of up to 32bit 384kHz (PCM) and DSD128 (DSD & DoP). Two diodes are used to report good reception of DSD streams (DSD LOCK).

Pinout I2S HDMI LVDS Interface Numérique WM8804

SPDIF

The PCB provides a coaxial S/PDIF RCA port as well as an optical Toslink output. This connection supports sample rates up to 24bit 192kHz and DoP64. The output connectors and the DC jack connector dedicated to the device power are positioned to fall on the same side as the Raspberry PI connectors, allowing a clean assembly and installation without loose cables.

quality audio components


A reference chip is in charge of the conversion of the audio stream to an S/PDIF signal. The coaxial output is drived by a DS8921 chip. Power supply stage benefits from a ADP151 LDO which provides excellent signal stability and minimize electronic noise. An isolation transformer Pulse PE-65612NL separates cleanly audio circuit from logic circuits and power supply.

Interface numérique WM8804<span id= SPDID I2S HDMI LVDS Raspberry Pi 3/4" width="300" height="300" />

Power supply


The module offers several possibilities regarding its power-supply. It can be powered directly by the Raspberry Pi via the GPIO connection. Conversely, it may be used as a power supply  for both the Raspberry Pi and itself through a DC jack 5.5 / 2.5mm connector.

Please note that neither the Raspberry Pi, or the module are designed to withstand a double power-supply. It is therefore appropriate to feed both via the DC input jack OR via the micro-USB / USB-C PI rasbperry. Both power supplies must never be used simultaneously.

The power supply circuit operates with a voltage of 5 VDC (5% tolerance). It requires at least 2A current.

Specifications
TypeDigital interface
inputsGPIO
Outputs1x Coaxial S/PDIF (RCA)
1x Optical Toslink
1x I2S via HDMI
Raspberry Pi compatible modelsRPI 3B +
RPI 4
Supported sampling frequenciesPCM: 44.1-384kHz (Moode)
PCM: 44.1-192kHz (Volumio)

DSD DSD64 - DSD 128 (Moode)
DSD: DSD64 (Volumio)
Power supplyJack 5V DC Connector 5.5 / 2.5mm
OR
GPIO (powered by the Rasperry Pi)
Dimensions (card only)85 x 55mm
Dimensions (mounted RPI)85 x 55 x 41 mm
Recommanded spacersM2.5 x 20mm

Data sheet
InputGPIO
OutputOptical Toslink
OutputCoaxial SPDIF
OutputI2S LVDS via HDMI
DAC / ADC ChipNC
Max sampling rate384kHz
Max sampling rateDSD128
Interface chipNC
