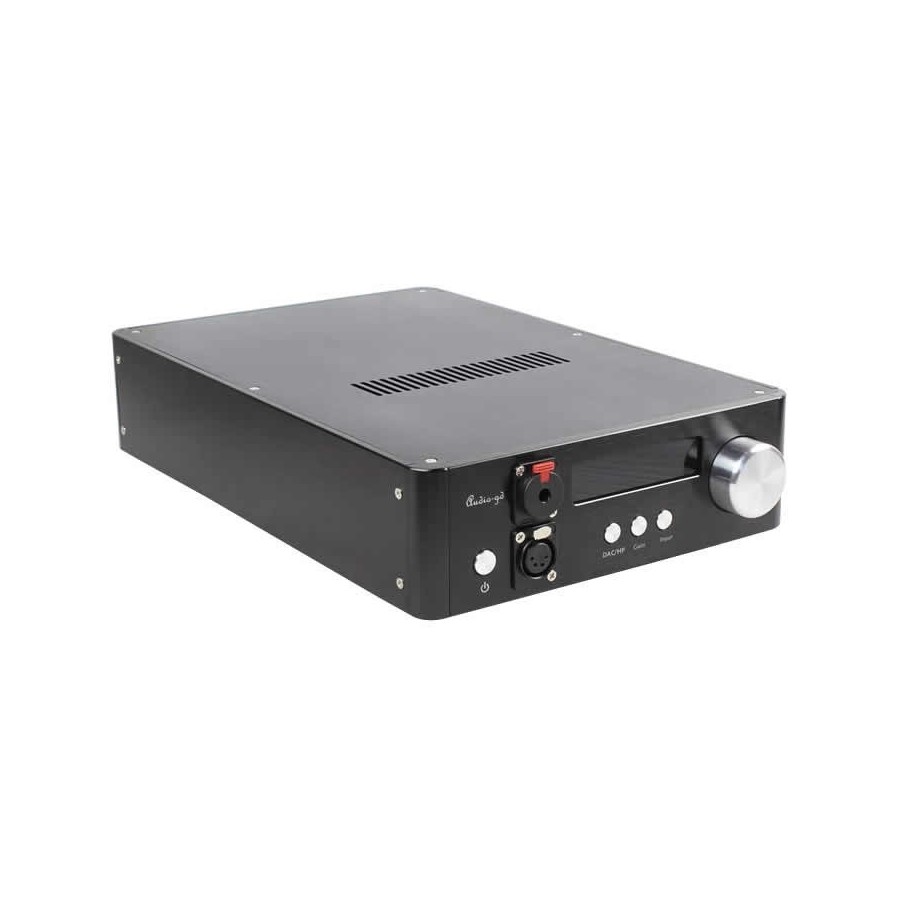

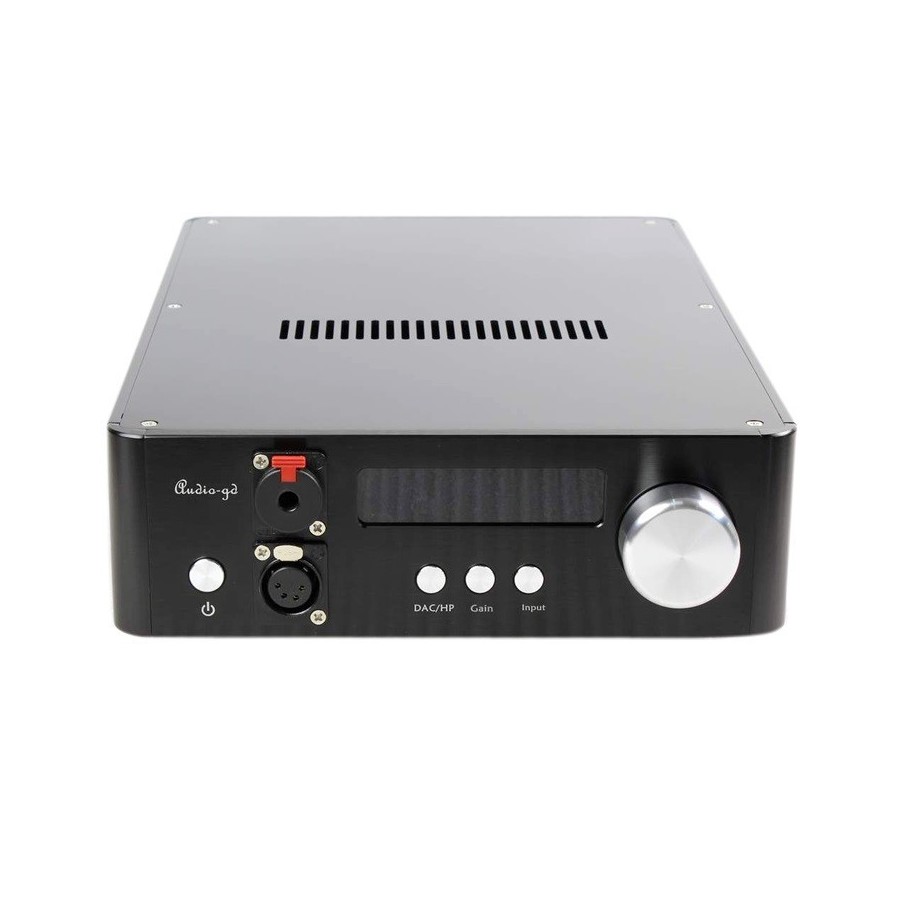

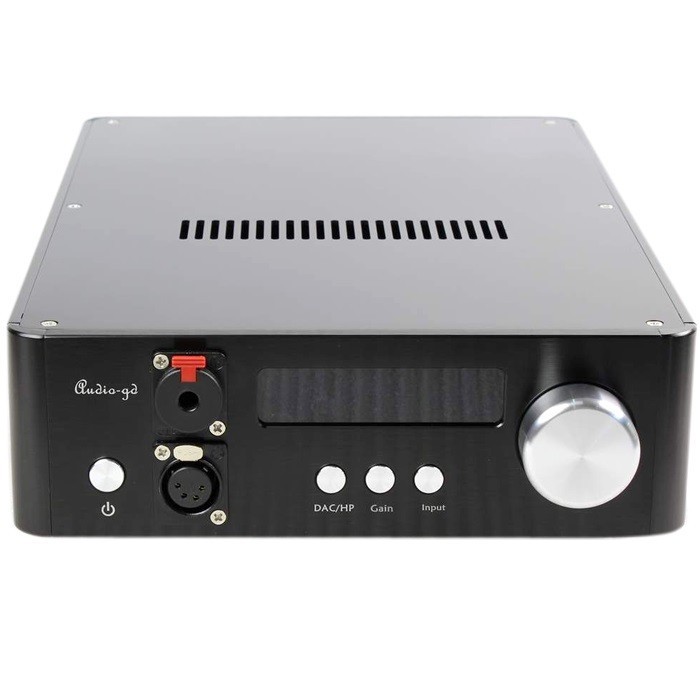

AUDIO-GD NFB-29.38

ES9038Pro 32bit 384kHz DAC TCXO Amanero I2S HDMI USB

audio-gd nfb-29.38

Versatile, effective, essential

Audio-GD's DAC NFB-29.38 is back in 2017 with the new ES9038Pro ESS Saber chip and the latest Amanero USB interface.

Evolution of the 2016 version, this version of the NFB-29.38 incorporates the same new features as the NFB-27 DAC, namely: An ES9038Pro ESS Saber DAC, a better implementation of the Saber offering a shorter signal path, the ability to select hardware filters, self-detection of the DSD format (with switching without switching noise), and disengagement of the preamplifier function allowing use in pure DAC.

NFB stands for Non Feedback (no feedback) used by Audio-GD. This technology on the analog stages allows a great respect of the harmonics, without distortions, without numerical hardnesses.

audio-gd nfb-29.38

USB AMANERO and I2S HDMI

The built-in SABER ES9038Pro allows you to manage 32Bit / 192kHz sources in SPDIF as well as USB, and up to 384kHz in USB Amanero. In order to use the NFB-29.38 under Windows via its USB-B input on the back cover, you will first need to download the Amanero Combo 384 AUDIO GD Driver.

audio-gd nfb-29.38

Bewitching sound restitution

audio-gd nfb-29.38

32bit / 384kHz / DSD / DXD / TCXO / HDMI

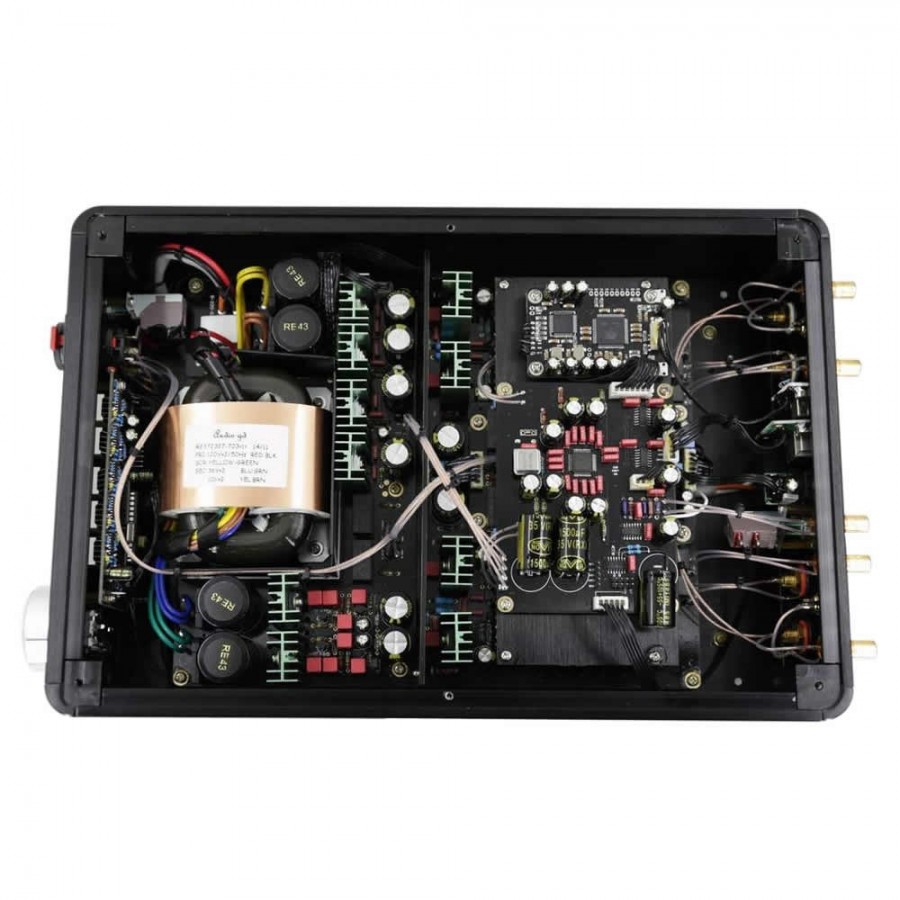

The 100% discrete design of this DAC (no AOP) goes through three stages (current voltage, low pass filter, buffer) to transistors without any capacitors on the audio path, supported by a class A power supply with a fast rise time capable of provide the necessary energy.

Nover capacitors (UK) have been specially manufactured using Audio-GD specifications. The Toshiba and Hitachi output transistors have been manually paired. AUDIO GD use the best components available: Wima, Dale, ESS, Atmel.

TCXO - 100MHz

Usually Audio-GD devices are equipped with standard 80MHz clocks, except this DAC Audio-GD NFB-29.38 includes the TCXO Ultra Low Jitter option of 100MHz, perfectly associated with the ES9038. This TCXO clock (temperature compensated oscillator) is more accurate significantly lowering the Jitter.

tcxo
sabre es9038pro

SABRE ES9038PRO

This high fidelity DAC is equipped with the famous ESS ES9038Pro 32 bit / 384kHz. This conversion chip is able to read High Definition DSD to PCM formats with one of the best signal-to-noise ratios on the market (120dB real). The analog current output stage ACSS, specific to AUDIO GD, reduces the signal with only one buffer stage and a Dale origin resistor (USA). This shortest signal path allows the ES9038Pro to reproduce the highest levels of detail and dynamics on SABRE ESS DACs.

Technical characteristics

Specifications
SNR>120dB
THD+N< 0.002%
Output levelHeadphone : 19V RMS Max
Preamp balanced : 10V RMS Max
ACSS : 2mA
Output powerHeadphone : 8000mW 40 Ohm
3500mW 100 Ohm
1200mW 300 Ohm
600mW 600 Ohm
Output impedance2 Ohm
Gain+ 16dB
Sampling rateUSB et I2S : up to 384kHz
Coaxial : up to 192kHz
Optical : up to 96kHz
DSD 64 / 128 and DXD
Input sensitivity0.5Vp-p 75 Ohm Coaxial
19dBm Optical
USB 2.0 Full Speed
Frequency response20Hz - 20kHz (-0.2dB)
CompatibilityWindows (up to 384kHz)
OSX (up to 384kHz)

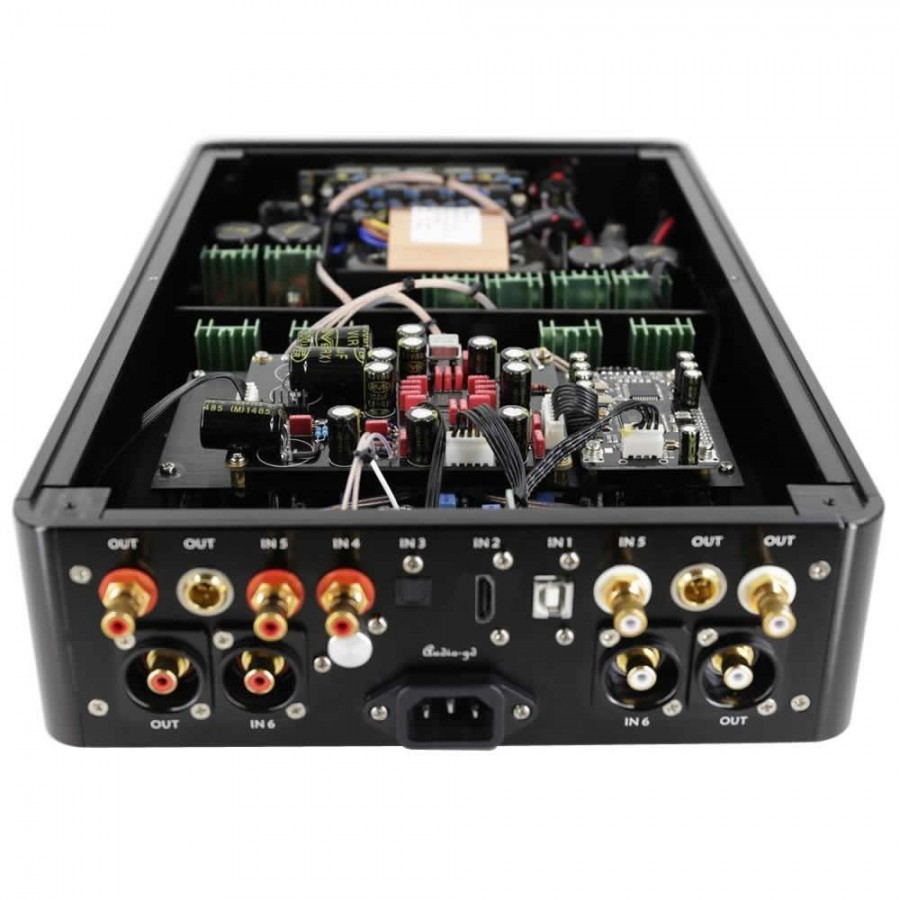

Connections
InputsCoaxial (RCA)
Optical
I2S HDMI
Asynchronous USB
RCA
Outputs2x RCA
ACSS
Headphone Jack 6.35mm
Headphone XLR 4 broches
General
Consommation28W
Dimensions240 x 360 x 80
Weight5kg
AccessoriesPower cable
USB cable

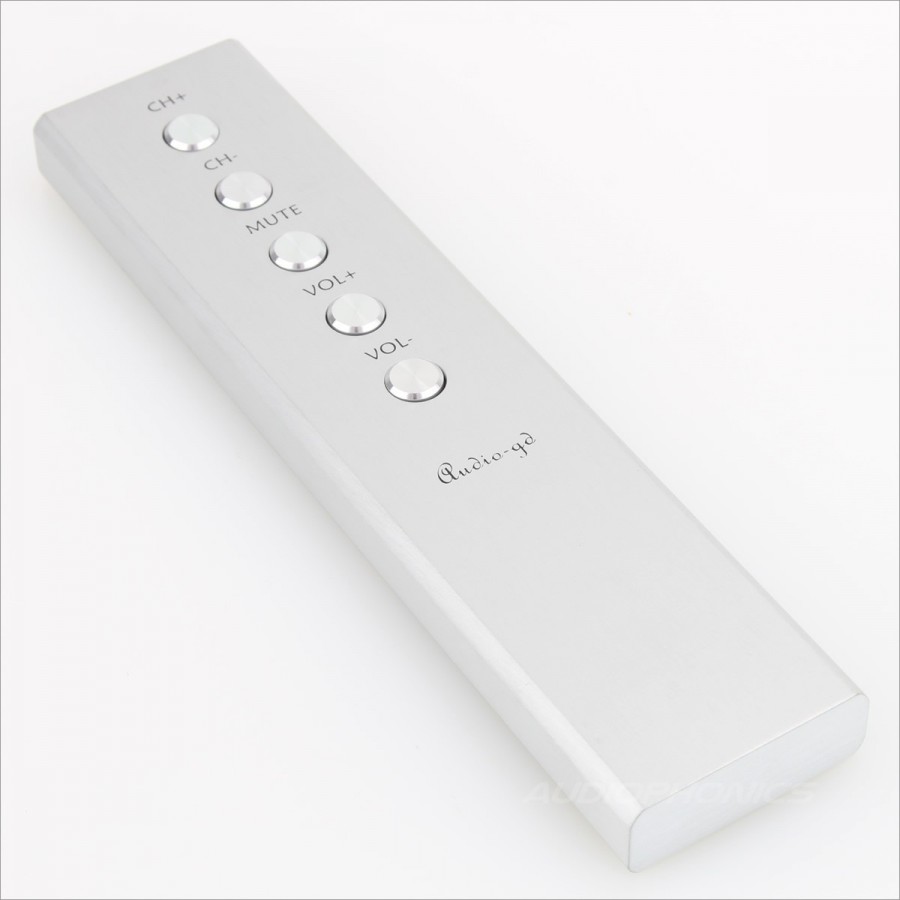

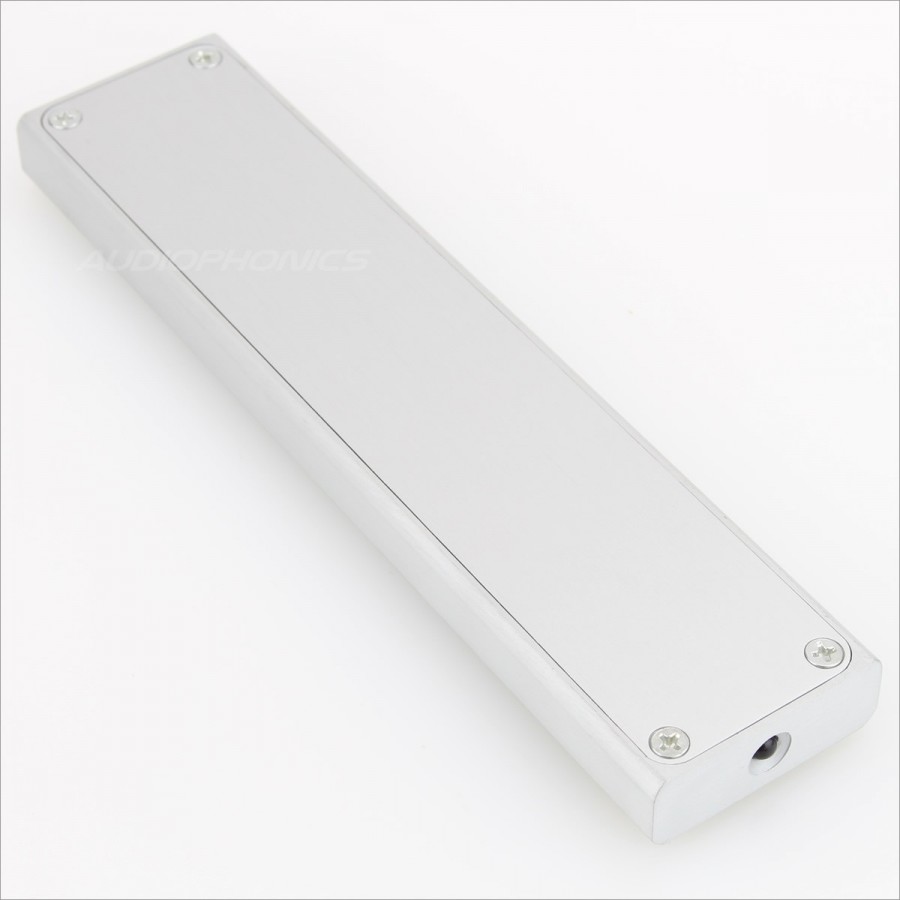

Aluminium Remote Control

Data sheet
InputRCA
InputOptical
InputSPDIF
InputI2S via HDMI
OutputXLR
OutputACSS
OutputRCA
OutputJack 6.35mm
ColorBlack
