DAC / ADC Board Bluetooth 5.0 24bit 192kHz

DAC / ADC Board Bluetooth 5.0 24bit 192kHz

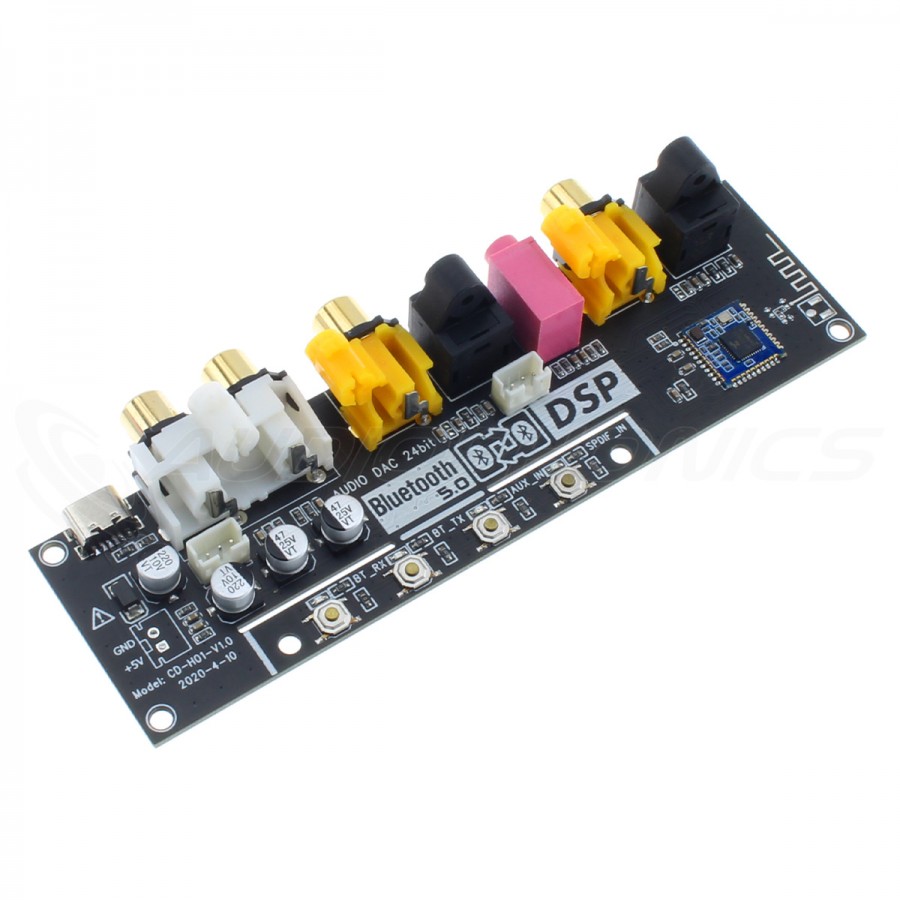

This low-cost DAC and ADC module shows its versatility by offering a complete connectivity with Jack 3.5mm, RCA, coaxial, optical as well as a Bluetooth 5.0 transmission and reception capacity.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 17026
New product

16,90 €tax incl.

14,08 € tax excl.

- +

Shipping date: 23-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

DAC / ADC Board

Bluetooth 5.0 24bit 192kHz

Module DAC / ADC Bluetooth 5.0 24bit 192kHz

This DAC and ADC module at a small price shows its versatility by proposing a complete connectivity. It offers Jack 3.5mm, coaxial, optical Toslink and an analog input on PH2.0 connector. We find the same connectivity at the output except for the Jack 3.5mm, but with a stereo RCA output. This connectivity is completed by a Bluetooth 5.0 reception and transmission capacity, so it is possible to broadcast music to the module from a smartphone or a tablet for example, but also to transmit the signal from the module to headphones or Bluetooth speakers. Practical, this function greatly limits the use of cables in a modern audio installation.

Technical characteristics

Specifications
Product typeDAC / ADC board
InputsBluetooth 5.0
1* Jack 3.5mm
1* Coaxial
1* Optical Toslink
1* PH2.0 analog input
OutputsBluetooth 5.0
1* Stereo RCA
1* Coaxial
1* Optical Toslink
1* PH2.0 analog output
Supported sampling ratesPCM up to 24bit 192kHz
General
Power supply5VDC via USB-C or solder pads (power supply sold separately)
PCB dimensions130*37mm
Mounting holes spacing124*31mm

Data sheet
InputJack 3.5mm
InputOptical
InputPCB Connector
InputSPDIF
InputBluetooth
OutputCoaxial SPDIF
OutputPCB Connector
OutputRCA
OutputBluetooth
OutputOptical Toslink
DAC / ADC ChipNC
Max sampling rate192kHz
