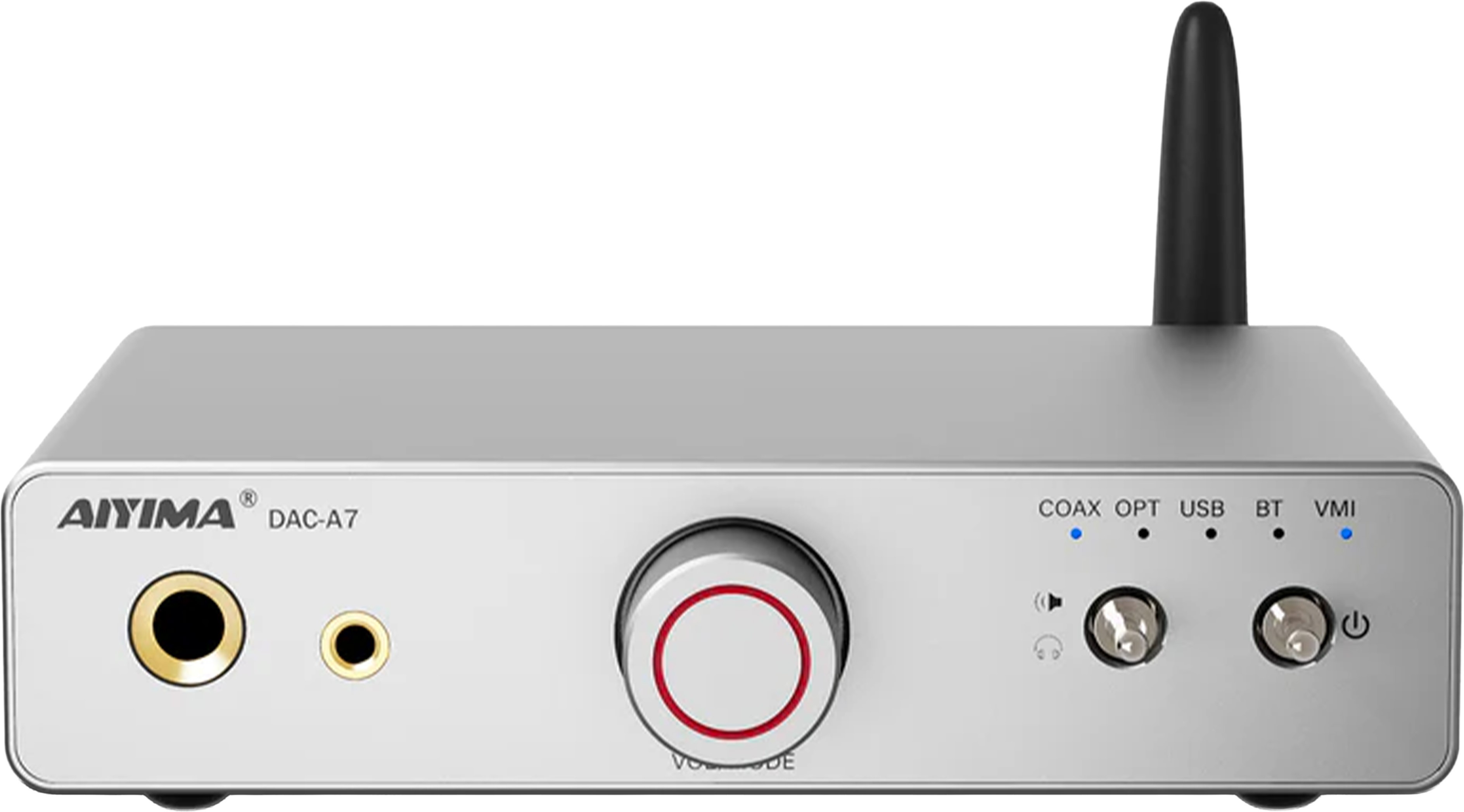

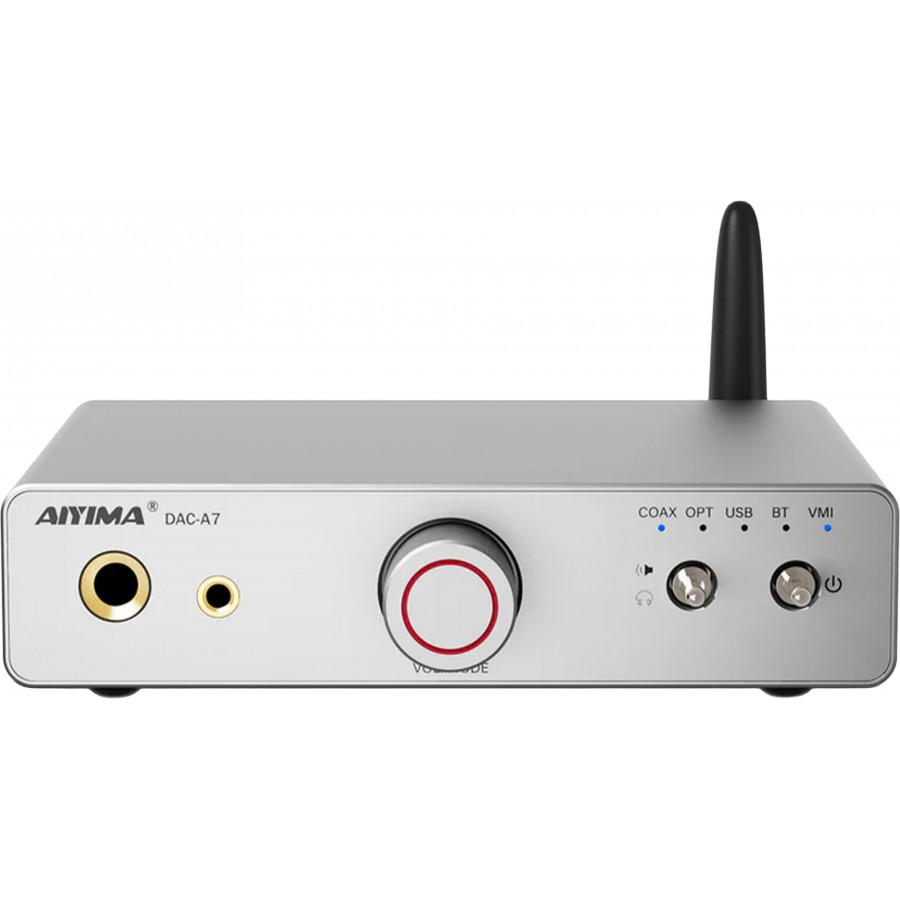

AIYIMA DAC-A7 DAC Headphone Amplifier
By buying this product you get 9 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Aiyima DAC-A7 DAC Headphone Amplifier ES9038Q2M TPA6120A2 Bluetooth 5.4 QCC3084 aptX HD LDAC 24bit 192kHz
The Aiyima DAC-A7 is a DAC with a built-in headphone amplifier based on a hybrid architecture combining the ESS ES9038Q2M and TPA6120A2 chips, designed to handle digital-to-analog conversion and directly power headphones across a wide impedance range of 16 to 600Ω. It delivers up to 1500mW into 32Ω, providing sufficient headroom for demanding drivers, while the integration of a 24bit 192kHz conversion stage ensures faithful reproduction from both wired and wireless sources.
Designed for versatile stationary use, it combines Bluetooth 5.4 reception via the Qualcomm QCC3084 chip with extensive digital connectivity, allowing you to centralize diverse sources while maintaining stable transmission up to 24bit 96kHz via LDAC or aptX HD. This approach is extended by a preamplifier mode that allows a direct connection to a power amplifier or active speakers, while circuit isolation and simplified management of headphone/line outputs ensure seamless operation without hardware reconfiguration, positioning the device as a control and conversion interface at the heart of a compact audio system.

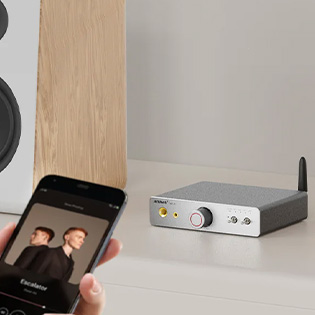

Aiyima DAC-A7: Bluetooth 5.4
Thanks to its Qualcomm QCC3084 Bluetooth 5.4 chip, the Aiyima DAC-A7 supports standard and high-definition Bluetooth codecs—including SBC, AAC, aptX, aptX HD, and LDAC enabling the DAC-A7 to function as a Bluetooth gateway that delivers reliable and stable wireless transmission at up to 24 bit 96kHz.
Aiyima DAC-A7: High-Performance Headphone Amplifier
The Aiyima DAC-A7 features two 3.5mm and 6.35mm headphone jacks designed for 16-600Ω compatibility, allowing for use with a wide variety of headphones, supported by an output power of 1500mW at 32Ω. The integration of audiophile-grade chips, such as the ESS ES9038Q2M DAC chip and the TPA6120A2 amplifier, allows headphones to be driven to their full potential and enables the use of two headphones simultaneously.
Aiyima DAC-A7: Interface and Features

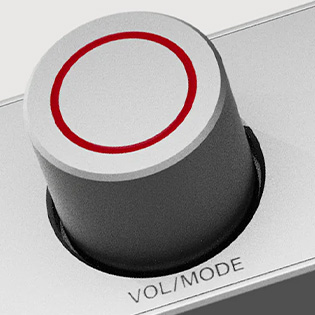

To minimize interference, the DAC-A7 features audio sections and circuits that are isolated from one another. It is equipped with a button that allows you to switch between headphones output and line output. A front-panel rotary knob turns the DAC-A7 on and changes the input mode with a single press, while turning it adjusts the volume. Volume settings and active modes are automatically saved.
In addition, the DAC-A7 features a preamp mode that allows for direct connection to a power amplifier or an active speaker without the need for a separate preamp. The USB-C wired connection is compatible with most operating systems, including Windows 10/11, macOS, Linux, iOS, and Android. To ensure compatibility with gaming consoles, it also features UAC 1.0 mode.

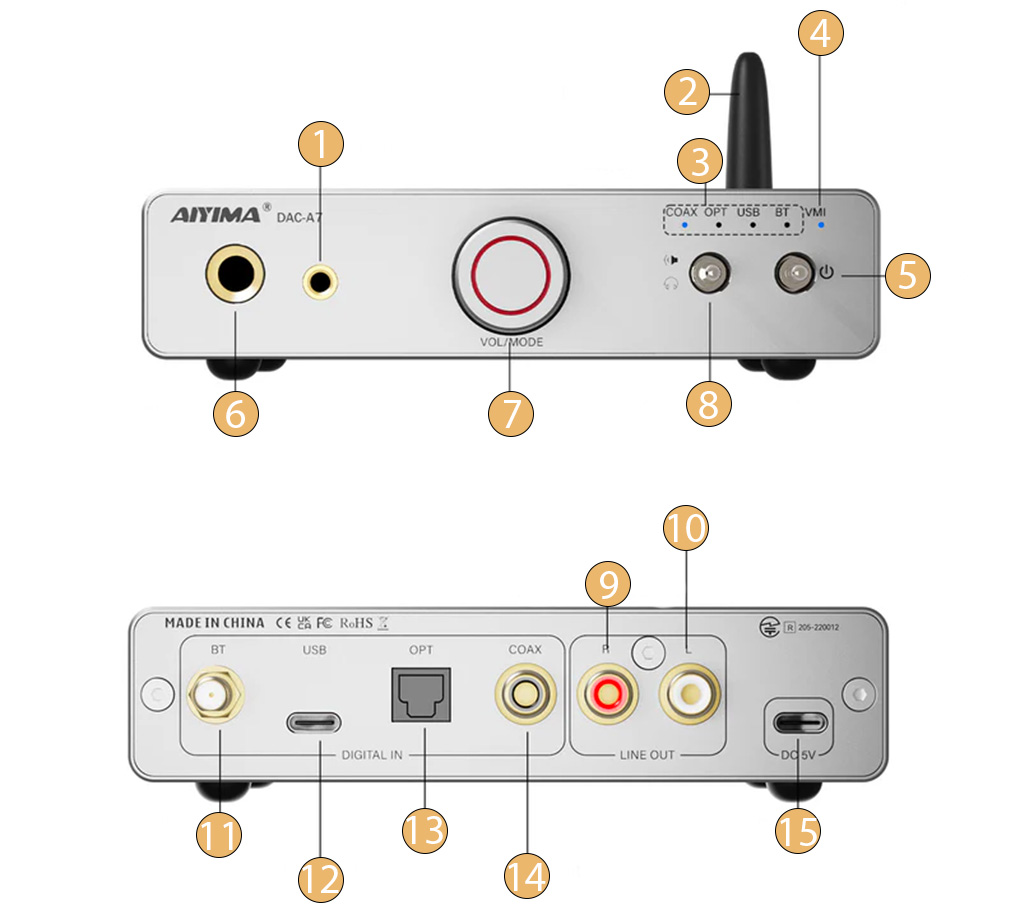

Overview of the Aiyima DAC-A7
| 1 | 3.5mm headphone output |
| 2 | Bluetooth Antenna |
| 3 | Input indicator (Coaxial, optical, USB, Bluetooth) |
| 4 | Volume mode indicator |
| 5 | Power switch |
| 6 | 6.35mm headphone output |
| 7 | Volume/Mode switch knob |
| 8 | Output toggle switch |

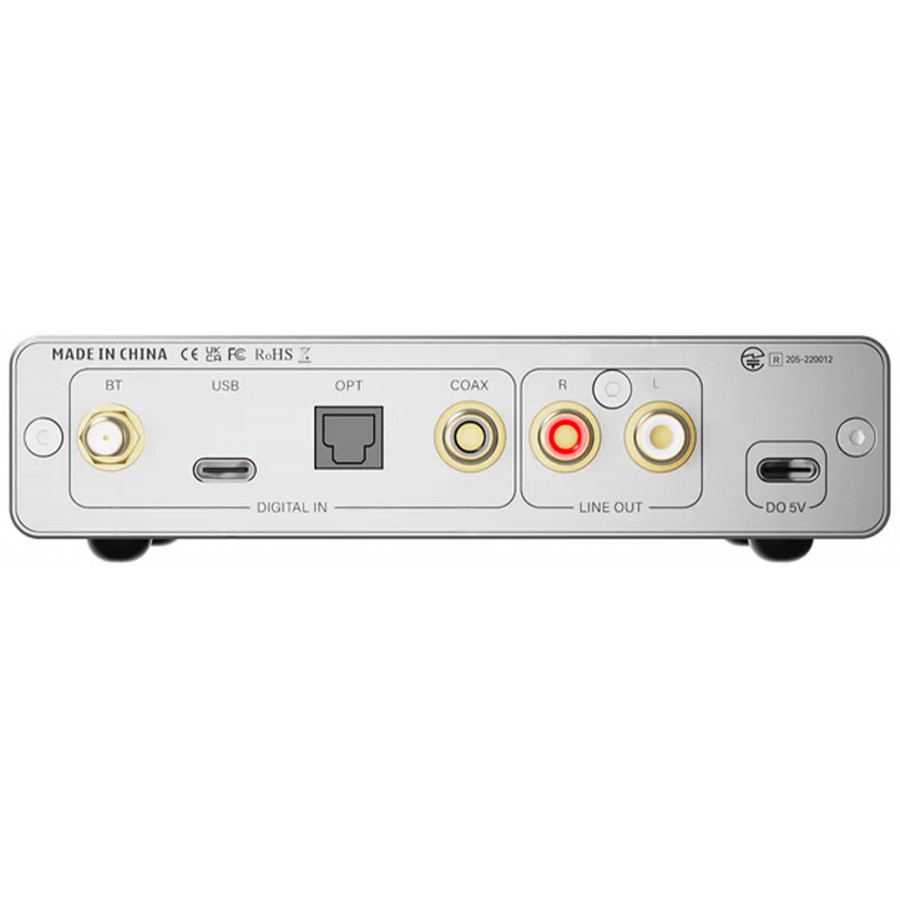

| 9 | RCA right channel output |
| 10 | RCA left channel output |
| 11 | Bluetooth input |
| 12 | USB input |
| 13 | Optical input |
| 14 | Coaxial input |
| 15 | USB-C Power input (5V DC) |
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC / Headphone Amplifier |

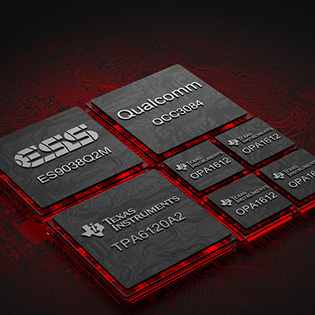

| Chips | 1x ESS ES9038Q2M 1x Texas Instrument TPA6120A2 1x Qualcomm QCC3084 4x Texas Instrument OPA1612 |
| Inputs | 1x Coaxial 1x Bluetooth 5.4 1x Optical 1x USB |
| Outputs | 1x 6.35mm jack heaphone output 1x 3.5mm jack headphone output 1x RCA |
| Supported Bluetooth codecs | LDAC, aptX-HD, aptX, AAC, SBC |
| Bluetooth Range | > 10m |
| Output power | 1500mW @ 32Ω |
| Maximum sampling rate | USB/Optical/Coaxial: PCM 24bit 192kHz Bluetooth: PCM 24bit 96kHz |
| Frequency response | 20-20kHz (±0.3dB) |
| THD+N | < 0.0003% |
| SNR | ≥ 120dB |
| Supported impedances | 16-600Ω |
| Noise level | 1.6µVrms |
| General | |
|---|---|
| Power supply | DC 5V via USB-C |
| Dimensions | 130x100x30mm |
| Weight | 400g |
| Packaging | 1x Aiyima DAC-A7 1x Bluetooth antenna 1x Fiber-Optic Cable 1x USB-A/C to USB-C Cable |
| Input | Optical |
| Input | SPDIF |
| Input | Bluetooth |
| Input | USB |
| Output | RCA |
| Output | Jack 6.35mm |
| Output | Jack 3.5mm |
| DAC / ADC Chip | ES9038Q2M |
| Max sampling rate | 192kHz |
| Color | Silver |
| Class | Class A / AB |
| Networking | No |
| Remote Control | No |
