AUNE S6 PRO Headphonie amplifier XLR DAC DSD / DXD AK4497 32bit / 768kHz XMOS Black

AUNE X5s 6TH ANNIVERSARY Lecteur de fichiers Audio Haute définition 24bit DSD (CPLD) Noir
With this second version of the S6 series, Aune proposes a DAC / Headphone Amplifier based on the excellent conversion AK4497 chip by AKM. The device has a relevant and qualitative connectivity for seamless integration into your audio system.

No customer reviews yet, login to write a review.

By buying this product you get 45 loyalty points


Reference : 13643
New product

457,50 €tax excl.

Including 0,04 € for green tax
Available

- +

Shipping date: 22-08-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product


More info

ELL S6 PRO

DAC / Headphone amplifier balanced AK4497 768k / 32bit DSD512



S6 Pro Version Aune DAC

AK4497 DAC


With this second version of the S6 series, Aune proposes a DAC / Headphone Amplifier based on the excellent conversion AK4497 chip by AKM. The device has a relevant and qualitative connectivity for seamless integration into your audio system.

A 32 bit DAC allows access to very high resolution files. The USB input supports high resolution file formats up to 768kHz and native DSD512. The coaxial input supports 384kHz / 24-bit and DSD128 (DOP). The optical input 192kHz / 24-bit. Finally, the AES manages PCM DSD DOP128 and 384kHz / 24-bit.

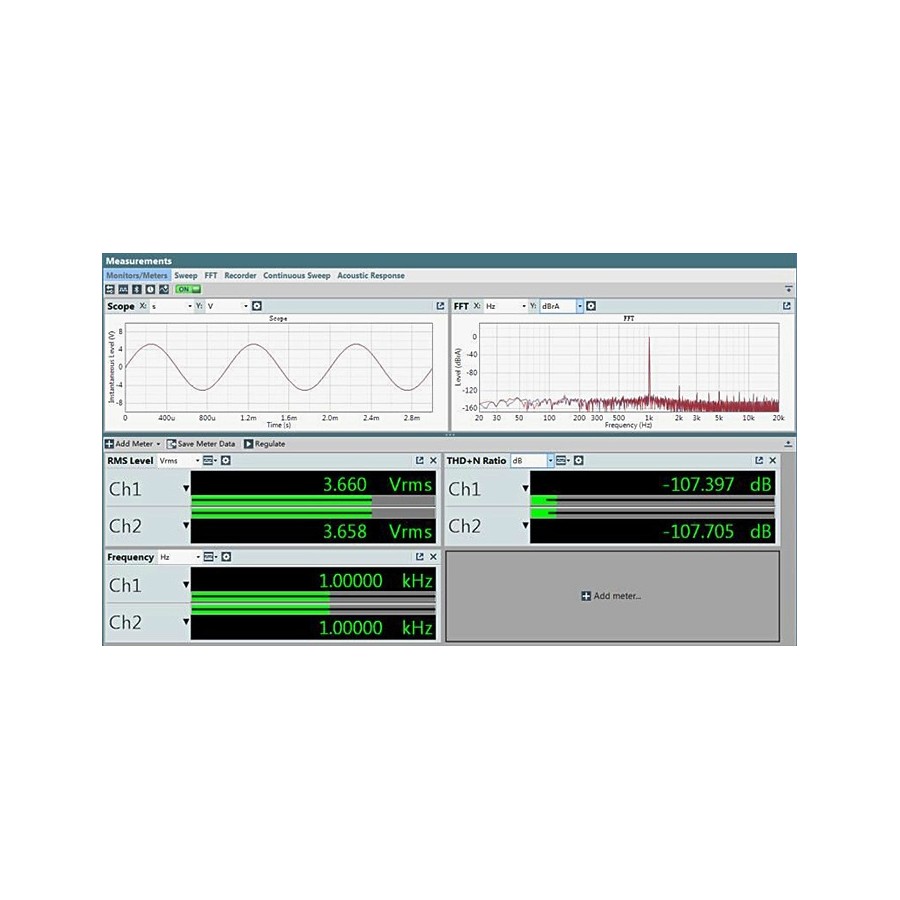

Each channel (stereo) has the advantage of having its own preamp circuit. This ensures excellent stability of the signal on the balanced and unbalanced output with a well defined sound stage. The device has been measured crosstalk -132dB with harmonic distortion (THD) @ 1kHz 0.0005% and a dynamic range to 119dB (118dB SNR).

DAC with volume Aune S6 AKM

Headphone amplifier


S6 Pro combines one of the most efficient DAC models with an amplification circuit constructed around a preamplifier / proven helmet channel. The helmet front amplification stage results on a output jack 6.35mm and an analog output on XLR.

Symmetrical XLR output delivers up to 405mW with a 300Ω load while the jack asymmetric 6.35mm output can deliver 120mW at equivalent load. A large power reserve that can power hungry helmets.

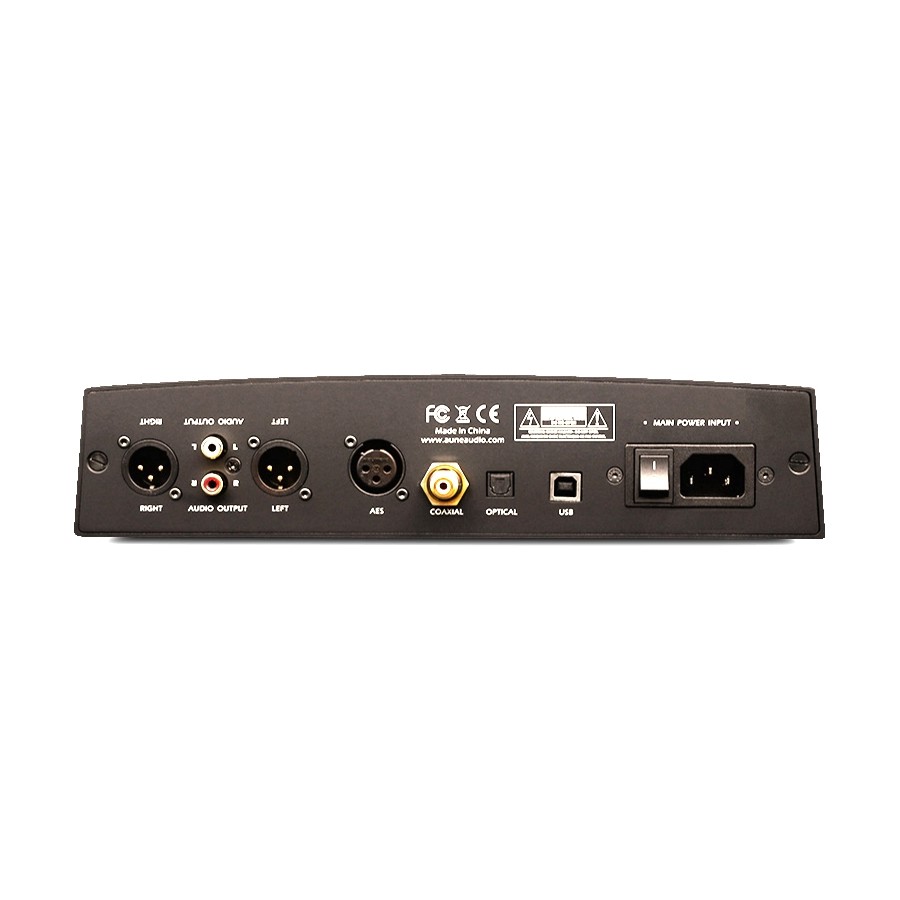

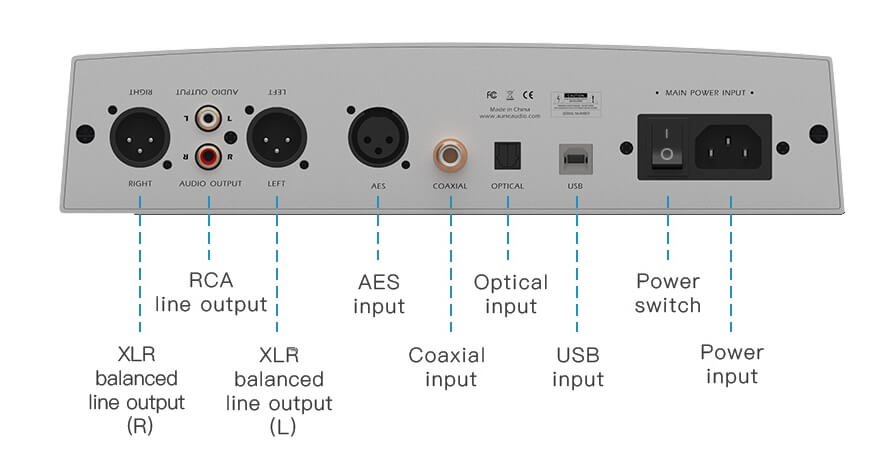

Connectors

Connection Pro S6 Aune


With an impressive array of connectivity, the S6 Pro has a digital AES / EBU input, one coaxial port as well as an optical input.

The USB-B port can connect the S6 Pro to a computer or even a smartphone / tablet OTG compliant to enjoy with a wink to the rest of the chain without sacrificing audio quality.

As output, the S6 Pro offers the option of unbalanced RCA stereo XLR balanced stereo. It may well be connected to various types of audio devices and different degrees of complOutputy.

Specifications
TypeDAC with volume
headphone amplifier
inputsUSB 32bit 768kHz / DSD512
COAX: 24bit 768kHz DSD512
OPTICAL
AES
OutputsXLR 4pin Headset
Jack 6.35mm headset
variable asymmetrical RCA
XLR variable symmetric
Output Level405mW @ 300 Ohm (XLR)
120mW @ 300 Ohm (6.35)
Frequency response20Hz-20kHz
dynamic range119dB
SNR118dB
THD + N @ 1kHz0. 0005%
Volume KnobFacade
Rotary
Dimensions288x63x211mm
Package Contents
Aune S6 Prox1
Power cablex1
USB cablex1
USB stick with manual / driver / tutorialx1
6.35 to 3.5mm Adapterx1

Data sheet
InputUSB-B
InputUSB XMOS
InputOptical
InputUSB 2.0
InputXLR
