SMSL M200 Balanced DAC AKM4497EQ XMOS U208 Bluetooth 5.0 768kHz DSD512 Black

SMSL M200 Balanced DAC AKM4497EQ XMOS U208 Bluetooth 5.0 768kHz DSD512 Black
Balanced desktop DAC with native DSD XMOS USB interface, SPDIF & Bluetooth 5.0 192kHz. Delivered with its infrared remote control.

Average votes for this product
4.5 / 5

By buying this product you get 24 loyalty points


Reference : 14552
New product

249,17 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 30-11-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

SMSL M200

Balanced DAC AKM4497EQ 768kHz DSD512




The M200 in SMSL is a compact DAC with volume control using a AKM AK4497EQ DAC chip. It is able to decode files with a sampling frequency up to 768kHz and natively supports DSD up to DSD512 through its USB interface XMOS.

Besides its high definition USB input, it includes a S/PDIF interface and a Qualcomm Bluetooth 5.0 interface with support for high definition audio protocols (UAT, LDAC, apt-X HD, SBC, AAC).

It has a balanced and a single-ended output stage in order to comply with the requirements of any complex or compact audio installation.

Balanced DAC AK4497EQ


Equipped with a DAC AKM AK4497EQ 32-bit integrated in a balanced circuit, SMSL M200 uses the famous Velvet Sound architecture. This allows the disclosure of the lowest sound details which are ordinarily lost in audible distortion. The device offers a great SNR of 125dB with a very low THD of 0.00015%.

Velvet Sound technology available in DAC AK4497EQ offers 6 different digital filters in order to meet your own listenning preferences as well as the specifications of your audio system as a whole. (Super Slow roll-off, Short Delay Slow Roll-Off, Slow Roll-Off, Low dispertion, Short Delay Sharp Sharp Roll-off and roll-off).


Finally AKM AK4497EQ The chip is mainly a native DSD decoder, making the M200 an ideal choice for high-definition music enthusiasts.

The M200 is capable of operating in pure DAC mode with DSD signals to bypass completely the volume control feature and keep only the strictly audio information without performing any modification to the signal.

USB, SPDIF & Bluetooth 5.0

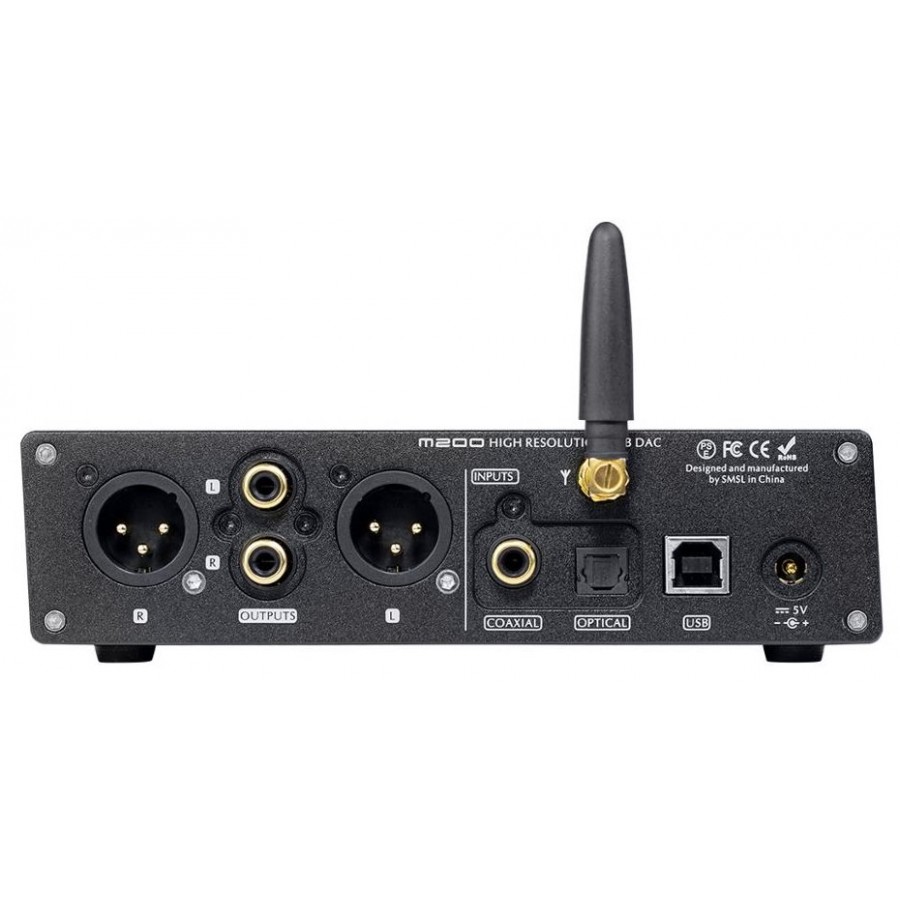

The DAC has a SPDIF input interface, a USB interface, a Bluetooth interface and offers wide input connectivity. It can be connected to your digital sources via an optical or coaxial connector (S / PDIF to 192kHz-24bit), a USB-2 type B connector (USB XMOS to 768kHz-32bit & DSD512) and via bluetooth.

Its Qualcomm quad-core Bluetooth 5.0 receiver supports UAT / LDAC / APTX-hd / AAC / SBC standards and can accept wireless digital streams up to 192kHz-24bit.

OLED screen & Volume knob


On its front panel, a wide knob makes it easy to adjust the volume. An OLED screen displays the volume status to easily find your favorite configuration. It also shows all information necessary to verify that the filedecoding is optimal (detected sampling rate, type of active input...).

Infrared remote included


The M200 comes with an infrared remote control. The latter offers the possibility to control all the unit functions : setting on / off, volume control, mute, filter selection, source selection,screen display mode, pairing bluetooth ...

Specifications
TypeDAC with volume
InputsOptical
Coaxial
USB-B
Bluetooth
OutputsBalanced stereo XLR
Single-ended stereo RCA
Output levelsRCA: 2Vrms
XLR: 4.1 Vrms
THD + N0.00015% (-116dB)
DynamicRCA: 123dB
XLR: 125dB
SNR125dB
Bluetooth standardUAT-192kHz 24bit
LDAC-96kHz 24bit
apt-X HD-48kHz 24bit
apt-X-44.1kHz 16bit
SBC-16bit 44.1kHz
AAC-16bit 44.1kHz
USBXMOS asynchronous
USB SupportWindows 7, 8, 10
Mac OS X10.6 +
Linux
Sampling supportedUSB: 44.1 - 768kHz 32bit
S / PDIF: 32 - 192kHz 24bit
DSDUSB: DSD64, DSD128, DSD256, DSD512
Power supplyDC 5V
Power consumption3.5W
0.1W idle
Dimensions160x43x168mm
Weight0.68kg
Package contents
SMSL M200x1
Bluetooth antennax1
Power supplyx1
USB-A to USB-B cablex1
User manualx1

Data sheet
InputUSB-B
InputSPDIF
InputBluetooth
InputUSB 2.0
InputUSB
InputOptical
OutputRCA
OutputXLR
DAC ChipAK4497EQ
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
NetworkingNo
Remote ControlYes
