The AURALiC team had only one idea in mind when designing the 32 bit VEGA DAC: Create the perfect DAC without the inherent defects of the current technology.
The result is up to expectations with a real attention to detail, the fruit of a long study on problems related to sampling and digital filters of the Delta Sigma 32 bit DAC.
Programmable Auralic Sanctuary and Active USB:
The AURALiC Santuary processor from AchWave in ARM9 architecture (1000MIPS) contains all the technology programmed in the Auralic Vega DAC. P>
This processor works in conjunction with the "Active USB" input, the low-level physical layer of which is completely revised by AURALiC engineers, providing a high-level proprietary solution and effective galvanic isolation.
FEMTO type clock:
The internal clock of the DAC VEGA, core of the AURALiC technology has among the lowest rates of Jitter on the market with a clock of 82 Femtoseconds. The phase noise is thus insignificant even in the highest resolutions with -168dB / hz.
This clock stabilized in shielded temperature, in a case of metal making it insensitive to all external disturbances and mechanically inert.
Several digital filtering modes for natural rendering: Strong>
6 Filtering modes make it easy to adapt the sound signature in the mediumacute. Positions 1 to 4 are designed for PCM signals with the usual conventional Apodizing and Slow Roll filters.
Mode 4 is recognized as being the most efficient with a group delay of 2.15 Femtoseconds at a frequency of 44.1Khz.
Modes 5 and 6 are entirely dedicated to digital filtering of the DSD format, resulting in a background noise of -140dB.
The result is a natural sound without the artificial side of the competing solutions thanks to an "Exact Mode" of over-sampling without pre and post echo harmful for the music.
the DAC AURALiC VEGA succeeded in bringing a solution of over-sampling 32 bit to 1.5Mhz able to compete with the biggest references High-End of the market.

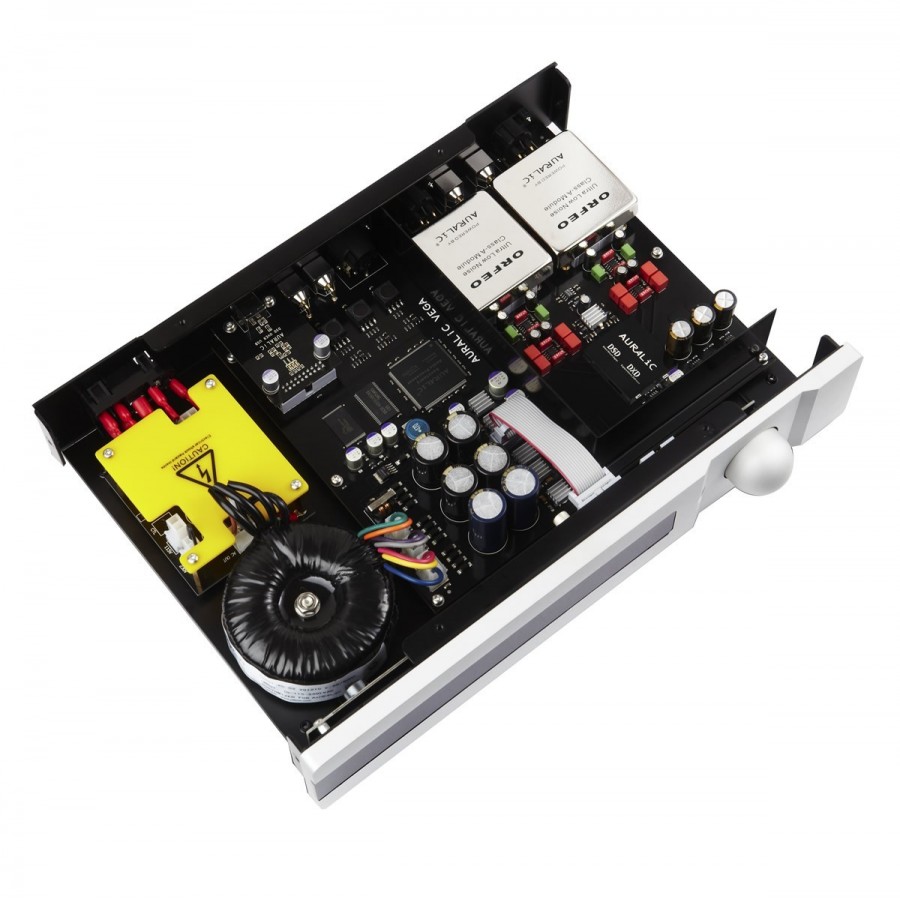

An Orfeo analog power supply and stages designed accordingly.
AURALiC was not content with 99% of competing brands to repeat the existing analog solutions on the market.
To perfect the Exact Mode technology, Orfeo AURALiC fully Class A modules with very low noise comply with the work performed by the Femtoclock Exact Mode clock and the ESS ES9018s DAC.
These pure class A modules are inspired by the best professional solutions (Neve 8078 mixer). P>
The two partners merge audio qualities that are usually diametrically opposed: a precise, dynamic soundof a great resolution and yet of a subjugating naturalness./ P>
Test of the DAC Auralic VEGA in Stereophile.
Specifications DAC AURALiC VEGA: Strong>
- Frequency response: 20Hz to 20khz +/- 0.1dB;
- Dynamic scale: 130 dB weighted A.
- Total Harmonic Distortion (THD): 0.00015% 20 to 20KHz to 0dBs.

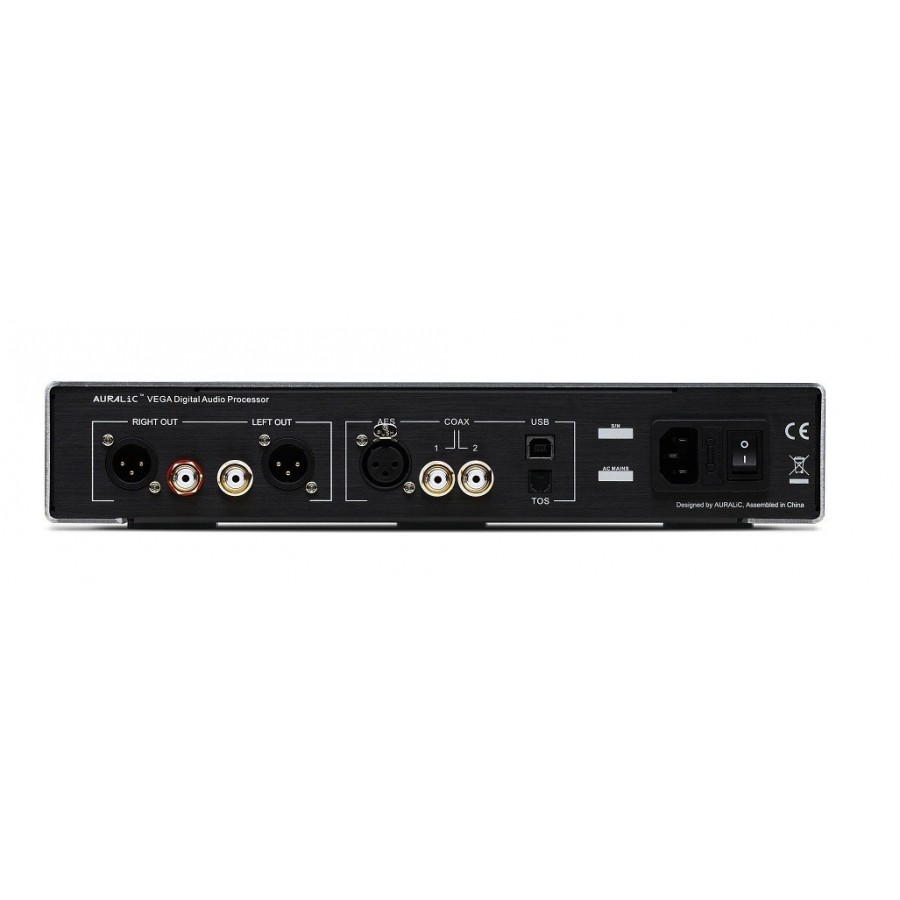

- 1 input AES / EBU 110 Ohm. Li>
- 2 coaxial SPDIF 75 Ohm inputs. Li>
- 1 Toslink input. Li>
- 1 High Definition compatible USB 2.0 input and DSD.
- 1 balanced XLR stereo output (output impedance 4.7 omh).
- An unbalanced stereo output on RCA (output impedance 50 ohm).
- Maximum output level 4Vrms with digital volume without loss.
Supported Digital Formats:
- PCM Formats: from 44.KHz to 384KHz up to 32bit. (352.8Khz and 384Hz only on USB).
- DSD Formats: DSD 64, DSD128, DSD256.
Auralic RC1 avec OLED screen 512x64 pixels. P>
Power Consumption: Strong>
- Mode off: less than 2W Li>
- Sleep mode: less than 10W.
- Full mode: 15w maximum.
