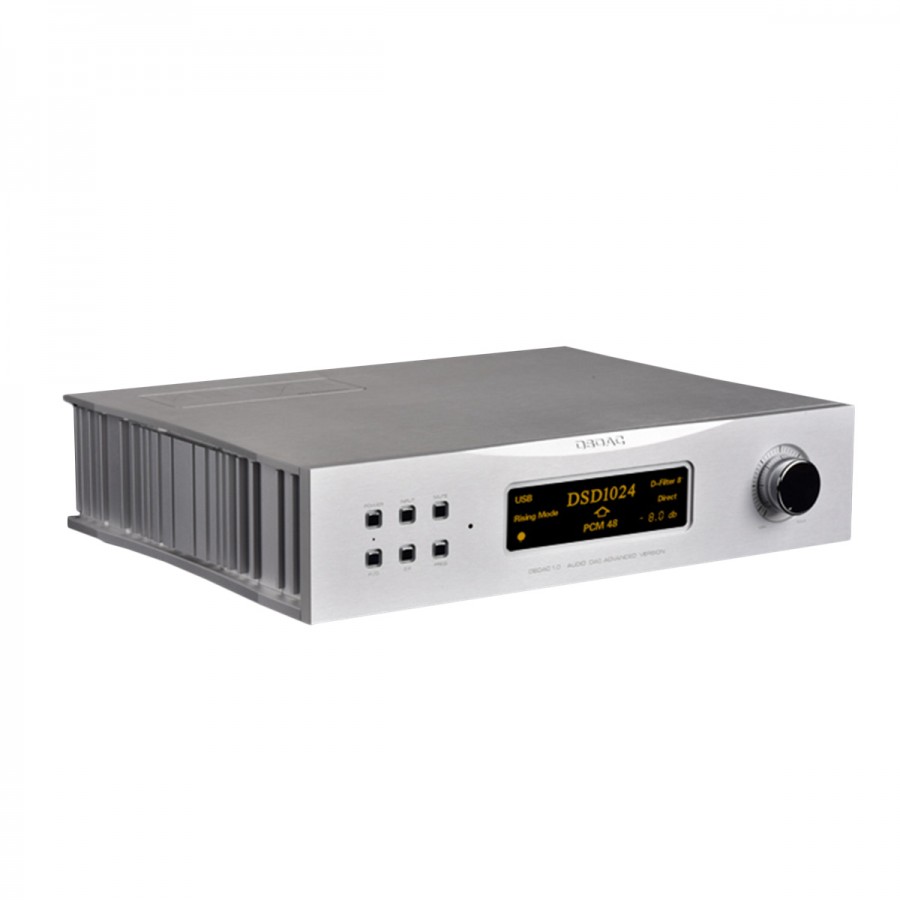

CEN.GRAND DSDAC 1.0 DELUXE DAC FPGA XMOS XU208 Femtosecond Clock 32bit 384KHz DSD1024 Silver

CEN.GRAND DSDAC 1.0 DELUX DAC PCM 384KHz DSD512 Silver
The DSDAC 1.0 DELUXE is a DAC based on DSD technology. It is different from most DACs on the market, in fact the DSDAC 1.0 DELUXE can increase the frequency of any digital input signal, including PCM and DSD64, up to DSD 1024. If the signal is equivalent or higher at DSD128 you can also choose not to increase the frequency of the signal. The DSDAC 1.0 DELUXE does not integrate a conventional dac chip but an optimized FPGA for an efficient reclocking system and discrete components for digital processing.

No customer reviews yet, login to write a review.

By buying this product you get 599 loyalty points


Reference : 17662
New product

5 990,00 €tax incl.

4 991,67 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 27-02-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

CEN.GRAND DSDAC 1.0 DELUX

DAC FPGA XMOS XU208 Femtosecond Clock 32bit 384KHz DSD1024

CEN.GRAND DSDAC 1.0 DELUX DAC PCM 384KHz DSD512 Silver

The DSDAC 1.0 DELUXE is a DAC based on DSD technology. It is different from most DACs on the market. Indeed, the DSDAC 1.0 DELUXE can increase the frequency of any digital input signal, including PCM and DSD64, up to DSD1024. If the signal is equivalent or higher at DSD128 you can also choose not to increase the frequency of the signal.

The DSDAC 1.0 DELUXE does not integrate a conventional DAC chip but an optimized FPGA for an efficient reclocking system and discrete components for digital processing.

It has 3 advanced audio technologies:

  • High precision DSD frequency algorithm
  • Direct synchronous clock
  • Clock blocking technology

The DELUX model compared to the standard model has an optimized clock system and major modifications have been made to the circuit.

The Deluxe model can also be used as a preamp. It can provide a maximum gain of 5dB for the input signal. In preamp mode, the DAC function is inactive.

CEN.GRAND DAC 1.0 DELUXE VS CEN.GRAND DAC 1.0 STANDARD

DAC 1.0 DELUXE

DAC 1.0 STANDARD

Clock system

Improved femtosecond clock system,
RMS jitter is as low as 100fs

Femtosecond clock system

Circuitry

Advanced digital and analog circuitry

Standard circuits without advanced components

Power system

Optimized system:
independent transformers
for the digital and analog parts

Single transformer

Synchronous direct clock technology

The DSDAC 1.0 DELUXE is equipped with an integrated femtosecond clock. Its signal is sent directly, without intermediate conversion and without going through the frequency divider, to the shift register. This allows the performance of the femtosecond clock to reflect directly on the analog outputs of the DAC.
An FPGA takes care of the synchronization of the audio signals. In short, it makes it possible to offer a more precise and transparent sound reproduction, while drastically reducing noise.

Clock blocking technology

The DSDAC 1.0 DELUXE is able to block the clock signal of devices transmitting a sound signal upstream, your CD player for example, so the DAC only uses its internal clock. This technology solves the clock problem often seen in digital audio.

XMOS XU208 custom USB interface

The USB interface is capable of receiving native DSD signal. The SPDIF inputs can receive DSD64 in DoP mode.

CEN.GRAND DSDAC 1.0 DELUX DAC PCM 384KHz DSD512 Argent

Technical characteristics

Specifications
Product typeDAC
Digital inputs1* SPDIF AES
1* SPDIF Optical Toslink
1x SPDIF Coaxial
1x SPDIF BNC
1x USB-B
Analog inputs1* Single-ended stereo RCA (pre-amp)
1* Balanced stereo XLR (pre-amp)
Outputs1* Single-ended stereo RCA
1x Balanced stereo XLR
Supported sample ratesSPDIF: PCM up to 24bit 192kHz, DoP64 (AES, optical, coaxial, BNC)
USB-B: PCM up to 32bit 384KHz, Native DSD up to DSD512
Output levelsXLR: 6.2 V RMS
RCA: 3.51 V RMS
Volume control range-65dB ~ 4dB
General
Dimensions430*360*100mm
Net weight11.5kg
Gross weight13.8Kg
ColorSilver
Package1* DSDAC 1.0 DELUXE
1* USB Cable USB-A to USB-B 1m
1* Remote control
1* Power cable

Data sheet
InputOptical
InputAES/EBU
InputRCA
InputSPDIF
InputBNC
InputUSB
InputXLR
OutputXLR
OutputRCA
DAC / ADC ChipNC
Max sampling rate384kHz
Max sampling rateDSD1024
ColorSilver
NetworkingNo
Remote ControlYes
