The EverSolo DAC-Z6 is a powerful DAC based on a neat technical structure. It embeds high-end components with notably two ESS ES9068AS digital/analog conversion chips and a XMOS XU316 USB interface allowing it to support high resolution audio streams and to provide a clear and detailed sound reproduction. The DAC-Z8 also offers a wide range of features making it a versatile and efficient device.

Average votes for this product
5.0 / 5

By buying this product you get 46 loyalty points


Reference : 17133
New product

469,00 €tax incl.

390,83 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 30-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

EverSolo DAC-Z6

DAC 2x ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

EverSolo DAC-Z6 DAC ES9068 XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

The EverSolo DAC-Z6 is a powerful DAC based on a neat technical structure. It embeds high-end components with notably two ESS ES9068AS digital/analog conversion chips and a XMOS XU316 USB interface allowing it to support high resolution audio streams and to provide a clear and detailed sound reproduction. The DAC-Z8 also offers a wide range of features making it a versatile and efficient device.

EverSolo DAC-Z6 DAC ES9068 XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

ES9068AS Dual DAC

The heart of the DAC-Z6, its digital-to-analog conversion stage, is equipped with a pair of ESS ES9068AS chips. These ensure low distortion and noise for a seamless high-fidelity music experience. This balanced structure also greatly reduces interference that could alter the integrity of the audio signal. In addition, the DAC-Z6's audio circuitry is specifically calibrated to deliver its full potential.

XMOS XU316 USB interface

The USB input of the DAC-Z6 is combined with an XMOS XU316 interface, which is able to process audio data quickly and efficiently for optimal signal transmission. This chip also supports high-resolution streams up to PCM 32bit 768kHz and DSD512 Native, as well as MQA files.

MQA

The EverSolo DAC-Z6 supports the decoding of MQA (Master Quality Authenticated) files from its USB, Toslink optical and coaxial inputs. This format allows to enjoy a sound quality as close as possible to the original studio recording.

EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

High precision clocks

The DAC-Z6 is equipped with two very high precision clocks on the frequencies 45.1584MHz and 49.152MHz. These allow you to enjoy a high quality decoding, ensuring a very low jitter for a detailed and accurate sound.

EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

Amplifier circuit & Balanced preamp output

The DAC-Z6's analog audio circuitry is fully balanced and uses multiple OPAs. The XLR, RCA and headphone outputs are all processed by a balanced differential amplifier circuit ensuring low noise and improved channel separation. The high-fidelity preamplifier circuitry provides precise and efficient volume control.

Bluetooth 5.0

In addition to full connectivity, the DAC-Z6 features a Qualcomm QCC5125 Bluetooth 5.0 receiver, making it possible to stream music remotely from a smartphone or tablet, for example, while supporting the high-resolution aptX HD and LDAC transmission codecs for high-quality wireless playback.

EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

Digital filters

The EverSolo DAC-Z6 provides 3 sets of digital filters, each with different sound characteristics. These allow you to adapt the sound reproduction of the device according to your listening preferences and your audio system.

Low ripple power supply stage

A low-noise power supply stage and capacitor filter have been specially optimized for the DAC-Z6. They provide a clean, interference-free electrical signal to all of the unit's audio circuits for rich, accurate sound reproduction.

EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

A powerful headphone amplifier

The DAC-Z6's headphone amplifier also performs very well and is capable of providing comfortable power to accompany headphones with impedance from 16 to 300Ω without difficulty. This one also has a two-step gain control to accommodate both demanding headphones and more sensitive earphones.

EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

Control app

The DAC-Z6 can be controlled via the free EverSolo Control App available on Android and iOS. The latter allows access to the vast majority of the settings available on the device.

Color Screen & Intuitive Interface

The front panel of the DAC-Z6 features a beautiful 3" color LCD screen. This one displays an ergonomic and intuitive interface allowing you to access all the functions and parameters of the DAC.

EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

Multi-function button

The DAC's multi-function knob can be used to control the volume level, navigate menus, select a source or output, change filters, change the display, etc. It allows full control of the device in a convenient way.

Aluminum frame

The EverSolo DAC-Z6 is dressed in a beautiful, sturdy aluminum chassis that has been precision-machined by CNC (numerical control). It offers a modern and sober design, allowing it to be easily integrated into any audio system.

EverSolo DAC-Z6 DAC ES9068AS XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

Technical characteristics

Specifications
Product typeDAC
InputsBluetooth 5.0
1* USB-B
1* USB-C
1* Optical Toslink
1* Coaxial
Outputs1* Balanced stereo XLR
1* Single-ended RCA
1* Jack 6.35mm headphone output
DAC chipES9068AS
USB interfaceXMOS XU316
OPA8* OPA1612
Bluetooth receiverQualcomm QCC5125
Supported sampling ratesUSB : PCM up to 32bit 768kHz, Native DSD up to DSD512, MQA
Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64, MQA
Supported Bluetooth codecsSBC
AAC
aptX
aptX LL
aptX HD
LDAC
ScreenLCD 3"
Control app
Recommended headphone impedance16-300Ω
XLR output performances
Output level4.1Vrms @ 0dBFS
THD+N (A-Weighted)0.000094% @ 1kHz (-120dB @ 1kHz)
THD+N (No-Weighted)0.000117% @ 1kHz (-118dB @ 1kHz)
Noise (No-Weighted)< 3µVrms
SNR (No-Weighted)125dB @ 1kHz
Frequency response20Hz-20kHz (±0.15dB)
Crosstalk-123dB @ 1kHz
Dynamic range (No-Weighted)125dB @ 1kHz
RCA output performances
Output level2.1Vrms @ 0dBFS
THD+N (A-Weighted)0.000116% @ 1kHz (-118dB @ 1kHz)
THD+N (No-Weighted)0.000135% @ 1kHz (-117dB @ 1kHz)
Noise (No-Weighted)< 2.5µVrms
SNR (No-Weighted)121dB @ 1kHz
Frequency response20Hz-20kHz (±0.15dB)
Crosstalk-118dB @ 1kHz
Dyanmic range (No-Weighted)121dB @ 1kHz
Headphone output performances (Low gain mode)
Output level1.2Vrms @ 0dBFS
Output power45mW @ 32Ω
THD+N (A-Weighted)0.00028% @ 1kHz (-111dB @ 1kHz)
THD+N (No-Weighted)0.00031% @ 1kHz (-110dB @ 1kHz)
Noise (No-Weighted)< 3.5µVrms
SNR (No-Weighted)114dB @ 1kHz
Frequency response20Hz-20kHz (±0.15dB)
Dynamic range (No-Weighted)114dB @ 1kHz
Headphone output performances (High gain mode)
Output level2.8Vrms @ 0dBFS
Output power26mW @ 300Ω
THD+N (A-Weighted)0.00014% @ 1kHz (-117dB @ 1kHz)
THD+N (No-Weighted)0.00016% @ 1kHz (-116dB @ 1kHz)
Noise (No-Weighted)< 3.5µVrms
SNR (No-Weighted)121dB @ 1kHz
Frequency response20Hz-20kHz (±0.15dB)
Dynamic range (No-Weighted)121dB @ 1kHz
General
Supply voltage110~240VAC 50/60Hz
Consumption9W
Dimensions (L*P*H)270*187*50mm
ColorSilver
Package1* EverSolo DAC-Z6

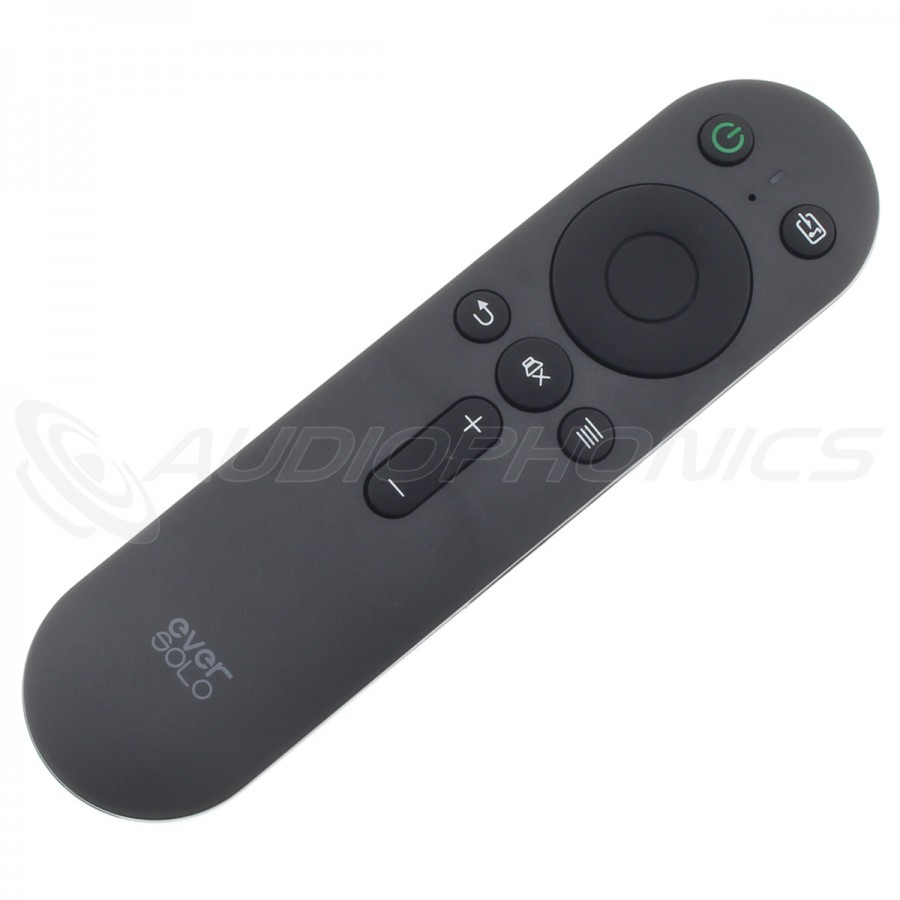

1* Remote control
1* Power cable

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
OutputXLR
OutputRCA
OutputJack 6.35mm
DAC / ADC ChipES9038PRO
Max sampling rate768kHz
Max sampling rateDSD512
Max sampling rateMQA
ColorBlack
NetworkingNo
Remote ControlYes
