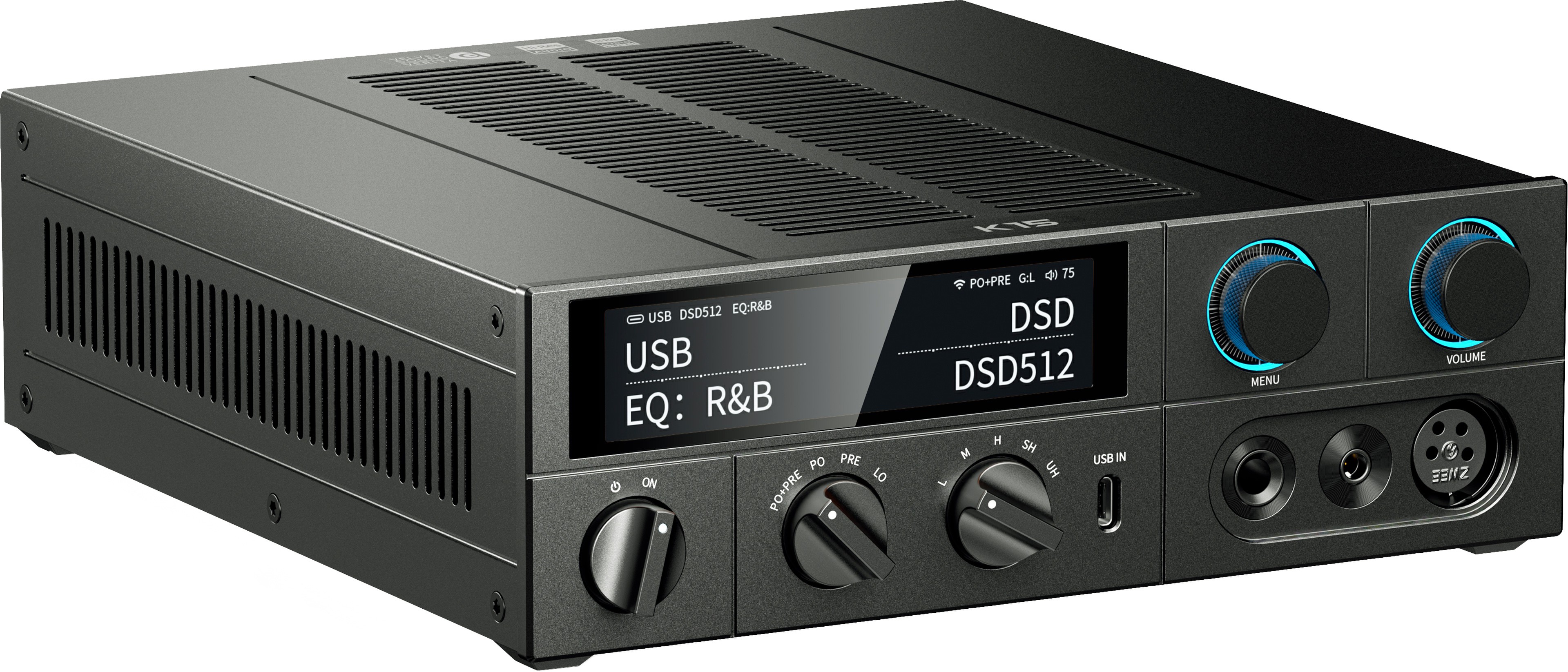

FIIO K17 DAC Headphone Amplifier Black
By buying this product you get 99 loyalty points
![[GRADE A] ASCILAB C8C Bookshelf Speakers Cardioid 3-way 1x100W + 2x250W Black (Pair)](https://www.audiophonics.fr/71347-thumb_default/ascilab-c8c-black-sba.jpg)
FiiO K17 DAC Headphone Amplifier 2x AK4499EQ WiFi Roon AirPlay Bluetooth 5.4 aptX LDAC 32bit 768kHz DSD512 Black
The FiiO K17 is a high-end DAC and headphone amplifier designed to deliver a comprehensive and versatile audio experience, whether for audiophiles or users looking for an all-in-one device for their home office or living room. It stands out for its balanced architecture, high amplification power, and extensive connectivity, making it a top choice in its class.

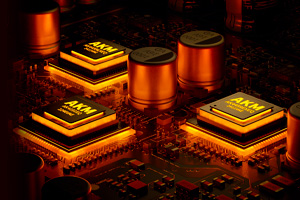

FiiO K17: An optimized conversion section
The K17 features a combination of high-quality AKM DAC chips: an AK4191 paired with two AK4499EX chips, each dedicated to a single channel. This configuration enables highly accurate digital-to-analog conversion, with a resolution of up to 32-bit/768 kHz and native DSD512 support. The 8-channel-to-4-channel design reduces common-mode interference, thereby improving channel separation and sound dynamics. The K17 also features a dedicated DSP (MS21586Q) for professional 31-band PEQ tuning, offering advanced sound customization via dedicated PC and mobile apps.

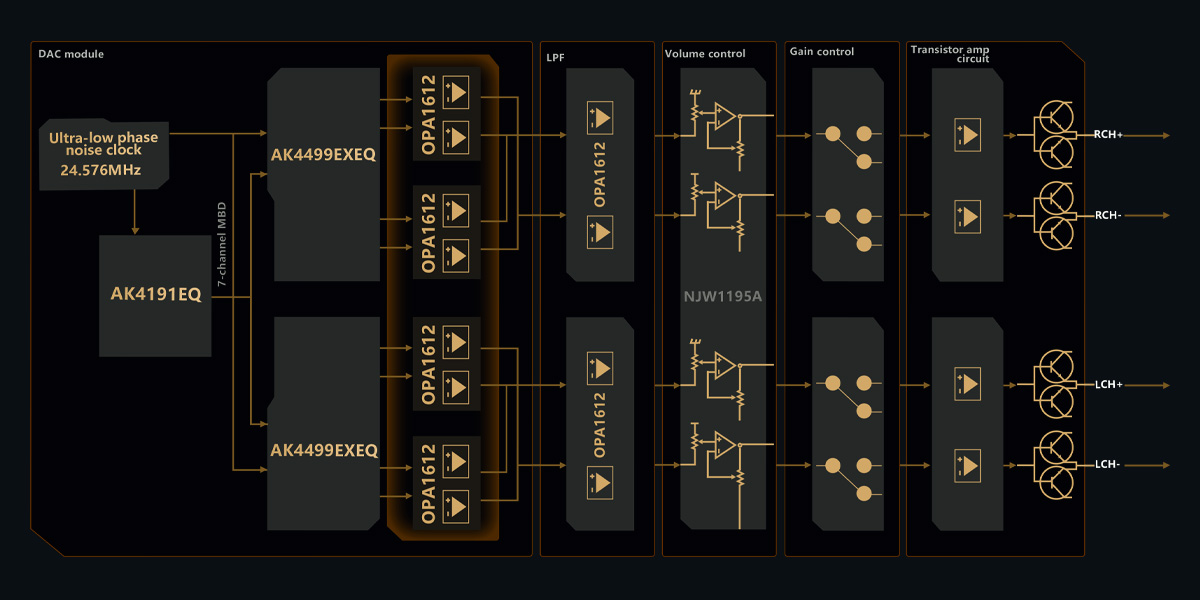

Fiio K17: Balanced architecture
Every stage of the signal processing, from digital-to-analog conversion to amplification, is designed to operate in differential mode, ensuring faithful sound reproduction and minimal crosstalk. Many components of the audio circuit, including the I/V converter and the LPF stages, utilize multiple OPA1612 op-amps to deliver excellent dynamic range.

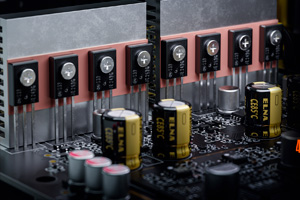

FiiO K17: A robust amplification stage
The amplifier stage is based on a discrete circuit using ON Semiconductor MJE243/253 transistors, ensuring high output power (up to 4000 mW) and low output impedance. This allows for the efficient driving of a wide range of headphones and earphones, with an adaptive impedance ranging from 8 to 350 ohms depending on the output type (balanced or unbalanced). Five switchable gain levels are available to accommodate all types of headphones.

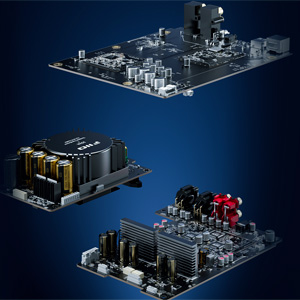

FiiO K17: Isolation of critical sections
To preserve signal integrity, the K17 features physical separation of the printed circuit boards (PCBs) dedicated to the digital, analog, and power supply sections. This isolation prevents interference between the different parts of the device, ensuring maximum audio signal purity. The analog and digital power supplies are also separate, further reducing the risk of crosstalk and noise.

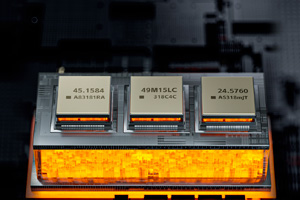

FiiO K17: Temporal accuracy and sound fidelity
The K17 uses three ultra-low-phase-noise crystal oscillators from ACCUSILICON, including the AS318-L (45.1584 MHz, 49.1520 MHz) and AS318-Pro (24.576 MHz) models. These components significantly reduce the impact of phase noise on audio signals, enabling faithful reproduction of PCM and DSD signals at various sampling rates. Thanks to this technology, the K17 ensures precise signal synchronization, which is crucial for high-resolution listening and a consistent sound experience.

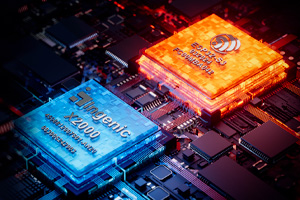

FiiO K17: Significant computing power
The K17 is equipped with an X2000 multi-core processor, combining an XBurst2 main core and two logic cores, delivering high computing power while maintaining low power consumption. This processor is complemented by a dual-core ESP32-S3 SoC, capable of operating at up to 240MHz, ensuring a smooth and responsive user experience. The independent MS21586Q DSP, capable of 64-bit double-precision calculations at 360MHz, enables advanced audio processing, including 31-band parametric equalization (PEQ), without any loss of quality.
Fiio K17: A comprehensive range of connectivity options and unmatched versatility
The K17 stands out for its comprehensive connectivity: USB-C, USB-A, Toslink optical, and coaxial inputs, as well as balanced XLR and unbalanced RCA outputs. It supports high-resolution streaming (Wi-Fi/Ethernet with Roon Ready and AirPlay support), Bluetooth 5.1 (SBC, AAC, aptX, aptX HD, aptX LL, aptX Adaptive, LDAC), and can function as a preamplifier or external DAC. Its 3.93-inch color touchscreen and custom Android 12 interface make it easy to navigate and control features, while its aluminum chassis combines durability with a retro aesthetic.

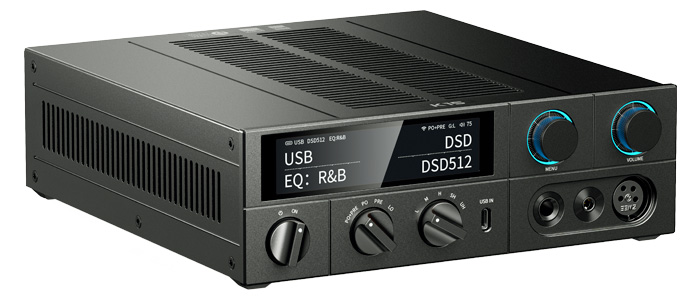

Fiio K17: A stunning retro design and perfectly engineered ergonomics
With its compact dimensions (24.46 x 21.3 x 6.68 cm) and weight of 2.75 kg, the K17 is designed to fit seamlessly into an office or living room setting. Its design combines retro elegance with modernity, featuring physical controls and an intuitive touchscreen. The K17 also features advanced capabilities such as a 32-band equalizer, Roon and AirPlay compatibility, and a hi-fi preamp mode, making it an extremely versatile device.

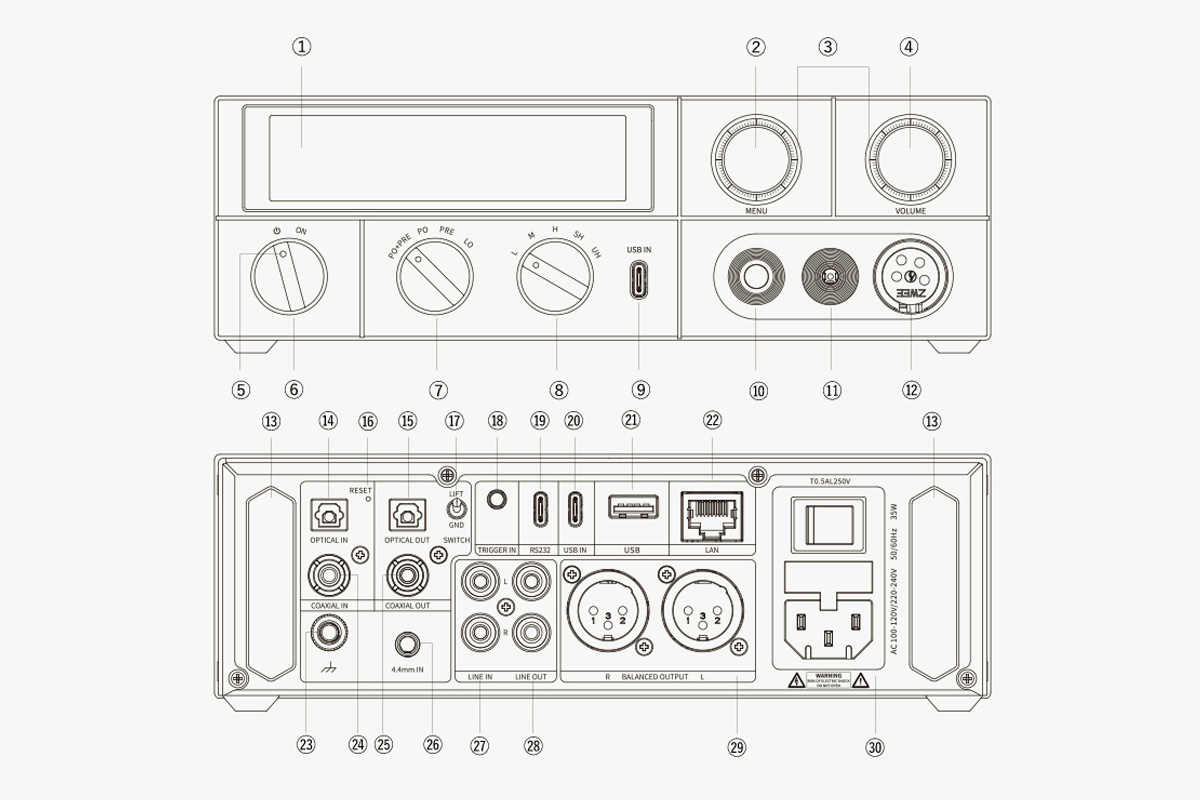

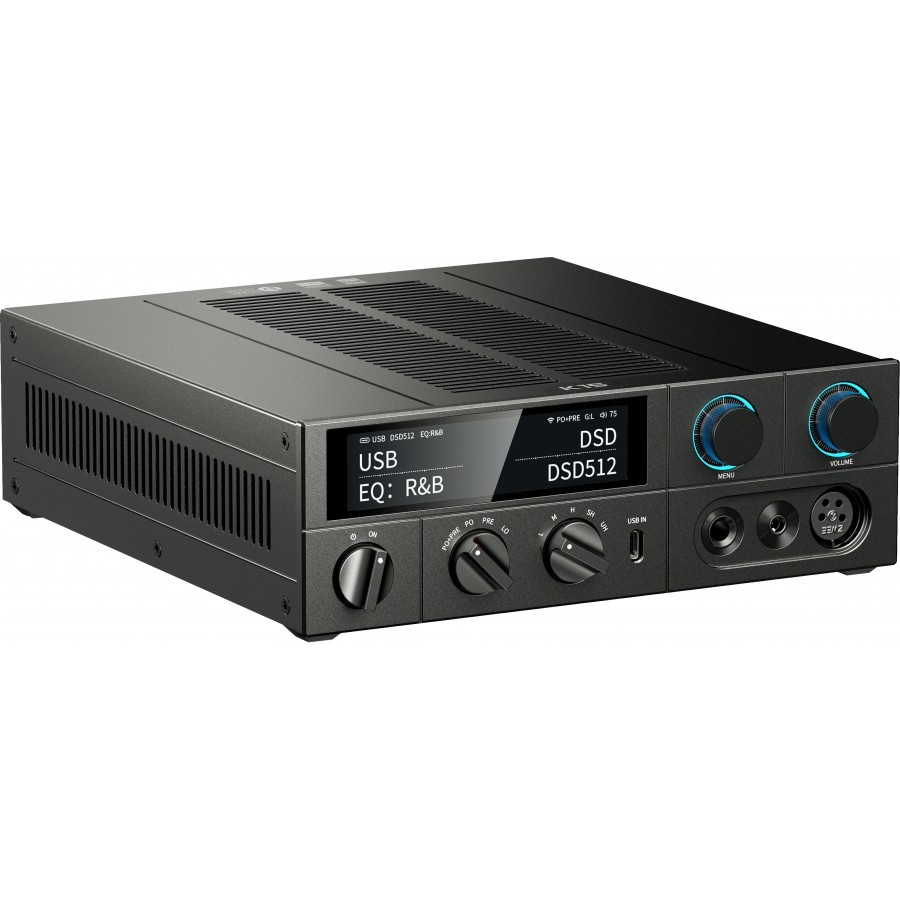

| 1 | Screen |
| 2 | Menu button |
| 3 | LED indicators |
| 4 | Volume button |
| 5 | ON/OFF LED indicator |
| 6 | ON/OFF switch |
| 7 | Output switch |
| 8 | Gain switch |
| 9 | USB-C input |
| 10 | Single-ended Jack 6.35mm headphone output |
| 11 | Balanced Jack 4.4mm headphone output |
| 12 | Balanced XLR 4 pins headphone output |
| 13 | Bluetooth / WiFi antenna |
| 14 | Optical input |
| 15 | Optical output |
| 16 | Reset button |
| 17 | Grounding switch |
| 18 | 12V trigger input |
| 19 | RS232 port |
| 20 | USB-C input |
| 21 | USB-A (USB Host) input |
| 22 | Ethernet RJ45 port |
| 23 | Grounding terminal |
| 24 | Coaxial input |
| 25 | Coaxial output |
| 26 | Balanced Jack 4.4mm line input |
| 27 | Single-ended RCA line input |
| 28 | Single-ended RCA line output |
| 29 | Balanced XLR line output |
| 30 | Power supply input |
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC Headphone amplifier |
| Inputs | 1x Balanced Jack 4.4mm line input 1x Single-ended RCA line input 2x USB-C 1x Optical Toslink 1x Coaxial 1x USB-A (USB Host) 1x Ethernet RJ45 |
| Trigger input | Yes, Jack 3.5mm, 12V |
| Port RS232 | USB-C, for firmware updates and DSP configuration |
| Outputs | 1x Single-ended RCA line output 1x Balanced XLR line output 1x Single-ended Jack 6.35mm headphone output 1x Balanced Jack 4.4mm headphone output 1x Balanced XLR 4 pins headphone output 1x Optical Toslink 1x Coaxial |
| Connectivity | WiFi 2.4G/5G double bande Ethernet RJ45 Bluetooth 5.1 |
| Supported network protocols | Roon Ready AirPlay |
| SoC | X2000 |
| MCU | ESP32-S3 |
| DAC | AK4191EX 2x AK4499EQ |
| USB chip | XMOS XU316 |
| Bluetooth chip | QCC5125 |
| Headphone amplification | Transistors MJE243G/253G |
| Touchscreen | LCD 3.96" (240*1020) |
| Supported sampling rates | USB: PCM up to 32bit 768kHz, DSD Natif up to DSD512 Coaxial input: PCM up to 24bit 192kHz, DSD64 Optical input PCM up to 24bit 96kHz Coaxial output: PCM up to 24bit 192kHz, DSD64 Optical output: PCM up to 24bit 192kHz Streaming: PCM up to 32bit 384kHz, DSD DoP up to DSD256 Local playback: PCM up to 32bit 384kHz, DSD up to DSD256 |
| MQA support | Yes |
| Supported Bluetooth codecs | SBC, AAC, aptX, aptX HD, aptX LL, aptX Adaptive, LDAC |
| Gain levels | Ultra-High Gain Mode Super-High Gain Mode High-gain mode Medium gain mode Low-gain mode |
| PEQ | 31 bands |
| Control app | FiiO Control |
| Adaptive impedance | PO: 8~150Ω BAL: 8~350Ω |
| Headphone output parameters (Jack 6.35mm, USB DAC/coaxial/Optical decoding, ultra-high gain mode) | |
|---|---|
| Output power | 2x 1800mW @ 16Ω, THD+N <1% 2x 1850mW @ 32Ω, THD+N <1% 2x 240mW @ 300Ω, THD+N <1% |
| Noise floor | < 5µV (A-weighted) |
| Frequency response | 20Hz~20kHz: attenuation < 0.05dB 20Hz~90kHz : attenuation < 3dB |
| Output impedance | < 1Ω (32Ω) |
| Crosstalk | ≥ 76dB (1kHz @ 32Ω) |
| THD+N | < 0.0005% (1kHz / -12dB @ 32Ω) |
| SNR | ≥ 124dB (A-weighted) |
| Voltage output (peak) | > 24Vp-p |
| Headphone output parameters (Jack 6.35mm, USB DAC/coaxial/Optical decoding, super-high gain mode) | |
|---|---|
| Output power | 2x 1800mW @ 16Ω, THD+N <1% 2x 1000mW @ 32Ω, THD+N <1% 2x 120mW @ 300Ω, THD+N <1% |
| Noise floor | < 5µV (A-weighted) |
| Frequency response | 20Hz~20kHz: attenuation < 0.05dB 20Hz~90kHz : attenuation < 3dB |
| Output impedance | < 1Ω (32Ω) |
| Crosstalk | ≥ 76dB (1kHz @ 32Ω) |
| THD+N | < 0.00056% (1kHz / -9dB @ 32Ω) |
| SNR | ≥ 121dB (A-weighted) |
| Voltage output (peak) | > 17Vp-p |
| Headphone output parameters (Jack 4.4mm/XLR4, USB DAC/coaxial/Optical decoding, ultra-high gain mode) | |
|---|---|
| Output power | 2x 1800mW @ 16Ω, THD+N <1% 2x 4000mW @ 32Ω, THD+N <1% 2x 950mW @ 300Ω, THD+N <1% |
| Noise floor | < 7.9µV (A-weighted) |
| Frequency response | 20Hz~20kHz: attenuation < 0.05dB 20Hz~90kHz : attenuation < 3dB |
| Output impedance | < 1.5Ω (32Ω) |
| Crosstalk | ≥ 119dB (1kHz @ 32Ω) |
| THD+N | < 0.00049% (1kHz / -13dB @ 32Ω) |
| SNR | ≥ 124dB (A-weighted) |
| Voltage output (peak) | > 48Vp-p |
| Headphone output parameters (Jack 4.4mm/XLR4, USB DAC/coaxial/optical decoding, super-high gain mode) | |
|---|---|
| Output power | 2x 1800mW @ 16Ω, THD+N <1% 2x 3900mW @ 32Ω, THD+N <1% 2x 480mW @ 300Ω, THD+N <1% |
| Noise floor | < 7.9µV (A-weighted) |
| Frequency response | 20Hz~20kHz: attenuation < 0.05dB 20Hz~90kHz : attenuation < 3dB |
| Output impedance | < 1.5Ω (32Ω) |
| Crosstalk | ≥ 119dB (1kHz @ 32Ω) |
| THD+N | < 0.00054% (1kHz / -10dB @ 32Ω) |
| SNR | ≥ 123dB (A-weighted) |
| Voltage output (peak) | > 34Vp-p |
| Single-ended line output parameters (RCA, USB DAC/coaxial/optical decoding) | |
|---|---|
| Noise floor | < 2.2µV (A-weighted) |
| Frequency response | 20Hz~20kHz: attenuation < 0.05dB 20Hz~90kHz : attenuation < 3dB |
| Crosstalk | ≥ 118dB (1kHz @ 10kΩ) |
| THD+N | < 0.00053% (1kHz / -10dB @ 10kΩ) |
| SNR | ≥ 121dB (A-weighted) |
| Line out level | 2.5Vrms (1kHz @ 10kΩ) |
| Balanced line output parameters (XLR, USB DAC/coaxial/optical decoding) | |
|---|---|
| Noise floor | < 2.6µV (A-weighted) |
| Frequency response | 20Hz~20kHz: attenuation < 0.05dB 20Hz~90kHz : attenuation < 3dB |
| Crosstalk | ≥ 121dB (1kHz @ 10kΩ) |
| THD+N | < 0.00045% (1kHz / -10dB @ 10kΩ) |
| SNR | ≥ 125dB (A-weighted) |
| Line out level | 5Vrms (1kHz @ 10kΩ) |
| General | |
|---|---|
| Supply voltage | AC 100-120V/220-240V ~50/60Hz |
| Color | Black |
| Dimensions | 244.6 x 213 x 66.8mm |
| Weight | 2.75kg |

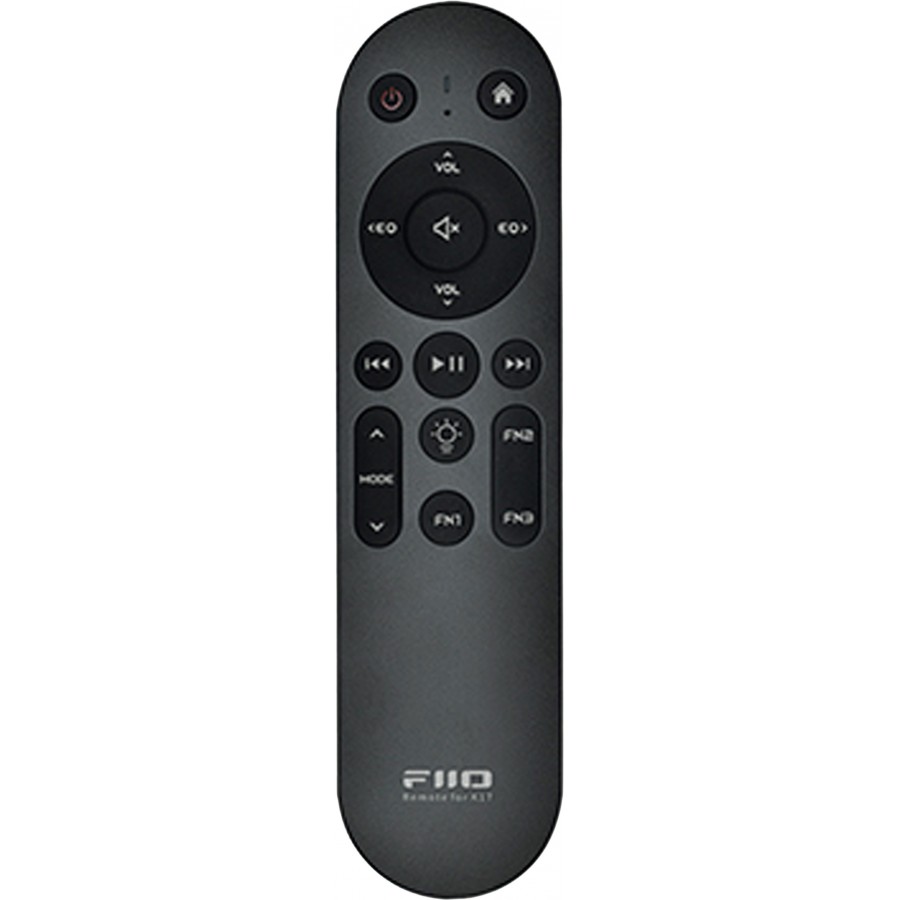

| Package | 1x FiiO K17 1x Power cable 1x Remote control 1x XLR4 connector cap 1x Fuse 2x USB cable 1x Jack 6.35mm adapter |
| Input | RS-232 |
| Input | RCA |
| Input | Optical |
| Input | RJ45 |
| Input | Jack 4.4mm |
| Input | USB |
| Input | SPDIF |
| Input | Bluetooth |
| Input | WiFi |
| Output | RCA |
| Output | Coaxial SPDIF |
| Output | Jack 4.4mm |
| Output | Optical Toslink |
| Output | XLR |
| Output | Jack 6.35mm |
| DAC / ADC Chip | AK4499 |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD512 |
| Color | Black |
| Class | N/A |
| Networking | Yes |
| Remote Control | Yes |
| Remote Control | Control app |
