GUSTARD X26 PRO Balanced DAC 2x ES9038Pro XMOS Bluetooth 5.0 MQA 32Bit 768kHz DSD512 Silver
By buying this product you get 145 loyalty points
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
This is the version with the latest Gustard firmware for X26 PRO.
Gustard X26 Pro
Balanced DAC 2x ES9038Pro XMOS Bluetooth 5.0 MQA 32Bit 768kHz DSD512 Silver
An enhanced version of the Gustard DAC-X26, the X26Pro offers a series of improvements designed to make it both more powerful and more versatile. These now include a Bluetooth 5.0 receiver, improved clocking, MQA file decoding and improved heat dissipation.
The X26Pro's no-compromise design incorporates high-end audio components to deliver rich, accurate, dynamic audio as close to the original signal as possible.
S

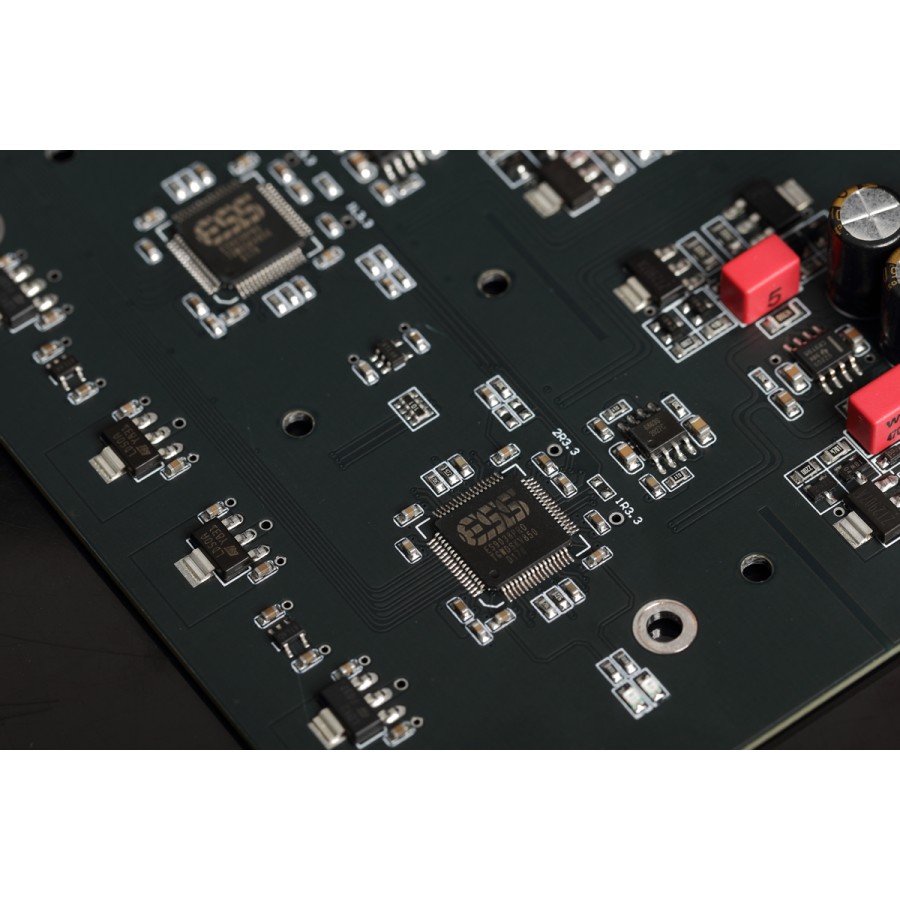

ES9038Pro Dual DAC
At the heart of the X26Pro are two DAC ESS ES9038Pro DAC chips for digital-to-analog conversion. Each channel therefore has its own conversion chip and power supply to deliver the best possible audio performance. In addition, these chips support high sample rates, which in the case of the Gustard X26Pro can go up to 32bit 768kHz PCM and DSD512 on the USB and I2S inputs.

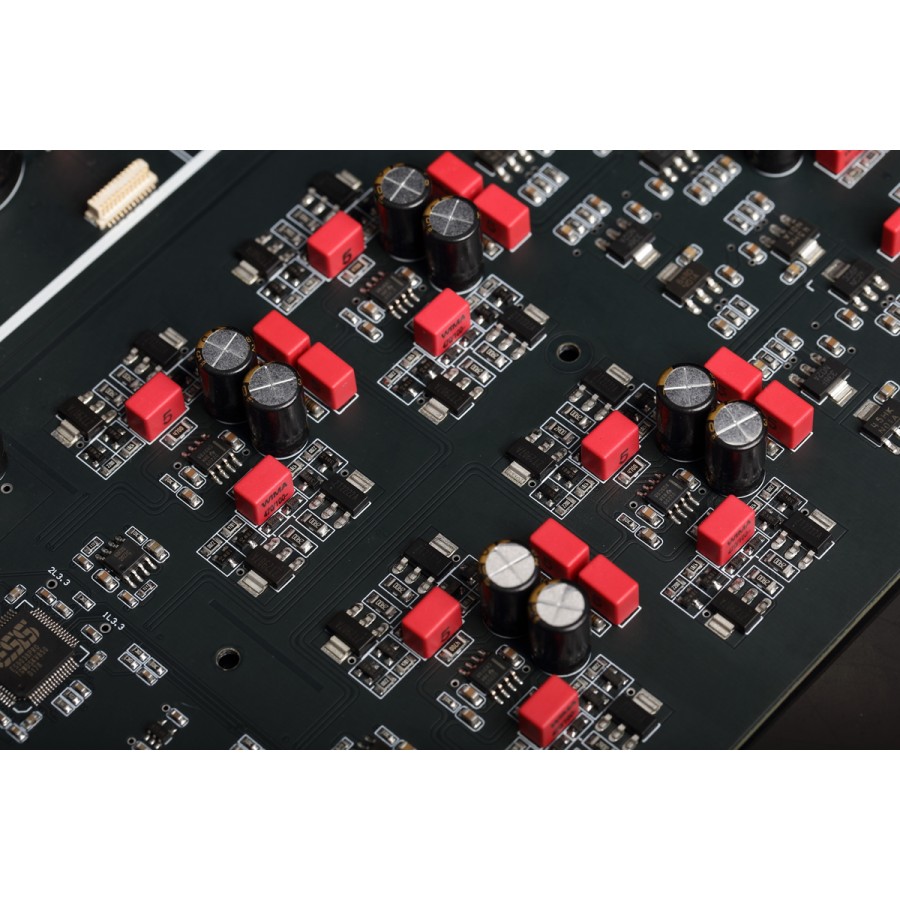

These chips are accompanied by a Class A LPF integrating only discrete components, specifically optimized for the ES9038Pro DACs.
Ultra low noise clock synthesizer
The X26Pro incorporates a K2 clock synthesizer, which provides a second clock signal and synchronizes decoding. This allows DAC performance to be independent of the source equipment.
Altera MAX II CPLD
The logic functions of the X26Pro are entrusted to a CPLD, including a clock management system, second PLL digital processing, DoP decoding and many other functions that contribute greatly to the performance of the device.
Filters & SHARC DSP
The Gustard X26Pro offers several digital filters, PCM and DSD, to adapt the sound reproduction to your listening and audio system, while reducing residual noise.
In order to offer high quality filters, Gustard has chosen to develop its own filters using a DSP Analog Device SHARC chip. This solution integrates an anti-aliasing algorithm designed by Gustard, using a high-precision 64bit floating point system. Moreover, this algorithm has been optimized to work perfectly with ESS DACs and ensure the best possible sound quality.
XMOS USB Interface
Behind the USB-B input of the X26Pro is a high-performance XMOS XU216 USB interface. This interface enables fast and efficient data processing, while supporting high-resolution data streams.

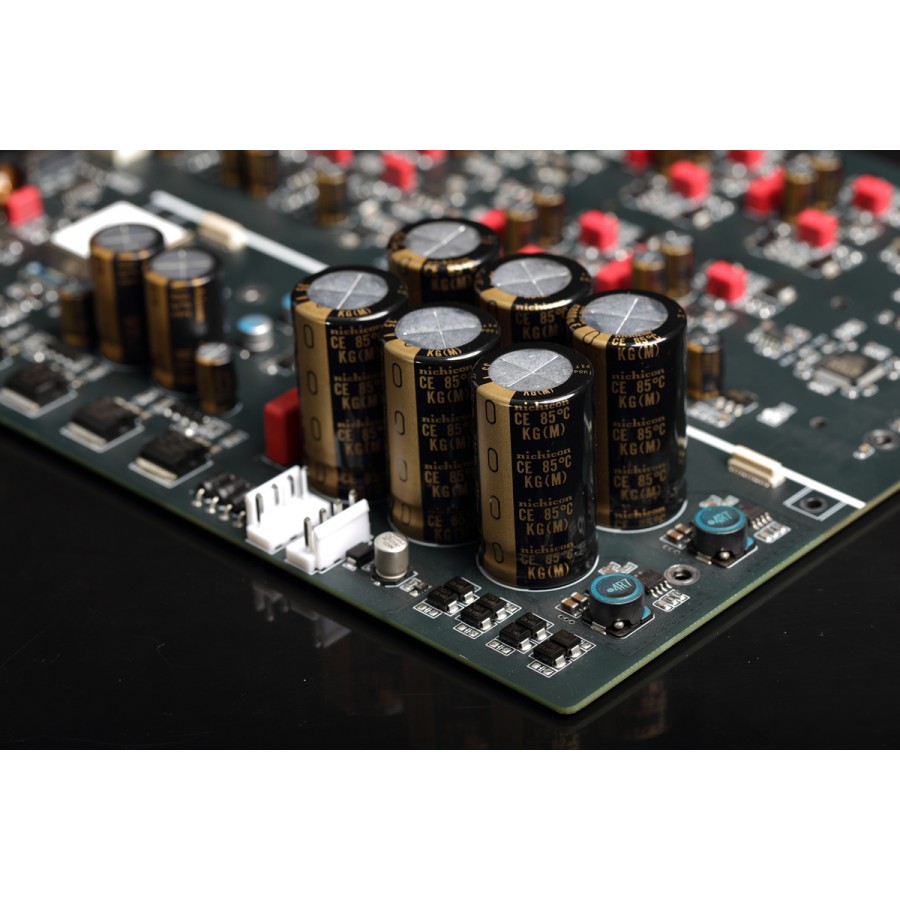

Power supply

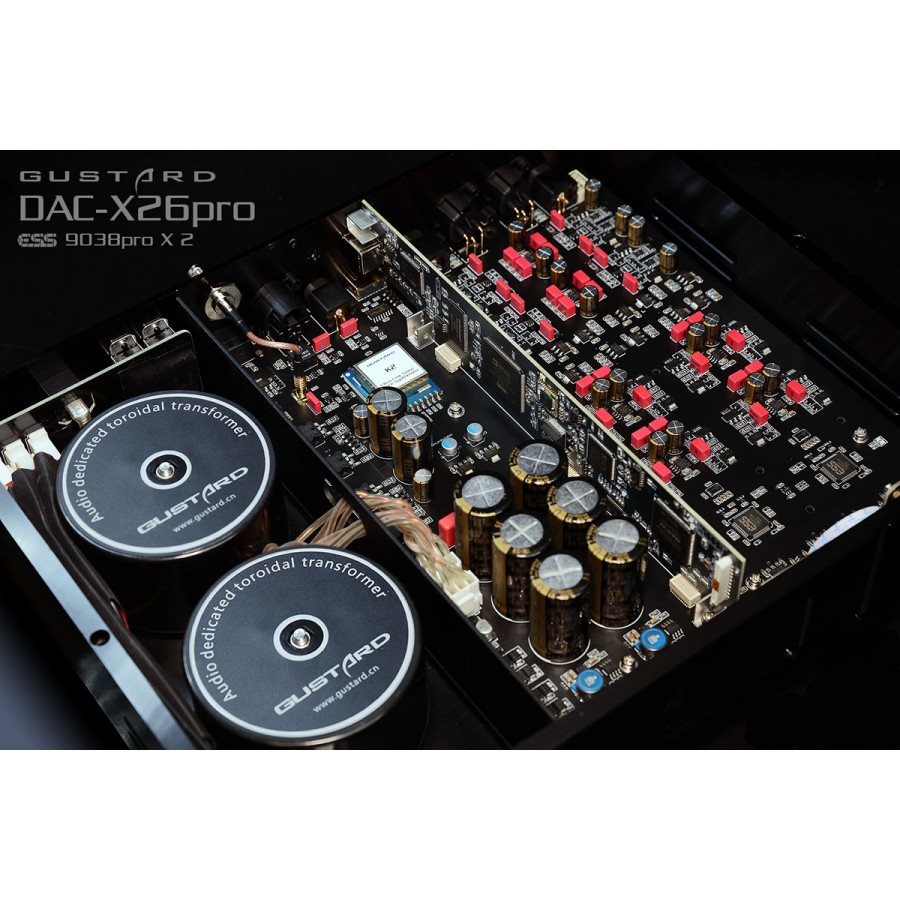

The power supply for the X26Pro uses two toroidal transformers and a discrete 8-channel hybrid I/V conversion circuit. This provides the entire system with a consistent and extremely clean and stable power supply, which is essential for high-quality sound reproduction.
In addition, each channel of the X26Pro's analog circuitry uses an independent power rail to limit interference and noise.
Bluetooth 5.0

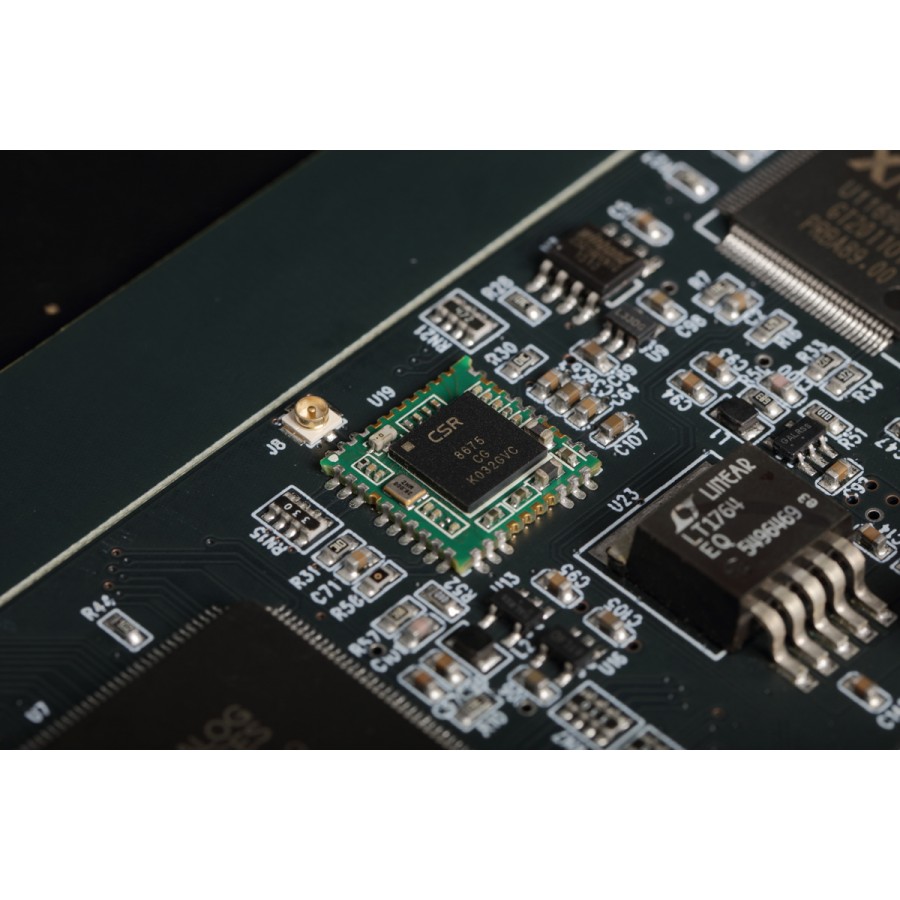

New in this Pro version of the Gustard DAC-X26 is the integration of a Qualcomm CSR8675 Bluetooth 5.0 receiver chip. This chip allows you to broadcast your music remotely and in high quality, thanks to the support of protocols such as aptX HD and LDAC.
Connectivity
The Gustard X26Pro benefits from a complete set of connectors capable of adapting to many audio systems. Inputs include USB-B, I2S LVDS over HDMI, Coaxial, AES, Optical and Bluetooth reception. On the output side, the X26Pro offers balanced XLR and unbalanced stereo RCA. Note that the analog circuitry of the device uses a balanced architecture without conversion with a total separation of the two outputs.
I2S Pinout
Technical characteristics
| Specifications | |
|---|---|
| Product type | Balanced DAC |
| Inputs | 1x USB-B 1x I2S via HDMI LVDS 1x Coaxial Bluetooth 5.0 1x AES/EBU 1x Optical 1x BNC |
| Outputs | 1x Balanced stereo XLR 1x Single-ended stereo RCA |
| DAC Chips | 2x ESS ES9038Pro |
| Bluetooth chip | Qualcomm CSR8675 |
| Supported Bluetooth codecs | AAC, SBC, aptX, aptX LL, aptX HD, LDAC |
| USB Interface | XMOS XU216 |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA I2S : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256 AES / Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
| General | |
|---|---|
| Power supply | 115-230V AC (switchable supply voltage) |
| Housing material | Aluminum alloy |
| Dimensions | 330 x 260 x 65mm |
| Weight | 7.5kg |
| Color | Silver |
| Input | BNC |
| Input | USB |
| Input | Optical |
| Input | I2S via HDMI |
| Input | AES/EBU |
| Input | SPDIF |
| Input | Bluetooth |
| Output | USB |
| Output | I2S LVDS via HDMI |
| Output | BNC |
| Output | AES/EBU |
| Output | Optical Toslink |
| Output | Coaxial SPDIF |
| Output | Bluetooth |
| DAC / ADC Chip | ES9038PRO |
| Max sampling rate | DSD512 |
| Max sampling rate | MQA |
| Max sampling rate | 768kHz |
| Color | Silver |
| Networking | No |
| Remote Control | Yes |
