LOXJIE D30 V2 DAC ES9068AS Headphone Amplifier XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

LOXJIE D30 V2 DAC ES9068AS Headphone Amplifier XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512
Loxjie offers its D30, a particularly powerful and affordable DAC and headphone amplifier combo, in a V2 version now equipped with an ESS ES9068AS digital/analog conversion chip. This, in association with an optimized general architecture, allows to reach a rich and precise sound restitution. It also offers full connectivity for easy integration into the vast majority of audio systems.

Average votes for this product
5.0 / 5

By buying this product you get 29 loyalty points


Reference : 15638
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 14-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Loxjie D30 V2

DAC ES9068AS Headphone Amplifier XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

Loxjie offers its D30, a particularly powerful and affordable DAC and headphone amplifier combo, in a V2 version now equipped with an ESS ES9068AS digital/analog conversion chip. This, in association with an optimized general architecture, allows to reach a rich and precise sound restitution. It also offers full connectivity for easy integration into the vast majority of audio systems.

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512
Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

ESS ES9068AS DAC

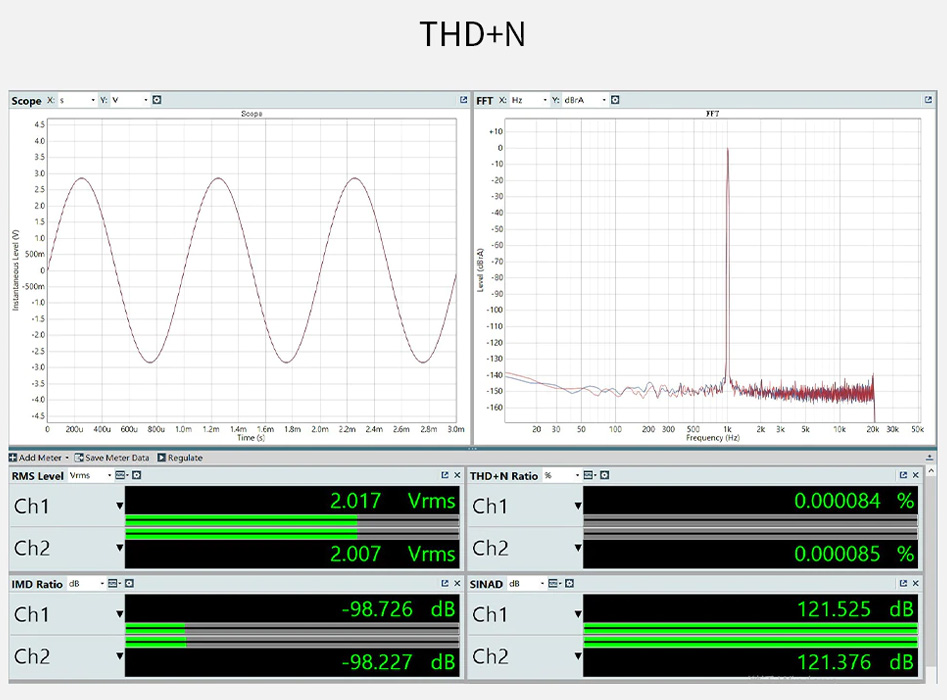

At the heart of the D30 V2's digital-to-analog conversion stage, a 32bit ESS ES9068AS DAC ensures excellent audio performance. It has a very low THD+N of only 0.0001% (-120dB) and supports high sampling rates up to 32bit 768kHz and DSD512. It also allows the decoding of MQA files.

MQA decoding and rendering

MQA (for Master Quality Authenticated) is an award-winning British technology that restores the sound quality of original recordings. MQA files are also light enough to stream or download. The D30 V2 supports MQA technology, allowing you to play and stream MQA files for superior sound quality.

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512
Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

USB XMOS Interface

The Loxjie D30 V2 has an excellent second generation XMOS interface for its USB input. It allows a fast and efficient decoding of data, while supporting high definition audio streams.

Bluetooth

Practical, the Loxjie D30 V2 allows you to transmit your audio files remotely, in Bluetooth, directly from your smartphone. The Bluetooth 5.0 standard associated with the aptX HD protocol allows a stable and high quality transmission, close to CD quality.

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

Preamplifier mode

The D30 V2 has a preamplifier output on stereo RCA. This preamplifier mode has two different settings: The fixed mode blocks the output level at 2Vrms and the variable mode allows you to take advantage of the volume control of the device.

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

Independent power supply

A specially designed low-noise regulated power supply provides a clean and stable electrical signal to all audio circuits, promoting beautiful transparency and clarity of sound. It also keeps power consumption low, below 5W in operation.

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

A complete connectivity

The D30 V2 offers a complete connectivity, allowing it to be integrated into many audio systems. We find in input USB-B, Coaxial, Optical in addition to the Bluteooth 5.0 connectivity. For its outputs, the Loxjie DAC has a stereo RCA and a headphone output in front of the 6.35mm jack format.

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

Robust and elegant

The V30 V2's components are housed in an elegant and robust aluminum case, providing excellent rigidity that also eliminates chassis vibration, while limiting the impact of electromagnetic interference on the circuits.

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512
Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512
1Screen
2Jack 6.35mm headphone output
3Multifunction button
4RCA Output
5Bluetooth antenna
6Optical input
7Coaxial input
8USB Input
9Power supply
10Power button


Technical characteristics

Specifications
Product typeDAC
Headphone amplifier
InputsBluetooth 5.0
1x SPDIF Coaxial
1x Optical Toslink
1x USB-B
Outputs1x Stereo RCA
1x Jack 6.35mm headphone output
Headphone output power2x 110mW @ 32Ω
Supported sampling ratesUSB : PCM up to 32bit 768kHz, DSD up to DSD512
Optical / Coaxial : PCM up to 24bit 912kHz, DSD DoP up to DSD64
Bluetooth codecsSBC, AAC, aptX, aptX HD
THD+N0.0001% (-120dB)
Output level2Vrms
Dynamic range123dB
SNR123dB
Output impedanceRCA : 100Ω
Headphone output : 1.1Ω
USB TransmissionAsynchronous
USB CompatibilityWindows 7 / 8 / 8.1 / 10
Mac OS X
Linux
General
Supply voltage100-240VAC (included power cable)
ConsumptionOperating: 5W
Standby : < 0.5W
Dimensions170 x 151 x 38mm
Weight535g
Package1x Loxjie D30 V2
1x Remote control
1x Antenna
1x USB Cable
1x Power cable

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

Loxjie D30 V2 DAC ES9068AS Amplificateur Casque XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
OutputJack 6.35mm
OutputRCA
DAC / ADC ChipES9068AS
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
ClassN/A
NetworkingNo
Remote ControlYes
