LOXJIE D40 PRO DAC ES9039MSPro I2S SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

LOXJIE D40 PRO DAC 2x ES9039MSPro I2S SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA
As performant as it is versatile, the Loxjie D40 Pro DAC is the ideal ally to help you enjoy your music in the best possible conditions. With its high-end digital-to-analog conversion chip supporting high-resolution files, its perfectly mastered circuits and its numerous functions, the Loxjie D40 Pro offers rich and precise sound quality, and will fit into the vast majority of systems.

No customer reviews yet, login to write a review.

By buying this product you get 53 loyalty points


Reference : 17818
New product

539,00 €tax incl.

449,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 13-06-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Loxjie D40 Pro

DAC ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

As performant as it is versatile, the Loxjie D40 Pro DAC is the ideal ally to help you enjoy your music in the best possible conditions. With its high-end digital-to-analog conversion chip supporting high-resolution files, its perfectly mastered circuits and its numerous functions, the Loxjie D40 Pro offers rich and precise sound quality, and will fit into the vast majority of systems.

Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA
Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

ESS ES9039MSPro DAC chip

At its heart, the D40 Pro conceals an ES9039MSPro digital-to-analog conversion chip. Flagship of ESS, this 32-bit DAC offers excellent performance, with THD+N as low as -125dB, for extremely precise and pure sound reproduction. The chip also supports high-resolution audio files, so you can get the most out of your music.

DPLL function & Digital filters

When the input signal is stable, the D40 Pro reduces the DPLL value to improve the unit's clocking performance. On the contrary, when the input signal lacks stability, increasing the value of this function will restore uninterrupted signal and sound.

The D40 Pro also features 7 PCM filters and 4 DSD filters. These allow you to adjust the device's sound reproduction to suit your listening style or audio system.

Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

A powerful headphone amplifier

In addition to its DAC section, the Loxjie D40 Pro provides a powerful headphone amplifier with an output impedance close to 0Ω and two selectable gain levels, thus adapting to the vast majority of headphones on the market. The device's independent volume control lets you freely adjust the sound level of the headphone and line outputs.

High-resolution files support

Thanks to its high-end DAC and high-quality interfaces, the D40 Pro supports high-resolution files up to PCM 32bit 768kHz and DSD512. The result is a rich, detailed sound experience, allowing you to enjoy every detail of your music.

Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA
Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

MQA Decoder

As well as supporting high sampling rates, the Loxjie D40 Pro also features an MQA (Master Quality Authenticated) decoder. This particular format ensures high sound quality by providing files authenticated by the artist, the record company or the song's rights holders. The D40 Pro is also compatible with the MQA-CD format.

Say goodbye to cables

With Qualcomm's Bluetooth 5.0 receiver, you can wirelessly stream and control your music directly from a smartphone or tablet, for example.

Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

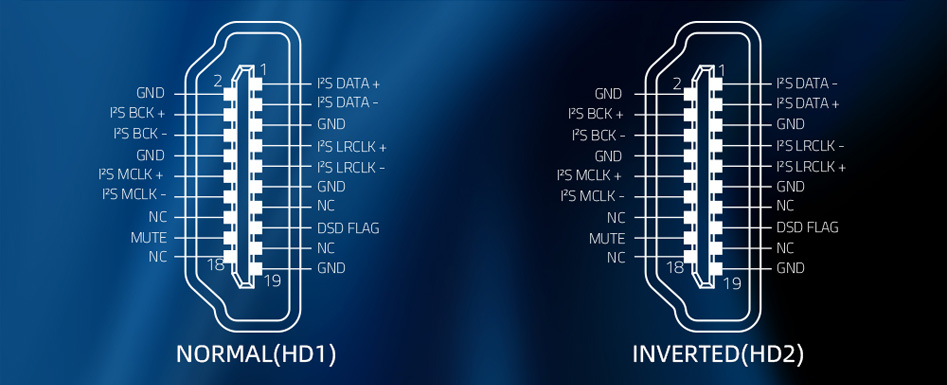

Two I2S profiles

The D40 Pro's I2S over HDMI input offers two modes, using different pinouts. Here too, the D40 Pro demonstrates its versatility, adapting to your device and source signal.

Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

IR Remote control

Supplied with an IR remote control, the D40 Pro can be controlled remotely. This gives access to all the device's functions and settings.

Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

Numerous high-quality audio components

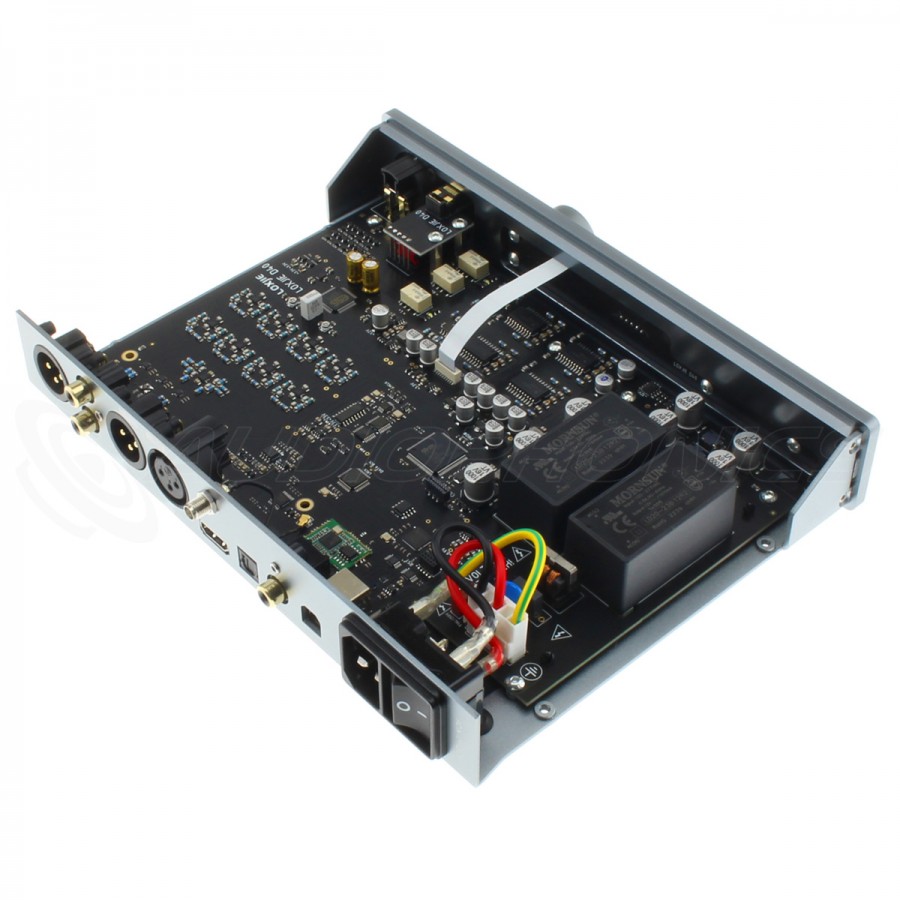

The D40 Pro's circuitry favors the use of high-quality electronic components to deliver the best possible performance. These include a XMOS XU-316 USB interface supporting high-resolution streams, OPA1612 OPAs with very low distortion and noise, and a power supply stage using several low-noise voltage regulators and discrete components.

Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA
Loxjie D40 Pro DAC 2x ES9039MSPro I2S USB SPDIF AES Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA

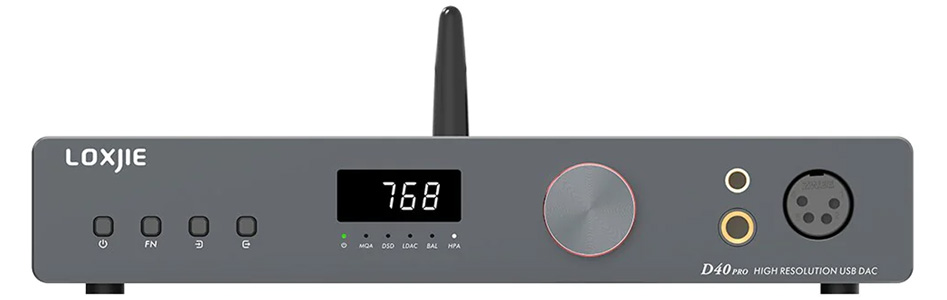

1ON/OFF switch
2Filter selection
3Input selection
4Output selection
5Screen
6Multifunction knob
7Single-ended Jack 6.35mm headphone output
8Balanced Jack 4.4mm headphone output
9Balanced XLR 4 pins headphone output
10Single-ended stereo RCA output
11Balanced stereo XLR output
12AES/EBU input
13Bluetooth antenna
14I2S input
15Optical Toslink input
16Coaxial input
17USB input
18100-240VAC power input

Technical characteristics

Specifications
Product typeDAC
DAC chipESS ES9039MSPro
InputsBluetooth
1* USB-B
1* Optical Toslink
1* Coaxial
1* I2S via HDMI
1* AES/EBU
Outputs1* Single-ended stereo RCA
1* Balanced stereo XLR
1* Single-ended Jack 6.35mm headphone output
1* Balanced Jack 4.4mm headphone output
1* Balanced XLR 4 pins headphone output
USB interfaceXMOS XU-316
USB transmissionAsynchronous
USB compatibilityWindows 7/8/8.1/10/11
Mac OS X
Linux
THD+N0.00005% (-125dB)
Dynamic range133dB
SNRRCA: 128dB
XLR: 133dB
Bluetooth version5.0
Supported Bluetooth codecsSBC, AAC, aptX, aptX HD, LDAC
Supported sampling ratesUSB, I2S: PCM up to 32bit 768kHz, Native DSD up to DSD64
Optical, Coaxial, AES/EBU: PCM up to 24bit 192kHz, DoP64
Output impedance100Ω
Output levelXLR: 5.2Vrms
RCA: 2.5Vrms
Headphone output power2x 6000mW @ 16Ω
2x 3000mW @ 32Ω
2x 700mW @ 300Ω
2x 350mW @ 600Ω
General
Supply voltage100-240VAC (power cable included)
Consumption5W
Dimensions (W*D*H)240*195*43mm
Weight1.1kg
ColorGray
Package1* Loxjie D40 Pro
1* Power cable
1* USB cable
1* Bluetooth antenna
1* Remote control

Data sheet
InputBluetooth
InputAES/EBU
InputUSB
InputOptical
InputI2S via HDMI
InputSPDIF
OutputXLR
OutputJack 4.4mm
OutputRCA
OutputJack 6.35mm
DAC / ADC ChipES9039MPro / ES9039MSPro
Max sampling rateDSD512
Max sampling rateMQA
Max sampling rate768kHz
ColorGray
NetworkingNo
Remote ControlYes
