SABAJ A20D ES9038Pro DAC XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

SABAJ A20D ES9038Pro DAC XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA
10%

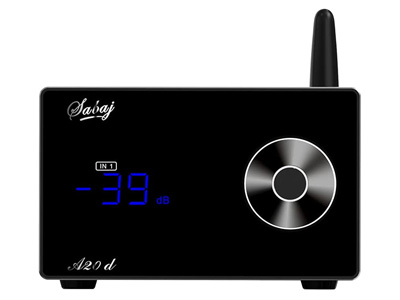

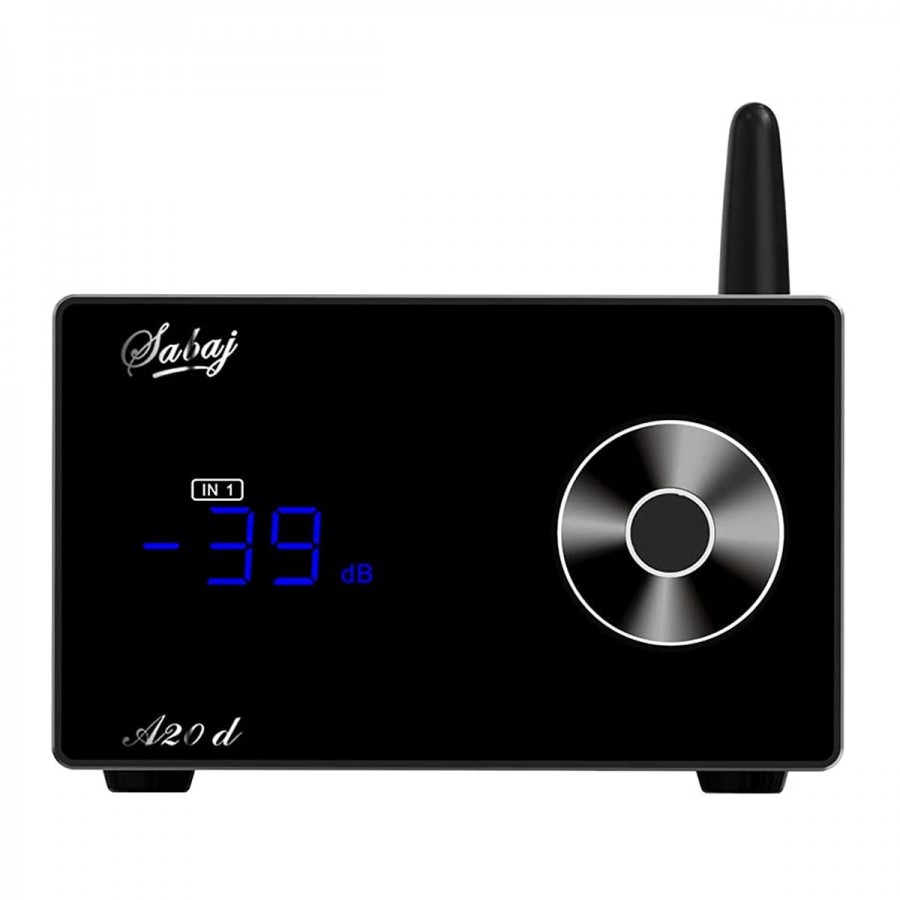

The Sabaj A20d is a compact, design and performance DAC. Its digital/analog conversion stage is based on an ESS ES9038Pro chip, a high-end DAC that supports high sampling rates and ensures incredibly accurate reproduction. Particularly complete, the A20d is also equipped with a wide range of connectors including an I2S input and a balanced output. The DAC also benefits from a Bluetooth 5.0 connectivity, allowing you to transmit your music wirelessly directly from a smartphone.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 15665
New product
Limited special offer

365,83 €

-10%

329,25 €tax excl.

Including 0,04 € for green tax

- +

Last items in stock !
Shipping date: 16-08-2022.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Sabaj A20d

ES9038Pro DAC XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

The Sabaj A20d is a compact, design and performance DAC. Its digital/analog conversion stage is based on an ESS ES9038Pro chip, a high-end DAC that supports high sampling rates and ensures incredibly accurate reproduction. Particularly complete, the A20d is also equipped with a wide range of connectors including an I2S input and a balanced output. The DAC also benefits from a Bluetooth 5.0 connectivity, allowing you to transmit your music wirelessly directly from a smartphone.

Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA
Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

ES9038Pro DAC

At the core of the A20d is the ESS ES9038Pro 32bit DAC chip with HyperStream III architecture, the brand's top-of-the-line model, ensuring excellent sound performance with very low distortion and noise. This chip also supports high sampling rates, up to PCM 32bit 768kHz, DSD512 and even MQA. This ES9038Pro chip is directly associated with its own LDO ES9311 regulator, providing a clean and stable electrical signal.

MQA Decoding

LMQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers or rights holders. These files are light enough to stream or download.

The A20d incorporates an MQA decoder to play these files for the best possible audio quality.

Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA
Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Bluetooth 5.0

The Sabaj A20d integrates a Bluetooth 5.0 receiver from Qualcomm, allowing you to broadcast your music remotely, from a smartphone for example. The embedded receiver chip also supports the aptX and aptX HD transmission codecs, for a sound quality close to that of a CD.

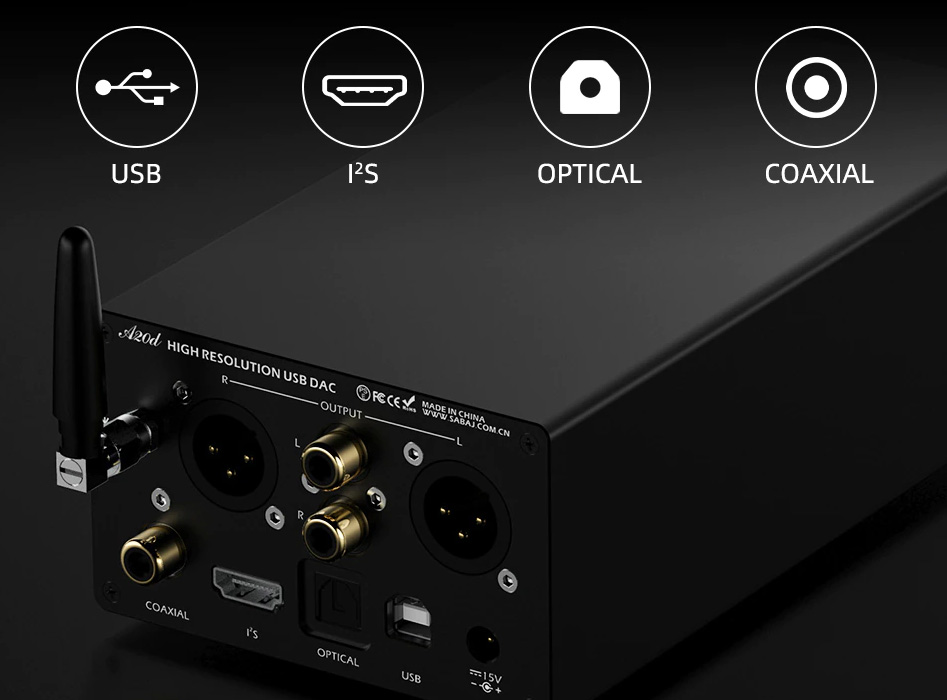

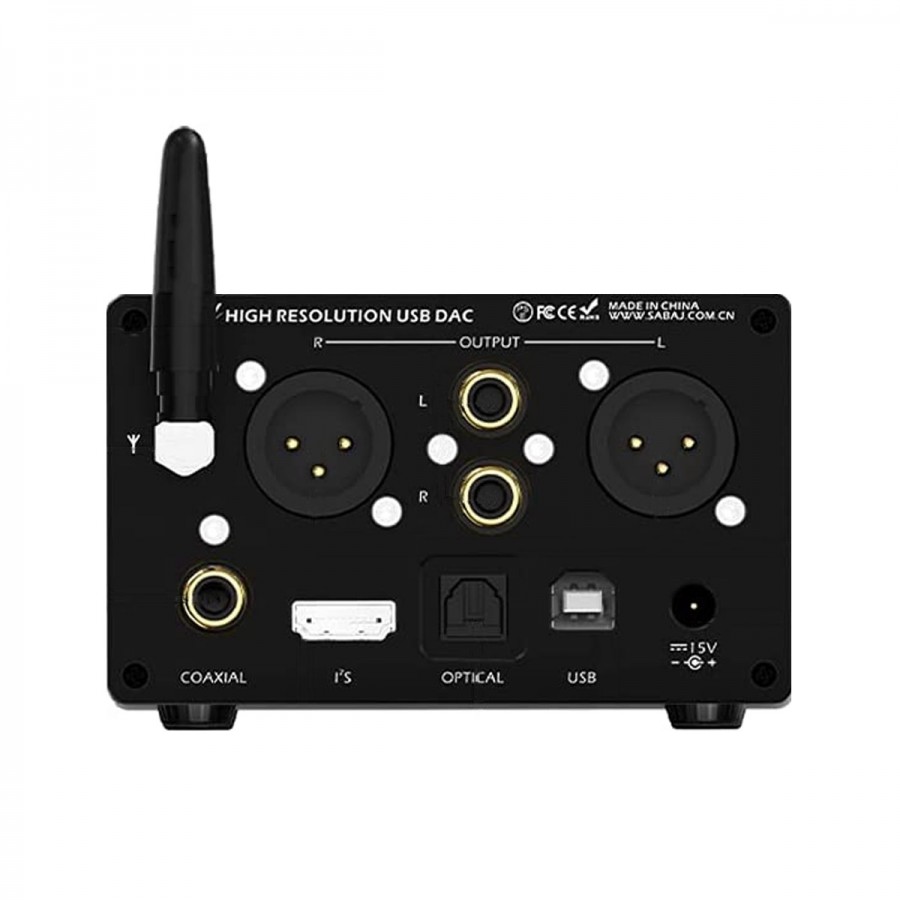

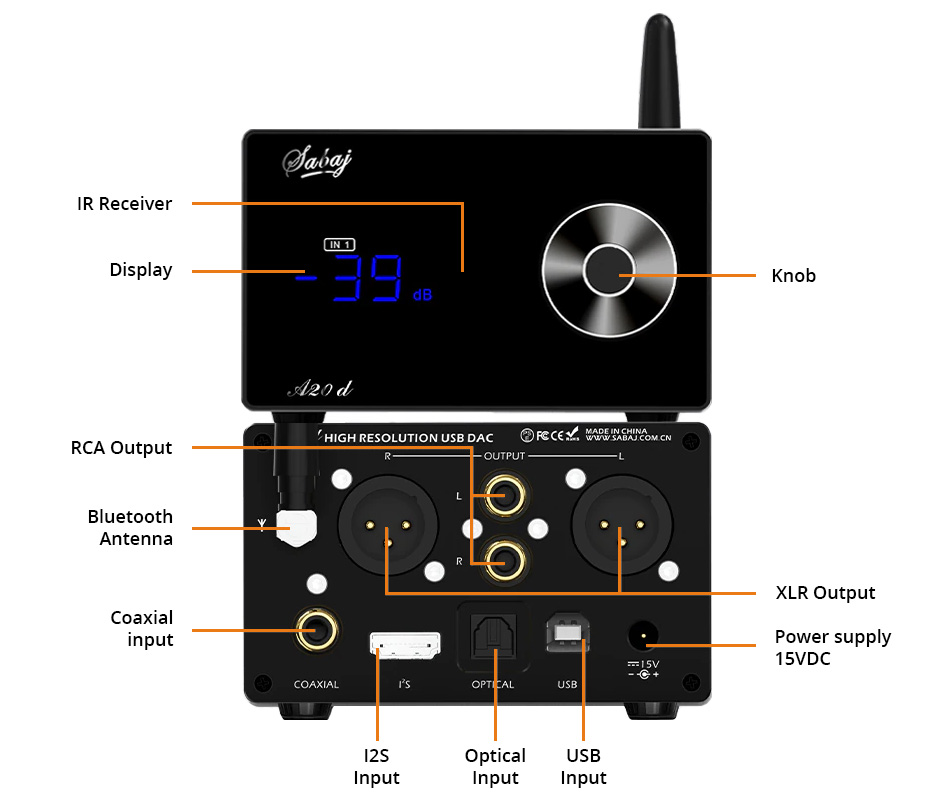

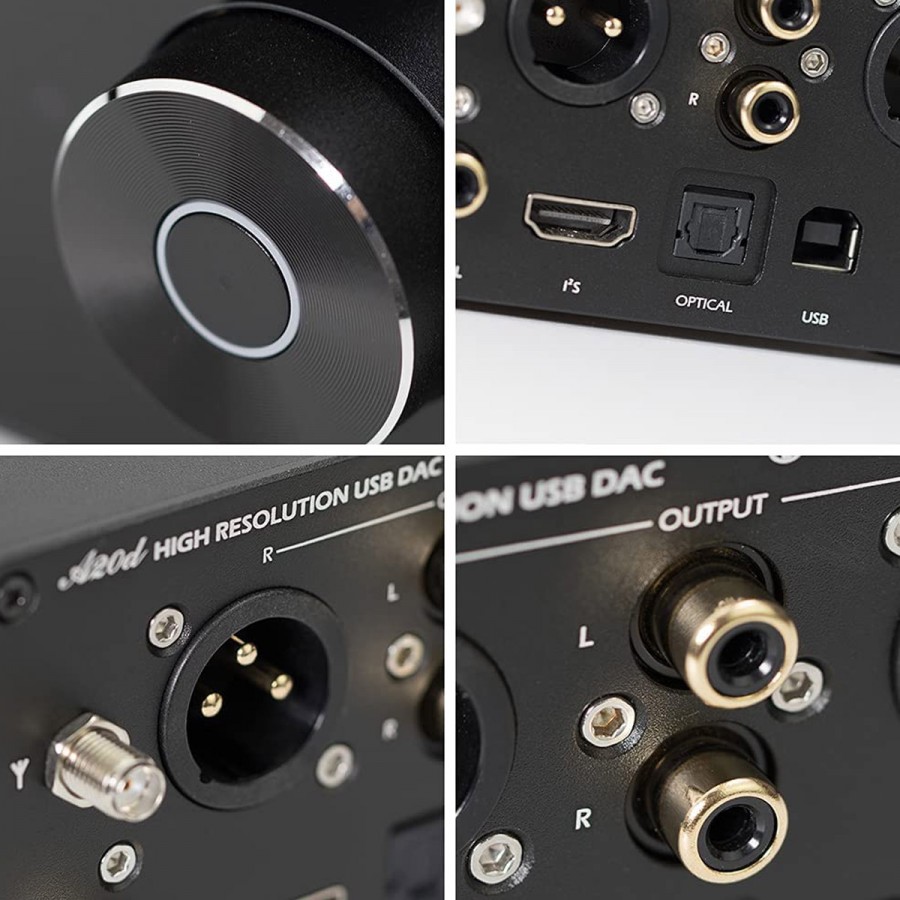

A complete connectivity

Despite its compact form factor, the A20d offers a complete connectivity that will allow an easy integration within the vast majority of audio systems. We find in input USB-B, Coaxial, Optical Toslink and even I2S via HDMI. For the outputs, the Sabaj DAC offers single-ended stereo RCA or balanced stereo XLR.

Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

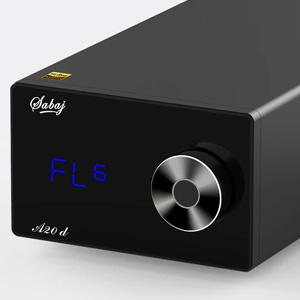

Filters

With seven built-in PCM filters, the A20d adapts to your listening and your audio system.

  • FL1 : Fast Roll-off linear phase
  • FL2 : Slow Roll-off linear phase
  • FL3 : Fast Roll-off minimum phase
  • FL4 : Slow Roll-off minimum phase
  • FL5 : Apodizing, fast roll-off, linear phase
  • FL6 : Hybrid, fast roll-off, minimum phase
  • FL7 : Brickwall filter
Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

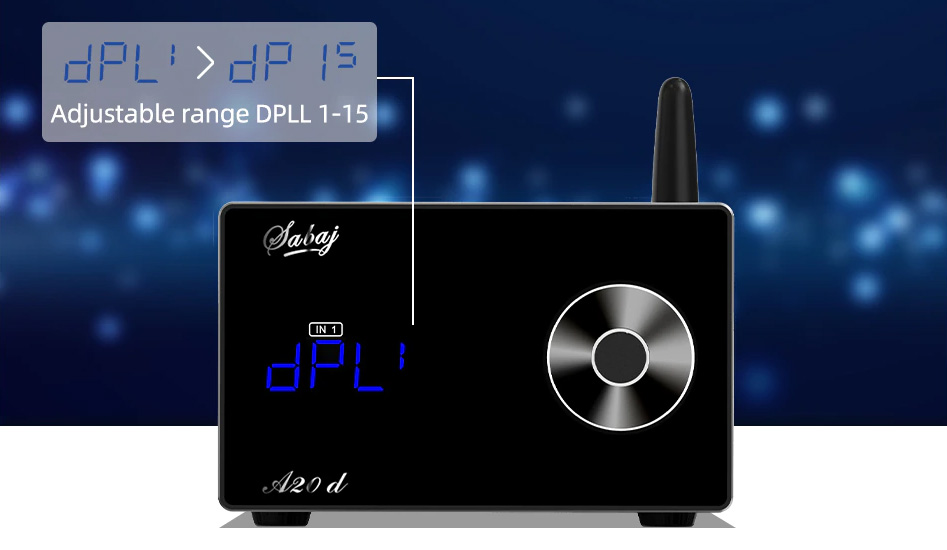

DPLL Function

DPLL is used to eliminate clock jitter. The DPLL value defines the bandwidth of the clock lock. The wider the bandwidth, the easier the locking. The narrower the bandwidth, the more effective the clock jitter removal.

Some sources (like some TVs for example) have a too high clock jitter, which can cause an inability of the PLL chip to perform its locking, resulting in a jerky sound. Increasing the DPLL can then correct this problem.

Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

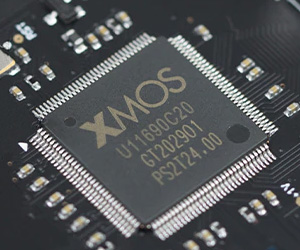

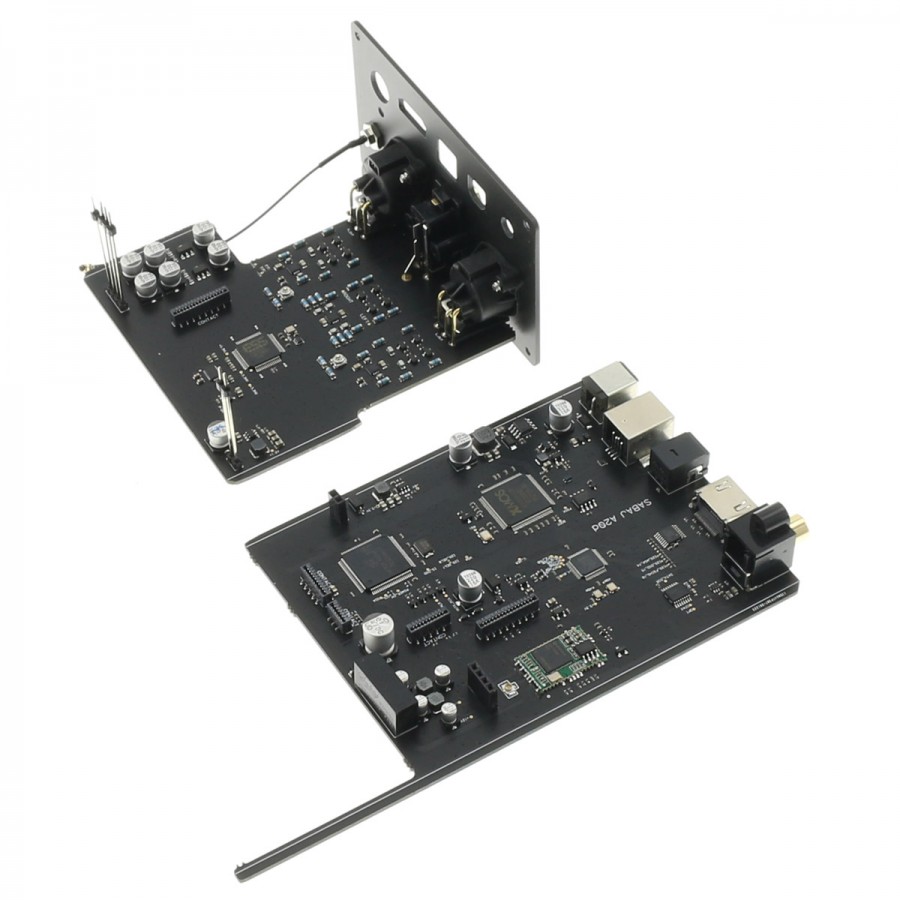

High-end components

All the circuits of the Sabaj A20d use high quality audio components, favoring a rich and precise reproduction. It includes a 2nd generation XMOS XU216 16-core USB interface, an ES9311 voltage regulator and two ultra-low phase noise clocks.

Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA
Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

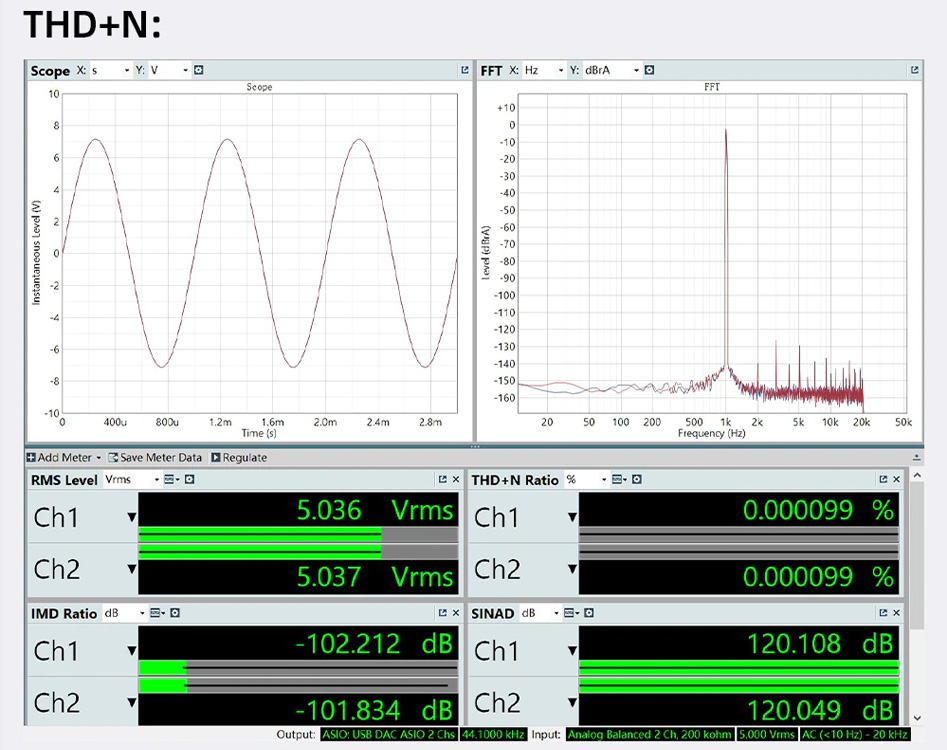

Test du Sabaj A20d par Audio Science Review (Amir)

" I like simple stories like this: great engineering with closed loop of measuring and optimizing. I designate the A20d as another "instrument grade" DAC. "
Test du Sabaj A20d par Audio Science Review (Amir)

Technical characteristics

Specifications
Product typeDAC
DAC ChipESS ES9038Pro
InputsBluetooth 5.0
1x USB-B
1x Optical Toslink
1x Coaxial
1x I2S via HDMI
Outputs1x Single-ended stereo RCA
1x Balanced stereo XLR
THD+N0.00009% (-121dB)

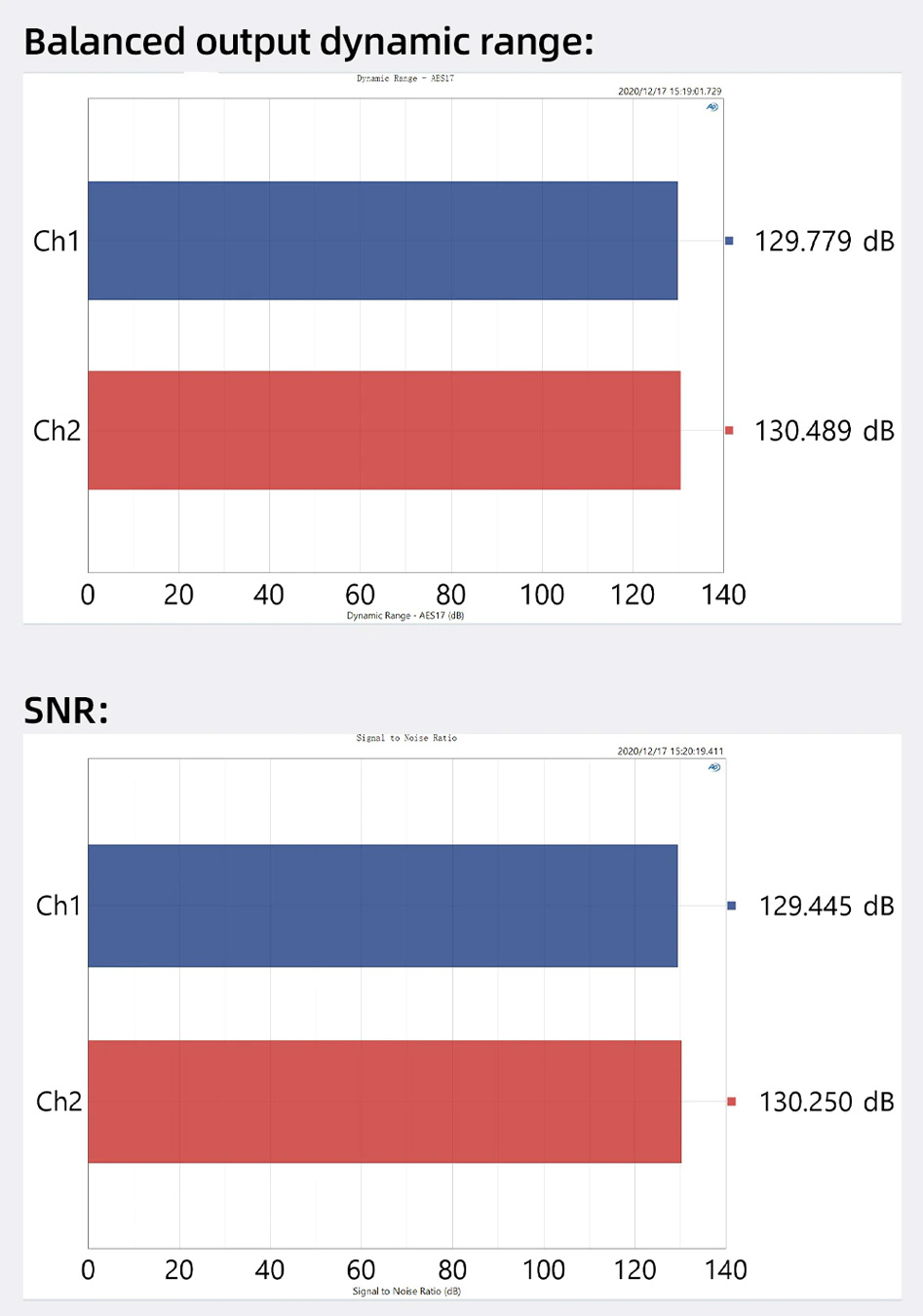

Dynamic rangeXLR : 130dB
RCA : 123dB
SNR130dB
Output impedanceRCA : 142Ω
XLR : 207Ω
Supported Bluetooth codecsSBC, AAC, aptX, aptX HD
USB InterfaceXMOS XU216
USB Transmission modeAsynchronous
USB CompatibilityWindows 7 / 8 / 8.1 / 10
Mac OS X 10.6 ou ultérieur
Linux
Supported sampling ratesUSB : PCM up to 32bit 768kHz, Native DSD up to DSD512
Optical / Coaxial : PCM up to 24bit 192kHz
General
Supply voltage15VDC (power adapter included)
Dimensions100 x 151 x 33mm
ColorBlack
Package1x Sabaj A20d
1x USB Cable

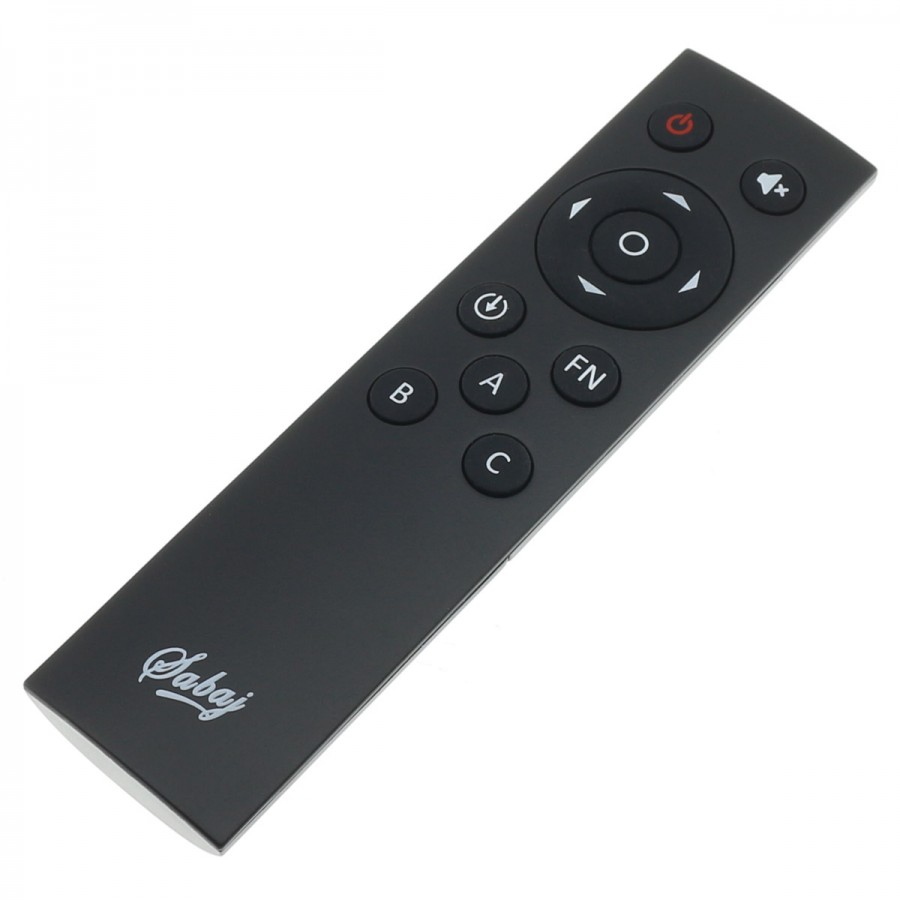

1x Remote control
1x Power adapter
Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA Sabaj A20d DAC ES9038Pro XMOS I2S Bluetooth 5.0 32bit 768kHz DSD512 MQA

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
InputI2S via HDMI
OutputXLR
OutputRCA
DAC / ADC ChipES0938PRO
Max sampling rate768kHz
Max sampling rateDSD512
Max sampling rateMQA
ColorBlack
NetworkingNo
Remote ControlYes
