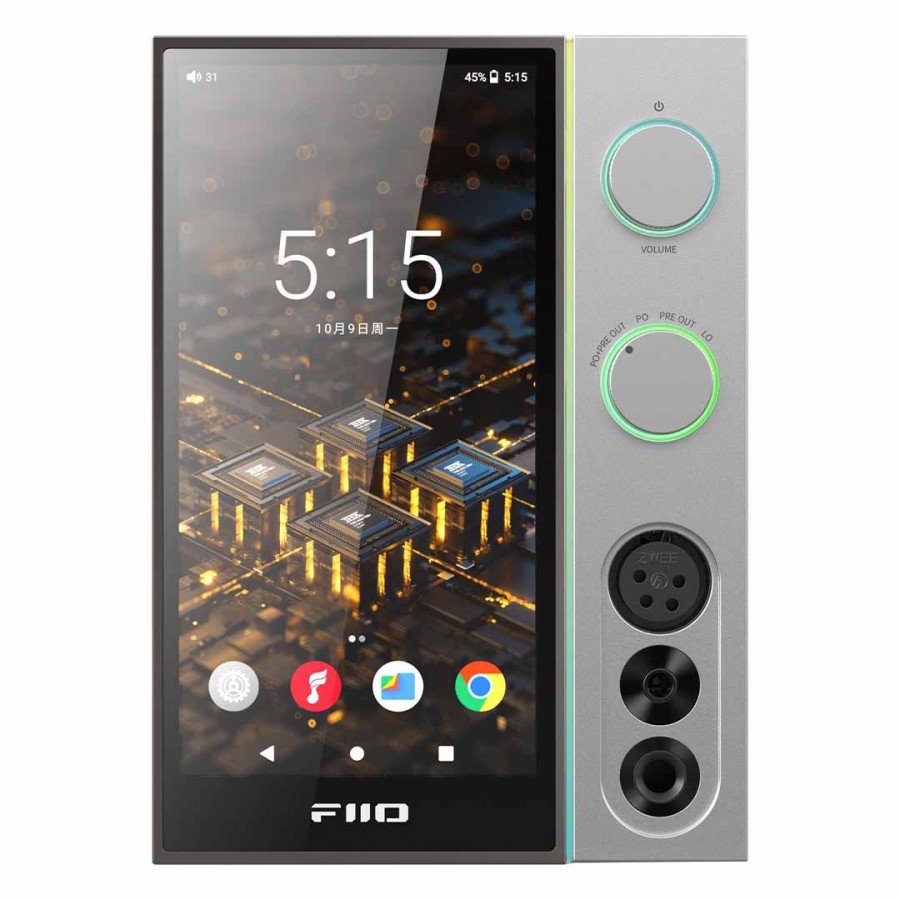

With its R9, FiiO unveils an extremely versatile high-performance desktop device. The R9 functions as a DAC, streamer and headphone amplifier. Two ES9038Pro DAC chips enable it to decode high-resolution streams up to PCM 32bit 768kHz, DSD512 and MQA, while its RJ45 port and large display give you easy access to all streaming services: Tidal, Spotify, Deezer, Qobuz, etc. The amplifier stage features THX AAA-788+ technology and a balanced dual-mono structure for headphone output power of up to 7300mW. The FiiO R9's connectivity is extremely varied, with 3 headphone outputs on the front panel, as well as two line outputs and digital and optical inputs/outputs (HDMI ARC, coaxial, Toslink, USB-C, USB-A (U-disk) and micro SD slot). The whole system is powered by an Android operating system.
FiiO has incorporated carefully selected components into its R9. Among these are two 8-channel DAC chips from ESS Technology, providing very low distortion and noise levels. The symmetrical architecture of the audio signal processing also limits jitter. A third-generation USB XMOS interface is also included. The R9 supports high-resolution PCM 32bit 768kHz, DSD512 and MQA streams.
The R9's headphone amplifier stage is made up of two THX AAA-788+ modules in a fully symmetrical dual-mono architecture. These THX amplification modules offer substantial amplification power, precise noise-free sound reproduction with extremely low distortion and extended frequency response. This makes the R9 ideal for enjoying ultra-detailed, high-resolution streams. It also features three headphone outputs: unbalanced 6.35mm jack, balanced 4.4mm jack and balanced 4-pin XLR. The R9 reaches up to 3500W under 16 ohm on its unbalanced output and up to 7500mW under 32 ohm on its balanced outputs. A 5-step gain control allows it to adapt to both low-impedance IEMs and the more difficult to drive high-impedance headphones.
The Android 10 operating system (upgradeable to Android 12) and dual WiFi/Ethernet network controller enable the FiiO R9 not only to play audio files on local networks (NAS, computer, Roon ready...), but also to access numerous online streaming services such as Spotify, Tidal, Deezer or Qobuz. Access to the PlayStore is also integrated, providing access to many more services. All these services can be accessed via a large 6" color touchscreen, or remotely via the FiiO Control App mobile application.
The FiiO R9 multifunction device is also able to receive or stream high-fidelity Bluetooth codecs (aptX HD, LDAC, LHDC) thanks to a bidirectional Bluetooth 5.0 controller. AirPlay technology is also available for optimum compatibility with Apple equipment.
The R9 incorporates comprehensive connectivity for optimum compatibility with a wide range of sources. It features a SPDIF coaxial and Toslink optical in/out interface, HDMI input and HDMI ARC output. This allows it to be easily combined with a CD player, Blu-ray player or even your TV, so you can enjoy listening through headphones or your sound system. A USB-C input also enables it to function as a DAC with a computer, and a USB-A port and micro SD card slot let you access content stored on external media. In addition to the 3 headphone outputs, there are two line outputs: a stereo RCA output and a balanced stereo XLR output with fixed or variable level for coupling with any type of amplifier.
1 | Volume control knob |
2 | Output mode selection |
3 | 6" color touch screen |
4 | Headphone outputs: 6.35mm jack / 4.4mm jack / XLR 4-pin |
5 | 2x RCA line output |
6 | XLR line output |
7 | RJ45 Ethernet port |
8 | USB-A port (U-disk) |
9 | SD slot |
10 | USB-C input |
11 | HDMI input / HDMI ARC output |
12 | SPDIF coaxial input / SPDIF coaxial output |
13 | Toslink optical input / Toslink optical output |
14 | Antenne Bluetooth / WiFi |
15 | GND switch |
16 | AC/DC power switch |
17 | DC power supply input |
18 | AC power supply input |
Technical characteristics
Specifications | |
---|---|
Product type | Streamer DAC Headphone amplifier |
Operating system | Android 10 (Update to Android 12 supported) |
DAC chip | 2x ES9038Pro |
USB interface | XMOS XU316 |
Headphone amplification | THX AAA-788+ |
CPU | Qualcomm Snapdragon 660 |
Bluetooth chips | Receiver: Qualcomm QCC5125 Transmitter: WCN3980 |
Internal memory | 64Go |
RAM | 4GB |
Inputs | 1x USB-C input 1x USB-A (U-disk) 1x Micro SD slot 1x Coaxial SPDIF input 1x Toslink optical input 1x HDMI input Bluetooth |
Outputs | 1x 6.35mm headphone output 1x 4.4mm balanced headphone output 1x XLR balanced headphone output 2x RCA stereo line output 1x XLR balanced stereo line output 1x HDMI ARC output Bluetooth |
Other connector | 100mbps RJ45 port |
WiFi | 2.4GHz/5GHz |
Supported sample rates | USB: PCM 32bit 768kHz, DSD512 Local: PCM 32bit 384kHz, DSD256 Coaxial: PCM 24bit 192kHz Toslink: 24bit 96kHz HDMI: 24bit 192kHz |
Bluetooth version | 5.0 |
Supported Bluetooth codecs | Reception: SBC, AAC, aptX, aptX LL, aptx Adaptive, aptX HD, LDAC Transmission: SBC, AAC, aptX, aptX HD, LDAC, LHDC |
Touch screen | Color 1080x2160px (6") |
Gain | 5 levels: Ultra high gain, super high gain, high gain, medium gain, low gain |
EQ | 10 adjustable bands (±12dB) and 8 presets |
Recommended headphone impedances | Unbalanced: 8-150Ω Balanced: 8-350Ω |
BALANCED HEADPHONE MEASUREMENTS (4.4MM JACK AND XLR) | |
---|---|
Max. output power (ultra-high gain) | L+R ≥ 3500mW+3500mW (16Ω,THD+N<1%) L+R ≥ 7300mW+7300mW (32Ω,THD+N<1%) L+R ≥ 1000mW+1000mW (300Ω,THD+N<1%) |
SNR (ultra-high gain) | ≥ 126dB |
Frequency response (ultra-high gain) | 20Hz-80kHz (attenuation < 0.9 dB) 20Hz-20kHz (attenuation < 0.2 dB) |
Output impedance (ultra-high gain) | < 0.6Ω |
Crosstalk (ultra-high gain) | ≥ 117dB |
Peak output voltage (ultra-high gain) | 50Vp-p |
THD+N (Gain ultra haut) | < 0.0002% (1kHz/-1.8dB@32Ω) |
Noise floor (ultra-high gain) | < 7uV (A-weighted) |
Max. output power (super-high gain) | L+R ≥ 3500mW+3500mW (16Ω,THD+N<1%) L+R ≥ 4500mW +4500mW (32Ω,THD+N<1%) L+R ≥ 490mW+490mW (300Ω,THD+N<1%) |
SNR (Super High Gain) | ≥ 126dB |
Frequency response (super-high gain) | 20Hz-80kHz (attenuation < 0,9 dB) 20Hz-20kHz (attenuation < 0,2 dB) |
Output impedance (super-high gain) | < 0.5Ω |
Crosstalk (super-high gain) | ≥ 117dB |
Peak output voltage (super-high gain) | 34.5Vp-p |
THD+N (super-high gain) | < 0.0003% (1kHz/-1.8dB@32Ω) |
Noise floor (super-high gain) | < 7uV (A-weighted) |
UNBALANCED HEADPHONE output MEASUREMENTS (6.35MM JACK) | |
---|---|
Max. output power (ultra-high gain) | L+R ≥ 3500mW+3500mW (16Ω, THD+N<1%) L+R ≥ 2100mW+2100mW (32Ω,THD+N<1%) L+R ≥ 245mW+245mW (300Ω,THD+N<1%) |
SNR (ultra-high gain) | 126dB |
Frequency response (ultra-high gain) | 20Hz-80kHz (attenuation < 0,9 dB) 20Hz-20kHz (attenuation < 0,2 dB) |
Output impedance (ultra-high gain) | < 0.4Ω |
Crosstalk (ultra-high gain) | ≥ 77dB |
Peak output voltage (ultra-high gain) | 24.4Vp-p |
THD+N (Gain ultra haut) | < 0.00025% (1kHz/-1.1dB@32Ω) |
Noise level (ultra-high gain) | < 4uV (A-weighted) |
Max. output power (super-high gain) | L+R ≥ 2250mW+2250mW (16Ω,THD+N<1%) L+R ≥ 1400mW+1400mW (32Ω,THD+N<1%) L+R ≥ 125mW+125mW (300Ω,THD+N<1%) |
SNR (super-high gain) | 125dB |
Frequency response (super-high gain) | 20Hz-80kHz (attenuation < 0,9 dB) 20Hz-20kHz (attenuation < 0,2 dB) |
Output impedance (super-high gain) | < 0.3Ω |
Crosstalk (super-high gain) | ≥ 73dB |
Peak output voltage (super-high gain) | 17.3Vp-p |
THD+N (super-high gain) | < 0.0003% (1kHz/-1.2dB@32Ω) |
Noise level (ultra-high gain) | <4uV (A-weighted) |
XLR LINE OUTPUT MEASUREMENT | |
---|---|
THD+N | < 0.00024% (1kHz/0dB @ 10KΩ) |
Crosstalk | ≥ 123.8dB |
Frequency response | 20Hz-80kHz (attenuation < 1 dB) 20Hz-20kHz (attenuation < 0.04 dB) |
SNR | ≥ 128dB (A-weighted) |
Noise floor | < 1.9uV (A weight) |
Output level | 4.8Vrms |
RCA LINE OUTPUT MEASUREMENT | |
---|---|
THD+N | < 0.0003% (1kHz/-0dB @ 10KΩ) |
Crosstalk | ≥ 118dB |
Frequency response | 20Hz-80kHz (attenuation < 1 dB) 20Hz-20kHz (attenuation < 0.04 dB) |
SNR | ≥ 124.7dB (A-weighted) |
Noise floor | <1.4uV (A-weighted) |
Output level | 2.4Vrms |
General | |
---|---|
Power supply | 15V DC ≥ 3A ou 100-240V AC 50/60Hz |
Dimensions | 170 x 115 x 127mm |
Color | Black and silver |
Weight | 2.3kg |
Package | 1x Fiio R9 1x Mains power cable 1x Bluetooth remote control 1x 3.5mm jack to 6.35mm jack adapter 1x USB cable 1x Micro-SD card adapter |
Input | USB |
Input | Optical |
Input | HDMI |
Input | SPDIF |
Input | Micro SD |
Output | Optical Toslink |
Output | XLR |
Output | Jack 6.35mm |
Output | RCA |
Output | Coaxial SPDIF |
Output | Jack 4.4mm |
DAC / ADC Chip | ES9038PRO |
Max sampling rate | 768kHz |
Max sampling rate | DSD512 |
Max sampling rate | MQA |
Color | Silver |
Color | Black |
Class | N/A |
Networking | Yes |
Remote Control | Yes |
Streaming services & Network protocols | Deezer |
Streaming services & Network protocols | Tidal |
Streaming services & Network protocols | AirPlay |
Streaming services & Network protocols | Spotify |
Streaming services & Network protocols | Qobuz |
Streaming services & Network protocols | DLNA |
Streaming services & Network protocols | Roon / Roon Bridge / Roon Ready |
