SABAJ D5 DAC ES9038Pro Headphone Amplifier Balanced XMOS Altera 32bit 768kHz DSD512

SABAJ D5 DAC Headphone Amplifier ES9038Pro XMOS Altera Balanced 32bit 768kHz DSD512 New
The Sabaj D5 is a solution that acts as both a DAC and a headphone amplifier. It ensures excellent performance, thanks to a careful architecture and components selected for their audio qualities. It also offers balanced outputs to integrate into all audio systems and enjoy a rich and detailed sound reproduction.

No customer reviews yet, login to write a review.

By buying this product you get 31 loyalty points


Reference : 15655
New product

312,50 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 19-10-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Sabaj D5

DAC Headphone Amplifier Balanced ES9038Pro XMOS Altera 32bit 768kHz DSD512

Sabaj D5 DAC Amplificateur Casque Symétrique ES9038Pro XMOS Altera 32bit 768kHz DSD512

The Sabaj D5 is a solution that acts as both a DAC and a headphone amplifier. It ensures excellent performance, thanks to a careful architecture and components selected for their audio qualities. It also offers balanced outputs to integrate into all audio systems and enjoy a rich and detailed sound reproduction.

Sabaj D5 DAC Amplificateur Casque Symétrique ES9038Pro XMOS Altera 32bit 768kHz DSD512

ESS ES9038Pro DAC

The D5's digital-to-analog conversion stage uses an excellent ESS ES9038Pro chip, known for its audio performance and its ability to reproduce transparent and neutral sound. A chip that offers particularly interesting measurements, including a dynamic range of 140dB. In addition, this chip supports high resolution streams, up to PCM 32bit 768kHz and DSD512.

High-end components for incredibly accurate sound

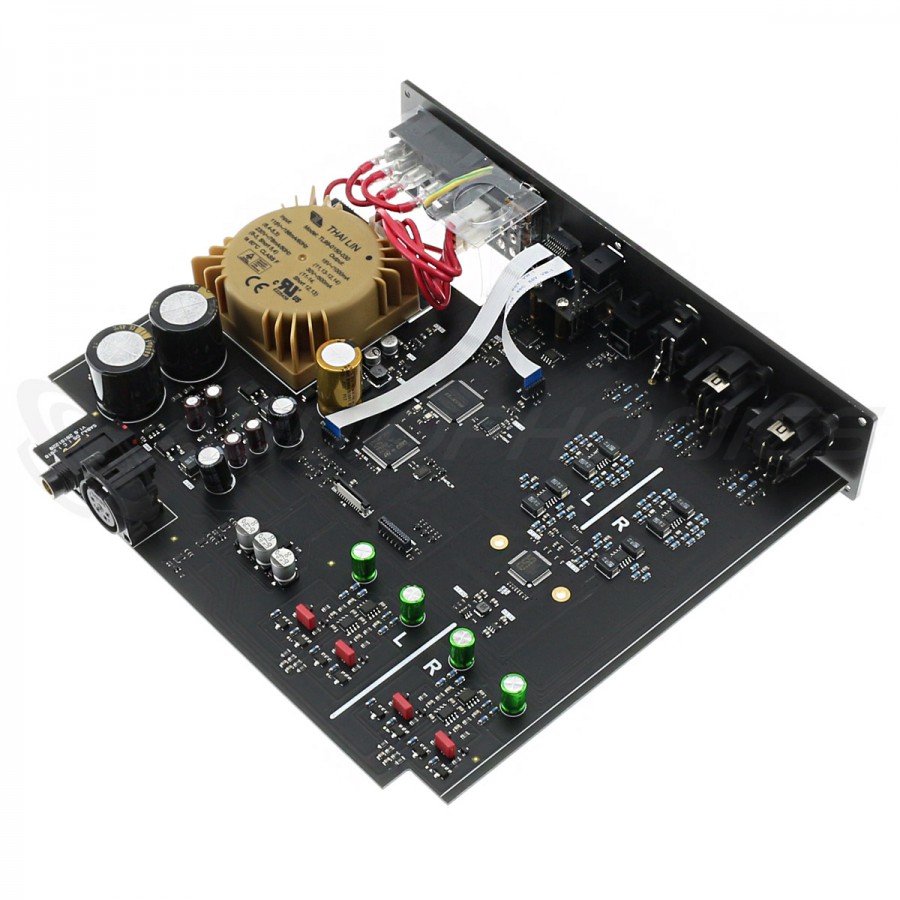

All the circuits and stages of the D5 are equipped with high quality components. We find in particular an ESS ES9311 ultra low noise linear voltage regulator and a high efficiency sealed transformer, an XMOS XU208 32bit USB interface supporting 32bit 768kHz and DSD512 streams, four OPA1612 AOPs, an Altera MAX II CPLD associated with NDK oscillators as well as numerous discrete components in the headphone amplifier and the analog circuit.

Sabaj D5 DAC Amplificateur Casque Symétrique ES9038Pro XMOS Altera 32bit 768kHz DSD512

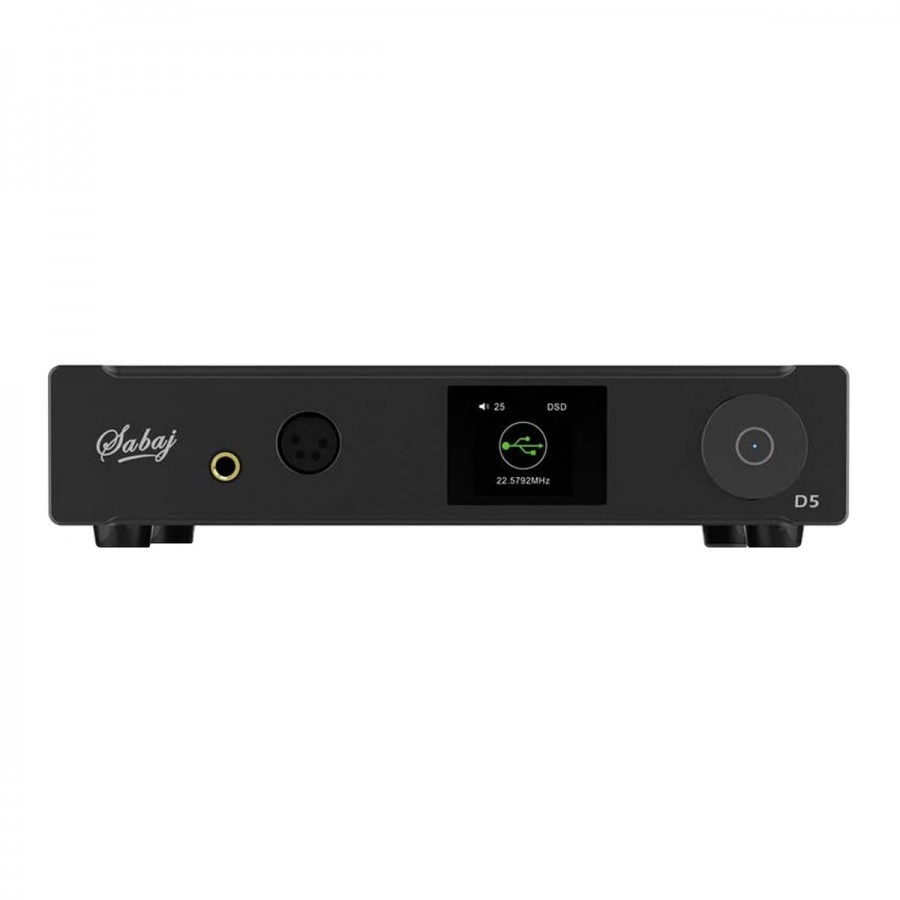

1Single-ended Jack 6.35mm headphone output
2Balanced XLR 4 polesheadphone output
3Screen
4IR Receiver
5ON/OFF LED Indicator
6Push button
7Rotary knob

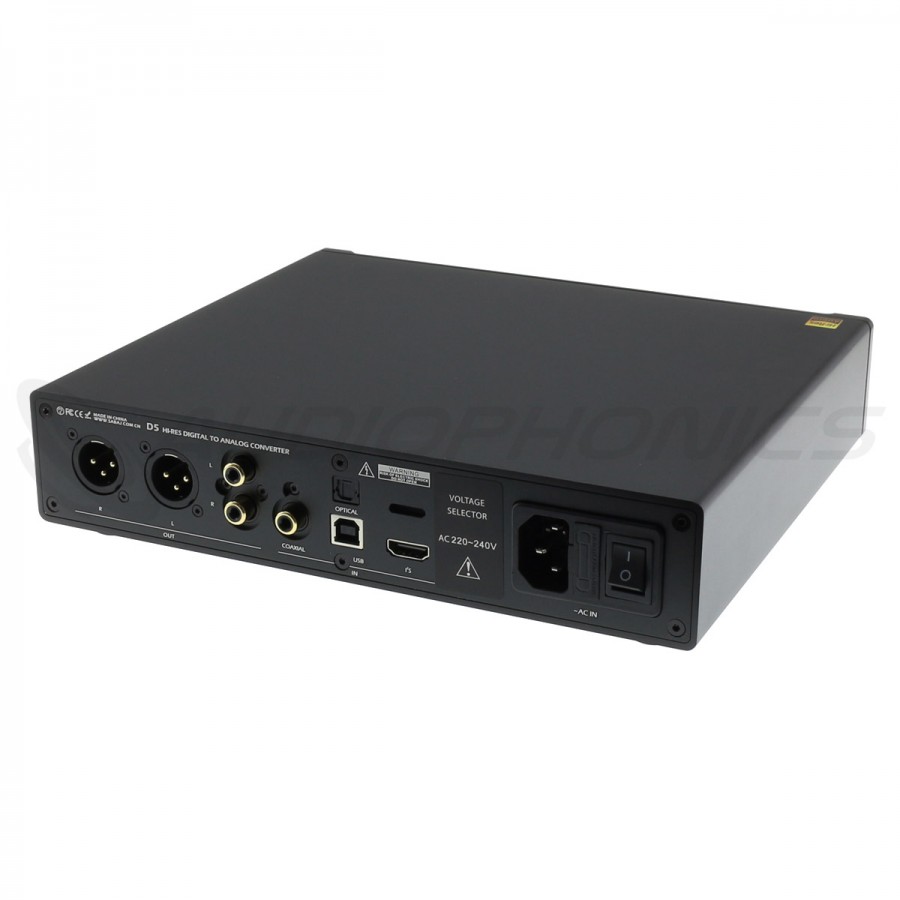

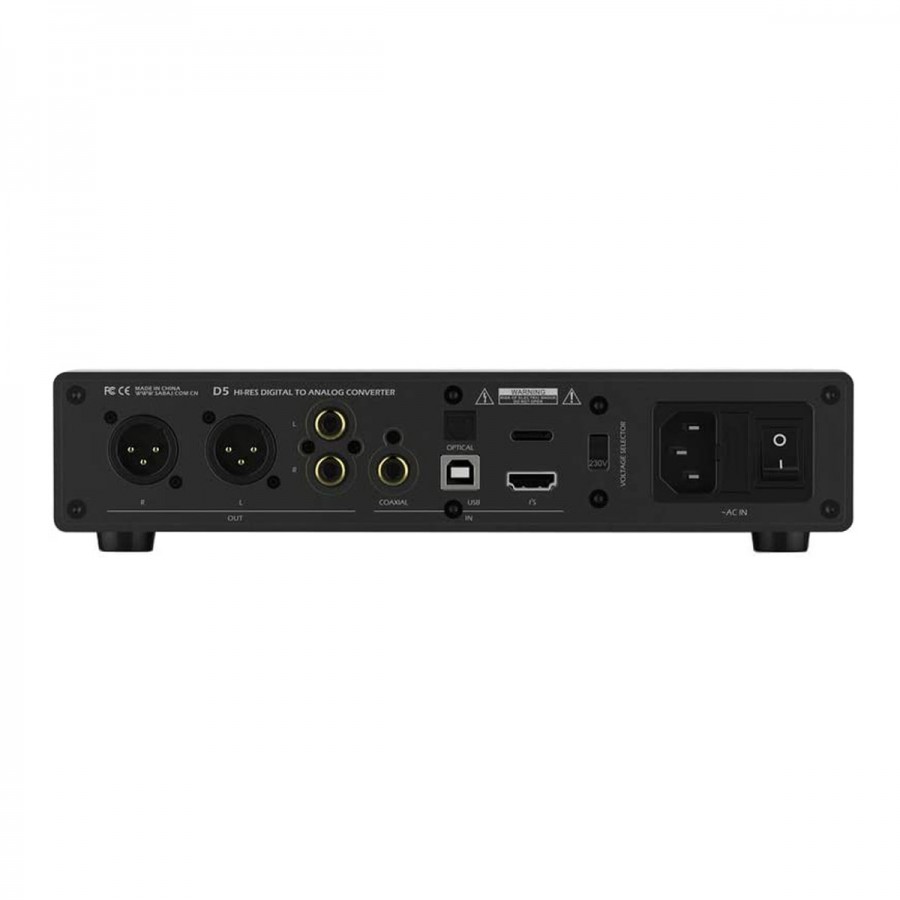

8Balanced line XLR output
9Single-ended line RCA output
10Coaxial input
11USB-B input
12Optical Toslink input
13I2S via HDMI input
14Supply voltage switch
15Power connector
16Fuse
17Power button


Sabaj D5 DAC Amplificateur Casque Symétrique ES9038Pro XMOS Altera 32bit 768kHz DSD512

Sabaj D5 Test by Audio Science Review

"The Sabaj D5 is a very well-engineered DAC and headphone amplifier. It nearly outperforms every DAC I have ever tested! The ESS ES9038Pro when implemented well (which is not common) brings stunningly low levels of distortion which shows here."
Test du Loxjie A30 par Audio Science Review

Technical characteristics

Specifications
Product typeDAC
Headphone amplifier
DAC ChipESS ES9038Pro
Inputs1x USB-B
1x Optical Toslink
1x Coaxial
1x I2S via HDMI
Outputs1x Balanced stereo XLR line output
1x Single-ended stereo RCA line output
1x Balanced XLR 4 poles headphone output
1x Single-ended stereo Jack 6.35mm headphone output
THD+NDAC : 0.0002%
headphone output : 0.001%
Dynamic rangeXLR : 127dB
RCA : 124dB
SNRDAC : 120dB
headphone output : 110dB
USB Transmission modeAsynchronous
USB CompatibilityWindows 7 / 8 / 8.1 / 10
Mac OSX 10.6 or later
Linux
Supported sampling ratesUSB / I2S : PCM up to 32bit 768kHz, Native DSD Natif up to DSD512
Optical / Coaxial : PCM jusqu'à 24bit 192kHz, DSD DoP jusqu'au DSD64
Headphone output powerBalanced : 1912mW @ 32Ω / 1025mW @ 64Ω / 455mW @ 150Ω / 231mW @ 300Ω
Single-ended : 480mW @ 32Ω / 265mW @ 64Ω / 115mW @ 150Ω / 58mW @ 300Ω
General
Supply voltage100-240VAC
Consumption8W
Standby consumption0.6W
Dimensions245 x 210 x 50mm
Weight2.5kg
ColorBlack
Package1x Sabaj D5

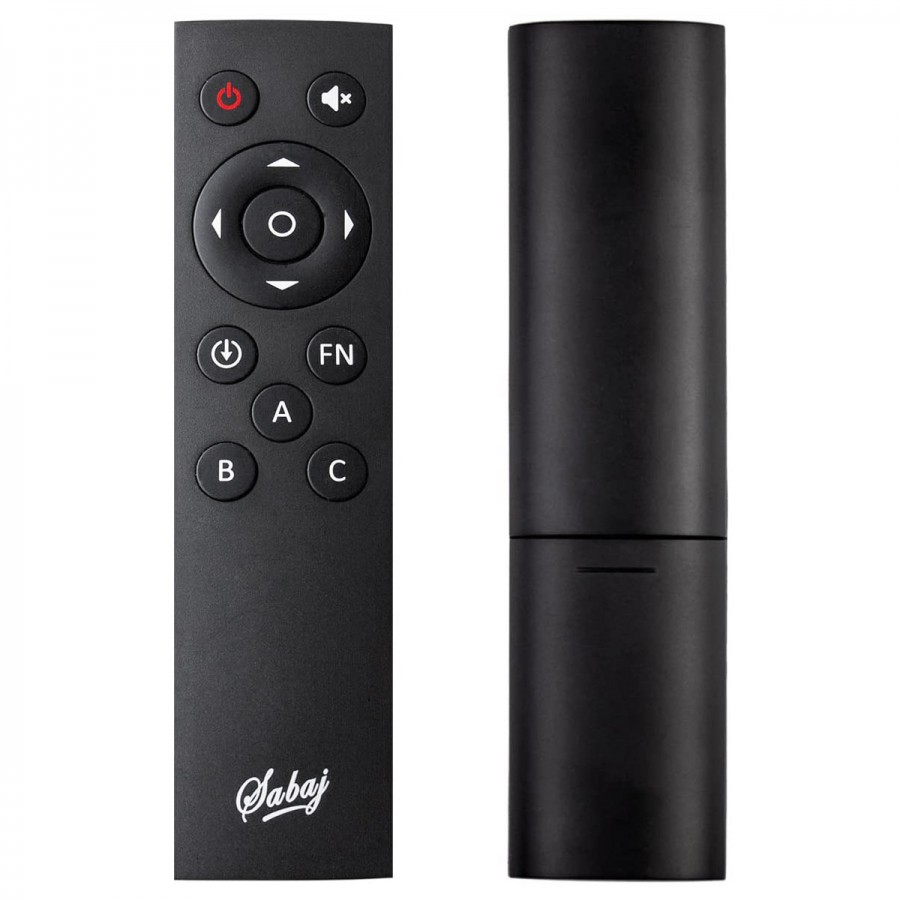

1x Remote control
1x USB cable
1x Power cable

Data sheet
InputI2S via HDMI
InputUSB
InputOptical
InputSPDIF
OutputXLR
OutputRCA
OutputJack 6.35mm
DAC / ADC ChipES0938PRO
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
NetworkingNo
Remote ControlYes
