SMSL D200 DAC ROHM BD34352EKV

New
The SMSL D200 DAC is based on a BD34352EKV DAC chip and a USB interface, enabling it to support sampling rates up to PCM 32-bit 768kHz, DSD512, and MQA, allowing you to enjoy streaming or your local high-resolution files.

No customer reviews yet, login to write a review.

By buying this product you get 32 loyalty points


Yes, notify me when available !
Reference : 21106
New product

329,00 €tax incl.

274,17 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

SMSL D200 DAC ROHM BD34352EKV Bluetooth aptX-HD LDAC PCM 32Bit 768kHz DSD512

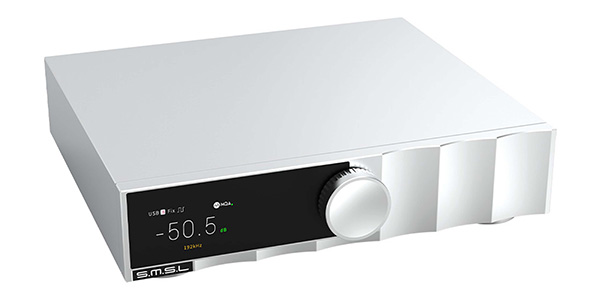

SMSL D200 picture

The SMSL D200 DAC is based on a BD34352EKV DAC chip and a USB interface, enabling it to support sampling rates up to PCM 32-bit 768kHz, DSD512, and MQA, allowing you to enjoy streaming or your local high-resolution files. Added to this is a Qualcomm Bluetooth receiver chip for reliable and stable remote signal transmission via aptX-HD and LDAC codecs. All of this is implemented in an audiophile architecture with a CK-03 clock circuit that significantly reduces jitter. On the front of the D200 DAC is a beautiful color screen with an intuitive interface, while the rear features a full range of inputs and outputs. It has a USB-C input as well as Toslink optical and SPDIF coaxial inputs, complemented by a connector for an external clock and two analog outputs: RCA and balanced XLR. With the D200, SMSL offers a versatile, high-performance device at a more than reasonable price that is sure to delight audiophiles.

SMSL D200: a high-performance chipset

The SMSL D200's USB interface and BD34352EKV RHOM combo allows it to support up to 32-bit 768kHz PCM and DSD512 via its USB-C input. Moreover, this enables it to achieve audiophile-grade performance with THD+N of only 0.00019% and an SNR of 123dB at its XLR analog output. The chipset and performance of the D200 therefore have everything to appeal to audiophiles.

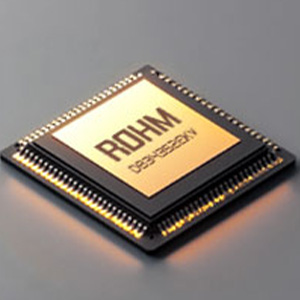

The SMSL D200 chipset

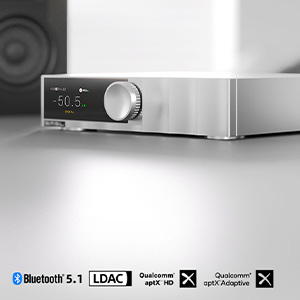

Bluetooth function of the SMSL D200

SMSL D200 : Bluetooth 5.1

SMSL has chosen to integrate a Qualcomm Bluetooth chip into its D200 to enable it to support high-definition codecs. Audio streams can be transmitted using aptX-HD or LDAC for the most reliable and stable transmission possible.

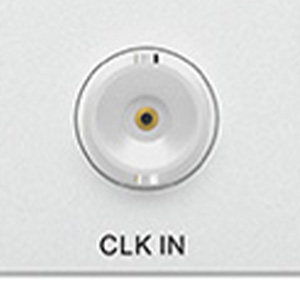

SMSL D200: external clock connector

SMSL has equipped its D200 DAC with a BNC input for an external clock to improve the accuracy of the digital signal and thus reduce jitter. Among other things, this will improve the soundstage with better separation of instruments and increased dynamics.

BNC connector of the SMSL D200

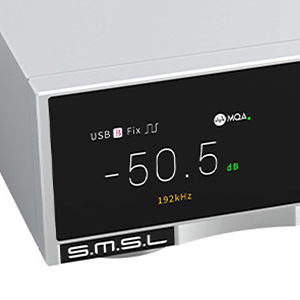

The SMSL D200 display

SMSL D200: screen with intuitive interface

A beautiful color screen on the front of the D200 allows the user to control the device settings and access real-time playback information via an intuitive interface.

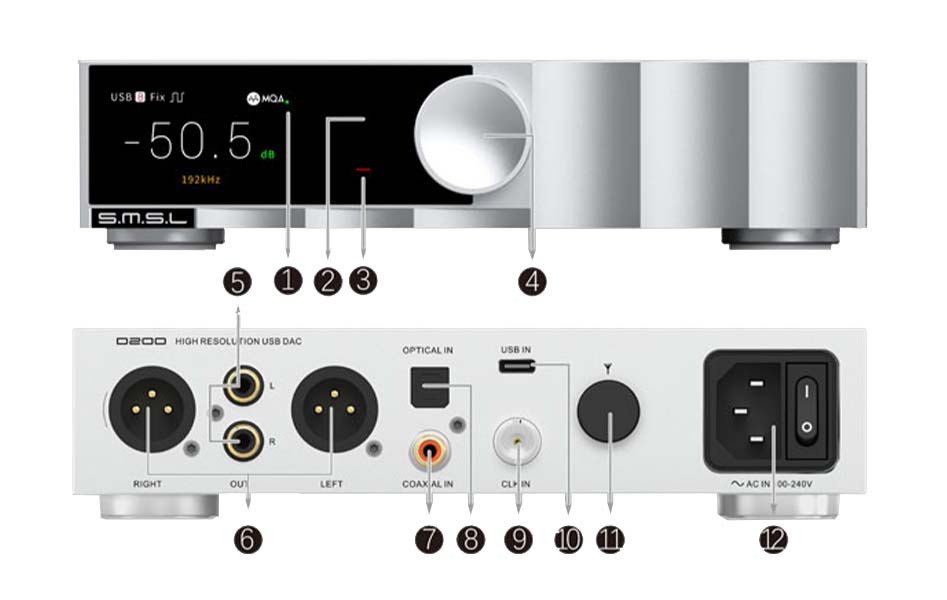

SMSL D200 overview

SMSL D200 Overview
1Screen
2IR receiver
3LED indicator
4Multifunction knob
5RCA line output
6Balanced XLR line output
7Coaxial SPDIF input
8Toslink optical input
9BNC connector for external clock
10USB-C input
11Bluetooth antenna
12Mains power supply / Power switch
Technical characteristics
Specifications
Product typeDAC
DAC chipRHOM BD34352EKV
USB interfaceXMOS XU-316
Volume control chipNJU72315
Inputs1x USB-C input
1x Toslink optical input
1x SPDIF coaxial input

Bluetooth
Outputs1x RCA line output
1x Balanced XLR line output
Output levelRCA : 2.5Vrms (variable)
XLR : 5Vrms (variable)
THD+N0.00019% (-114dB) (UN-WTD)
Dynamic rangeRCA : 121dB
XLR : 123dB
SNRRCA : 121dB
XLR : 123dB
Supported sample ratesUSB: PCM 32-bit 768kHz, DSD DoP256, DSD512, MQA
Toslink optical and SPDIF coaxial: PCM 24-bit 192kHz, DSD DoP64, MQA
USB transmissionUSB 2.0 asynchronous
USB compatibilityWindows 7 / 8 / 8.1 / 10 / 11 (with driver)
Mac OSX, Linux, Android, IOS, Linux (without driver)
Supported bluetooth codecsSBC, AAC, aptX, aptX HD, LDAC
General
Energy consumption<10W
<0.5W
Dimensions200 x 47.9 x 197.9mm
Weight1.2kg
Package1x SMSL D200 DAC
1x SMSL RC-8C remote control
1x AC power cord

Data sheet
InputBluetooth
InputUSB
InputOptical
InputSPDIF
OutputXLR
OutputRCA
DAC / ADC ChipBD34352EKV
Max sampling rate768kHz
Max sampling rateDSD512
Max sampling rateMQA
ColorSilver
NetworkingNo
Remote ControlYes
