SONCOZ LA-QXD1 DAC Balanced ES9038Q2M 32bit 768kHz / DSD512 XMOS Black

SONCOZ LA-QXD1 DAC Balanced Double ES9038Q2M 32-bit 768kHz / DSD512 XMOS Silver

Average votes for this product
5.0 / 5

By buying this product you get 22 loyalty points


Reference : 14529
New product

229,00 €tax incl.

190,83 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

SONCOZ LA-QXD1

 ES9038Q2M 32bit / 768kHz DSD512





Very complete balanced digital / analog / DAC interface integrating dual SABRE ES9038Q2M chips and USB XMOS interface.

Its resolutely high-end circuit, its simple and compact construction as well as its very accessible interface make it an ideal solution for audiophiles looking for an easy-to-configure DAC for any high-fidelity installation.


Review by Audio Science Review

Usually balanced output comes at a cost of higher price as it is considered a premium feature. Not the case here. You get XLR output and importantly, with superbly low noise and distortion for a really budget price.

 test by the measurement forum Audio Science Review

ES9038Q2M DAC chip


The LA-QXD is a well designed DAC built on a ES9038Q2M Sabre 32-bit chip ntegrated in balanced mode.

This component belongs to ESS flagship series and is among the best current hardware solutions for high-fidelity audio decoding. It uses HyperStream 32 BIT 768kHz architecture with native DSD support. Each one of this chips is also equipped with advanced reconstruction filters and uses some of the finest dithering techniques available on the audio market.

ESS ES9038Q2M SABRE DACs are also very popular thanks to their ability to operate volume with almost no consequences on the audio bitrate.

USB interface & S/PDIF interface



The LA QXD1 has a USB input on a USB-B connector controlled by a XMOS U208 interface. The latter allows it to work directly from audio streams on your computer or any device with this type of connector.

A second separate USB connector is in charge of powering the device. This redundancy makes it possible to completely ignore the audio parasites induced by a non-isolated USB source. This power connector is USB-C to facilitate scenarios of nomadic use and battery power.

In addition to the USB input, the LA QXD1 has an S / PDIF interface. The latter allows it in the first place to decode the S / PDIF streams received on its oaxial & optical inputs with a 24-bit / 192kHz / DSD64 resolution.

In addition, the SPDIF interface is also connected to the USB interface as well as to a digital output on coaxial port. In addition to its DAC function, the LA-QXD1 can thus work as a digital interface able to interface its optical / coaxial and USB inputs to an S / PDIF coaxial output.This digital interface output offers various integration possibilities for occasionally or permanently connecting devices that do not have the appropriate inputs/outputs.

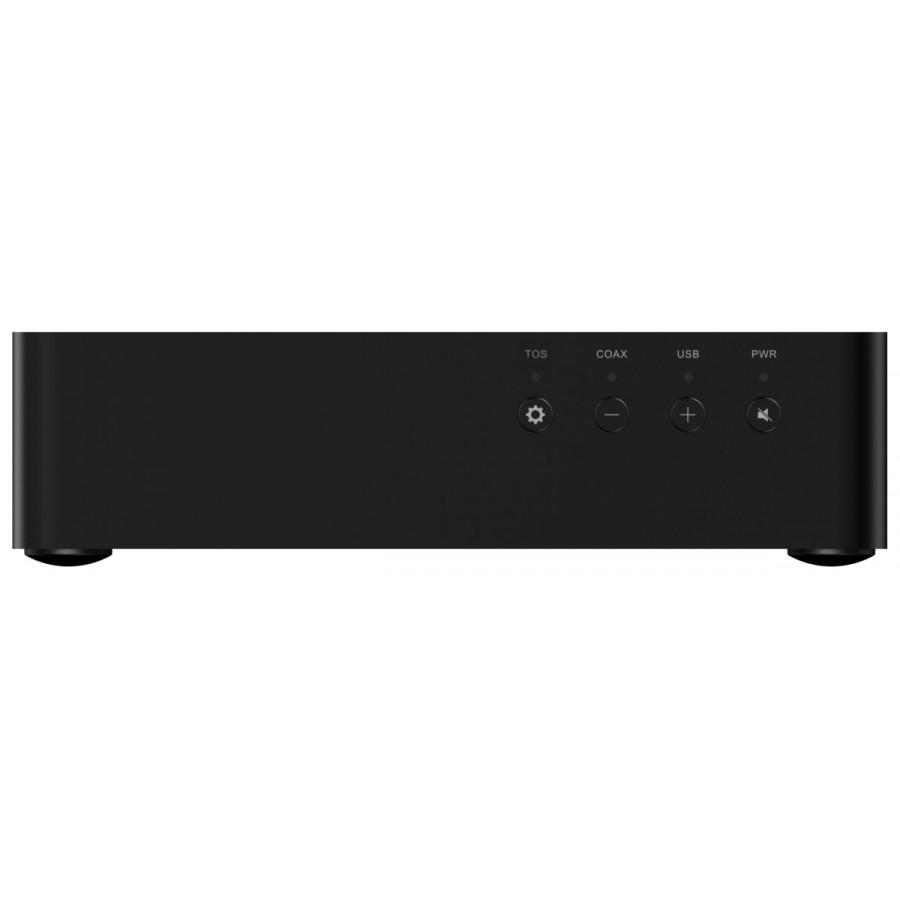

Simple and accessible control panel


The device is easily controlled using four buttons located on the front panel. These provide access to source selection, digital filter adjustment, volume control and mute functions.

A panel of four LEDs indicates the active output in real time and allows you to check that the device is powered up.

Specifications
TypeDAC
Digital interface
ArchitectureBalanced
chip DACES9038Q2M
InputsUSB-B (XMOS)
Optical Toslink
Coaxial SPDIF
OutputsAnalog stereo RCA (single-ended)
Analog stereo XLR (balanced)
Digital Coaxial SPDIF
Sampling frequencyUSB: 32-bit / 768kHz PCM - DSD512 (native)
Optical 24-bit / 192 kHz PCM - DSD64
Coaxial: 24-bit / 192 kHz PCM - DSD64
Output LevelXLR: @ 4.0Vrms 0dBFS
CAR: @ ??2.0Vrms 0dBFS
Frequency response20Hz ~ 20KHz (± 0.18dB) XLR / RCA
Dynamic range> 124dB A-Weighted
THD + N<0.00015% @ 1kHz XLR / RCA
Crosstalk> 130dB @ 1kHz XLR / RCA
Output impedance200Ω XLR
100Ω RCA

Noise floor modulation
<4.3μVrms
Dimensions149.3 x 87 x 37mm
Weight475g
Package contents
LA-QXD1x1
USB-B male / male USB-A Cablex1
USB-C male / male USB-A Cablex1

Data sheet
InputSPDIF
InputUSB
InputOptical
OutputRCA
OutputCoaxial SPDIF
OutputXLR
DAC / ADC ChipES9038Q2M
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
NetworkingNo
Remote ControlNo

Download

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Très bon DAC
Bon rapport qualité prix pour ce DAC. J'aime beaucoup la douceur et les détails qui sont produits par cet appareil. J'ai pu comparé avec le topping E30 que j'ai aussi chez moi. Le Soncoz est plus équilibré selon moi, alors que le E30 envoie des basses et a un punch débordant. Ces deux DACs me plaisent et ont trouvé leur place dans deux installations HIFI différentes. Un avantage du Soncoz, selon moi, est l'absence d'affichage sur le devant du DAC qui permet une intégration facile dans n'importe quel environnement.

Une remarque , j'ai remplacé le cable USB d'alimentation (USB-C male) fourni dans la boite du Soncoz par un cable de meilleure qualité. Le cable fourni, pour une raison qui m'échappe, avait un impact négatif sur la restitution sonore (le DAC est alimenté par une alimentation linéaire régulée d'Audiophonics de bonne qualité).
