TOPPING DX5 II DAC Headphone Amplifier Silver

With the DX5 II, Topping presents the direct heir to its famous DX5 DAC and headphone amplifier. This new version features a host of changes, improving on its predecessor in absolutely every respect. The digital/analog conversion stage is now entrusted to two ES9039Q2M chips in a symmetrical architecture, for support of sampling rates up to PCM 32bit 768kHz and DSD512. As for amplification, the brand's classic NFCA architecture has been drastically evolved to offer four-channel 2x7600mW amplification under 16Ω in a brand-new design called X-Hybrid.

Average votes for this product
5.0 / 5
  Based on 4 customers reviews.

By buying this product you get 29 loyalty points


Yes, notify me when available !
Reference : 20825
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Topping DX5 II DAC 2xES9039Q2M Headphone Amplifier X-Hybrid Bluetooth 32bit 768kHz DSD512 Silver

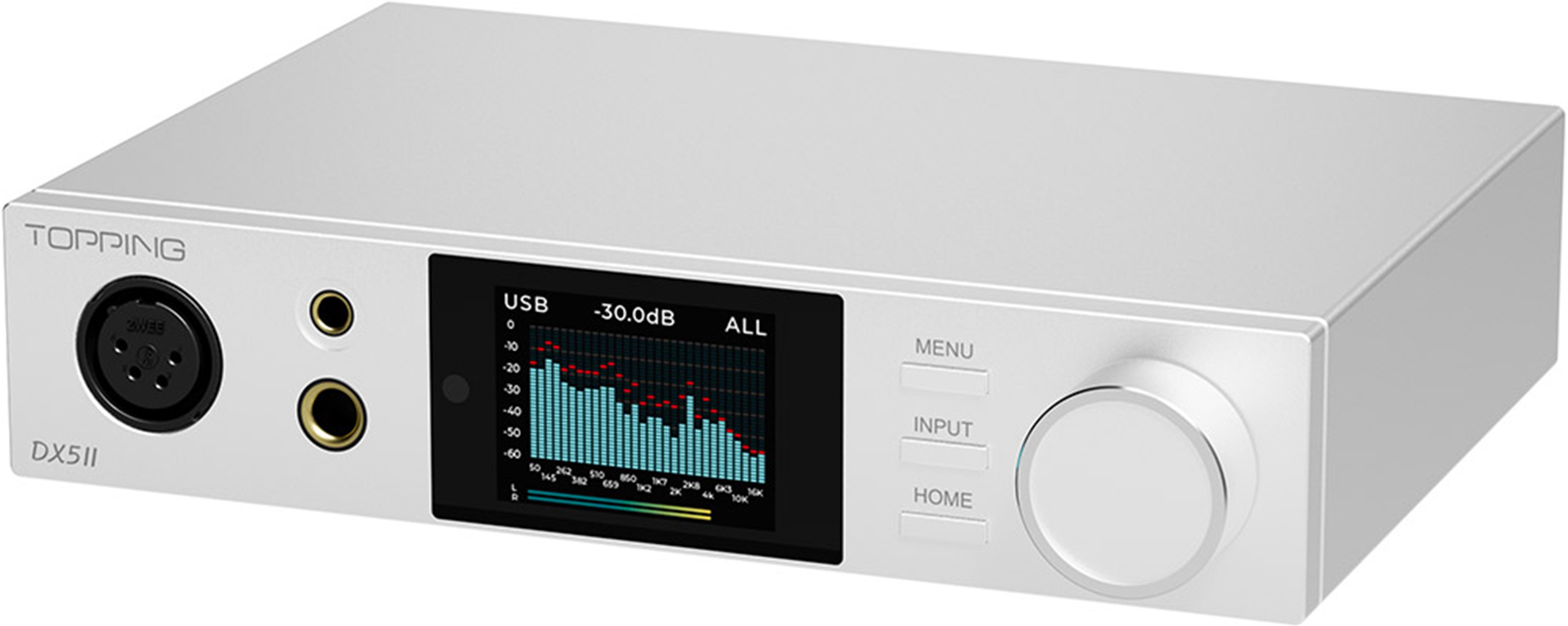

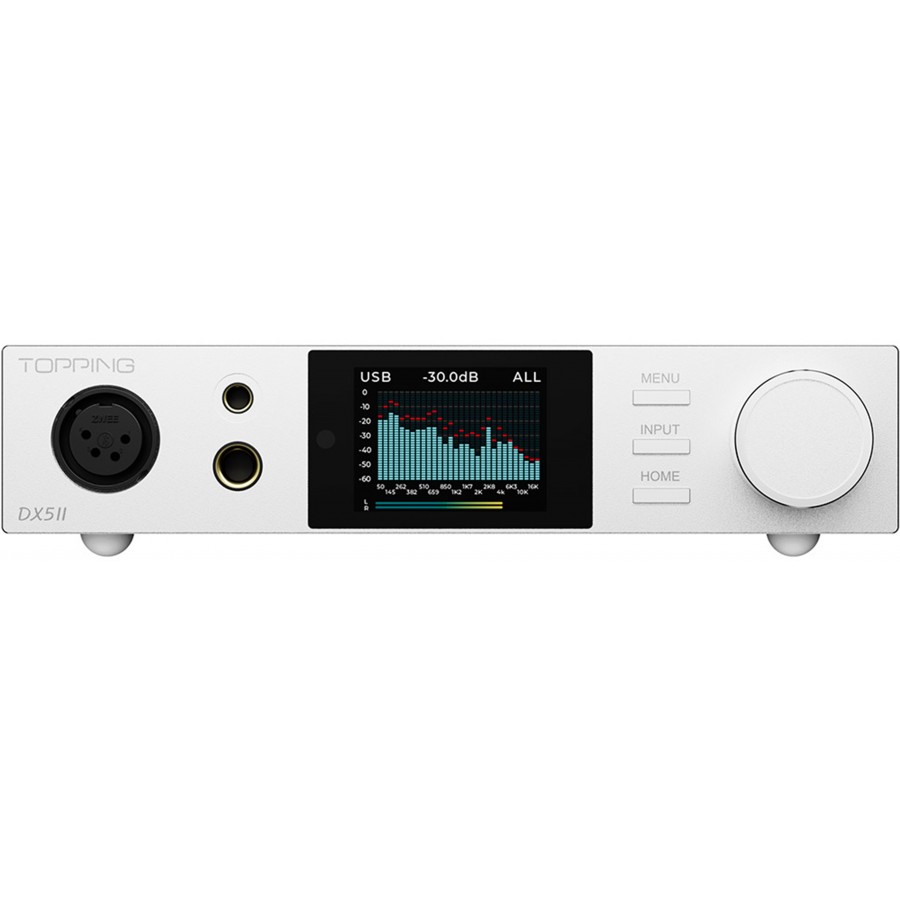

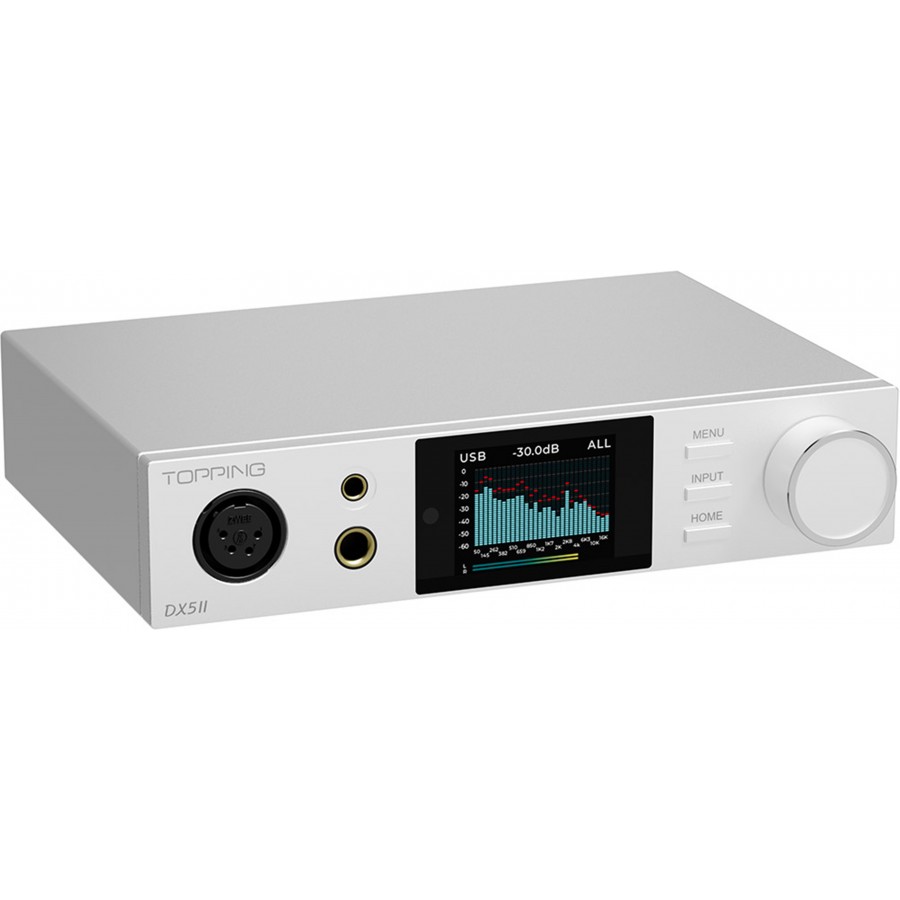

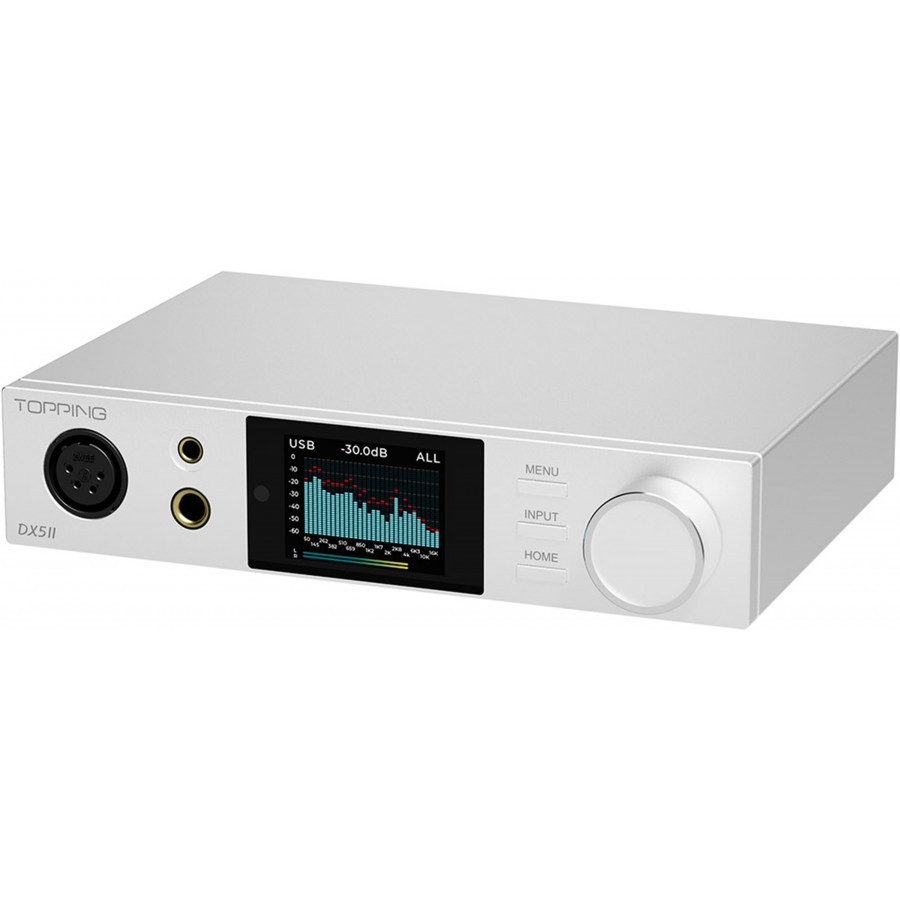

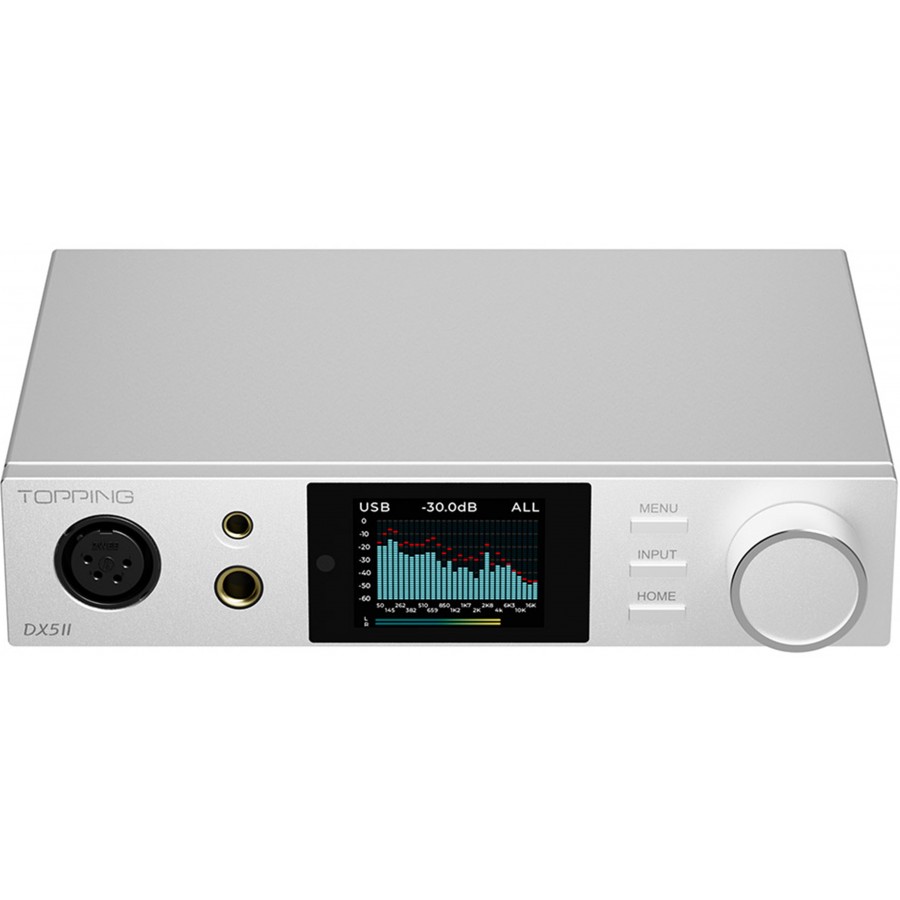

Topping DX5 II: Front view

With the DX5 II, Topping presents the direct heir to its famous DX5 DAC and headphone amplifier. This new version features a host of changes, improving on its predecessor in absolutely every respect. The digital/analog conversion stage is now entrusted to two ES9039Q2M chips in a symmetrical architecture, for support of sampling rates up to PCM 32bit 768kHz and DSD512. As for amplification, the brand's classic NFCA architecture has been drastically evolved to offer four-channel 2x7600mW amplification under 16Ω in a brand-new design called X-Hybrid.

Topping DX5 II: ES9039Q2M dual DAC for unrivalled sound quality

The Topping DX5 II uses two ES9039Q2M DAC chips in a symmetrical architecture, offering outstanding digital-to-analog conversion. It boasts a distortion rate of 0.00006% for an impressive signal-to-noise ratio and dynamic range of 133dB. What's more, the inclusion of an XMOS XU316 USB interface makes the most of the DAC chips used, ensuring signal conversion at sampling rates up to PCM 32bit 768kHz and DSD512.

Topping DX5 II: ES9039Q2M DAC chips
Topping DX5 II: X-Hybrid amplifier circuit

Topping DX5 II: Revolutionary X-Hybrid amplification circuitry

For its amplification stage, the Topping DX5 II evolves the brand's characteristic NFCA architecture into X-Hybrid technology. This is a three-stage amplification architecture characterized by record efficiency, reducing power consumption while minimizing heat generation. Despite its small chassis, the DX5 II houses four-channel symmetrical amplification.

Topping DX5 II: Extended compatibility with all headphone outputs

To ensure compatibility with all headphones and earphones on the market, the Topping DX5 II makes no concessions, featuring single-ended 6.35mm jack, balanced 4.4mm jack and balanced 4-pin XLR headphone outputs. What's more, its 2x7600mW of power coupled with a low noise level of just 1.8µV ensures that even the most power-hungry headphones can be driven with ease, and without the slightest trace of background noise.

Topping DX5 II: when used with headphones and earphones

Topping DX5 II: Revolutionary Aurora UI user interface

With the new DX5 version, Topping has also taken the opportunity to revamp its user interface, introducing the Aurora UI. This new, highly customizable interface allows you to modify its colors at will for optimum readability, and integrates a VU meter and FFT (Fast Fourier Transform) display in addition to the classic playback information, offering a rich visual experience.

Topping DX5 II: Sample screens with Aurora UI

Topping DX5 II: Customizable 10-band equalization

To give you maximum control over sound reproduction, Topping has developed a 10-band equalizer for the Topping DX5 II. Once you've defined your target curve using the dedicated software/application, simply import it into your device to enjoy it. It's worth noting that you can save several different sound profiles and switch between them at will, allowing you to adapt sound reproduction to your headphones on the fly.

This software/application is currently being tested by the Topping teams. It will be available and made compatible with the DX5 II shortly via a firmware update. The mobile application is scheduled for release first on Android, then on iOS.

Topping Tune will be available on MAC OS in the second half of 2025. It is currently only available for Windows.

Topping DX5 II: Topping EQ
Topping DX5 II: Bluetooth connectivity

Topping DX5 II: Advanced Bluetooth connectivity

For maximum ease of use, the Topping DX5 II is also equipped with Bluetooth 5.1 connectivity. This supports sampling rates up to PCM 24bit 96kHz via the high-quality protocols LDAC, aptX Adaptive, aptX, aptX HD, AAC and SBC, ensuring high-quality wireless transmission.

Topping DX5 II: Preamplifier mode and intelligent volume control

Always in the spirit of flexibility of use and comfort, the Topping DX5 II also features a “Preamp” mode, enabling it to be directly connected to a power amplifier or active speakers to control volume. What's more, the Topping DX5 II features an automatic volume save function, allowing it to automatically adjust itself according to your last use when you select another output mode, for a simplified user experience.

Topping DX5 II: used as a preamplifier
Topping DX5 II: 12V trigger input and output

Topping DX5 II: 12V trigger for perfect system integration

Last but not least, the Topping DX5 II also features a 12V trigger input and output, enabling it to synchronize its power-up with the rest of your HiFi installation, for seamless integration of all your devices.

Topping DX5 II overview

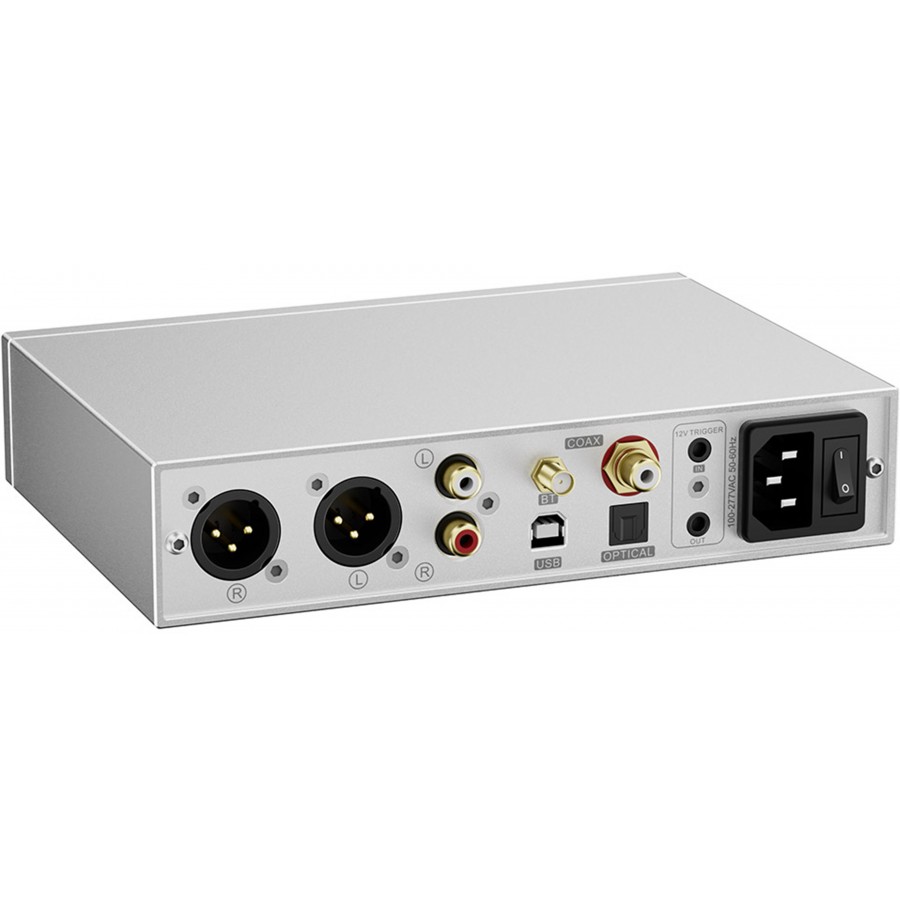

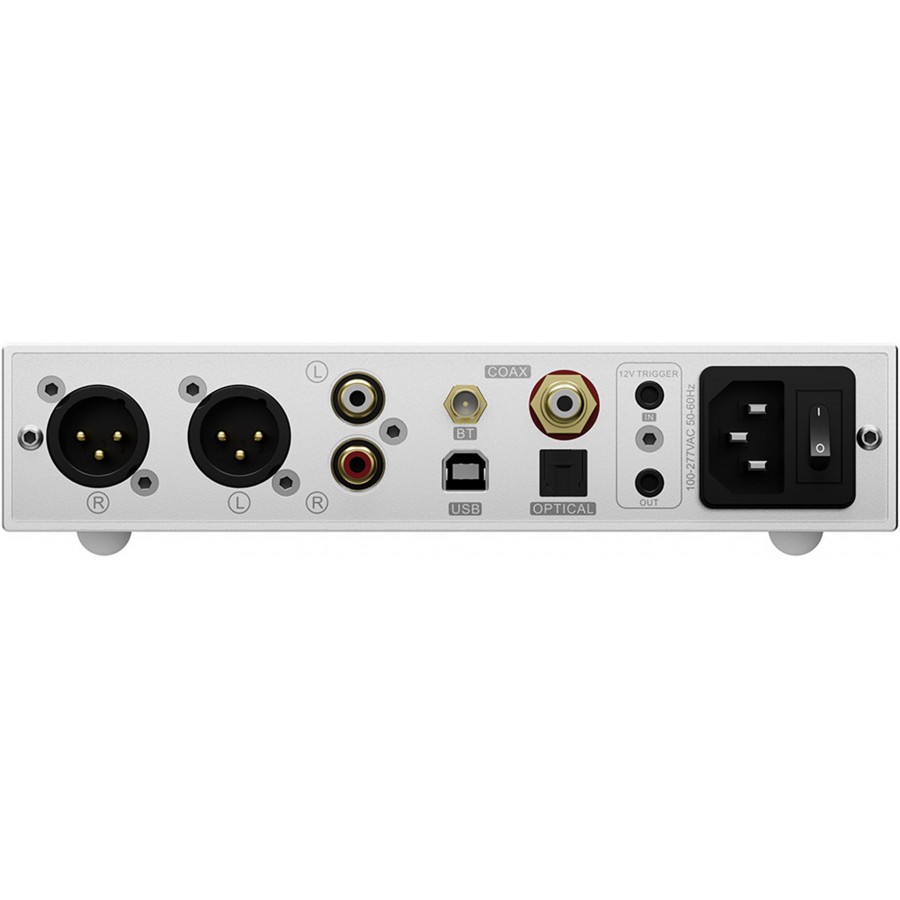

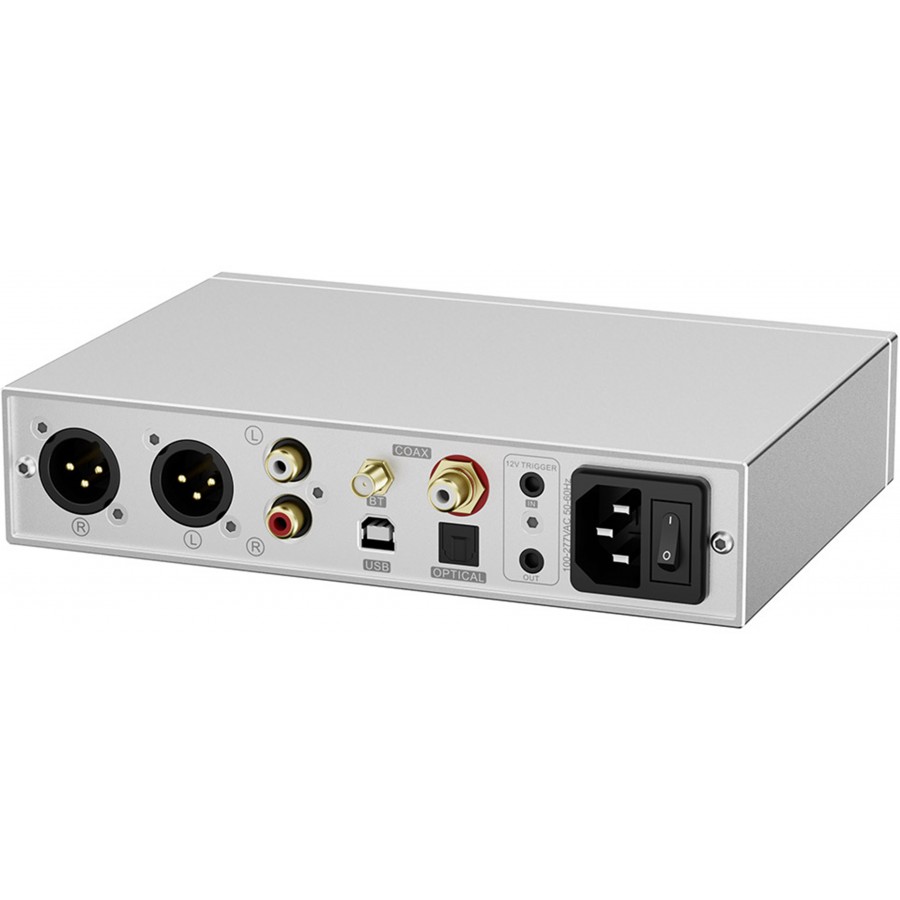

Topping DX5 II: rear panel diagram
1Balanced XLR output
2Bluetooth antenna
3Coaxial input
412V trigger input / output
5Single-ended RCA output
6USB-B input
7Optical Toslink input
8IEC power input
9Power switch

Topping DX5 II test by Audio Science Review

No matter how many times Topping produces exceptional audio products, testing their new offerings always puts a smile on my face. They are constantly competing with themselves, upping the performance in every category possible. They now bring extra features in the form of DSP and delightful look and feel. Measured performance is essentially without fault.

It is my pleasure to recommend the Topping DX5 II DAC and Headphone Amplifier.

Technical characteristics

Specifications
Product typeDAC
Headphone amplifier
Inputs1x Coaxial
1x USB-B
1x Optical Toslink
Bluetooth
Outputs1x Balanced stereo XLR
1x Single-ended stereo RCA
1x Balanced Jack 4.4mm headphone output
1x Single-ended Jack 6.35mm headphone output
1x Balanced XLR 4 pins headphone output
DAC chips2x ES9039Q2M
Supported sampling ratesPCM up to 32 bit 768kHz
DSD up to DSD512
Headphone amplification circuitX-Hybrid
Bluetooth chipQCC5125
Supported Bluetooth codecsLDAC, aptX Adaptive, aptX, aptX HD, AAC, SBC
USB interfaceXMOS XU316
DAC specifications (Line out / USB input @ 96kHz)
THD+N @ 1kHz (A-wt)RCA: < 0.00008%
XLR: < 0.00006%
THD @ 20Hz-20kHz 90kBwRCA: < 0.0005%
XLR: < 0.00015%
SNR @ 1kHz (A-wt)RCA: 128dB
XLR: 132dB
Dynamic range @ 1kHz (A-wt)RCA: 128dB
XLR: 132dB
Frequency responseRCA: 20Hz-20kHz (±0.3dB) / 20Hz-40kHz (±1.0dB)
XLR: 20Hz-20kHz (±0.3dB) / 20Hz-40kHz (±1.0dB)
Output levelRCA: 2.5Vrms @ 0dBFS
XLR: 5.0Vrms @ 0dBFS
Noise @ A-wtRCA: < 1.1µVrms
XLR: < 1.3µVrms
CrosstalkRCA: -135dB @ 1kHz
XLR: -147dB @ 1kHz
Channel balanceRCA: 0.3dB
XLR: 0.3dB
Output impedanceRCA: 50Ω
XLR: 100Ω
Headphone amplifier specifications (USB input @ 96kHz)
THD+N @ 1kHz (A-wt)Jack 6.35mm: < 0.00008% @ 200mW, 32Ω / < 0.00007% @ 22mW, 300Ω
Jack 4.4mm, XLR 4 pins: < 0.00008% @ 850mW, 32Ω / < 0.00007% @ 90mW, 300Ω
THD @ 20Hz-20kHz (45kBw)Jack 6.35mm: < 0.0006% @ 200mW, 32Ω / < 0.0005% @ 22mW, 300Ω
Jack 4.4mm, XLR 4 pins: < 0.0005% @ 850mW, 32Ω / < 0.0005% @ 90mW, 300Ω
SNR @ Max Out, 1kHz (A-wt)Jack 6.35mm: 131dB @ 1kHz
Jack 4.4mm, XLR 4 pins: 133dB @ 1kHz
Dynamic range @ 1kHz (A-wt)Jack 6.35mm: 131dB @ 1kHz
Jack 4.4mm, XLR 4 pins: 133dB @ 1kHz
Frequency responseJack 6.35mm: 20Hz-20kHz (±0.3dB) / 20Hz-40kHz (±1.0dB)
Jack 4.4mm, XLR 4 pins: 20Hz-20kHz (±0.3dB) / 20Hz-40kHz (±1.0dB)
Output levelJack 6.35mm: 7.2Vpp @ G=L / 24.2Vpp @ G=H
Jack 4.4mm, XLR 4 pins: 15.0Vpp @ G=L / 48.0Vpp @ G=H
Noise (A-wt)Jack 6.35mm: < 1.1µVrms @ G=L / < 2.5µVrms @ G=H
Jack 4.4mm, XLR 4 pins: < 1.6µVrms à G=L / < 4.3µVrms @ G=H
CrosstalkJack 6.35mm: -127dB @ 1kHz
Jack 4.4mm, XLR 4 pins: -143dB @ 1kHz
GainJack 6.35mm: G=L 8.6dB(Vrms/FS) / G=H 18.7dB(Vrms/FS)
Jack 4.4mm, XLR 4 pins: G=L 14.6dB(Vrms/FS) / G=H 24.7dB(Vrms/FS)
Channel balanceJack 6.35mm: < 0.1Ω
Jack 4.4mm, XLR 4 pins: < 0.1Ω
PuissanceJack 6.35mm: 2x 3300mW @ 16Ω THD+N < 1% / 2x 2200mW @ 32Ω THD+N < 1% / 2x 1160mW @ 64Ω THD+N < 1% / 2x 250mW @ 300Ω THD+N < 1% / 2x 120mW @ 600Ω THD+N < 1%
Jack 4.4mm, XLR 4 pins: 2x 7600mW @ 16Ω THD+N < 1% / 2x 6400mW @ 32Ω THD+N < 1% / 2x 4300mW @ 64Ω THD+N < 1% / 2x 990mW @ 300Ω THD+N < 1% / 2x 490mW @ 600Ω THD+N < 1%
PuissanceJack 6.35mm: > 8Ω
Jack 4.4mm, XLR 4 pins: > 8Ω
General
ColorSilver
Package1x Topping DX5 II
1x USB cable
1x Jack 3.5mm to Jack 6.35mm adapter
1x Bluetooth antenna
1x Power cable
1x Remote

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
OutputJack 6.35mm
OutputXLR
OutputJack 4.4mm
OutputRCA
DAC / ADC ChipES9039Q2M
Max sampling rate768kHz
Max sampling rateDSD512
ColorSilver
ClassN/A
NetworkingNo
Remote ControlYes

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
4 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Etonnant !
Acheté comme ampli casque connecté à mon PC (et ravi du resultat), j'ai eu la super idée de le tester au salon.... Il est bien plusd détaillé que l'ampli de mon Denon AV et du Wiim Pro+. Je ne suis pas du tout un expert du domaine, mais je comprends désormais le terme "aéré" utilisé par certains pour décrire. Ici c'est le cas ! Ravi de mon achat, je réfléchis donc à en prendre un deuxième pour le salon :D
 (0)
 (0)
This review has been posted for TOPPING DX5 II DAC 2xES9039Q2M Headphone Amplifier X-Hybrid Bluetooth 32bit 768kHz DSD512 Silver
Note :
 5/5
Date :
All around great little box
This is a versatile and neat little box. Compact chassis, integrated power supply, nice display, easy menu navigation, good remote and volume control - very pleasant and easy to use. Initial software bugs have been ironed out by now via firmware updates. The Topping software for setting up EQ profiles from your PC (it is, unfortunately, not possible to do so on the device itself) is still not perfect, but usable by now. Switching between profiles is possible on the device itself, so unless you need more profiles than the 10 which it can store, or frequently change headphones, you can operate it without the need for a PC connection. The headphone amp provides a lot of power, and the entire thing sounds like it should - without any character of its own. At the moment, this is the DAC/amp combo to get if your budget stretches this far.
 (0)
 (0)
This review has been posted for TOPPING DX5 II DAC 2xES9039Q2M Headphone Amplifier X-Hybrid Bluetooth 32bit 768kHz DSD512 Silver
Note :
 5/5
Date :
Petit mais...
Bonjour a tous , je vous donne mes impressions apres plus d'une semaine d'utilisation, alors c'est ma 2eme configuration en casque hifi tres peu expérience dans ce domaine,

-Source un lecteur réseau node2021
-Casque hifiman edition xs
Cable casque xlr

Les 1er jours en rodage c'était juste neutre sans plus mais apres 20h 30h rodage, sa a commencé a donner c'est ti griffes de Sonorité qui on été tres agréable, aujourd'hui, il le rodage es bien avancé, il sonne tres équilibré neutre tres aéré, tres détail, un belle effet 3d depuis les bass jusqu'au aigues les aigues son très détaillé jusqu'à les fin note les bass bien présenté sans excès , un vrais régal pour mes oreilles, je ne regrette pas mon achat il vaut largement son prix
 (2)
 (2)
This review has been posted for TOPPING DX5 II DAC 2xES9039Q2M Headphone Amplifier X-Hybrid Bluetooth 32bit 768kHz DSD512 Silver
Note :
 5/5
Date :
Compact DAC/AMP with plenty of power
Some people would call my change to this DAC/Amp a downgrade as I come from a Audio-gd D28.38 to this. However, this little DAC/Amp combo has so many more features, such as being able to use the device without a computer or other source connected to it.

For the headphones I normally use Denon D2000 and Focal Clear MG, this has plenty of power both single ended and balanced.

Sound-wise after listening to it for a few days, it sounds transparent to me, nothing seems out of place from other equipment I normally use. So all-in all I am very happy with it.

Connectivity-wise, it also has balanced out, which I use with a set of active speakers, which also works very well.

Being class D is also a huge plus as the Audio-gd device I had before could run a bit toasty even when not in use.

Take this with a grain of salt as these are just initial impressions, but so far I am not disappointed.
 (1)
 (0)
This review has been posted for TOPPING DX5 II DAC 2xES9039Q2M Headphone Amplifier X-Hybrid Bluetooth 32bit 768kHz DSD512 Silver
