VEZZOSO X36 Balanced DAC ES9039PRO
By buying this product you get 79 loyalty points
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

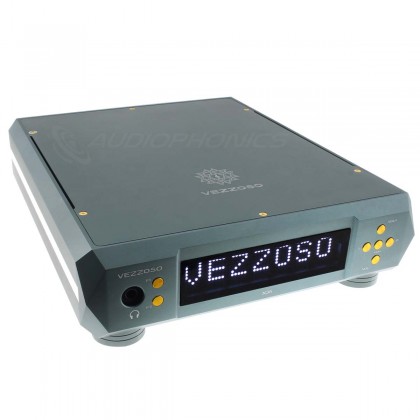

VEZZOSO X36 Balanced DAC ES9039PRO HDMI I2S SPDIF USB XMOS AES 32bit 768kHz DSD512
This X36 DAC from Vezzoso is a high-fidelity DAC that incorporates quality components such as an XMOS XU216 USB interface, an ESS Technology ES9039PRO DAC chip and a Qualcomm QCC5125 Bluetooth receiver chip. This DAC is capable of accepting high-resolution PCM 32bit 768kHz and DSD128 streams. It also features a beautiful matrix display on the front panel, as well as elegant curves and beautiful finishes. A variety of digital inputs mean you can integrate it into a wide range of configurations, thanks to a USB-B input, an HDMI I2S port and 3 SPDIF inputs: AES/EBU, coaxial and Toslink optical. Output is via stereo RCA or balanced stereo XLR. A 6.35mm Jack headphone output lets you listen to your tracks through headphones. This headphone output is amplified by a TI TPA6120A2 chip.
Vezzoso X36: ES9039PRO DAC and XMOS XU216 USB interface
The Vezzoso DAC is equipped with an ES9039PRO DAC chip and an XMOS USB interface, enabling it to support high-resolution PCM 32bit 768kHz and DSD512 codecs via the USB-B and HDMI I2S inputs. So you can enjoy high-resolution streams via your favourite music streaming platforms or your personal library. Two Crystek CCHD clocks ensure reliable signal processing.
Vezzoso X36: TI TPA6120A2 headphone amplifier
The 6.35mm jack headphone output is amplified by a Texas Instrument TPA6120A2 amplifier chip. This headphone amplifier chip is a high-efficiency chip specially designed for high-power output applications. It has an A/B architecture and good measurements with a wide bandwidth, low noise and a dynamic range of 128dB.
Vezzoso X36 : Bluetooth 5.1
The Vezzoso X36 is equipped with Bluetooth 5.1 functionality thanks to a QCC5125 Bluetooth receiver chip offering the possibility of wireless transmission with high fidelity codecs: SBC, AAC, aptX, adaptive aptX and LDAC. To pair your source device with the Vezzoso X36, select the BT source and search for the device [NMW5125].
Vezzoso X36: an output stage with 11 OPA1612
The sound signal output stage incorporates no fewer than 11 OPA1612 AOPs to process the line signal before it is output to the RCA and XLR connectors.
Vezzoso X36: a clean power supply
The Vezzoso X36 incorporates two toroidal transformers and LM117S, LM337D2T and LM317BT voltage regulators. It accepts an input voltage of 240V AC and then distributes a clean current to all its internal components.
Vezzoso X36: HDMI I2S input
An HDMI input port allows direct reception of an I2S signal.
Vezzoso X36 overview
| 1 | IEC power supply |
| 2 | Toslink optical input |
| 3 | USB-B input |
| 4 | SPDIF coaxial input |
| 5 | HDMI I2S input |
| 6 | AES/EBU input |
| 7 | Balanced stereo XLR output |
| 8 | RCA stereo output |
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC |
| DAC chip | ES9039PRO |
| USB interface | XMOS XU216 |
| Bluetooth chip | Qualcomm QCC5125 |
| Inputs | 1x USB-B 1x HDMI I2S 1x SPDIF coaxial 1x Optical Toslink 1x AES/EBU |
| Outputs | 1x XLR balanced stereo output 1x RCA stereo output 1x 6.35mm headphone output |
| Supported sample rates | USB, HDMI I2S : PCM 32bit 768kHz, DSD512 SPDIF Coaxial, AES/EBU : 24bit 384kHZ, DSD DOP128 Optical Toslink : PCM 24bit 96kHz, DSD64 |
| Supported Bluetooth codecs | SBC, AAC, aptX, aptX adaptative et LDAC |
| Bluetooth range | 10m without obstacles |
| Volume control | |
| General | |
|---|---|
| Power supply | 220V AC power supply |
| Dimensions | 268 x 68 x 318mm |
| Net weight | 6.5kg |
| Color | Green Blue |
| Package | 1x Vezzoso DAC 1x USB-A to USB-B 3.0 cable 1x Mains power cable 1x Remote control (AAA batteries not included) |
| Input | SPDIF |
| Input | Bluetooth |
| Input | AES/EBU |
| Input | USB |
| Input | Optical |
| Input | I2S via HDMI |
| Output | RCA |
| Output | Jack 6.35mm |
| Output | XLR |
| DAC / ADC Chip | ES9039MPro / ES9039MSPro |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD512 |
| Color | Blue |
| Color | Green |
| Networking | No |
| Remote Control | Yes |
