ARMATURE Asterion (Holo Spring) R2R Balanced XLR DAC 24bit/384khz DSD512

ARMATURE Asterion R2R Balanced XLR DAC 24bit/384khz USB 3.0 XMOS

The Asterion Frame is designed with great precision in a clean aluminium finish. Every detail and every aspect of the Asterion matches the expectations of the most discerning audiophile. The Asterion Armature Asterion DAC will distil limitless musical pleasure in 24bit 384khz and DSD 512.

Average votes for this product
5.0 / 5

By buying this product you get 159 loyalty points


Reference : 12038
New product

1 590,00 €tax incl.

1 325,00 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

Armature Asterion

DAC 24bit 384kHz I2S, Dual Conversion PCM & DSD, R2R linear compensation technology

Armature asterion

The Asterion Frame is designed with great precision in a clean aluminium finish.

Every detail and every aspect of the Asterion matches the expectations of the most discerning audiophile. The Asterion Armature Asterion DAC will distil limitless musical pleasure in 24bit 384khz and DSD 512.

.

Revue par Audio Science Review


test par le forum de mesure Audio Science Review

Fully discreet, high-precision DAC technology

armature asterion r2r

The heart of the Asterion features digital analog conversion with over 256 high-precision resistors in R2R linear compensation mode. Each bit of high and low weight is saved to bring what makes the very meaning of music. Every inflection, every detail contributes to the musical message in its veracity. Supported by an Altera MAX II processor that lowers the jitter to the limit of measurable, the Asterion Armature DAC respects the digital flow without any aggressiveness, favouring timbre and balance with a coherent and realistic sound scene. In addition, the Asterion offers NOS, PCM oversampling and DSD oversampling modes that perfectly adapt to all musical styles.

armature asterion dsd dxd

Genuine 100% native R2R DSD conversion

armature asterion r2r dsd natif

Unlike many DACs, even the most advanced R2R technology, the Asterion Armature has a separate R2R DSD section from the PCM section and therefore dedicated resistors providing real DSD conversion close to the original signal. The Asterion demonstrates its ability to read both 32-bit PCM 384kHz and DSD 512 signals (256 under Windows) with the highest technological capability.

A clever mix between digital and analogue, truly symmetrical

armature asterion numérique et analogique

Truly top-of-the-range, the Asterion is fully balanced from conversion output to analog balanced XLR connectors. The analogue section consisting of Vishay MKP 1871 capacitors has operational input amplifiers and a discrete line buffer stage in pure class A class A entirely in discrete transistors.

This results in a strong current rejection and immunity to noise, followed by a class A stage renowned for its musicality, the speed of its impulse response and low counter reaction.

USB input that respects your music


An analog output stage is nothing without a high definition high performance digital input. The Asterion Armature's USB input interface features the latest generation of XMOS U208 processor, four times the power of a traditional XMOS. This USB card also implements digital galvanic isolation by double isolating bridges, freeing itself from the noise delivered by your computer. It guarantees a lower jitter which is then processed by the ALTERA MAX II processor.

Separately regulated low noise power supply

armature asterion alimentation faible bruit

The oversized power supply of the Asterion DAC Armature has a symmetrical shielded transformer for the digital parts and a "Torus O TYPE" transformer with low magnetic radiation of 100VA. This contributes to the great stability of the sound image and sound scene of this exceptional DAC.

armature asterion schéma
  • A: Conversion section R2R PCM and separate DSD conversion section
  • B: Capacitor power supply section VISHAY MKP
  • C : Low drift high speed diode cross section
  • D : Analogue conversion stage hybrid voltage current conversion PDO and discrete class A hybrid voltage conversion stage
  • E : Class A transistor analog buffer stage
  • F : Digital input board with ALTERA MAX 2 PCM and I2S with isolation (on SPDIF)
  • G : USB digital input card with double galvanic isolation
  • H : A toroidal transformer for analog, a shielded transformer for the digital part

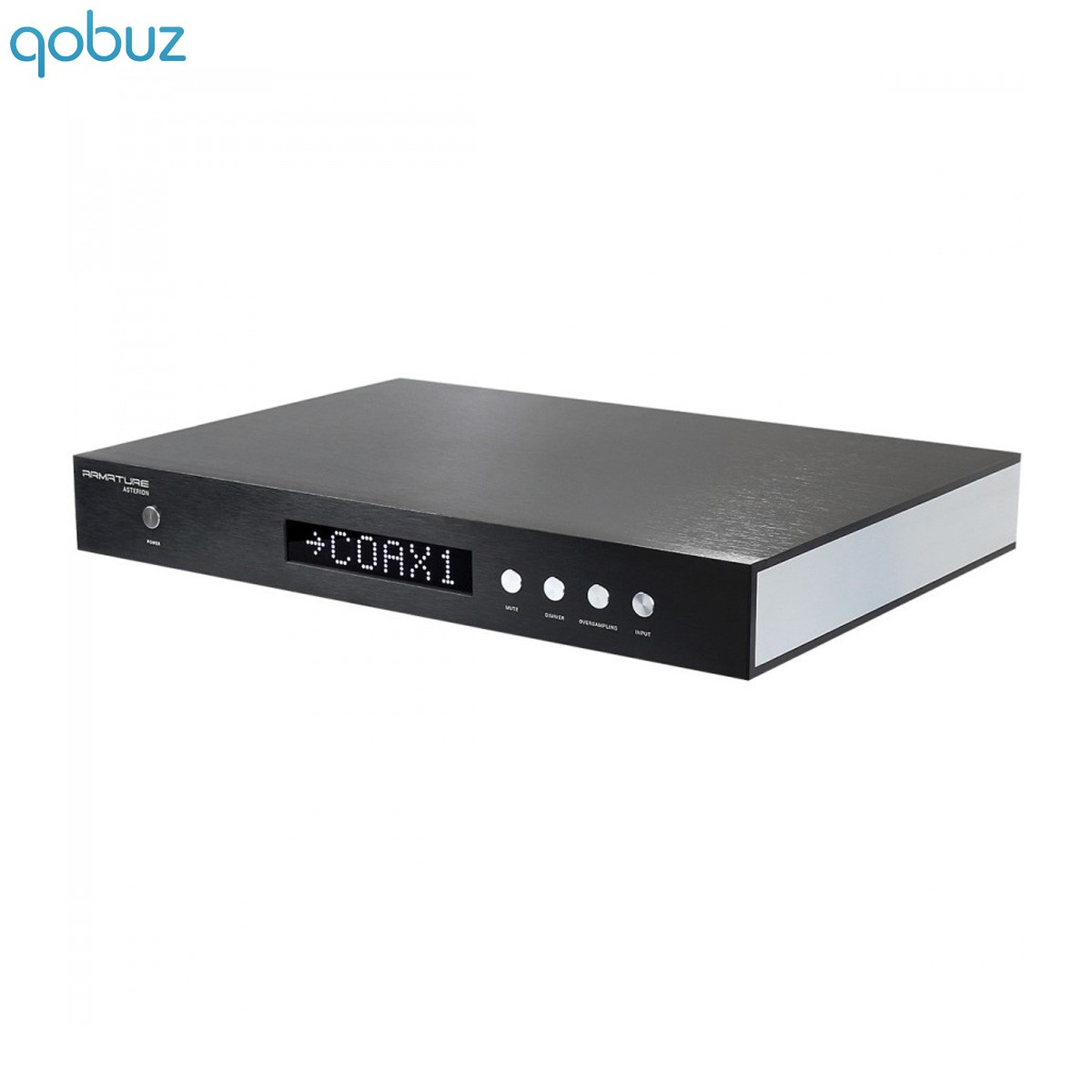

Armature Asterion review by Qobuz

" The Armature Asterion DAC is a very beautiful realization using an exclusive DAC board representing a certain technical prowess. "
Test Qobuz

Technical characteristics

Digital inputs
HDMI LVDS I2S (Audio-GD compatible)1x
RCA Coaxial PCM1x
BNC 75Ω PCM1x
Optical Toslink1x
XLR AES/EBU 110Ω1x
USB XMOS U2081x
Digital outputs
Symetrical XLR 4.5V1x
Asymmetrical RCA 2.5V1x
Specifications
SNR126dB @ 1000Hz
THD-112dB on 2.5V
High precision dual clock-
Supported sampling rates with RCA, Toslink, BNC et AES/EBUup to 24bit 192kHz
Supported sampling rates with I2S et USBup to 32bit 384kHz
General
Dimensions430 x 300 x 55mm
ColorBlack
Case materialAluminium
Weight8.5kg
Power Supply230V

Mapping I2S / LVDS
A synthesis of main IIS on LVDS pinouts mapping is available here.

Data sheet
InputOptical
InputBNC
InputSPDIF
InputI2S via HDMI
InputXLR
OutputXLR
OutputRCA
DAC / ADC ChipR2R LADDER DAC
Max sampling rate384kHz
ColorBlack
NetworkingNo
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
4 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Au TOP!
Comment faire court et sincère avec un tel produit?
Coté config initiale: Un lecteur réseau SOtM sMS1000, un Naim DAC, un préampli AGD Master 1, un ampli AGD Master 3, une paire de Cabasse Galion de 1980! Résultat intéressant mais sans plus avec des défaut divers que j'attribuais au DAC Naim connecté en coax et obsolète!
Comme à mon habitude je consulte notre ami David avec une liste de produit à +/- 2000€. Réponse de David que cherchez vous? Le beurre, l'argent du beurre et pourquoi pas la crémière : en d'autres termes du R2R sans ses défauts ou du Sabre 9038 sans ses défauts..... et voila le résultat après plusieurs mails d'échange, un Armature Asterion à 1.400€.
Objectivement je me suis pris un grand coup dans le buffet:
1) Clarté, 2) Détailles, 3) Douceur, 4) Précision, 5)Scène sonore.... Classique, Jazz, etc et un uppercut avec Elina Garanca et j'en passe en HD comme en DSD. Pour le filtre je tends vers le NOS avec une hésitation pour l'OS DSD.
Comment arriver à faire vibrer mes enceintes de 40 ans avec une telle finesse, dans le aigüs, mediums et graves. Je crois que chaque maillon est simplement à sa place.... Impréssionnant de penser qu'à l'époque on métrisait ainsi ce dernier maillon.
Mon Naim DAC tout de même acheté 2500€ il y a 7 ans ne faisait que filtré et supprimer du son! Je l'ai revendu 850€ et je crois que c'est encore trop cher pour le résultat.
Cet ARMATURE Asterion peut être acheté les yeux fermés pour le connecter en USB sur son lecteur avec le dernier cable Audiophonics Pulsar Or/Argent.
Merci à David et à toute l'équipe. Un très beau travail!
 (1)
 (0)
This review has been posted for ARMATURE Asterion (Holo Spring) R2R Balanced XLR DAC 24bit/384khz DSD512
Note :
 5/5
Date :
très bon mariage avec l ampli audio gd master 10 ... profondeur et aération , dac à acheter les yeux fermés. excellent en mode nos , un dac qui délivre un son naturel sans crispation et sans fatigue auditive.... je ne donne pas souvent mon avis mais la je suis bluffé!!! Merci audiophonics!
 (3)
 (1)
This review has been posted for ARMATURE Asterion (Holo Spring) R2R Balanced XLR DAC 24bit/384khz DSD512
Note :
 5/5
Date :
R2R Wonder
Best R2R / resistor ladder / sign maltitude / multibit DAC ever, 126dB SNR

This is based on Holo Audio Spring OEM product.
It sounds simply, fantastic.
 (4)
 (2)
This review has been posted for ARMATURE Asterion (Holo Spring) R2R Balanced XLR DAC 24bit/384khz DSD512
Note :
 5/5
Date :
Best DAC
Best DAC ever made
 (2)
 (1)
This review has been posted for ARMATURE Asterion (Holo Spring) R2R Balanced XLR DAC 24bit/384khz DSD512
