TOPPING D10S DAC USB 32bit/384kHz DSD 256 XMOS U208 ES9038Q2M Black

TOPPING D10S DAC USB 32bit/384kHz DSD 128 XMOS U208 ES9038Q2M Noir
Revisited version of the D10 from Topping, the D10s is an office DAC with impressive capabilities in its price range. This second version includes an ESS ES9038Q2M 32bit high-fidelity decoding chip as well as an XMOS U208 USB interface with a customized Thesycon driver to cover most of the high resolution audio formats (up to PCM 384kHz / DSD 256).

Average votes for this product
5.0 / 5

By buying this product you get 8 loyalty points


Reference : 14686
New product

82,50 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 21-09-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

Topping D10s

DAC / interface USB 32bit ES9038QM PCM 384kHz DSD256 XMOS U208




Revisited version of the D10 from Topping, the D10s is an office DAC with impressive capabilities in its price range.

This second version includes an ESS ES9038Q2M 32bit high-fidelity decoding chip as well as an XMOS U208 USB interface with a customized Thesycon driver to cover most of the high resolution audio formats (up to PCM 384kHz / DSD 256).

With analog and digital outputs, it is the solution of choice for any compact and scalable High-Fidelity installation with many options for integration.

A welcome evolution of the Topping D10

Topping D10S

Topping D10

DAC

ES9038Q2M

Es9018K2M

THD+N @1kHz A-weighted

<0.0002%

<0.0008%

SNR @1kHz A-weighted

120dB

115dB

Noise A-weighted

<2.5uVrms

<4uVrms

Crosstalk @1kHz

-135dB

-115dB

Channel balance

<0.02dB

0.1dB

Output impedance

20Ω

100Ω

The Topping D10s audio circuit

DAC ES9038Q2M


At the cutting edge of technology, Topping's DAC D10s uses an ES9038Q2M chip from ESS Technology. This component is among the best current hardware solutions for high-fidelity audio decoding, especially with the famous HYPERSTREAM 32 BIT architecture. This chip model is also equipped with advanced reconstruction filters and has excellent finesse in dithering.

The Q2M version is particularly appreciated in desktop and mobile devices since it consumes little energy and offers excellent performance while allowing extremely space-saving design and form-factor.

Asynchronous XMOS U208 USB interface


The USB-B input (USB-2 standard) operates through an XMOS U208 USB interface. This is a benchmark component that no longer has to prove itself in the world of high-fidelity music, supporting very high resolution / high sampling frequency digital streams for precise, rich and detailed listening experience.

This USB interface has an asynchronous architecture capable of overcoming digital noise as well as jitter from the source if the latter does not have reference clocks suitable for Hi-Fi audio use. This significantly increases audio accuracy compared to DACs and sound cards traditionally found in the general consumer market.

Modular analog output stage


The output stage of the D10s works with an operational amplifier LME49720NA mounted on a DIP8 support. The OPA is removable and can easily be replaced by the user for testing purpose and to find the best sound signature according to one's personnal preferences.

Please note this operation is not recommended for users with no experience in operational amplifiers. Any unsuited model or improper installation could cause damage to the device.

Connection panel


The analog output is available on a stereo RCA connector. Just connect it to a preamplifier itself connected to a power amplifier, to an integrated amplifier or to passive speakers and the audio system is already operational. It is also possible to connect the analog output to a headphone amplifier and take advantage of all the qualities of the D10s when listening with headphones.

The D10s has a digital output available on a Coaxial SPDIF connector as well as an optical SPDIF connector. This output supports audio streams up to 24bit - 192kHz and can re-encode 1-bit streams (DSD) up to DOP64.

This feature - usually absent from this price range - allows you to bypass the conversion stage and use the D10s as a USB to S / PDIF interface. The D10s can then interface your computer on the fly with any S / PDIF device, a particularly useful function for audiophiles that already own a powerful DAC which lacks an USB input.

The USB-B input on the far right provides connection to your computer / OTG  smartphone as well as powering the device. The latter therefore does not require an additional cable for its power supply which allows space-saving and clean installations even for the most limited desktop in terms of space.

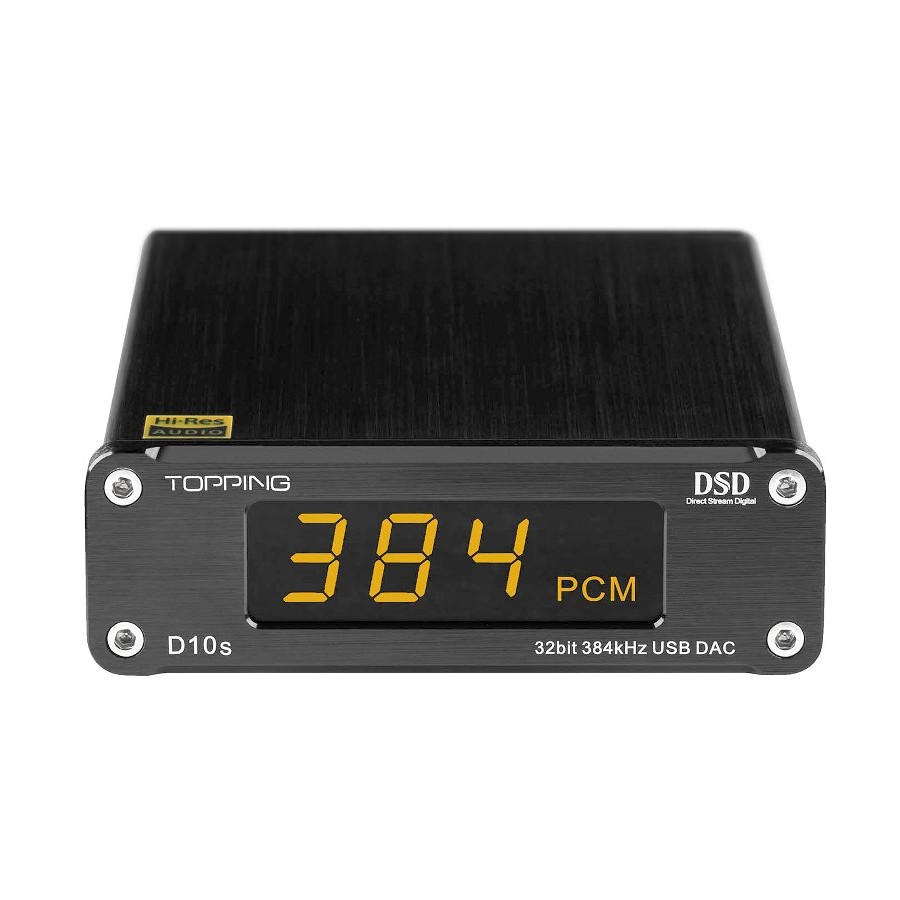

A sober, compact and elegant device


With its dimensions of 103mm (width) x 146mm (depth) x 37mm (height), the D10s is one of the most compact desktop HIFI DACs available on the market.

The device is housed in an elegant 100% brushed aluminum case. A robust, durable material capable of effectively blocking any noise related to the proximity of other electronic devices, thus preventing unwanted interferences in the audio signal.

The D10s has a very elegant display on the front. Its respects the color chart of Toppping devices and allows complex installations with multiples Topping products with homogeneous general style.

The screen displays in real time the type of encoding of the audio files being played (PCM / DSD) as well as the sampling frequency of the digital stream. It allows you to check at a glance that the conversion is going as planned and that the DAC is working in the best conditions.

Audio Precision Measurements

Click on an image to enlarge the analysis result.

THD+N

Niveau RMS

Spectre FFT

Topping D10s review by Audio Science Review

" Measured performance is stellar for the category. If you want a very performant DAC, that is nice to look at but doesn't cost you much, D10s is for you ! "
Test du Topping D10S par Audio Science Review

Specifications

TypeDAC
InputUSB-B
OutputsDigital: SPDIF Optical & SPDIF Coaxial
Analog: RCA stéréo
Input sampling ratePCM : 44.1kHz - 384kHz / 16-32bit
DSD : DSD64 - DSD256 (Natif)
DOP : DOP128
Digital output sampling ratePCM : 44.1kHz - 192kHz / 16-24bit
DOP : DOP64
THD+N @ 1kHz A-wtless than 0.0002%
SNR @ 1kHz A-wt120dB
Dynamic range @ 1kHz A-wt120dB
Frequency response20Hz-20kHz(+/-0.1dB)
20Hz-40kHz(+/-0.4dB)
Output level2Vrms @0dBFS
Noise @A-wtless than 2.5 uVrms
Crosstalk @ 1kHz A-wt-135dB
Channel balanceless than 0.02dB
Output impedance20Ω
Power SupplyUSB-B 5VDC 0.5A
ColorBlack
Package contents
DAC Topping D10Sx1
Male USB-A to male USB-Bx1
User manualx1

Data sheet
InputUSB-B
InputUSB
InputUSB 2.0
OutputRCA
OutputOptical Toslink
OutputCoaxial SPDIF
DAC ChipES9038Q2M
Max sampling rate384kHz
Max sampling rateDSD256
ColorBlack
