AUDIOPHONICS U-Sabre Desktop K2M DAC / Headphone Ampli 24bit/96kHz SA9023 / ES9018

AUDIOPHONICS U-Sabre Desktop K2M DAC / Headphone Ampli 24bit/96kHz SA9023/ES9018

No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points

Reference : 11911
New product

59,00 €tax incl.

49,17 € tax excl.
Including 0,30 € for green tax

- +

Shipping date: 10-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

More info

Our DAC USB U-Sabre DESKTOP comes back to us in version ES9018K2M , with the joyful musicality, a dynamics out of norms and always with the interface SA9023 requiring no drivers.

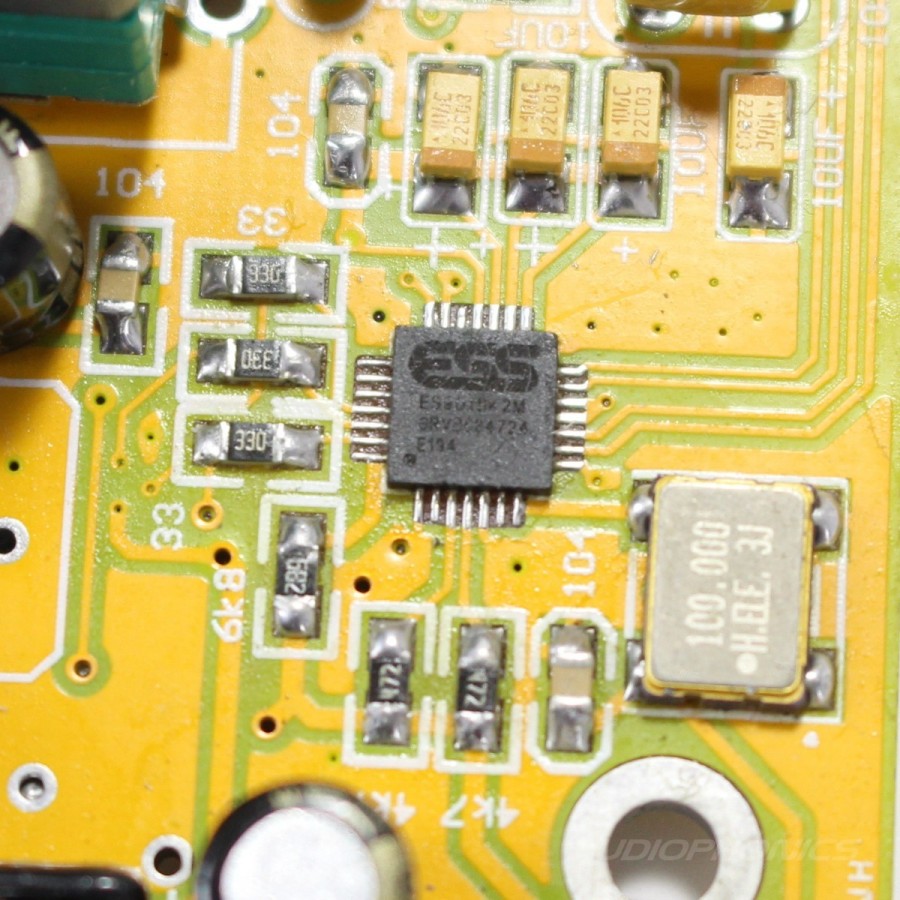

The addition of an ES9018K2M ESS chip enables the U-Sabre DESKTOP to achieve high-end performance, thanks to the 100MHz clock exclusively for the conversion chip.

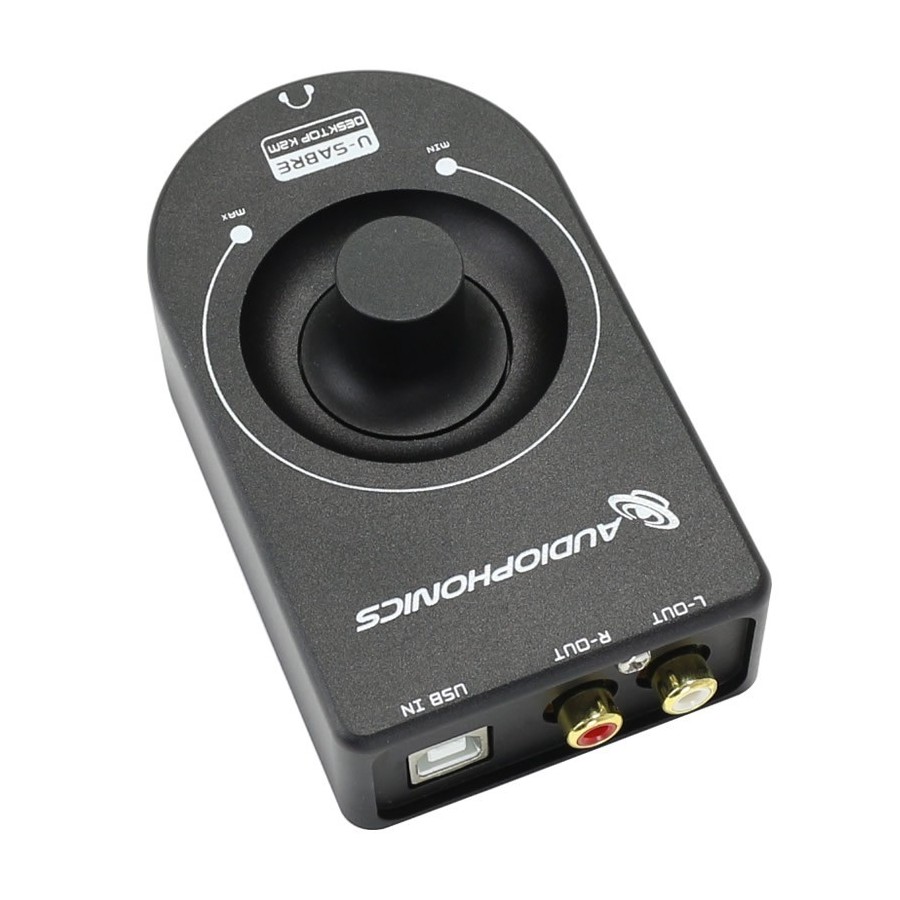

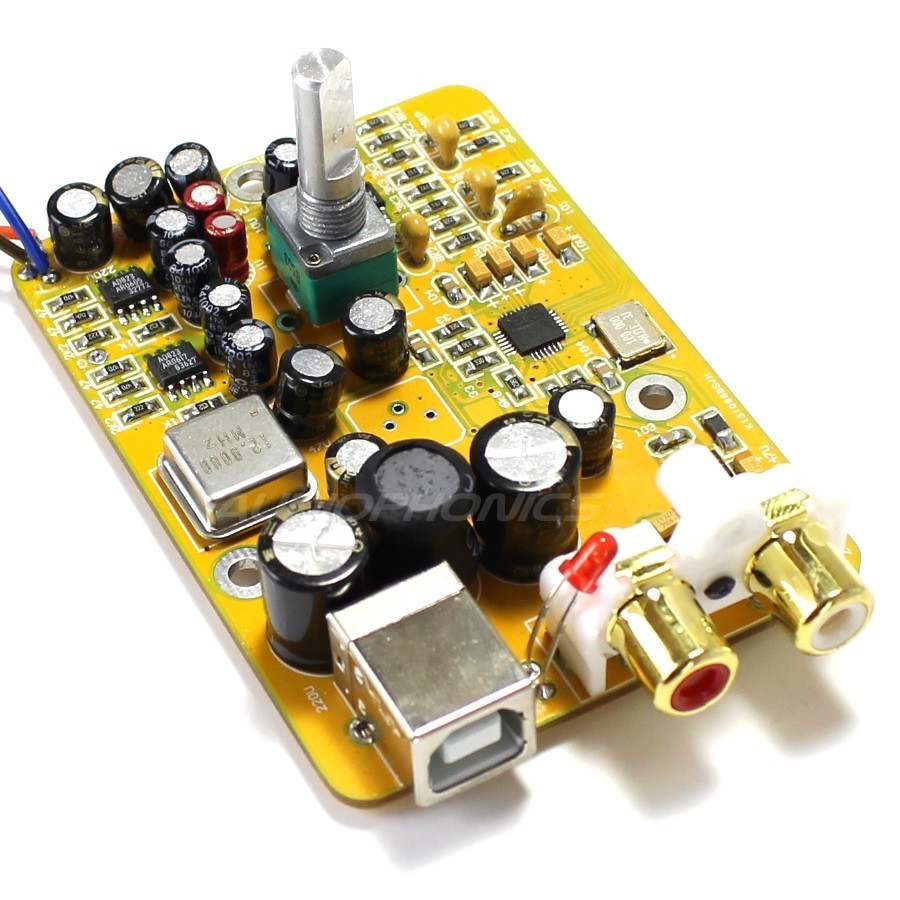

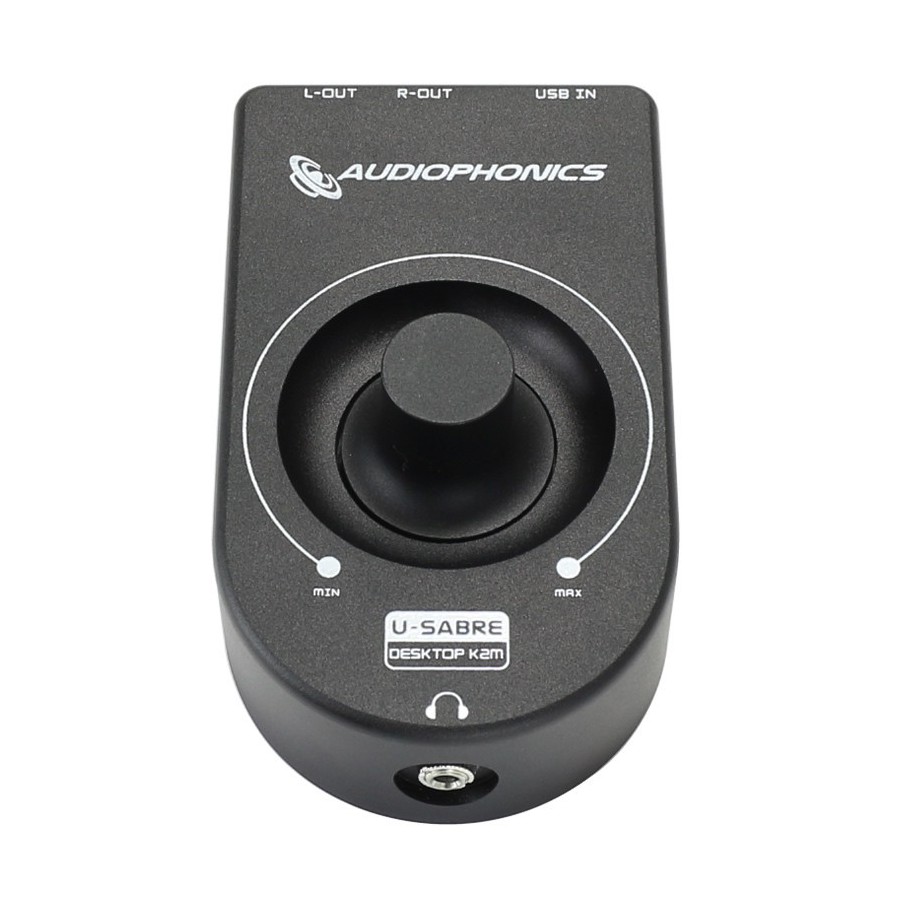

The U-Sabre DESKTOP is a digital to analog converter (USB to RCA), but it is also a headphone amplifier of a formidable efficiency whose amplification stage is driven by 3 AOP quality with volume adjustment by potentiometer with Carbon track.

The RCA output is fixed level and the headphone amplifier is capable of driving headphones up to 300 Ohms impedance.
The detailed technical data sheet of the ES9018K2M chip can be found in the attachments below.

Here you will find the ASIO driver link for the SA9023 Bravo: ASIO Driver

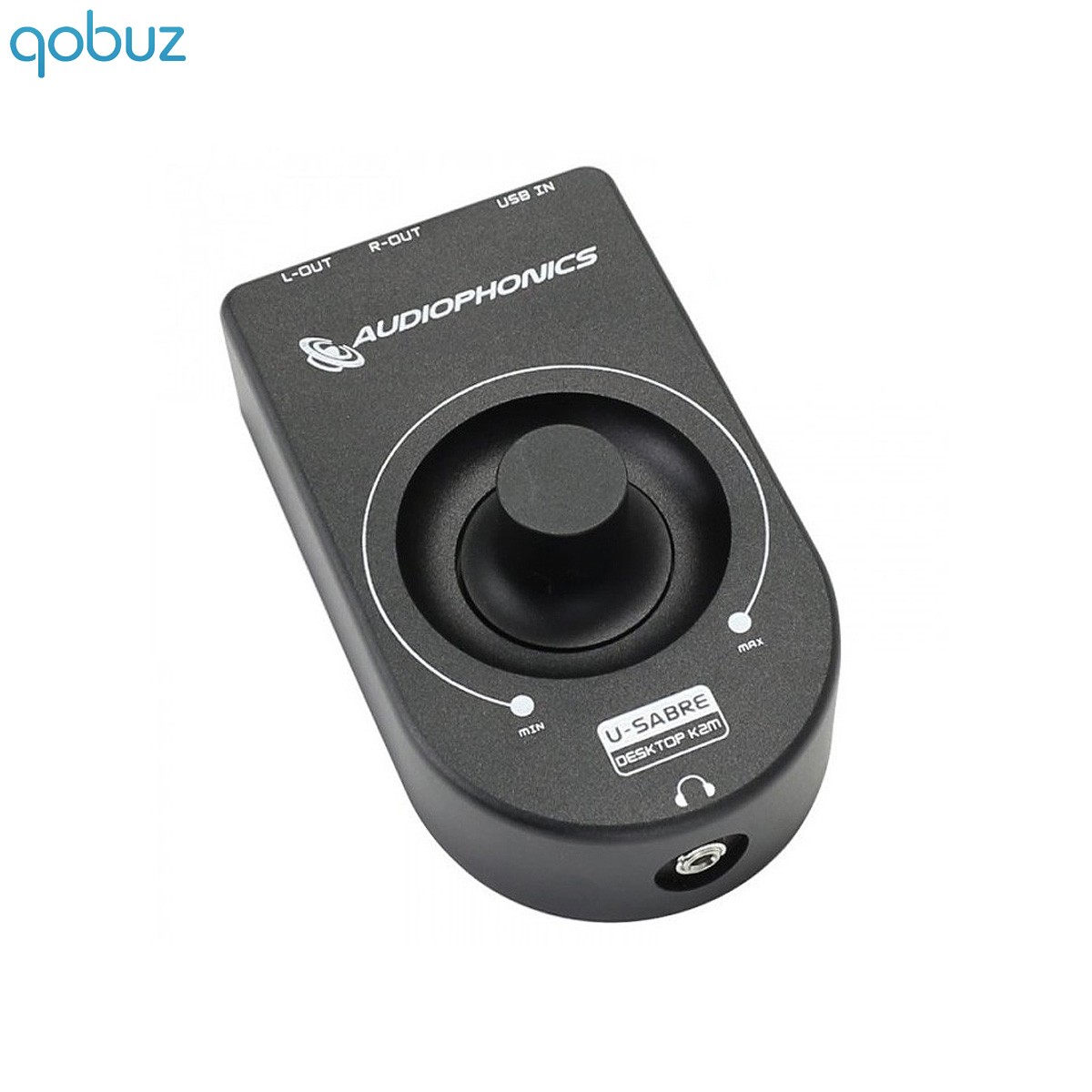

Audiophonics U-Sabre Desktop K2M review by Qobuz

" This DAC Audiophonics U-Sabre Desktop K2M deserves a stop if you like to play your keyboard to music (and even without it), by its design well suited to use on a desk close to your hand, its solidity and its very good sound performance, not to mention its friendly price. "
Test Qobuz

Characteristics :

  • Interface Adaptive SA9023 (SAVIAUDIO): 16 / 24Bit and 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Inputs: USB-B
  • Outputs:
  •    Headphone Jack 3.5mm (0-2.2V Max 32-64ohm)
  •    RCA Stereo Gold Plated (2.2V @0dB)
  • No external power required
  • 100MHz High Precision Clock for Extremely Low Jitter
  • ASIO Support
  • Product delivered bare (no connectors or instructions for use)
  • Native / Plug & Play on Windows, Linux, OSX
  • Dimensions: 109x64x44 mm
  • Weight: 270g
  • Color: Black anodized


VB audio asio bridge

The VB-Audio Asio Bridge application allows the U-Sabre to be in Bit Perfect on Spotify, Deezer, YouTube, etc ...: VB- AUDIO ASIO BRIDGE

Data sheet
InputUSB 2.0
OutputJack 3.5mm
DAC ChipES9018K2M
Max sampling rate96kHz
Components / ChipES9018K2M
Channel2 channels (Stereo)
