SMSL M300 MKII DAC AKM AK4497 XMOS 32bit 768kHz DSD512 Bluetooth 5.0 Apt-X Red

SMSL M300 MKII DAC AKM AK4497 XMOS 32bit 768kHz DSD512 Bluetooth 5.0 Apt-X Red New
The SMSL M300 MKII is a powerful and compact DAC in an atypical format, now with a Bluetooth 5.0 connection. Integrating high quality components, it is the perfect ally to offer your HiFi audio system a quality digital/analog converter.

No customer reviews yet, login to write a review.

By buying this product you get 22 loyalty points


Yes, notify me when available !
Reference : 14678
New product

220,83 €tax excl.

Including 0,04 € for green tax

- +

Available on order

Produit garantie 2 ans

Accessories for this product


More info

The MKII version of this product offers Bluetooth 5.0 function, as well as a Jack 3.5mm port for SPDIF Coaxial and Optical Toslink.
To use it, you can use an Optical Mini-Toslink cable, or a Jack 3.5mm to male mono RCA adapter for coaxial cable.

SMSL M300 MKII

DAC AKM AK4497 XMOS Dual NDK Clock 32bit 768kHz DSD512 Red

SMSL M300 DAC AKM AK4497 XMOS Double Horloge NDK 32bit 768kHz DSD512 rouge

SMSL's M300 MKII is a high-performance and compact DAC in an atypical format. Integrating high quality components as well as a Bluetooth 5.0 connection, it is the perfect ally to offer to your HiFi audio system a digital/analog converter able to restitute your audio files with a beautiful transparency but also an astonishing sound richness.

DAC AK4497 & High-End Components

The M300 is equipped with a high-end AK4497EQ DAC chip from AKM. This supports high sample rates in PCM up to 32bit 768kHz and in DSD up to DSD512. In addition, the chip uses the proprietary Velvet Sound architecture to ensure high SNR (128dB) and very low distortion (THD+N -116dB) for a neutral and accurate reproduction with a beautiful sound image.

This chip is associated with many quality components such as a second generation XMOS USB interface, two Japanese NDK ultra low phase noise clocks to considerably limit jitter on 44.1kHz / 48kHz and multiple frequencies, and finally a series of resistors and capacitors specially designed for audio use.

SMSL M300 DAC AKM AK4497 XMOS Double Horloge NDK 32bit 768kHz DSD512 Rouge

Design, Screen & Connectivity

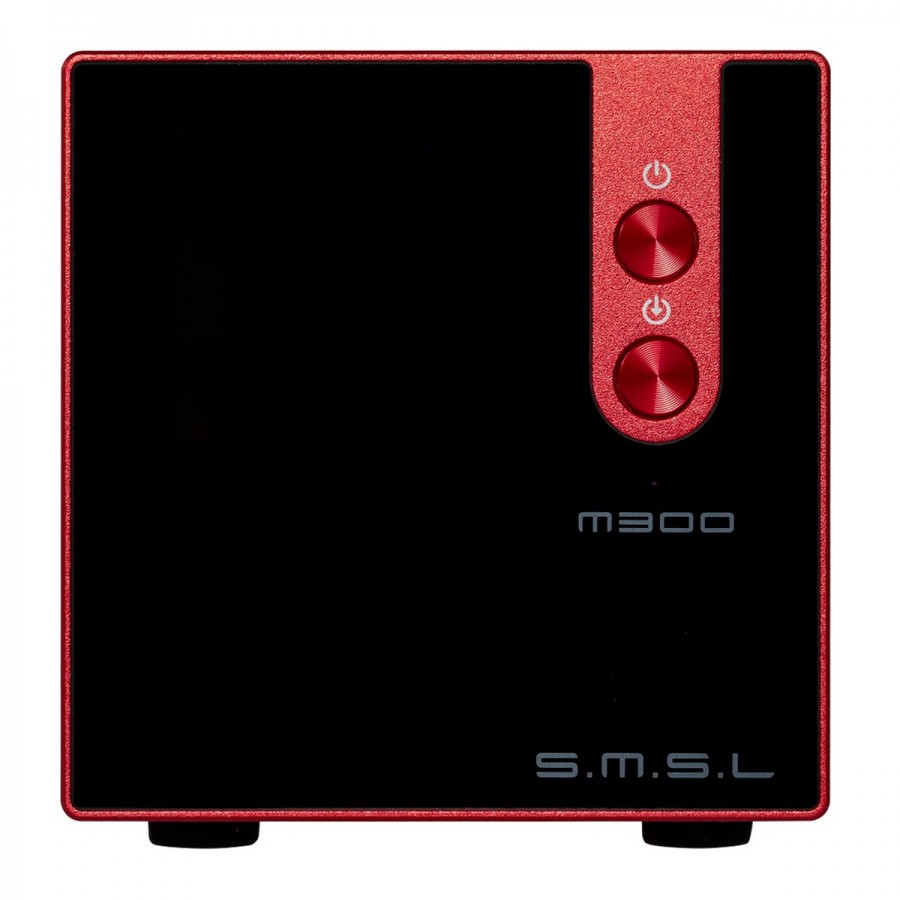

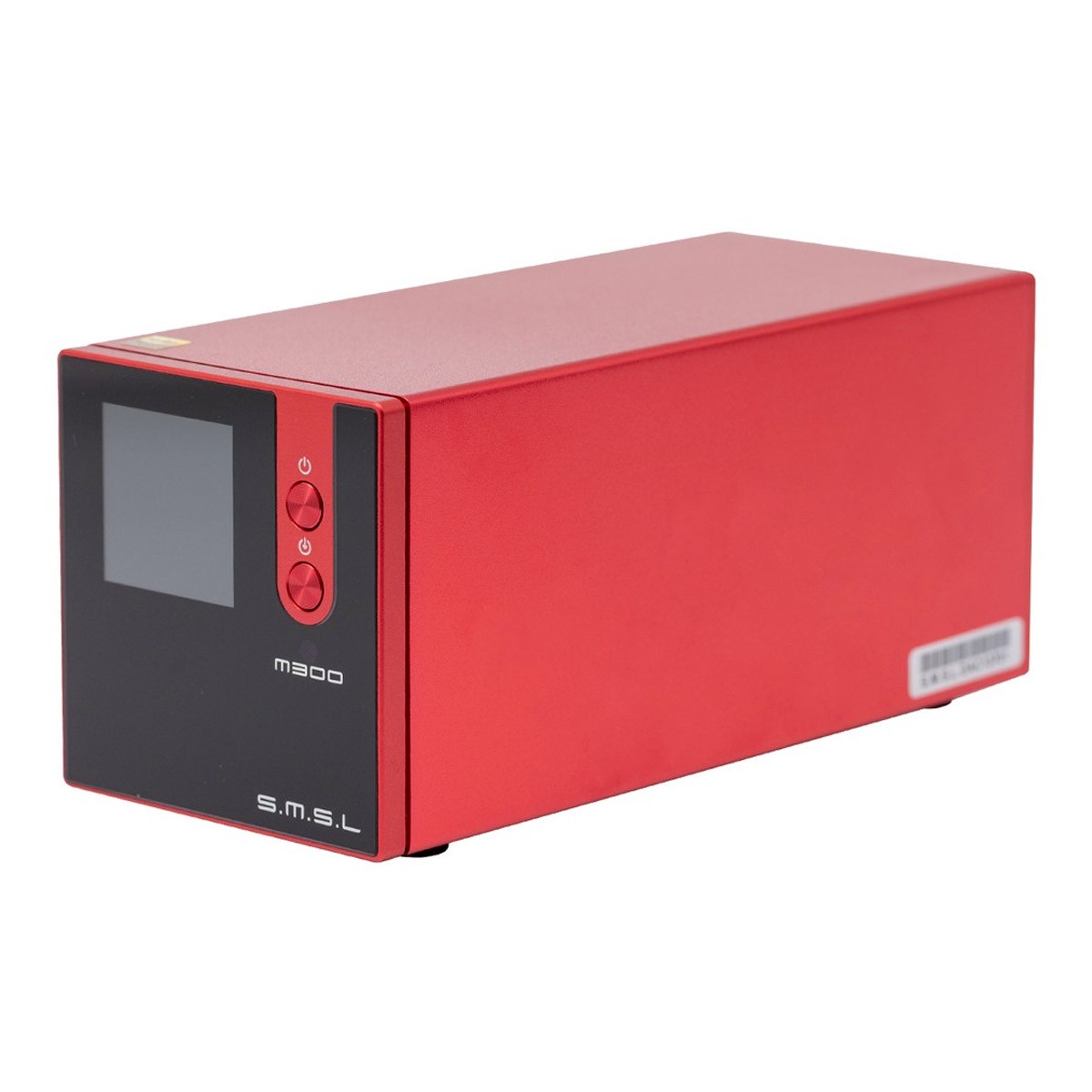

All the components are integrated within a beautiful CNC machined Aluminium housing, which is both robust and allows to limit the interferences that could degrade the audio signal. The front panel is covered with a tempered glass plate and a 1.54" IPS screen to display all the information related to the playback of your files (input, filter, sampling rate, format read...). The control is simply done thanks to the two buttons on the front panel, allowing you to switch on / off the device, select an input, change the display color or choose an audio filter.

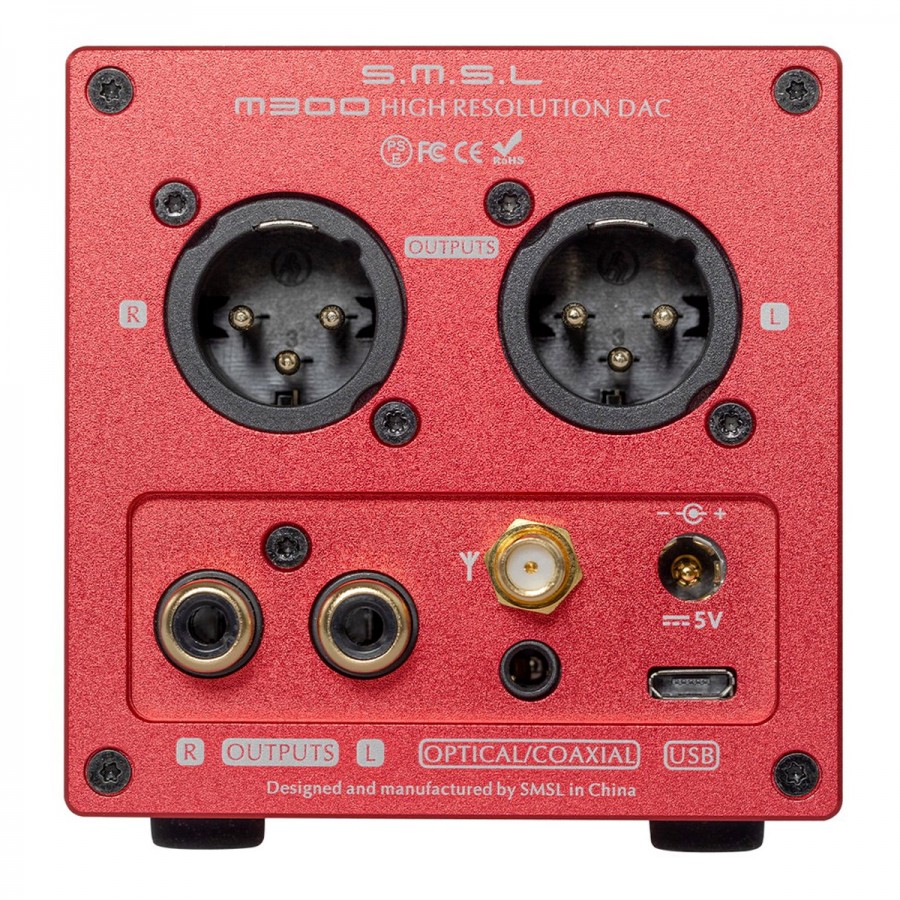

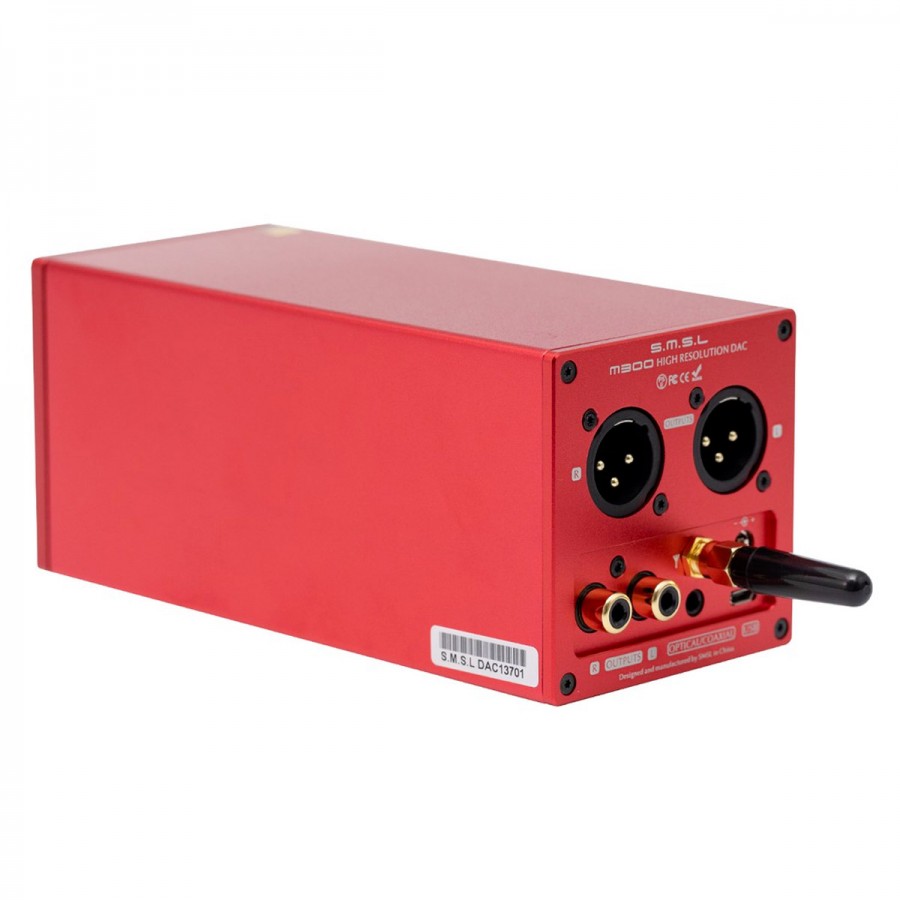

The back of the device contains all the connectors. We find in input of the Optical / Coaxial SPDIF via Jack 3.5mm, the Micro USB (XMOS), as well as the Bluetooth antenna. On the output side, the M300 offers balanced XLR or unbalanced RCA.

SMSL M300 review by Qobuz

" We really liked the fullness of the sound reproduction of the DAC S.M.S.L M300. The contribution of its various digital filters is interesting while preserving the excellent musical quality of this device. "
Test du SMSL M300 par Qobuz

This is a test of the previous version of the SMSL M300 (not the MKII version). The test is therefore available here for reference, but the MKII version is an improved version of the one presented in the test.

Technical characteristics

Specifications
Product typeDAC
Inputs1x Micro USB XMOS
1x Bluetooth 5.0 Apt-X
1x S/PDIF Coaxial / Toslink via Jack 3.5mm
Sorties1x Single-ended RCA
1x Balanced XLR
Output levelRCA : 2Vrms
XLR : 4Vrms
THD+N0.0004%
Dynamic rangeRCA : 120dB
XLR : 123dB
SNR116dB
USB CompatibilityWindows 7 / 8 / 8.1 / 10
Mac OSX 10.6 or later
Linux
Sampling rate / Bit depthUSB : Up to 32bit 768kHz / DSD512
Optical / Coaxial : Up to 24bit 192kHz
General
Consumption1.8W
Standby consumption< 0.1W
Dimensions (LxHxP)70 x 70 x 160mm
Weight500g
Included power supplyYes

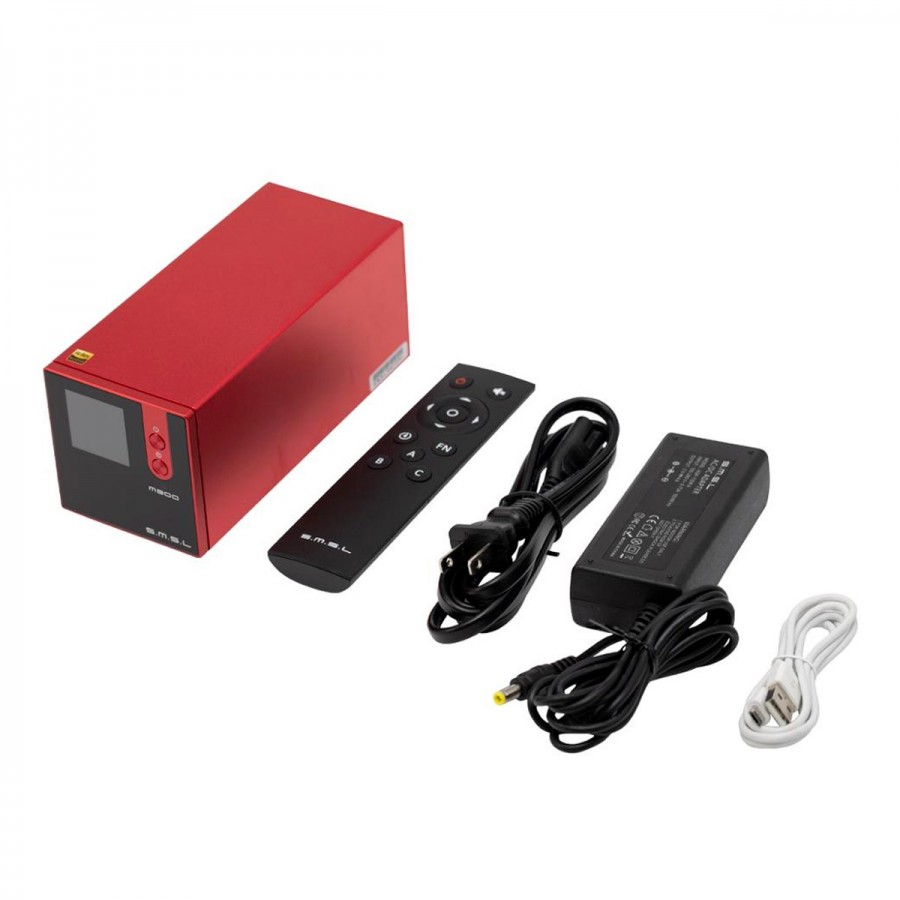

Package1x SMSL M300 MKII
1x Power supply
1x Remote control
1x Antenna
1x Optical cable
1x Jack 3.5mm to RCA cable
1x Micro USB to USB-A cable

Data sheet
InputUSB 2.0
InputUSB XMOS
InputOptical
InputS/PDIF
InputMicro USB
OutputRCA
OutputXLR
DAC ChipAK4497EQ
Max sampling rateDSD512
Max sampling rate768kHz
ColorRed
