TOPPING D10 BALANCED USB DAC ES9038Q2M XMOS XU208 32bit 384kHz DSD256 Black

TOPPING D10B Balanced USB DAC ES9038Q2M XMOS XU208 32bit 384kHz DSD256
Topping proposes with its D10 Balanced a compact and above all extremely powerful symmetrical DAC. This one integrates high quality components to favor a limpid and precise restitution. It includes an ESS ES9038Q2M DAC and a XMOS XU208 USB interface, capable of supporting high resolution audio streams up to PCM 32bit 384kHz and DSD256.

Average votes for this product
5.0 / 5

By buying this product you get 11 loyalty points


Reference : 15509
New product

115,83 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 01-12-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Topping D10 Balanced

Balanced USB DAC ES9038Q2M XMOS XU208 32bit 384kHz DSD256 Black

Topping D10 Balanced DAC USB Symétrique ES9038Q2M XMOS XU208 32bit 384kHz DSD256

Topping proposes with its D10 Balanced a compact and above all extremely powerful symmetrical DAC. This one integrates high quality components to favor a limpid and precise restitution. It includes an ESS ES9038Q2M DAC and a XMOS XU208 USB interface, capable of supporting high resolution audio streams up to PCM 32bit 384kHz and DSD256.

Topping D10 Balanced DAC USB Symétrique ES9038Q2M XMOS XU208 32bit 384kHz DSD256

Balanced DAC

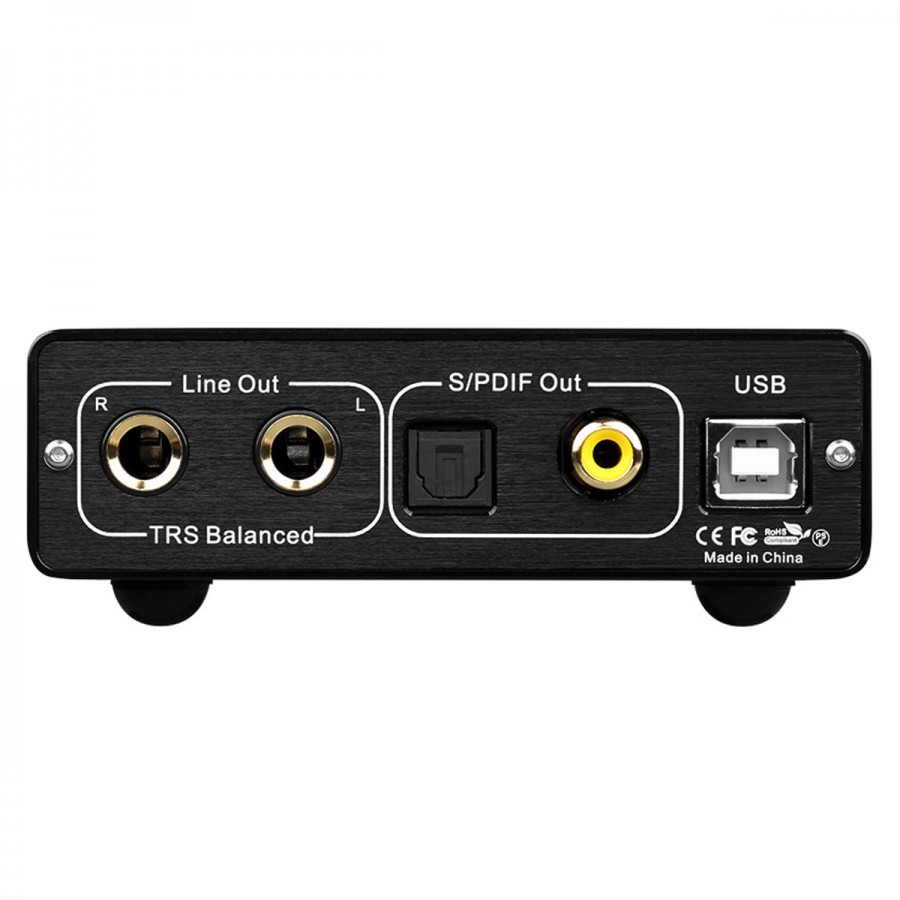

Unlike its big brother the Topping D10s, the D10 Balanced has a balanced output on dual 6.35mm TRS connectors as well as two digital outputs, Toslink Optical and Coaxial. It is also possible to make the balanced connection on XLR connectors thanks to the supplied adapters. The input is done via the USB-B connector.

The D10 Balanced is not compatible with adapters that convert the signal to unbalanced.

The D10 Balanced does not allow the connection of headphones.

Topping D10 Balanced DAC USB Symétrique ES9038Q2M XMOS XU208 32bit 384kHz DSD256

ESS ES9038Q2M DAC

The D10 Balanced's digital to analog conversion stage is based on a high-performance 32bit ESS ES9038Q2M DAC chip. This one takes advantage of the HyperStream II and Time Domain Jitter Eliminator technologies of the brand in order to offer an excellent dynamic range and a low THD+N for a restitution of an incredible precision and richness.

XMOS XU208 USB Interface

Associated with this excellent DAC, a USB XMOS XU208 interface with Thesycon custom driver supports high resolution audio files up to PCM 32bit 384kHz and DSD256 and full ASIO compatibility.

Topping D10 Balanced DAC USB Symétrique ES9038Q2M XMOS XU208 32bit 384kHz DSD256

Many possible applications

Versatile, the D10 Balanced will adapt to your use. It can be used as a DAC with your computer, connected to active speakers to improve the sound quality, associated with an amplifier or headphone amplifier to improve an existing audio system, or as a USB interface to an external DAC.

In addition, it has convenient features such as automatic power on/off synchronized with a computer and an LED display showing the sample rate of the file being played.

The D10 Balanced is not compatible with Android and iOS devices.

When used as a USB interface, the D10 Balanced cannot output audio streams higher than PCM 24bit 192kHz and DSD DoP64.

The display of the D10 Balanced only shows the DSD sample rate in ASIO mode.

Package

Topping D10B DAC USB Symétrique ES9038Q2M USB XMOS XU208

Test du Topping D10 Balanced par Audio Science Review (Amir)

It is clear Topping is laser focused on best possible performance at every price point. And at the same time appreciates the importance of providing balanced outputs in desktop products where possibility of ground loops is quite high. Professionals would do well buying the D10 Balanced as well given its 4 volt output and ability to drive longer cables. "
Test du Topping D10 Balanced par Audio Science Review (Amir)

Technical characteristics

Specifications
Product typeDAC
DAC ChipESS ES9038Q2M
USB InterfaceXMOS XU208
Input1x USB-B
Outputs1x Balanced stereo output on Jack 6.35mm TRS (XLR adapters included)
1x Optical Toslink
1x Coaxial
Supported sampling ratesUSB Input : PCM up to 32bit 384kHz, Native DSD up to DSD256, DSD DoP up to DSD128
Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64
Decoding parameters (USB In @ 96kHz)
THD+N @ 1kHz, A-Weighting< 0.00012%
THD< 0.00015% @ 20Hz-20kHz
SNR @ 1kHz, A-Weighting125dB
Dynamic range @ 1kHz, A-Weighting125dB
Frequency response20Hz-20kHz (±0.2dB)
Output level4.2Vrms @ 0dBFS
Noise< 2.4µVrms
Crosstalk @ 1kHz-141dB
Channel balance0.3dB
Output impedance88Ω
General
Supply voltage5VDC 0.5A via USB
Dimensions103 x 146 x 37mm
Weight340g
ColorBlack
Topping D10 Balanced DAC USB Symétrique ES9038Q2M XMOS XU208 32bit 384kHz DSD256 Topping D10 Balanced DAC USB Symétrique ES9038Q2M XMOS XU208 32bit 384kHz DSD256 Topping D10 Balanced DAC USB Symétrique ES9038Q2M XMOS XU208 32bit 384kHz DSD256

Data sheet
InputUSB
OutputCoaxial SPDIF
OutputOptical Toslink
OutputJack 6.35mm
DAC / ADC ChipES9038Q2M
Max sampling rateDSD256
Max sampling rate384kHz
ColorBlack
NetworkingNo
Remote ControlNo
