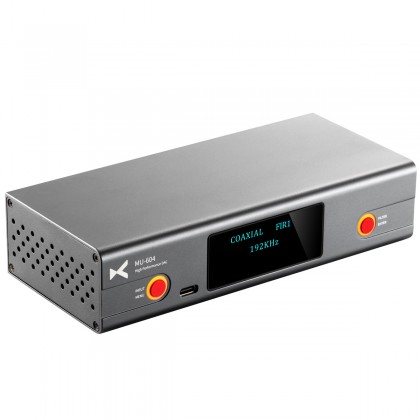

XDUOO MU-604 Balanced DAC 2x ES9018K2M 32bit / 384kHz DSD256

XDUOO MU-604 Balanced DAC 2x ES9018K2M 32bit / 384kHz DSD256
The xDuoo MU-604 is a compact and very powerful symmetrical DAC. Thanks to its XMOS USB receiver and its ES918K2M dual DAC, this DAC will allow you to read audio files up to 32bit / 384kHz, as well as native files up to DSD256.

Average votes for this product
5.0 / 5

By buying this product you get 16 loyalty points


Reference : 16740
New product

169,00 €tax incl.

140,83 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 29-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

xDuoo MU-604

Balanced DAC 2x ES9018K2M 32bit / 384kHz DSD256

xDuoo MU-604 DAC symétrique

The xDuoo MU-604 is a compact and very powerful symmetrical DAC. Thanks to its XMOS USB receiver and its ES918K2M dual DAC, this DAC will allow you to read audio files up to 32bit / 384kHz, as well as native files up to DSD256.

As for input connections, this device offers 4 different ones: SPDIF Coaxial, SPDIF Optical, USB 1.0 on the front (no driver required), USB 2.0 on the back (XMOS driver required).
On the output side you can choose between stereo RCA connectors, or balanced 3-pin XLR connectors.
On the front panel you will find a nice OLED display, showing you the input used, and the sample rate read.

xDuoo MU-604

Double DAC ES9018K2M

The digital/analogue conversion stage of the xDuoo MU-602 uses two ES9018K2M DAC chips. Used in many HiFi devices, these 32Bit chips allow the playback of Hi-Res audio files.

XMOS XU208

The USB XMOS interface operates in asynchronous transmission mode, and supports WASAPI, ASIO, KS Core modes, which greatly reduces the jitter of the device. This chip is located on the USB 2.0 input at the back of the product, and requires a driver to run under Windows (Attached download file).

xduoo MU-604 XMOS USB

Technical

Specifications
Type of productDAC
Inputs1x Optical Toslink
1x Coaxial
1x USB-B
1x USB-C
Ouputs1x Stereo RCA
1x Balanced XLR
DAC chip2x ES9018K2M
USB chipXMOS XU208
Supported sampling ratesPCM up to 32bit / 384kHz & DSD256 (Via USB 2.0)
PCM up to 24bit / 192kHz (Via Coaxial / Optical)
Output levelRCA : 2V
XLR : 4V
SNRRCA : 120dB
XLR : 24dB
THD+NRCA : 0.0007% (@ 1kHz)
XLR : 0.0005% (@ 1kHz)
Crosstalk109dB
general
Power supply12VDC 2A via Jack DC
Chassis materialAluminium
Dimensions127x84x40mm
Net weight350g
ColorGrey
Package1x xDuoo MU-602
1x 12V DC power supply
1x USB-C to USB-C cable

Data sheet
InputSPDIF
InputUSB
InputOptical
OutputRCA
OutputXLR
DAC / ADC ChipES9018K2M
Max sampling rateDSD256
Max sampling rate384kHz
ColorGray
NetworkingNo
Remote ControlNo
