HIDIZS AP60 V2
DAP 24bit 192kHz DSD128 Bluetooth aptX AKM 4452VN DAC MAX 97220A Amplifier
![Bouton potentiomètre argent](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs-ap60---02.jpg)
The Hidizs AP60 V2 comes back in a revised and corrected version, while offering a new compact and refined design. The AP60 V2 is a full-featured DAP with many features, ensuring high listening quality.
![Hidizs AP60 v2 Features](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs-ap60---0003.jpg)
A sumptuous new design

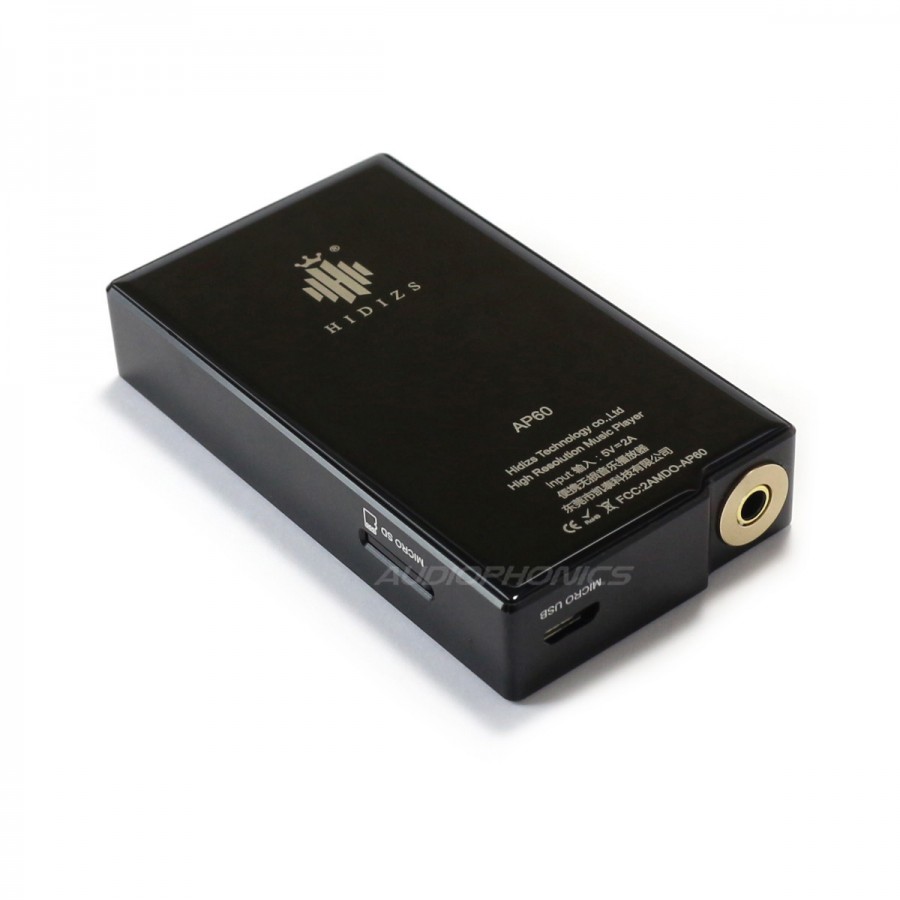

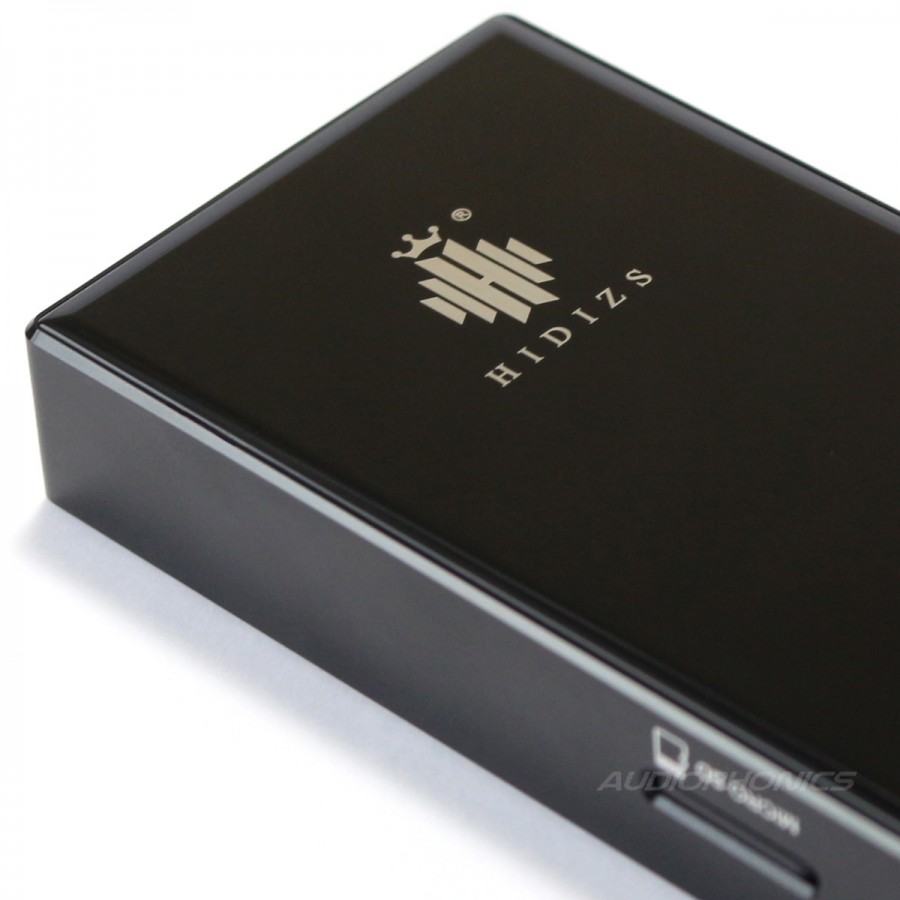

Designed in a CNC-machined case in a single piece of Aluminium, the DAP Hidizs AP60 V2 features an elegant and deep black dress. Its backside is covered with a glass panel, affirming a refined and thoughtful aesthetic.
![Hidizs AP60 v2](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hap60.JPG)
Photo of Gold and Silver models, not available.
Hiby Link Smart Control Support
The AP60 V2 supports the Hiby Link functionality of the Hiby Music playback application, free downloadable here for Android or here for iOS. Hiby Link will allow you to control your DAP directly from your smartphone. This makes the use more convenient and transparent, so you don't even have to take your DAP out of your pocket.
![hiby music hiby link](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs-ap60---inpage9.jpg)
Bluetooth without limits
The Hidizs AP60 V2 integrates Bluetooth 4.0 Two-Way functionality. Thus, thanks to this technology, your DAP can act as a classic transmitter and thus become a high quality music source or receiver, decoding audio signals from other devices (smartphone for example). This way, you can benefit from the conversion quality of the AKM DAC integrated in the AP60 V2.
In addition, it incorporates the Lossless aptX standard. This ensures higher transmission speed, greater stability and protects the signal from possible losses. In this way, you can also enjoy your high-quality Bluetooth music.
![Hidizs AP60 Bluetooth](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs-ap60---inpage10.jpg)
To ensure this excellent Bluetooth quality, the Hidizs AP60 V2 features a CSR chip for lossless, CD-quality playback.
Note: To take advantage of Lossless aptX technology, your Bluetooth listening device must also be compatible with Lossless aptX technology.
A Versatile DAP
The DAC function of the Hidizs AP60 V2 is also capable of operating in "Two-Way" mode. This allows it to act both as a classical DAC, decoding an external source (computer, smartphone...), but also as a pure digital transport when it is connected to a DAC, such as the Chord Mojo or the IFI Micro iDSD.
![hidizs ap60](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs-ap60---inpage12.jpg)
A powerful player
The Hidizs AP60 V2 incorporates both an AKM AKM AK4452VN DAC and MAXIM MAX97220A amplifier. Thanks to these chips, the nomadic player benefits from an extended dynamic range greater than 105dB, a high Signal to Noise Ratio greater than 109dB, efficient channel separation of 106dB and very low distortion with a THD of 0.005%.
The Hidizs DAP is also capable of decoding DSD64/128 and PCM files up to 24bit 192kHz, in order to give you an accurate sound reproduction.
![Hidizs AP60 V2 AKM AK4452VN et MAXIM MAX97220A](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs-ap60---inpage15.jpg)
A large compatibility
It is also efficient because it is compatible with a large majority of the most commonly used audio formats, including DSD64/128.
![Hidizs AP60 V2 Compatibilité](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs%20ap60%20-%20inpage2.JPG)
An ergonomic interface, an high quality display
The Hidizs AP60 V2 offers an extremely efficient interface that is very intuitive, whether for media playback or settings. This way, you can enjoy your music in a simple way. The AP60 V2 features a 2" 320 x 240px TFT HD TFT display and responsive mechanical physical controls.
![hidizs ap60 ergonomie](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs-ap60---inpage17.jpg)
Photo du modèle Silver, non disponible.
High autonomy
The DAP, to ensure a long autonomy during your travels, integrates a 1000mAh battery. This will allow you to use the device for 10 to 12 hours without recharging. Enough to enjoy your music without interruption.
![hidizs ap60 batterie](https://www.audiophonics.fr/img/cms/Images/Produits/12K/12442/hidizs%20ap%2060%20-%2018.jpg)
Technical characteristics
Specifications |
---|
Processor | X1000 |
DAC | AKM AK4452VN |
Headphone amplifier | MAX97220A |
DSD | 64, 128 |
USB/OTG DAC Support | Yes |
Bluetooth | 4.0 aptX Lossless |
Gain setting | High/Low Gain |
Sampling rate | Up to 24bit 192kHz |
Supported formats | FLAC, APE, XMA, WAV, ALAC, AAC, OGG, MP3, AIFF, DSD, DIFF |
Output | Jack 3.5mm |
Output power | 35mW @ 32Ω |
Output impedance | 0.1Ω |
Frequency response | 20Hz - 20kHz (-0.5dB) |
THD+N | 0.005% |
SNR | > 109dB |
Dynamic range | > 105dB |
Channel separation | 106dB |
Memory extension possible | With Micro SD Card, up to 256Go |
Charge port | Micro USB 2.0 |
Battery capacity | 1000mAh |
Battery autonomy | About 10-12 hours |
Supported systems | MAX OSX 10.7, Windows XP/7/8/10 |
General |
---|
Screen | 2" TFT HD 320 x 240px |
Case material | One piece CNC Aluminium + Glass panel at the rear |
Color | Black |
Dimensions | 75 x 42 x 14mm |
Weight | 70g |
Package | 1x Hidizs AP60 V2 1x Plastic Cover 1x USB-A / Micro USB Cable Protection screen User manual |
