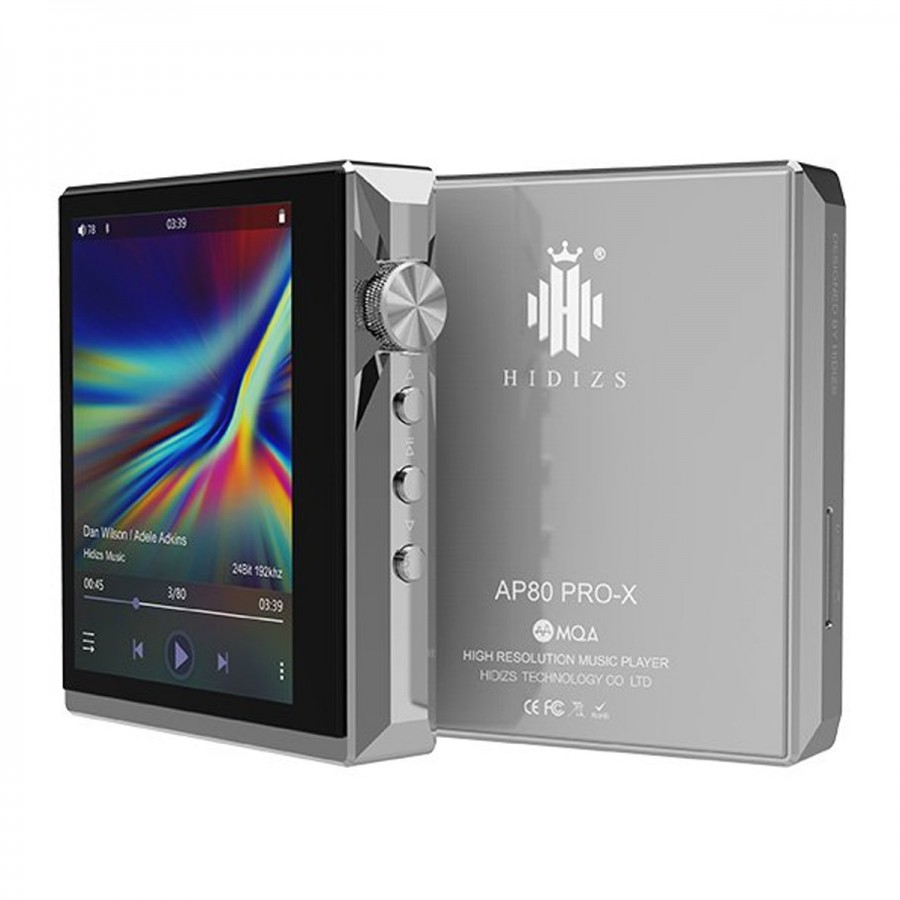

Hidizs AP80 Pro-X
Digital Audio Player DAP Balanced 2x ES9219C Bluetooth 32bit 384kHz DSD256 MQA
The AP80 Pro-X from Hidizs is a compact and powerful digital music player, benefiting from both a neat design and quality components. Behind a 2.45" IPS touch screen are two ESS ES9219C DACs, a powerful FPGA, a Bluetooth chip and a large battery. The AP80 Pro-X is as versatile as it is efficient in terms of sound reproduction.
Dual high performance DAC
The AP80 Pro-X uses a dual ESS ES9219C DAC, ensuring excellent dynamic range (+121dB) and extremely low distortion (SNR 130dB / THD+N -114dB). These chips also enable support for high resolution streams, up to 32bit 384kHz PCM and DSD256. The AP80 Pro-X also offers an output level of up to 2Vrms with an analog gain control to reduce output noise and achieve a rich and accurate sound reproduction.
MQA 8X Support
The new Hidizs DAP also supports MQA (Master Quality Authenticated) technology, allowing playback of MQA audio files, delivering sound as close as possible to the original recording.
FPGA HBC3000
With its onboard HBC3000 FPGA, the AP80 Pro-X supports native DSD up to DSD256. The FPGA also enables clock processing to reduce jitter and promote clear playback.
Connectivity & Design
Although compact, the AP80 Pro-X offers a double output. There is a single-ended 3.5mm jack output and a balanced 4.4mm jack output. The design is not left out either, with a sublime CNC machined aluminum alloy chassis. The edge of the device is equipped with a particularly precise ALPS volume control.
Bi-directional Bluetooth
The AP80 Pro-X supports bi-directional Bluetooth 4.2 as well as HiBy UAT, Sony LDAC and CSR aptX codecs. It ensures high quality wireless playback.
Large battery life
The DAP has an 800mAh battery providing comfortable autonomy for use throughout the day. The AP80 Pro-X has a 40 days standby time, 6 to 8 hours for balanced listening and 8 to 11 hours for single-ended listening.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Digital Audio Player (DAP) |
| Inputs | Bluetooth 4.2 1x Micro SD Slot USB-C |
| Outputs | Bluetooth 4.2 USB-C 1x Single-ended Jack 3.5mm 1x Balanced Jack 2.5mm |
| CPU | Ingenic X1000 |
| DAC Chip | 2x ES9219C |
| Pedometer sensor | KX126 |
| Touchscreen | Samsung 2.45" (480x360) IPS HD |
| FPGA | HBC3000 |
| Potentiometer | ALPS |
| OS | HiBy OS 3.0 |
| Supported Bluetooth codecs | aptX, LDAC, UAT |
| Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 MQA |
| Battery | 800mAh 3.7V Li-Polymer |
| Gain setting | High Low |
| Antialiasing filters | 8 |
| MSEB feature | 10 |
| General | |
|---|---|
| Supply voltage | 5VDC 2A |
| Dimensions | 61 x 54.5 x 13.8mm |
| Color | Gray |
| Input | Bluetooth |
| Input | USB |
| Input | Micro SD |
| Output | Bluetooth |
| Output | USB |
| Output | Jack 2.5mm |
| Output | Jack 3.5mm |
| DAC / ADC Chip | ES9219C |
| Max sampling rate | DSD256 |
| Max sampling rate | 384kHz |
| Max sampling rate | MQA |
| Color | Gray |
