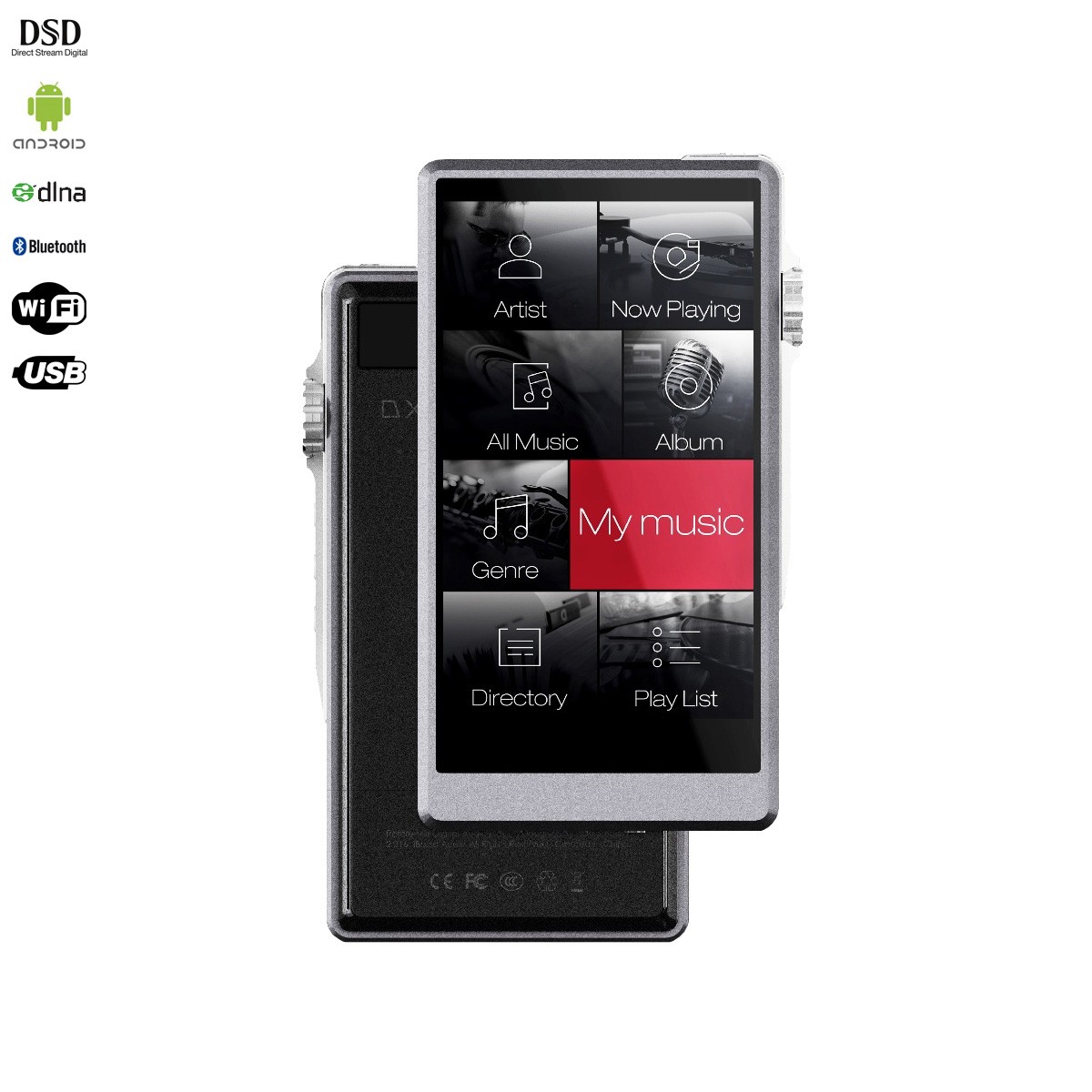

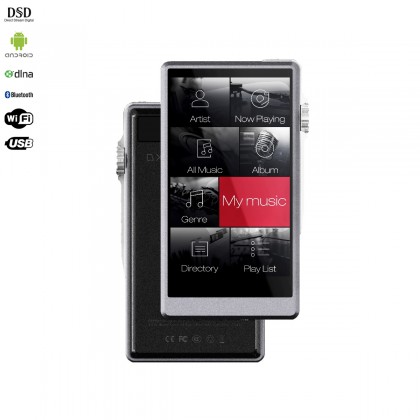

IBASSO DX150 DAP HiFi Music Player DAC 2x AKM AK4490EQ 32bit 384kHz DSD

IBASSO DX150 DAP HiFi Music Player DAC AKM4490 32bit 384kHz DSD
The new iBasso DX150 is a high end DAP based on a solid structure. Dual DAC AK4490EQ, symmetrical design, USB XMOS, interchangeable amplifier. A must have!

Average votes for this product
5.0 / 5

By buying this product you get 41 loyalty points


Reference : 12859
New product

415,83 €tax excl.

Including 0,04 € for green tax
Available

- +

Shipping date: 23-10-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product


More info

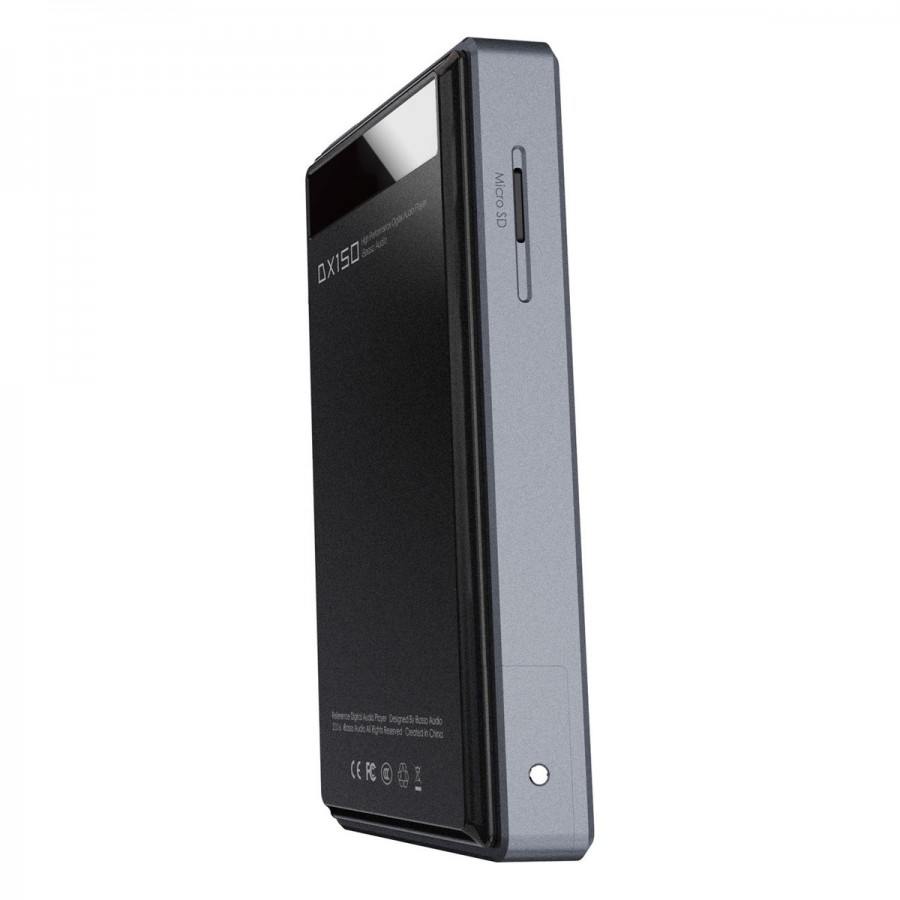

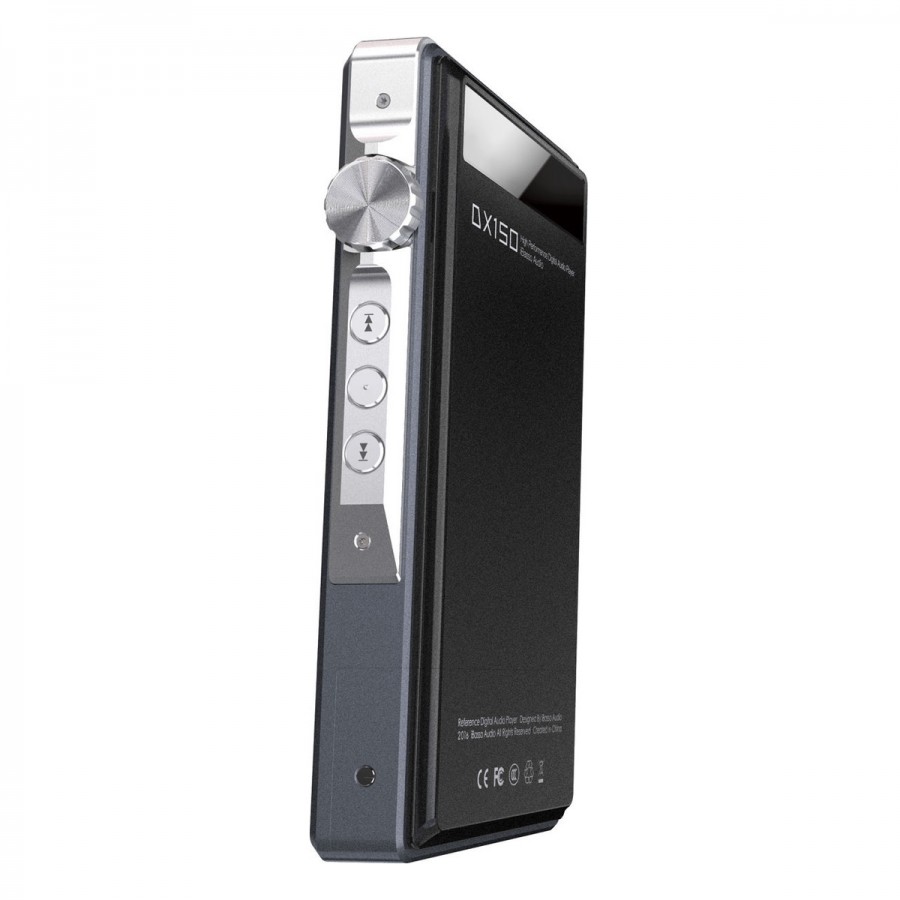

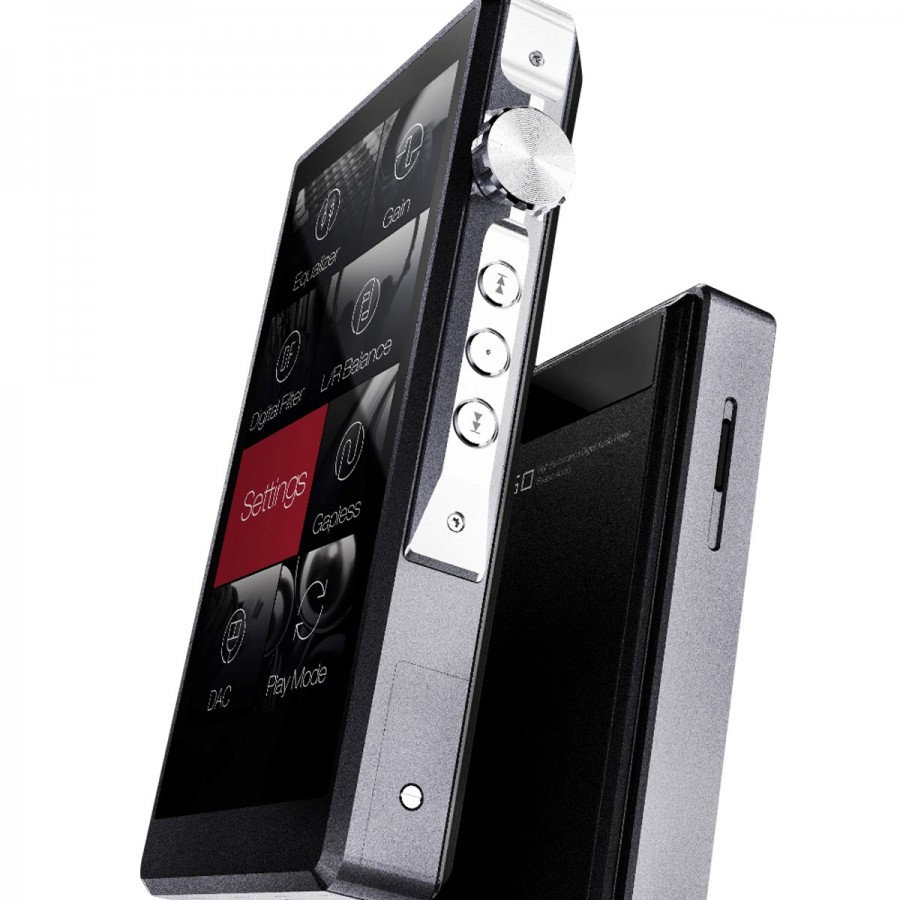

iBasso DX150

DAP HiFi Music Player DAC 2x AKM AK4490EQ 32bit 384kHz DSD

iBasso DX150 DAP Baladeur Numérique HiFi DAC 2x AKM AK4490EQ 32bit 384kHz DSD

A powerful DAP, a sublime screen

To ensure a totally smooth experience and excellent performance, the iBasso DX150 features choice components. This will include an 8-core ARM Cortex-A53 processor coupled with 2GB of LPDDR3 RAM for data processing. The DAP also includes a 32GB eMMC memory, fast and efficient.

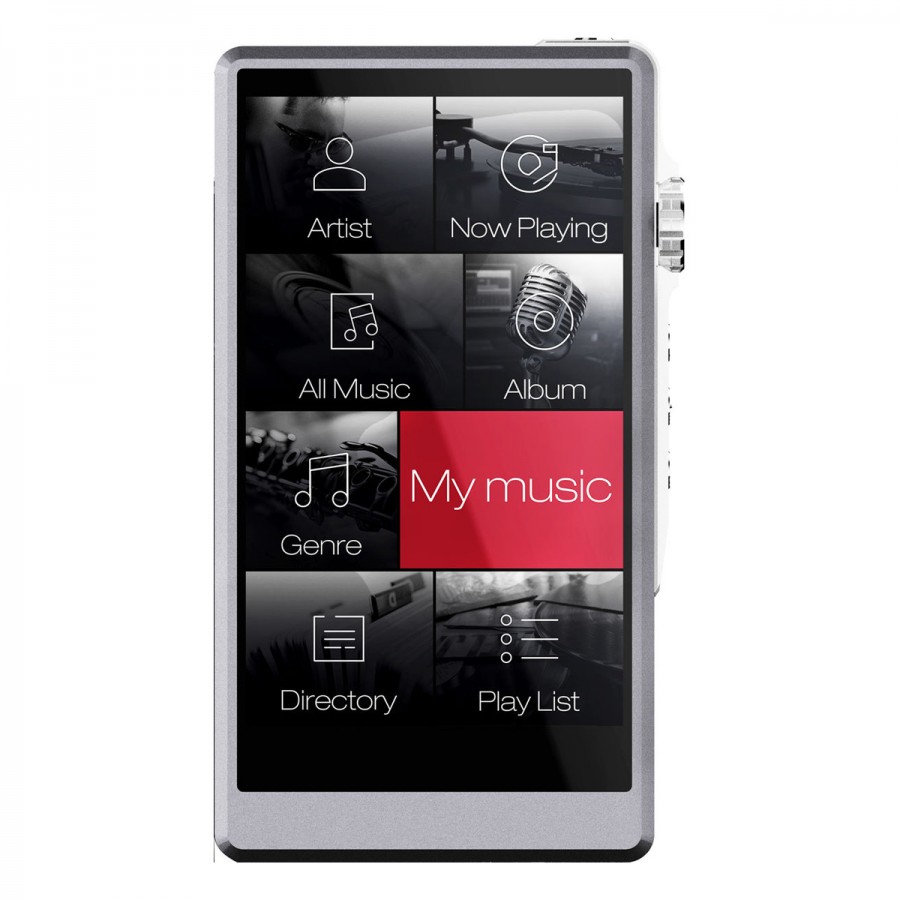

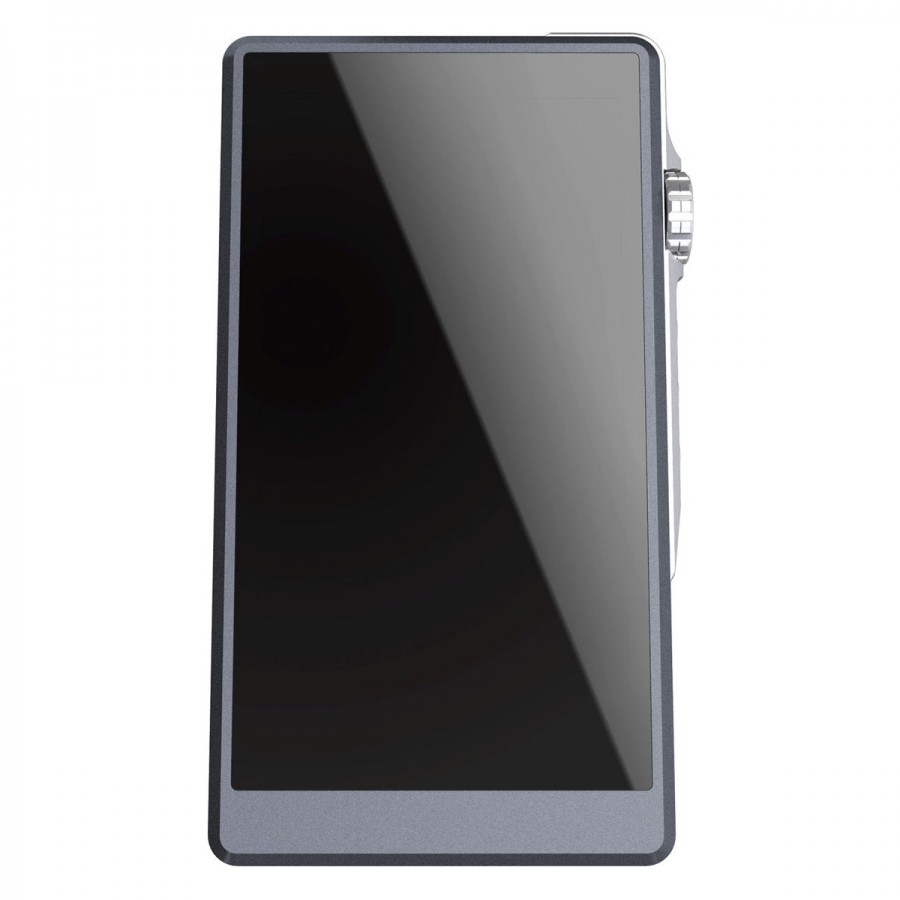

On the display side, there is a superb high definition Retina screen of 4.2 inches and displaying a resolution of 768 x 1280 pixels. A capacitive multi-touch OCA touch screen, allowing intuitive navigation within the interface. The screen is protected by a glass from Mitshubishi allowing a transmission of 93%.

iBasso DX150 DAP Puissant et écran tactile

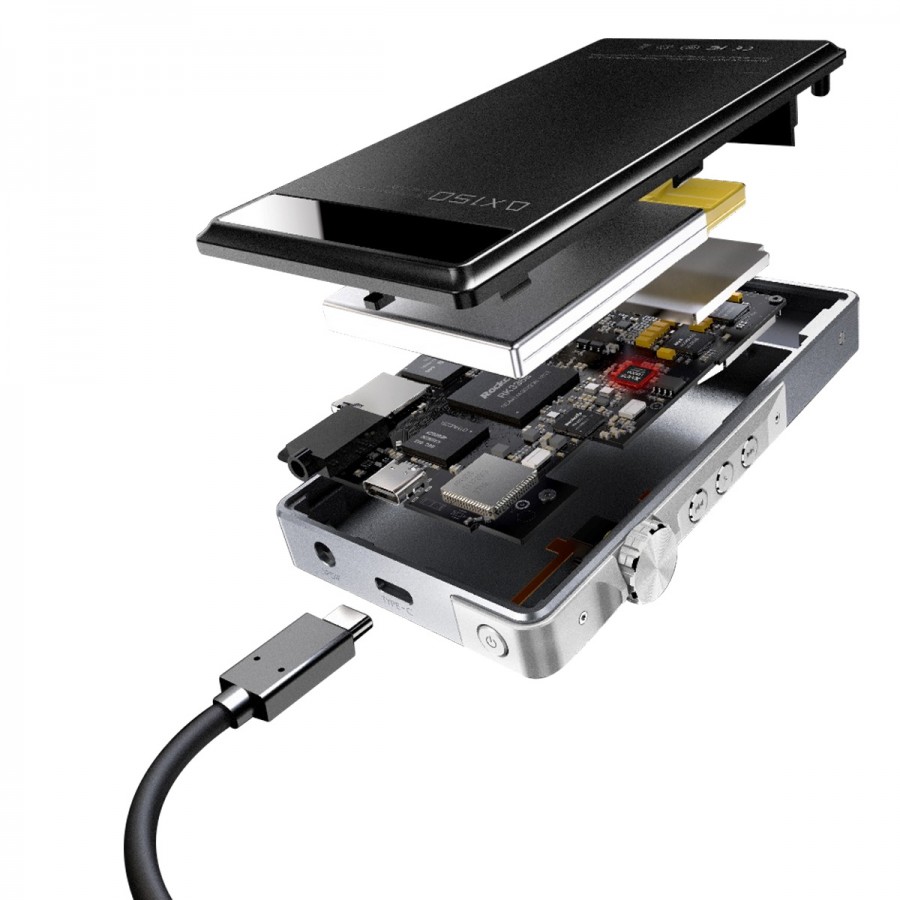

iBasso DX150 DAP avec interface USB XMOS et charge rapide

XMOS XU208 Chipset for a high-performance USB DAC

With its XMOS XU208 USB interface and Thesycon USB driver, the Ibasso DX150 digital walkman can be used as a high-performance USB DAC and provide stunning audio playback.


Fast Charge PD2.0

The DX150 comes with a low resistance 3.8V 4400mAh Li-Polymer battery. With the amplifier module AMP6 supplied, the walkman has an autonomy of approximately 10.5 hours. Enough to listen to your music during your travels throughout the day. In addition, the DX150 offers PD2.0 fast charging via its USB Type C port and is also compatible with QC2.0 fast charging. The PD2.0 supports up to 100W to charge the DX150 in just two hours.

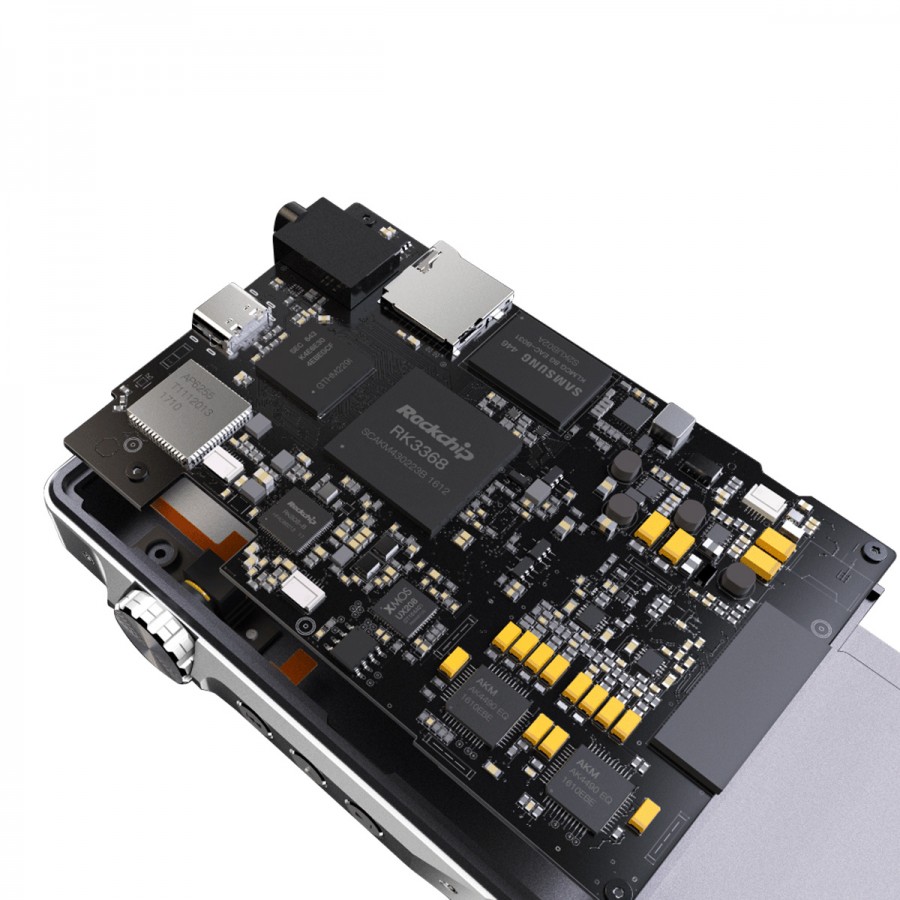

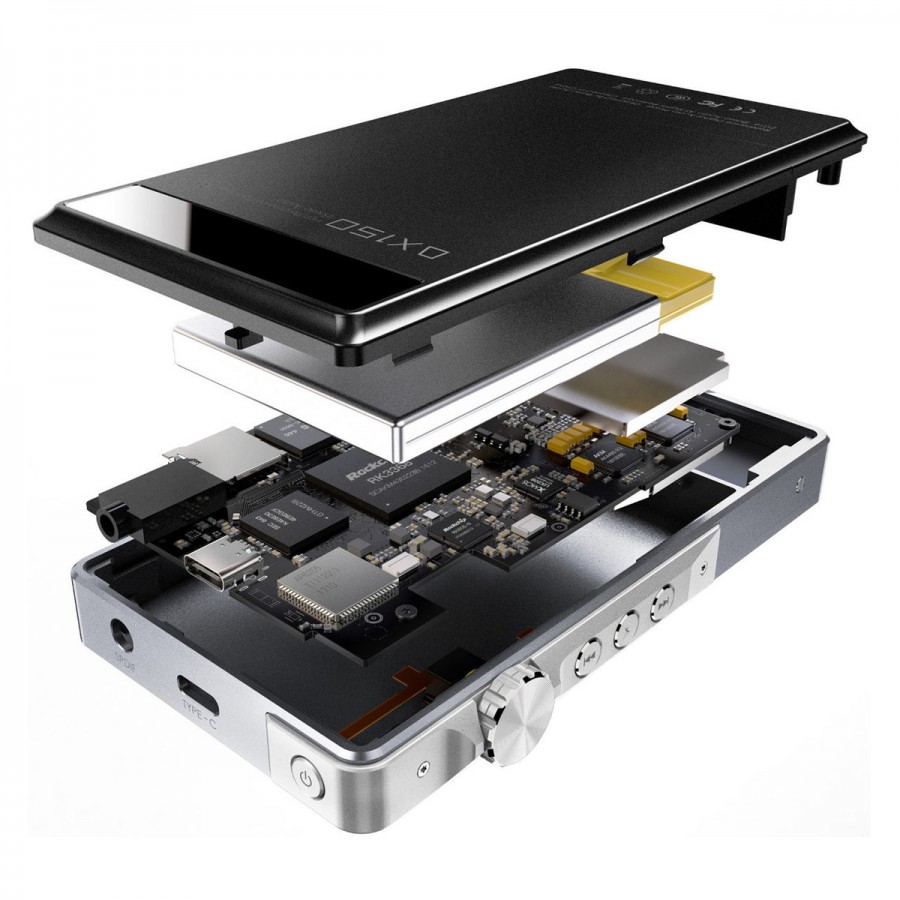

Symmetrical DAC design at outputs

The DX150 uses two AKM AK4490EQ chips for its conversion stage. Each AK4490EQ chip incorporates two DACs. This means that the DX150 has two DACs in parallel for each channel for exceptional playback. In addition, it has several ultra-low noise power controllers to provide these DACs with the cleanest signal possible. The Panasonic film capacitors and symmetrical design allow these two AK4490EQs to reach their full potential. After various tests with measuring equipment (APX525) a THD+N of -110dB and a Signal/Noise Ratio of 118dB were measured. These results clearly show that the DX150 makes full use of the performance of its two DACs.


Full synchronization technology with TCXO and PLL clock

The DX150's DAC is really different from DACs using multiple oscillators. With its TCXO and PLL based synchronization technology, the DX150 reduces jitter to an extremely low level. In addition, with this technology there is no need to change oscillators to adapt to each sampling rate. This eliminates the small "click" that is normally heard when changing the clock. In addition, for the first time a DAP uses PLL technology that is more commonly found in sedentary High End devices. This provides an almost identical input and output clock. With this extremely accurate clock the sound quality is improved for an optimal musical experience.

iBasso DX150 DAP Double DAC, conception symétrique et horloge

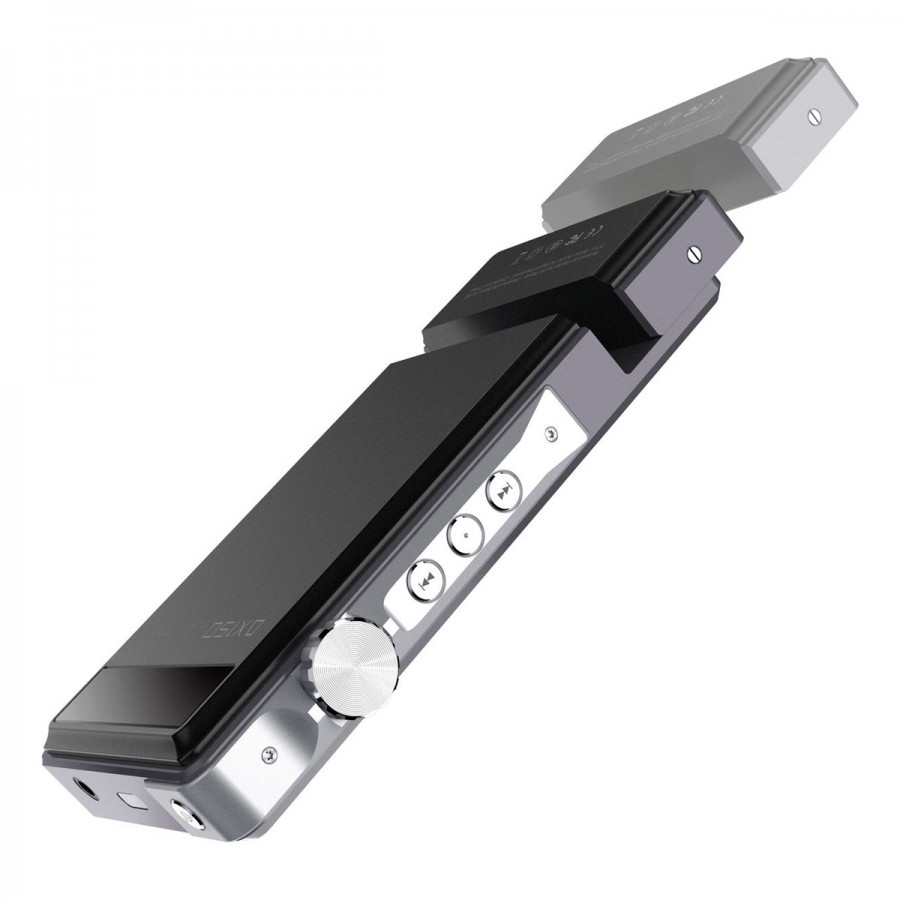

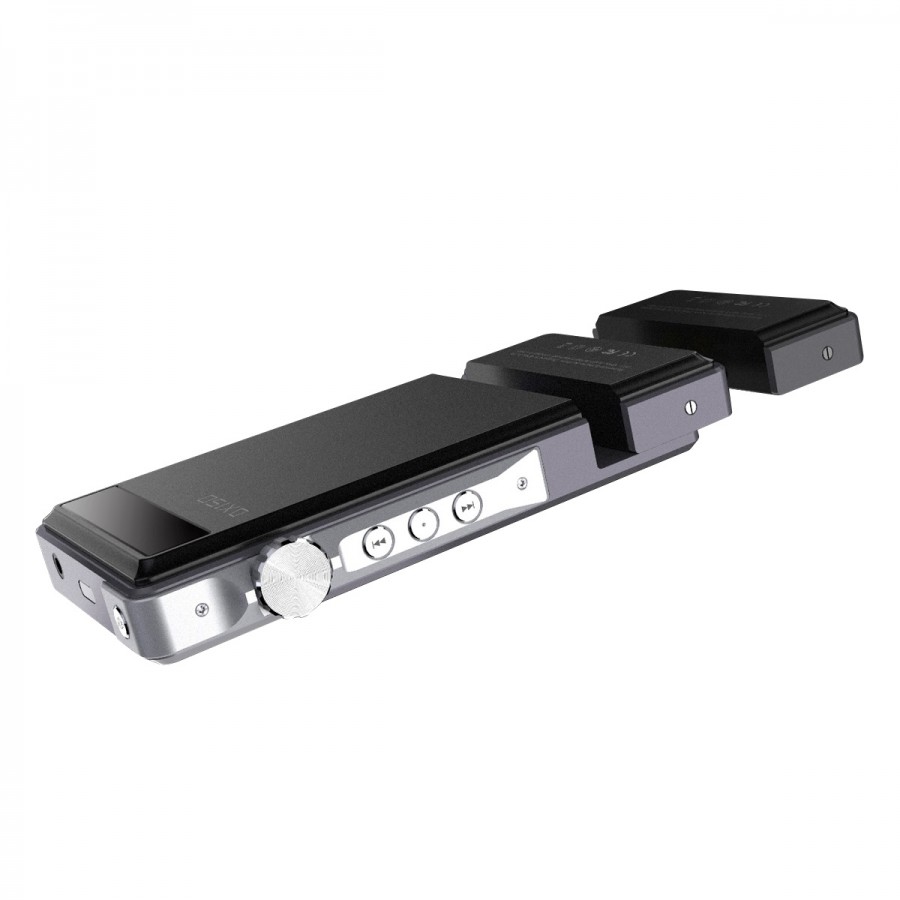

A changeable amplifier module

iBasso DX150 Module amplificateur AMP interchangeable

The DX150 inherits an ingenious feature from the DX200. Indeed, the portable player is compatible with all the AMP amplification modules available for the DX200. As a result, the DX150 can offer listening experiences that are totally different from each other, giving you more choices to tailor your device to your desires.

Ibasso DX150 AMP6

Delivered with AMP6 amplifier module

Featuring TI's brand new buffer and a highly efficient power system, the AMP6 amplifier module dramatically reduces power consumption and heat generation. At the same time, it provides a high level of output power and excellent audio fidelity. and even with its high output power level, the DX150 ensures an autonomy of more than 10 hours.

The AMP6 uses high precision resistors of 0.05% to reduce distortion to a very low level. Combined with Panasonic POSCAP and very low noise power controllers, the DX150 delivers pure, clear and accurate sound.

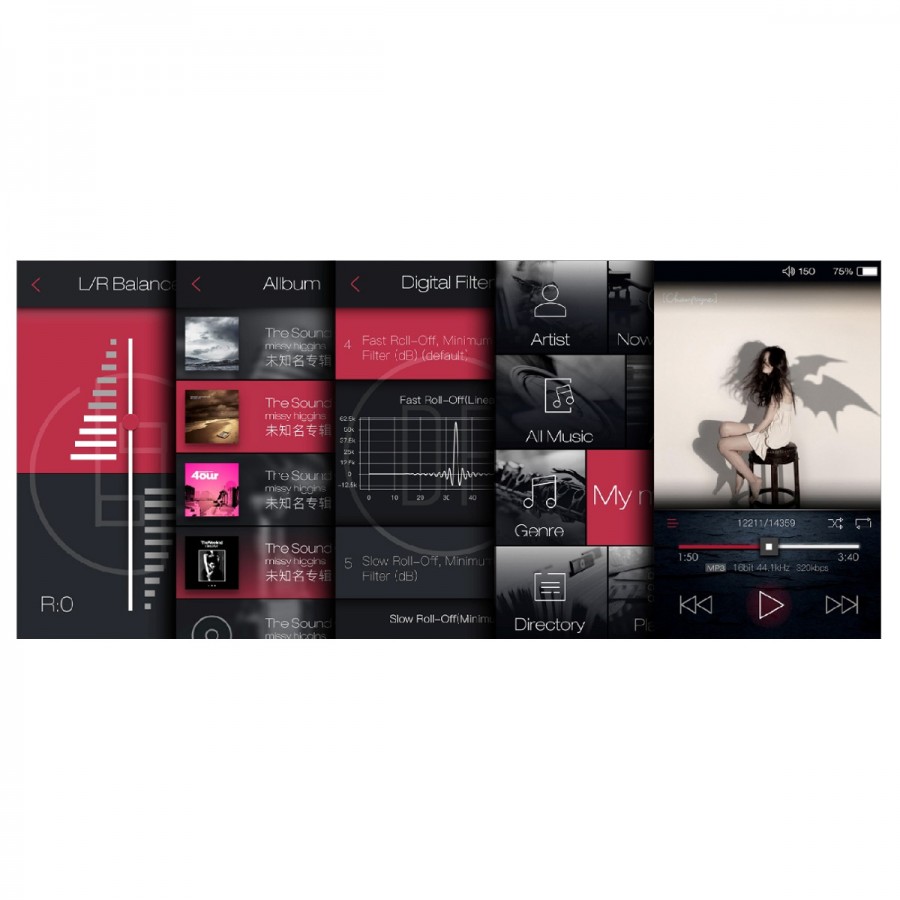

An unbridled Android

iBasso DX150 Android

Inheriting the operating system and drivers of the DX200, the DX150 is capable of exceeding Android sample rate limitations. In other words, the DX150 does not have the Android SRC limitation. Using this optimal structure for audio, the DX150 is able to reproduce every bit with an impressive amount of detail. The Android OS also allows the installation of third-party applications to enjoy your music your way.

Technical characteristics

Specifications
DAC2x AKM AK4490EQ
CPUA53 64bit 8 core
RAM2Go LPDDR3
ROM32Go eMMC
Input1x Micro SD Slot
Bluetooth 4.1
WiFi
Sorties1x Balanced Jack 2.5mm
1x Single-Ended Jack 3.5mm
1x Mini Optical/Coaxial
OSAndroid 6.0
Sampling ratePCM : Up to 32bit 384kHz Native
DSD : Up to DSD256
ClockTCXO and PLL, Fully Synchronization Technology
ScreenRetina Screen
4.2" (10.7cm)
768 x 1280 pixels
Micro SDMicro SDHC and SDXC up to 2To supports
USB InterfaceXMOS XU208. USB Thesycon driver.
Wifi802.11 b/g/n/ac 2.4Ghz/5Ghz
BluetoothBluetooth 4.1
Battery3.8V 4400mAh, Li-Polymer battery MBELL
Quick chargePD2.0. QC2.0 compatible.
Balanced Jack 2.5mm output
Voltage output4.8Vrms (without load)
3.7Vrms (32Ω), 425mW THD+N < 0.001%
Frequency response10Hz - 40kHz +/-0.5dB
THD+N0.00028%, -111dB (without load) @ 2.4Vrms)
0.00032%, -110dB (32Ω @ 2.4Vrms)
Dynamic range (DNR)118dB
S/N118dB
Crosstalk-119dB
Single-Ended Jack 3.5mm output
Voltage output2.4Vrms (without load)
2.4Vrms (32Ω), 185mW THD+N < 0.001%
Frequency response10Hz - 40kHz +/-0.5dB
THD+N0.0004%, -108dB (without load @ 1.2Vrms)
0.0004%, -108dB (32Ω @ 1.2Vrms)
Dynamic range (DNR)117dB
S/N117dB
Crosstalk-115dB
Line output
Voltage output2.4Vrms
Frequency response10Hz - 40kHz +/-0.5dB
THD+N0.0004%, -108dB (without load @ 1.5Vrms)
Dynamic range (DNR)118dB
S/N117dB
General
Autonomy10.5 hours in playback (the play time varies with different sample rates and headphone load)
Dimensions128.5 x 69 x 19.5mm
Weight245g
ColorBlack
Package1x iBasso DX150
1x Protective Case
1x USB-C Cable
1x Coaxial Cable
1x Balanced Burn-In Cable

Data sheet
InputBluetooth
InputWifi
InputMicro SD
InputUSB-C
OutputCoaxial SPDIF
OutputUSB-C
OutputJack 3.5mm
OutputJack 2.5mm
OutputBluetooth
DAC ChipAK4490EQ
Max sampling rateDSD256
Max sampling rate384kHz
ColorBlack
Components / ChipAK4490EQ
