SHANLING M1 Black DAP High Fidelity DAC AK4452 32bit/192kHz DSD

SHANLING M1 Black DAP High Fidelity DAC AK4452 32bit/192kHz DSD

No customer reviews yet, login to write a review.

By buying this product you get 13 loyalty points

Reference : 11359
New product

139,00 €tax incl.

115,83 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 24-09-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans


More info

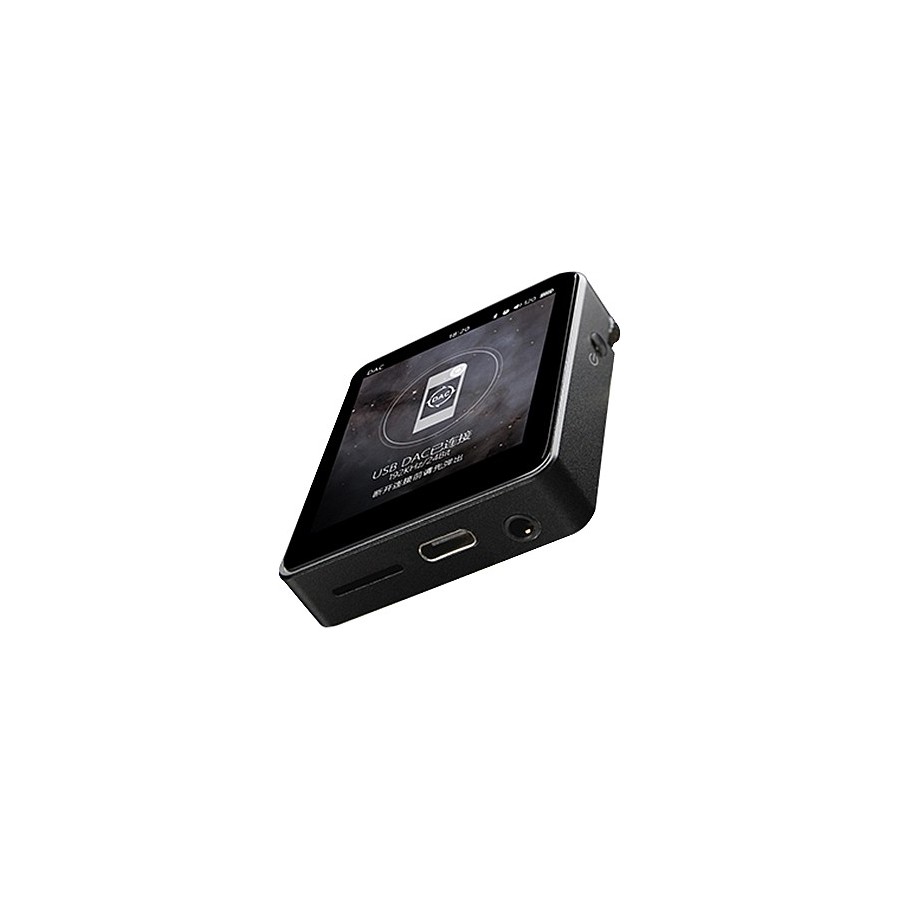

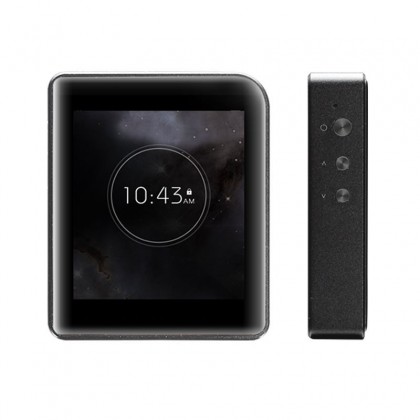

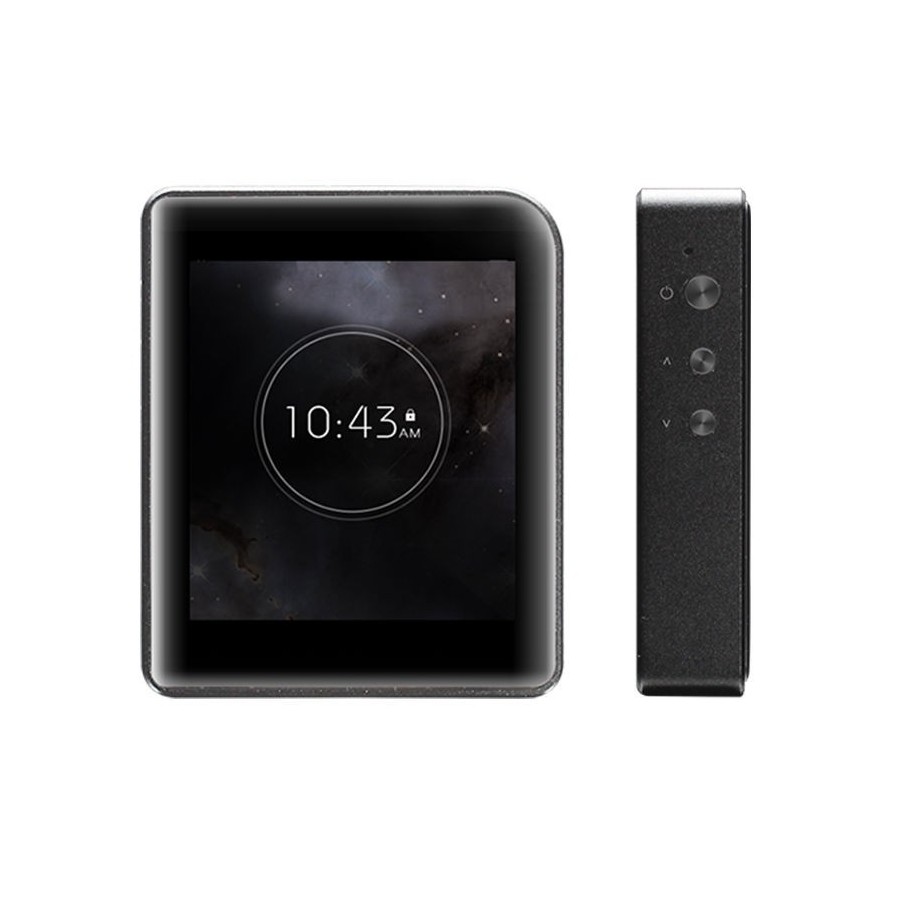

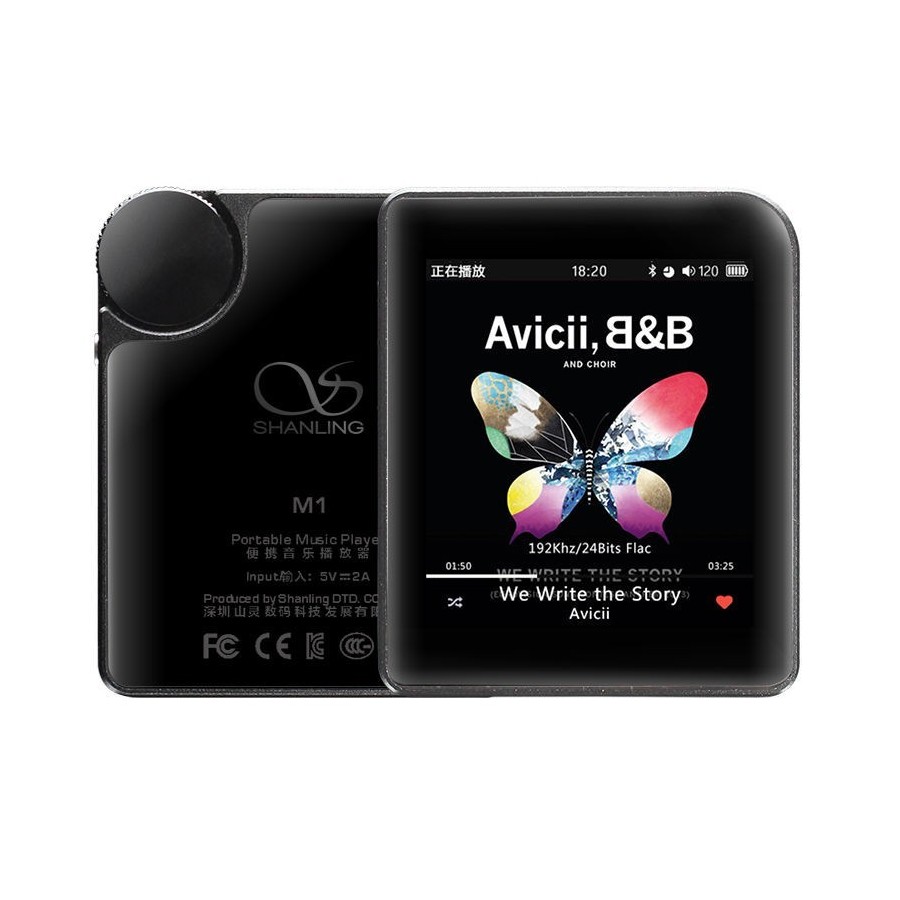

shanling m1 DSDThe famous Shanling brand here unveils the DAP M1 Nomadic High Fidelity Walkman Bluetooth 4.0 APTX.
Designed around a sober and elegant design at the same time, its compactness brings in a pocket-sized audiophile sound.

Ideal for mobile listening, this full-fidelity player offers you the possibility to play virtually all PCM high-resolution audio files up to32bit 192kHzor DSD 64 and 128.

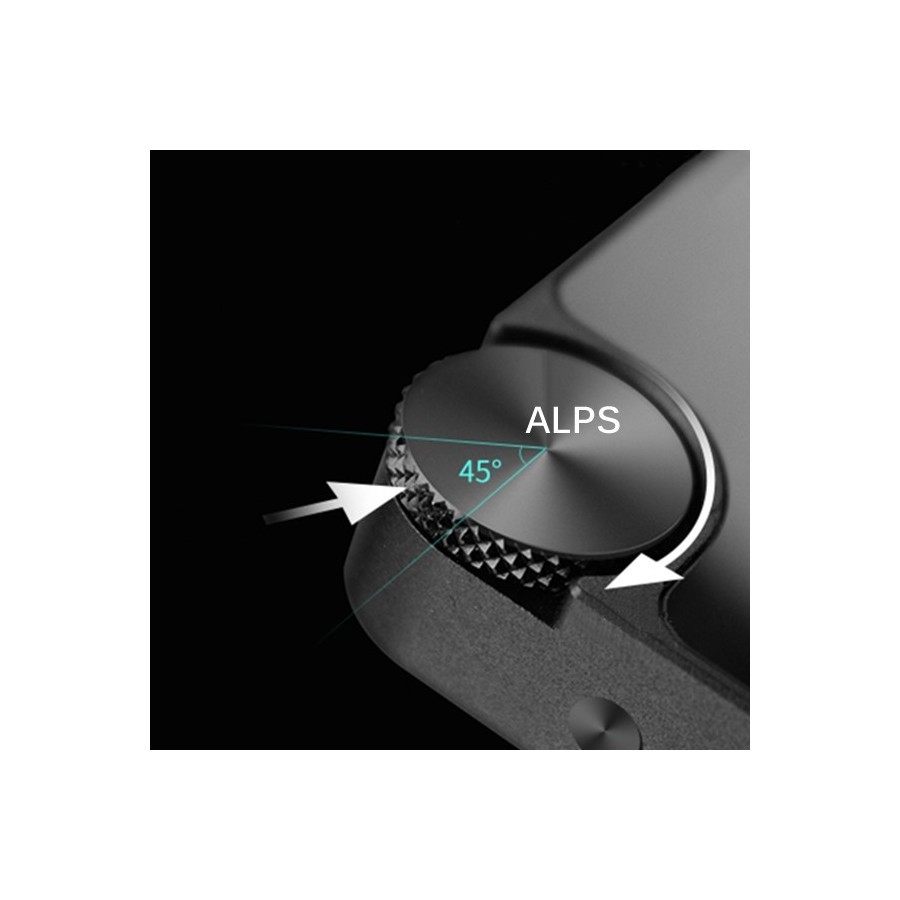

In addition, the analog part features an original ALPS potentiometer for increased reliability and sound fidelity.

This DAP uses a converter32bit AK4452192Khz latest generation as well as a high performance headphone output MAXA97220the result of which is a great musicality. Its very ergonomic design, its careful electronics makes it a successful product that represents an alternative to larger digital players.

Of course this player is alsoDAC OTG.

Features:/ Strong>

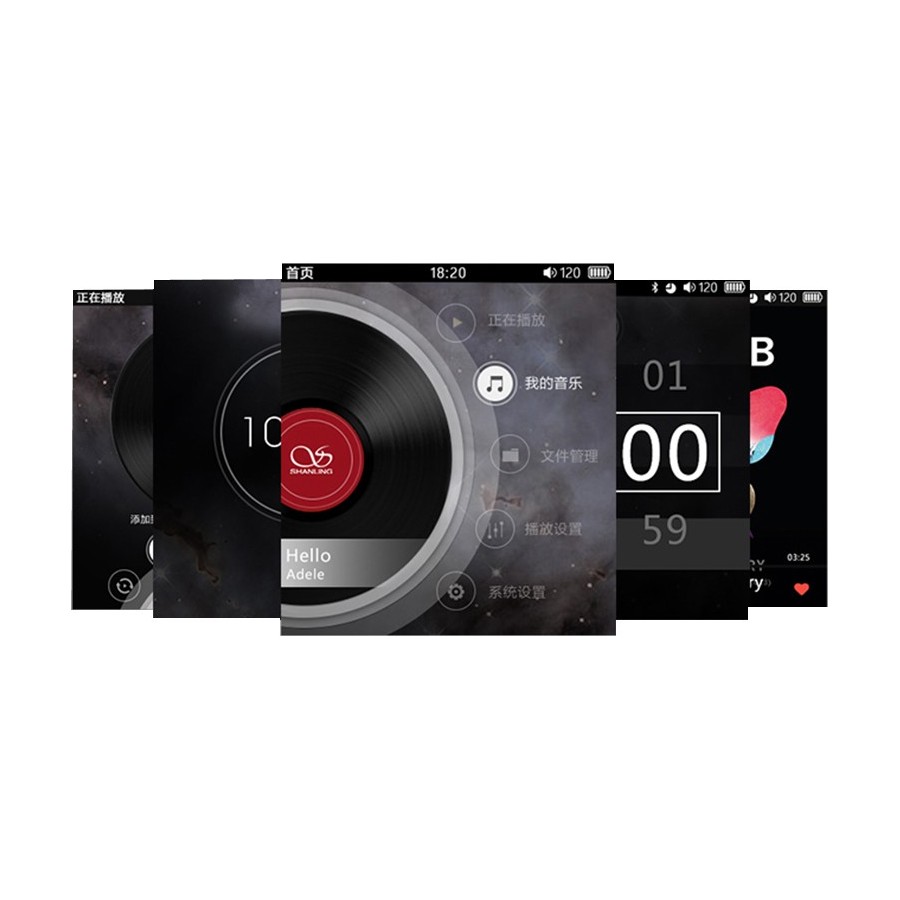

  • Screen: 2.35 "TFT (360x400)
  • Support DSD: Supported and converts to PCM by software channel
  • Bluetooth receiver: Version: 4.0 APT-X
  • DAC conversion component: AK4452
  • Amplification chipheadphone: MAX97220
  • Two-level gain (high / low)
  • Supported formats: APE, FLAC, ALAC, WMA, AAC, OGG, MP3, WAV, AIFF, DSF, DFF
  • Supported sampling frequencies: 44.1-192 kHz
  • Headphone output power: 35mW @ 32Ω
  • Bandwidth: 20Hz to 20kHz (-0.5dB)
  • Distortion: 0.006% (A-weighting, 500mV output)
  • S / N:> 105dB (A-weighting)
  • Dynamic capacity:> 105dB
  • Output Impedance: 0.1Ω
  • Channel separation> 70dB (1 kHz)
  • Jitter: 30ps (Typ)
  • Reference clock: 200 femtoseconds
  • Battery: 950mAH, 9-10 hours of operation (manufacturer data), 3-4 hours of charging
  • OS: Windows XP, 7, 8, 10 (32/64 bit), Mac OS X 10.7 or above


  • USB: Type-C
  • Headphone output: 3.5mm jack
  • Micro SD card reader: 1 TF (up to 200GB)

Dimensions and weight:

  • Width: 60 mm
  • Depth: 12.8 mm
  • Height: 50 mm
  • Weight: 60g
  • Black color
  • Comes with 3 screen protectors / USB-C cable to USB-C 15cm / USB-C cable to USB-B 15cm / USB-C cable angled to USB-C angled 15cm

Hi-Res Audio Certification Shanling M1

: Center; ">shanling m1 DSD

shanling m1 DSD

Casque Shanling M1

Casque audio Shanling M1

Casque Shanling M1

Data sheet
Channel2 channels (Stéréo)
