SHANLING M1 White DAP High Fidelity DAC AK4452 32bit/192kHz DSD

SHANLING M1 White DAP High Fidelity DAC AK4452 32bit/192kHz DSD

Average votes for this product
4.5 / 5

By buying this product you get 13 loyalty points

Reference : 11494
New product

139,00 €tax incl.

115,83 € tax excl.
Including 0,05 € for green tax
This product is no longer in stock
Produit garantie 2 ans


More info

shanling m1 DSDThe famous Shanling brand here unveils the DAP M1 Nomadic High Fidelity Walkman Bluetooth 4.0 APTX.
Designed around a sober and elegant design at the same time, its compactness brings in a pocket-sized audiophile sound.

Ideal for mobile listening, this full-fidelity player offers you the possibility to play virtually all PCM high-resolution audio files up to32bit 192kHzor DSD 64 and 128.

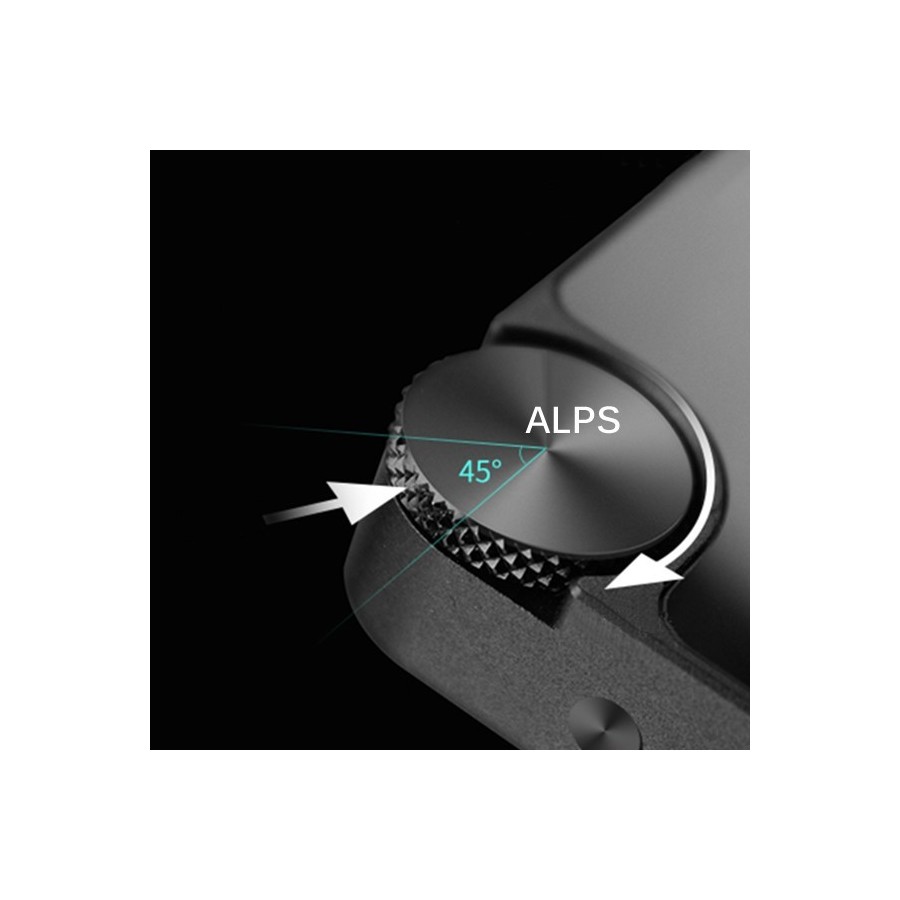

In addition, the analog part features an original ALPS potentiometer for increased reliability and sound fidelity.

This DAP uses a converter32bit AK4452192Khz latest generation as well as a high performance headphone output MAXA97220the result of which is a great musicality. Its very ergonomic design, its careful electronics makes it a successful product that represents an alternative to larger digital players.

Of course this player is alsoDAC OTG.

Features:/ Strong>

  • Screen: 2.35 "TFT (360x400)
  • Support DSD: Supported and converts to PCM by software channel
  • Bluetooth receiver: Version: 4.0 APT-X
  • DAC conversion component: AK4452
  • Amplification chipheadphone: MAX97220
  • Two-level gain (high / low)
  • Supported formats: APE, FLAC, ALAC, WMA, AAC, OGG, MP3, WAV, AIFF, DSF, DFF
  • Supported sampling frequencies: 44.1-192 kHz
  • Headphone output power: 35mW @ 32Ω
  • Bandwidth: 20Hz to 20kHz (-0.5dB)
  • Distortion: 0.006% (A-weighting, 500mV output)
  • S / N:> 105dB (A-weighting)
  • Dynamic capacity:> 105dB
  • Output Impedance: 0.1Ω
  • Channel separation> 70dB (1 kHz)
  • Jitter: 30ps (Typ)
  • Reference clock: 200 femtoseconds
  • Battery: 950mAH, 9-10 hours of operation (manufacturer data), 3-4 hours of charging
  • OS: Windows XP, 7, 8, 10 (32/64 bit), Mac OS X 10.7 and above


  • USB: Type-C
  • Headphone output: 3.5mm jack
  • Micro SD card reader: 1 TF (up to 200GB)

Dimensions and weight:

  • Width: 60 mm
  • Depth: 12.8 mm
  • Height: 50 mm
  • Weight: 60g
  • White Colour
  • Comes with 3 screen protectors / 1 USB-C cable to USB-C 15cm

Hi-Res Audio Certification Shanling M1

shanling m1 DSD

Casque Shanling M1

Casque audio Shanling M1

Casque Shanling M1

Data sheet
Channel2 channels (Stéréo)
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
4.5 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
Date :
Un petit bijou !
Malgré toutes les illustrations du site et les vidéos sur le produit ce n'est qu'à l'ouverture de la boite que l'on réalise que ce M1 est un vrai bijou. Très bien fini et surtout très petit et léger mes premières écoutes de musique très diverses me confortent dans le sentiment qu'il remplacera très agréablement un viel iPod Classic à bout de souffle.
Merci à Audiophonics de me l'avoir fait découvrir (et de l'avoir livré dans un temps record !)
Un seul commentaire: le descriptif mentionne plusieurs câbles USB-C mais la boite n'en comporte qu'un seul (USB-C USB-A)
This review has been posted for SHANLING M1 White DAP High Fidelity DAC AK4452 32bit/192kHz DSD
Note :
Date :
Lecteur fun
C'est un petit bijou de conception et fabrication, idéal en nomadisme pour celles et ceux qui veulent s'encombrer un minimum, sans se priver notemment d'un bel écran. Attention cependant, tout ici est fin et précis mais petit ( les commandes aussi ) et s'il remplira très bien son rôle à l'exterieur, il ne conviendra pas forcément à une écoute posée et plus exigente en terme de rendu sonore mais aussi de confort d'utilisation. C'est un petit Dap en adéquation avec son prix.
This review has been posted for SHANLING M1 White DAP High Fidelity DAC AK4452 32bit/192kHz DSD
