Digital Audio Player DAP 2x ES9219C Bluetooth MQA 32bit 384kHz DSD256
The Shanling M3X is a high quality portable music player with a well thought-out and optimized design. It is based on a powerful Qualcomm Snapdragon 430 processor, an Open Android OS operating system and two ESS ES9219C digital-to-analog conversion and amplification chips. Practical, it supports Bluetooth remote broadcasting, but also offers both unbalanced and balanced output. Particularly compact with its 3:2 screen format, it will simply slip into a pocket to accompany you on all your travels.
The M3X is the first DAP to use the new ESS ES9219C combined digital-to-analog conversion and amplification chip. These offer excellent sound quality, while supporting high resolution files, up to PCM 32bit 384kHz, DSD and MQA. They also ensure low power consumption for longer battery life.

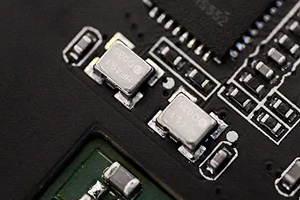

The Shanling M3W uses two KDS active clocks and an FPGA to process the clock signals and promote perfect synchronization for minimal jitter. The result is accurate decoding of PCM and DSD streams for equally accurate playback.
With an optimized audio circuit and the possibility of using only one DAC chip, the M3X offers a large autonomy, allowing you to listen all day long. Its 3200mAh battery allows a 23 hours autonomy on 3.5mm jack output in Single DAC mode or 20 hours in Dual DAC mode, 19 hours on 4.4mm balanced jack output or 46 hours in Bluetooth.
The DAC chips used in the M3X provide native hardware support for MQA (Master Quality Authenticated), allowing you to enjoy superior sound quality.
The M3X combines a powerful Qualcomm Snapdragon 430 processor, 2GB of RAM and the Open Android operating system for a fast and smooth experience. The Open Android OS also provides great flexibility, allowing you to enjoy your favorite streaming applications, for example. The AGLO technology ensures a perfect processing of audio data.

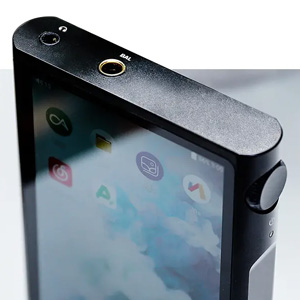

The M3X offers both an unbalanced 3.5mm jack output and a balanced 4.4mm jack output to match your headphones. The latter output allows you to enjoy a higher audio quality, but also a higher output power.
Shanling M3X can connect via Bluetooth to your headphones or speakers, but also to your phone for convenient wireless use. It supports Bluetooth codecs such as aptX, LDAC or LHDC for rich and faithful sound reproduction.
The M3X can also be connected to a computer in USB DAC mode but also as a USB interface.
| Specifications | |
|---|---|
| Product type | Digital audio player (DAP) |
| Inputs | Bluetooth Micro SD slot (SD Card not included) |
| Outputs | 1x Single-ended Jack 3.5mm 1x Balanced Jack 4.4mm Bluetooth |
| OS | Open Android 7.1 |
| Bluetooth version | 4.2 |
| Supported Bluetooth codecs | Transmission: LDAC, LHDC, aptX HD, aptX, SBC Reception: LDAC, SBC |
| Screen | Sharp 4.2" 768x1280px |
| Sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 MQA |
| Gain | High Low |
| RAM | 2GB |
| Internal storage (ROM) | 32GB |
| DAC Chips | 2x ESS ES9219C |
| Battery | 3200mAh |
| Autonomy | 23h @ Jack 3.5mm, Single DAC 20h @ Jack 3.5mm, Dual DAC 19h @ Balanced Jack 4.4mm |
| Supported file formats | DSF, DFF, ISO, DXD, APE, FLAC, WAV, AIFF, AIF, DTS, MP3, WMA, ACC, OGG, ALAC, MP2, M4C, AC3, M3U, M3U8, OPUS, ISO (except DST) |
| Jack 3.5mm Output | |
|---|---|
| Channel separation | 75dB @ 32Ω |
| Dynamic range | 121dB |
| Noise floor | > 114dB (1.8µV) |
| Power output | Single DAC : 80mW @ 32Ω Dual DAC : 101mW @ 32Ω |
| Balanced Jack 4.4mm Output | |
|---|---|
| Frequency response | 20Hz - 40kHz (-0.5dB) |
| Channel separation | 115dB @ 32Ω |
| Dynamic range | 121dB |
| Noise floor | > 112dB (2.4µV) |
| Power output | 240mW @ 32Ω |
| General | |
|---|---|
| Dimensions | 109 x 72 x 15.9mm |
| Weight | 168g |
| Input | Bluetooth |
| Input | Micro SD |
| Output | Jack 3.5mm |
| Output | Bluetooth |
| Output | Jack 4.4mm |
| DAC / ADC Chip | ES9219C |
| Max sampling rate | 384kHz |
| Max sampling rate | DSD256 |
| Color | Black |
