Shanling M6

DAP Open Android / Dual AK4495SEQ 768kHz DSD128 with balanced output and bidirectional bluetooth




Shanling's M6 is a DAP with exceptional audio performance. It uses a version of Android OS specifically customized to maximize audio performance and offer great freedom to its user.

Featuring a tremendous electronic design, it uses two excellent DAC AK4495SEQ, and has its own FPGA correction circuit with crystal oscillators. M6 uses a Octa-core Qualcomm processor with 4GB of RAM, 32GB of internal memory and a micro SD card reader supporting cards up to 2TB.



Advanced Audio System


Shanling's M6 uses two AKM AK4495SEQ DAC chips simultaneously to process separately each channel of the stereo signal. This configuration allows a clear channels separation with a wide soundstage.

Each of these DAC chips is accompanied by a KDS low phase noise crystal oscillator and has a correcting / filtering made by FPGA running an algorithm that has been developped for best performance with the M6.

Two ADI AD8397 amplifiers drive the balanced output and provide considerable power with extremely low a noise level. A third AD8397 chip is used to make sure all the capacity of the two DACs are used when using its unbalanced output.

As usual, Shanling equipped its M6 with Tantalum-Polymer Panasonic capacitors. Four capacitors ELNA Silmic II are used as well.

The whole audio circuit has its own shielding to provide isolation from the rest of the electronics and to avoid any uptake noise.

Balanced and unbalanced output

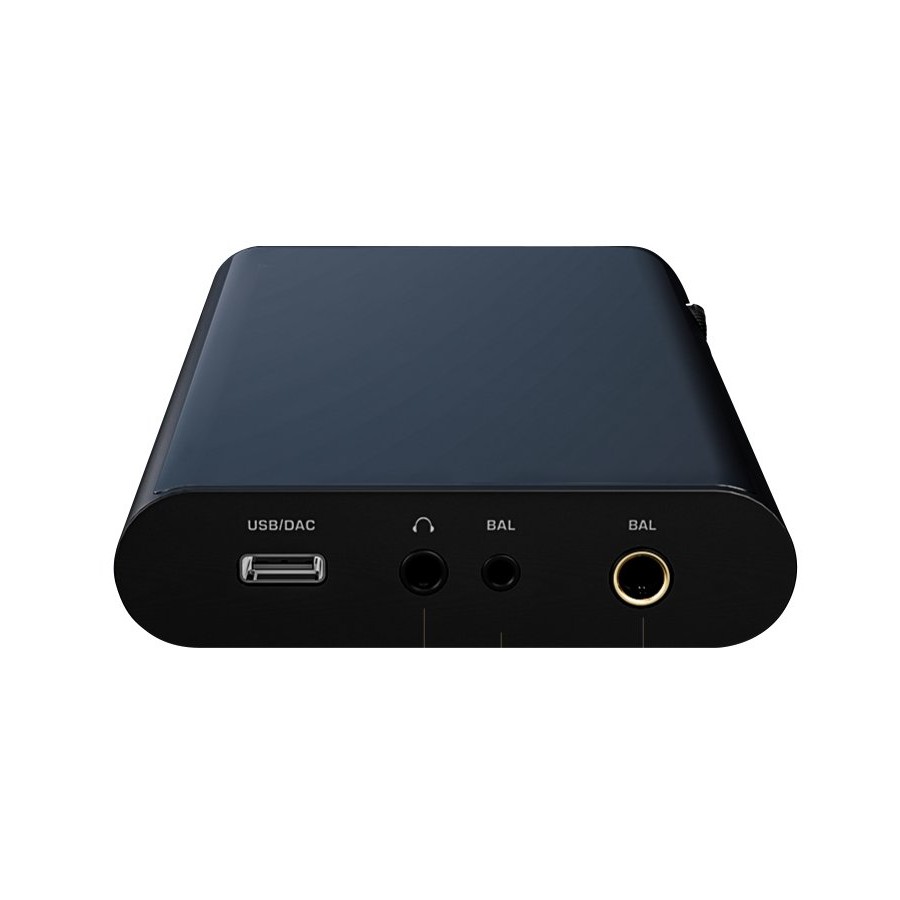

The M6 provides a wide range of outputs such as an unbalanced output on Jack 3.5mm connector, a balanced output on Jack 2.5mm connector and a second balanced output Jack 4.4mm connector. This is enough to ensure compatibility with most of the headset technology or models available without any additional adapter.

There is also a very useful USB connector to extract the digital stream to send it on an external DAC if necessary.

All connectors are located on the same side of the case for easy handling.

Android Operating System


The embedded operating system is a version of Android optimized for audio, that is to say the M6 ​​benefits from the flexibility of this system without encountering the conversion and sampling issues which are pretty common in Android.

Thus, the M6 ​​can install and run with ease all the (many) playback applications, equalization and signal processing available on Android with all the advantages that this represents in terms of scalability.

This also allows the use of all present and future streaming platforms that are Android compatible.

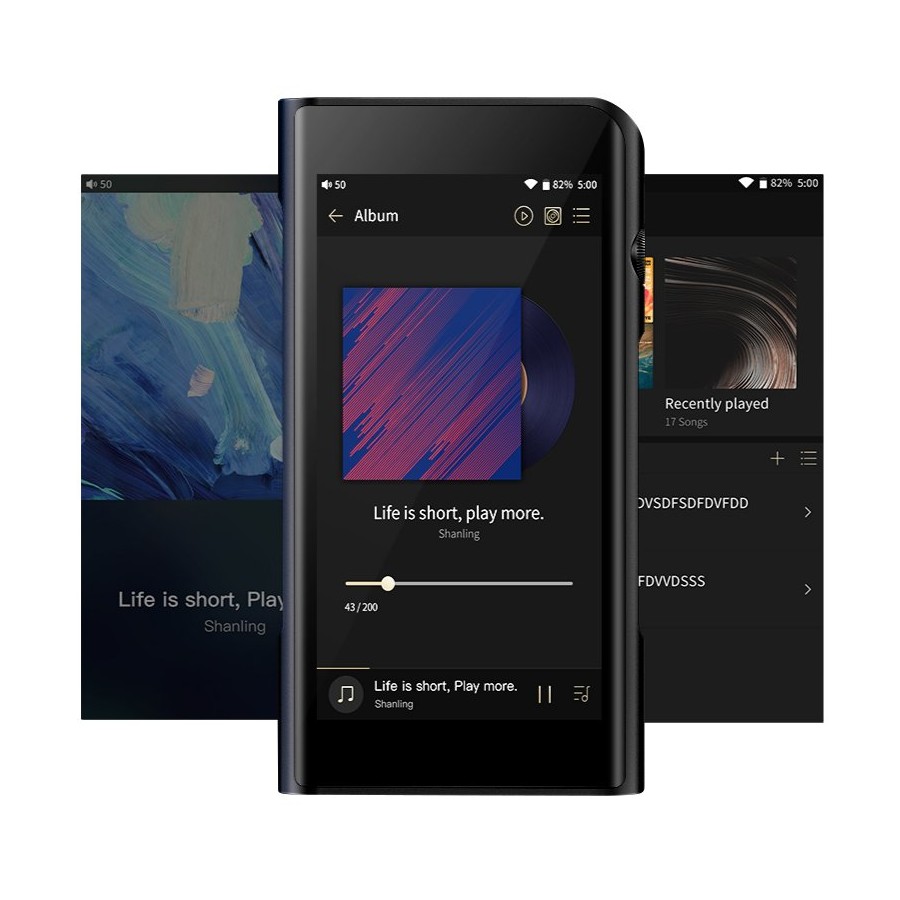

Naturally, Shanling's playback application is already installed by default and your M6 is operational out of the box without the need for special installation. This simple application is designed to allow easy access to all the DAP capabilities and natively integrates a 10-band graphic equalizer.

Wireless connectivity


Shanling's M6 is equipped with Wi-Fi connectivity 2.4G / 5G ideal for high definition audio streaming, very helpful to make updates on the fly or to customize the player with your own playback / processing signal apps.

The device also has Bluetooth connectivity for complete compatibility with all headphones / Bluetooth EMI and with connected speakers.

The Bluetooth connection is bidirectional, this means that the opposite scenario is possible: you can use the M6 ​​as Bluetooth HiFi receiver with integrated DAC to easily switch between multiple sources while taking advantage of its excellent audio capabilities.

The LDAC codecs are supported SBC (bidirectional) and HWA LHDC apt-X & apt-X HD (transmission only). An LED located just above the volume button indicates the type of codec currently used  with a color code which allows to verify that the transmission is done in the best possible way.

Large HD IPS touchscreen


The device has a superb HD touch screen 4.7 inches 16 Million colors for a striking effect.

The latter is made of tempered glass which has great durability and also benefits from oleophobic antifingerprints coating.

Large 4000mAh battery


With its 4000mAh battery, the M6 ​​can offer up to 12 hours of continuous playback on its unbalanced output and 9a hours on its balanced outputs.

The unit also benefits from Qualcomm Quick Charge 3.0 technology to charge the device quickly.

Specifications
TypeDAP
Operating systemAndroid 7.1
ProcessorOcta-core Qualcomm Snapdragon 430
RAM4GB
Storage memory32GB
Micro-SD
DAC2x AK4495SEQ
Amplifier3x AD8397
CorrectionFPGA
Outputs3.5mm (asymmetric)
2.5mm (balanced)
Jack 4.4mm (balanced)
USB (external DAC)
Bluetooth LDAC / SBC / HWA LHDC / apt-X / apt-X HD
WiFi 2.4 / 5G
InputsUSB (for file transfers)
Micro-SD
WiFi 2.4 / 5G
Bluetooth LDAC / SBC
Supported audio formatsDSF / FDF / ISO / DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA / ACC / OGG / ALAC / MP2 / M4A / AC3 ​​/ M3U / M3U8
Sample Rate32bit - 768kHz / DSD 128 (hardware) DSD 256 (Software)
GainPreset High Gain / Low Gain
Unbalanced outputPower: 168 mW @ 32Ω
SNR: 118dB
Channel separation: 75dB @ 32Ω
Dynamics: 118dB
THD + N: 0.001%
Output impedance: less than 1Ω
Balanced outputPower: 350 mW @ 32Ω
SNR: 119dB
Channel separation 109dB @ 32Ω
Dynamics: 119dB
THD + N: 0.001%
Output impedance: less than 2Ω
ScreenIPS 4.7 inches 16M colors Touch
Drums4000 mAh
Dimensions71 x 17.5 x 133.5mm
Weight228g

Data sheet
InputWifi
InputUSB
InputMicro SD
InputUSB 2.0
InputBluetooth
OutputWiFi
OutputUSB
OutputJack 2.5mm
OutputBluetooth
OutputJack 3.5mm
OutputJack 4.4mm
DAC ChipAK4495SEQ
Max sampling rateDSD128
Max sampling rate768kHz
ColorBlack
